JST SXA-001T-P0.6
Features
-Pitch Size: The pitch refers to the distance between the centers of adjacent contacts. In this case, it's 2.50mm, which is the standard spacing for this type of connector. This pitch size is chosen for compatibility with other components and connectors designed to the same specification.

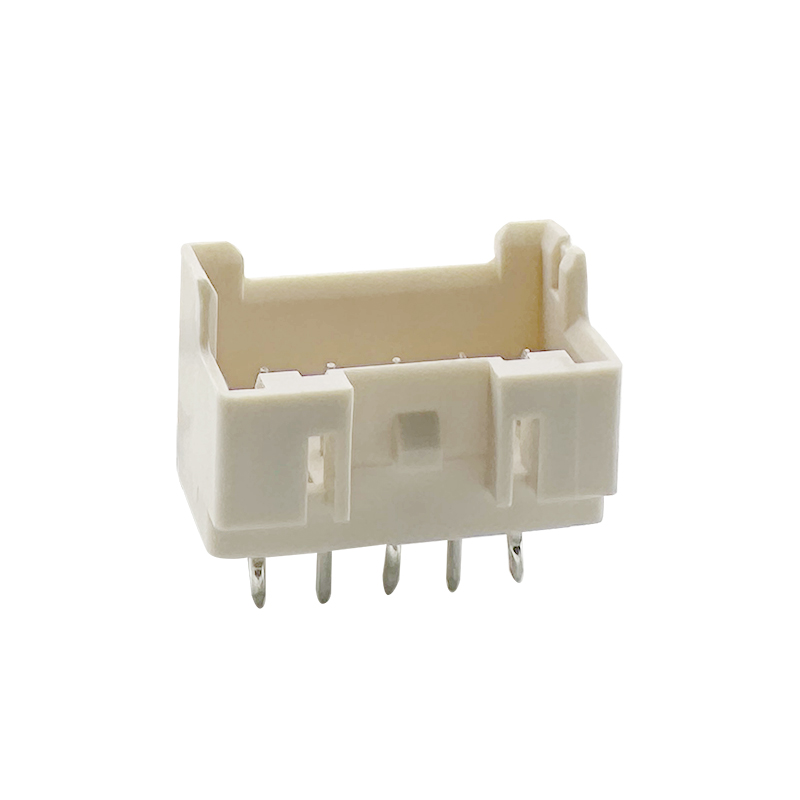

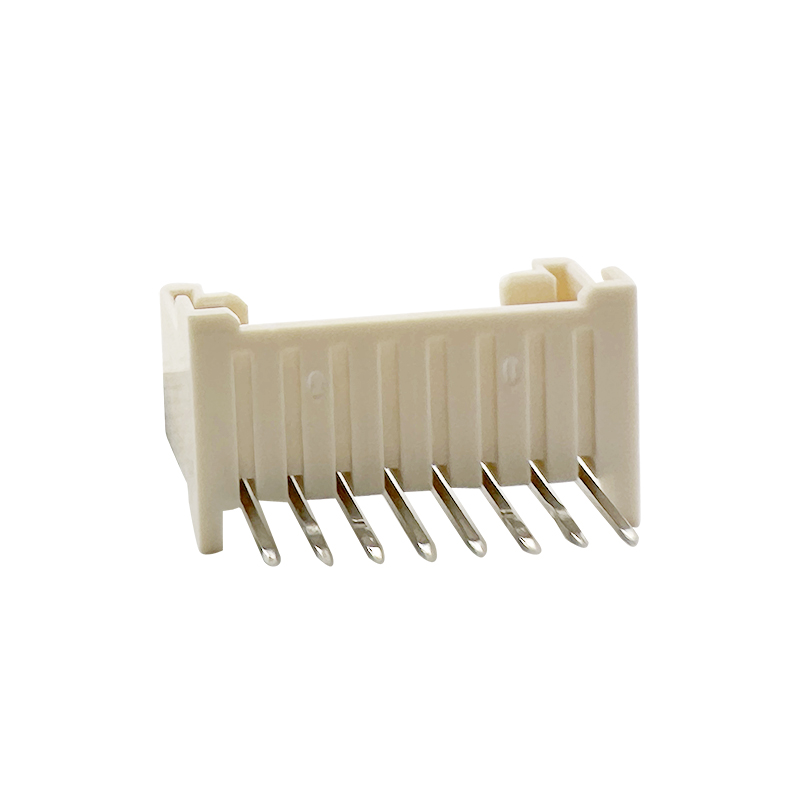

-Connector Type: It's a wafer connector, often used in PCB (Printed Circuit Board) applications to create a secure electrical connection. Wafers are essentially housings that hold multiple contacts, allowing for connections between PCBs or between PCBs and other components.
-Number of Contacts: Wafers come in various sizes, typically ranging from a few contacts to several dozen, depending on the specific application and design requirements.
-Termination Style: Designed for through-hole or surface-mount soldering. Through-hole wafers have pins that pass through holes in the PCB and are soldered on the opposite side for a secure connection. Surface-mount wafers have flat contacts that are soldered directly onto the PCB surface.
Applications
1.Telecommunications and Networking
2.Industrial Automation
3.Automotive Electronics
4.LED Lighting Syste
Specifications
Specifications:
Current Rating: 3A AC,DC
Voltage Rating: 250V AC,DC
Temperature Range: -40°C ~ +105°C
Contact Resistance: 10mΩ Max
Insulation Resistance: 100MΩ Min
Withstanding Voltage: 1000V AC/minute
Pin Material:Brass/Tin over Nickel
Material: Nylon 66,UL94V-0(White)
Technical Documents
Please contact us for more information.
