Wire to board connectors & Wire to wire connectors

Wire to Board Connectors and Wire to Wire Connectors are engineered for efficient electrical connections between wires, PCBs and cable assemblies. Their design considers terminal geometry, contact force, locking mechanisms, wire retention and housing strength. Optimized structures help improve assembly accuracy, vibration resistance and connection stability, supporting reliable power and signal transmission in control systems, automotive electronics and industrial equipment.

Enlarge

Quick View

Cvilux CI55xxS0000 5.08mm Wire To Board Connector:RHTAY5.08

Series Part No:RHTAY5.08

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Cvilux CI55xxS0000

Features

-Locking Mechanism: Many wire-to-board connectors include locking mechanisms to ensure a secure connection and prevent accidental disconnections due to vibration or movement.

-Housing Material: The housing material of the connector affects its durability and suitability for different environmental conditions. Common materials include plastic (like nylon or PBT) for standard applications and sometimes metal for more robust requirements.

-Number of Pins: Connectors can vary in the number of pins they support, typically ranging from 2 pins up to many more, depending on the application's needs.

-Current Rating: The connectors are rated for a specific current carrying capacity, which depends on factors like the wire gauge and the connector's design. This is an important consideration to ensure the connector can handle the electrical load without overheating.

Applications

1.Telecommunications

2.Medical Devices

3.Renewable Energy

4.Security Systems

Specifications

Rated Voltage: 250V AC.DC

Rated Current: 5A

Contact Resistance: 0.02 Ohm max

Insulation Resistance: 1000M Ohm min

Withstand voltage: 1500V AC/MIN

Temperature range for usage : -25ºC~+85ºC

P.C board thickness : 1.6mm

Material:

Housing: PA66 (PA66) UL94V-2

Contacts: Brass or Phosphor Bronze

Plating: Tin 50u" over 100u" nickel

Wire range : AWG#24~#18

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

5.08mm Molex 8981 Type Wire To Board Connector :RHTAYL1-5.08

Series Part No:RHTAYL1-5.08

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Pitch: The Molex 8981 series has a pitch of 5.08mm, which refers to the distance between each pin or contact point on the connector. This spacing is standard for many industrial and commercial applications.

-Current Rating: These connectors are designed to handle a specific current carrying capacity, typically ranging from a few amps to higher currents, depending on the specific configuration and wire gauge used.

-Wire Gauge Compatibility: They are compatible with a range of wire gauges, allowing for flexibility in design and application. This includes wires typically ranging from 14 AWG to 28 AWG.

-Termination Types: The Molex 8981 connectors support various termination types, including crimped contacts and insulation displacement connectors (IDC). This versatility accommodates different assembly and installation requirements.

Applications

1.Consumer Electronics

2.Telecommunications

3.Medical Devices

4.LED Lighting

Specifications

Rated Voltage: 250V AC.DC

Rated Current: 5A

Contact Resistance: 0.01Ω max

Insulation Resistance: 1000MΩ min

Withstand voltage: 500V AC/MIN

Temperature range for usage : -40ºC~+105ºC

Material:

Housing: PA66 (PA66) UL94V-2

Contacts: Phosphor Bronze or Brass

Plating: Tin 50u" over 100u" nickel

Wire range : AWG#30~#22

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

MOLEX 5.70mm Pitch Wire To Board Connector : RHTAYM1-5.70

Series Part No:RHTAYM1-5.70

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Standard Pitch： 5.70mm pitch provides stable spacing for reliable wire-to-board connections.
-Secure Locking Mechanism： Ensures a firm and vibration-resistant connection, preventing accidental disconnection.
-High Durability： Made with high-quality thermoplastic housing and metal contacts for long service life.
-Crimp Terminal Design： Offers reliable electrical and mechanical connection through precision crimping.

Applications

1.Battery Packs
2.Home Appliances
3.Medical Equipment
4.Automotive Electronics

Specifications

MOLEX 5.70mm Pitch Wire To Board Connector 2~12Pins
Electrical Specification:
Rated Voltage: 600V AC.DC
Rated Current: 23A
Temperature range for usage: -40 º C ~ +105 º C
Material:
Housing: PA66 /LCP UL94V-0
Contacts: Brass

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

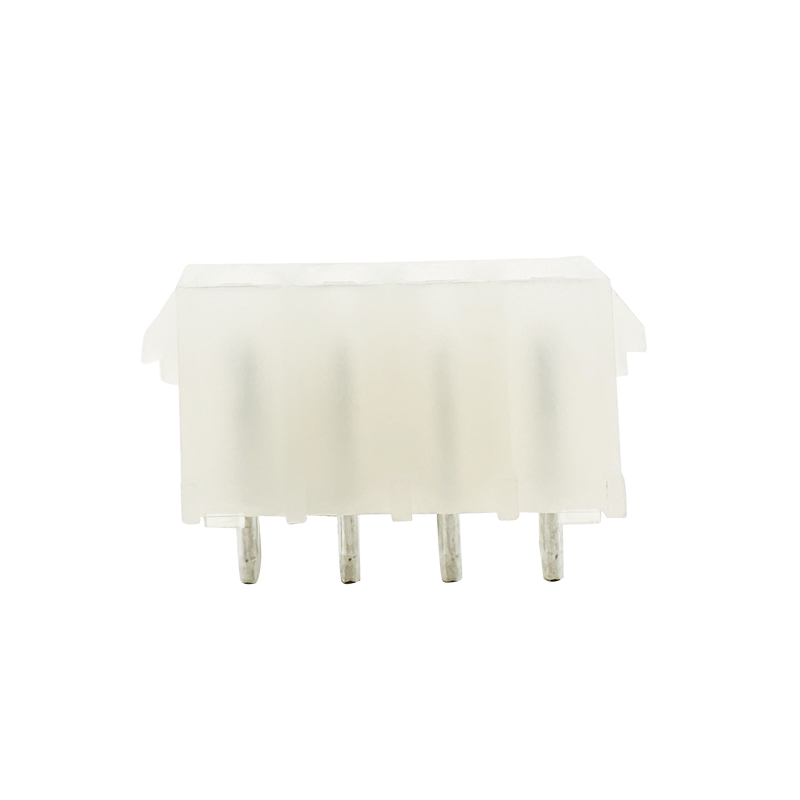

MOLEX 050-84-2xx0 6.35mm Molex 42021 Wire To Board Connector :RHTAYL1-6.35

Series Part No:RHTAYL1-6.35

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

MOLEX 050-84-2xx0

Features

-Termination Style: This connector uses a crimp-style termination for attaching wires. Crimping ensures a secure and reliable electrical connection between the wire and the connector contact.

-Housing Material: The connector housing is usually made from durable materials such as thermoplastic, providing mechanical strength and electrical insulation.

-Contact Material: The contacts inside the connector are typically made from materials like phosphor bronze or brass, which offer good conductivity and durability.

-Polarization: Some connectors feature polarization features such as keying or asymmetric designs to prevent incorrect insertion and ensure proper orientation.

Applications

1.Medical Devices

2.Automotive Electronics

3.Consumer Electronics

4.Telecommunications Equipment

Specifications

6.35mm Molex 42021 Wire To Board Connector

Order information:

RHTAYL1-6.35-2X02-H

Pitch:6.35mm

Pins:1=Single layer 2=Double layer 3=Three layer

Pin numbur:2~15 pins

MH=Male Hosing / FH=Female Hosing / MT=Male Terminal / FT=Female Terminal

S=Straight male pin / R= Right angle male pin

Spesifications:

1、Poles: 2 to 6/10P 2x2to2x3p 2x3to5x3p

2、Current rating: 10~8A AC,DC

3、Voltage rating: 300V AC,DC

4、Temperature range: -25℃ ~ +85℃

5、Contact resistance:≤20mΩ

6、Insulation resistance: ≥1000MΩ

7、Withstand voltage: 1500V AC/minute

8、Applicable wire: AWG #20 to #14

9、Applicable PC board thickness: 1.6mm

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

7.50mm Wire To Board Connector : RHTAYL1-7.50

Series Part No:RHTAYL1-7.50

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Standard Pitch： 7.50mm pitch provides reliable spacing for robust wire-to-board connections.
-Secure Locking Mechanism： Ensures stable mating and prevents accidental disconnection.
-High Current Capacity： Supports higher current suitable for power and industrial applications.
-Durable Contacts： Tin- or gold-plated contacts offer excellent conductivity and corrosion resistance.

Applications

1.LED Lighting
2.Consumer Electronics
3.Communication Devices
4.Battery Packs

Specifications

7.50mm Wire To Board Connector
Order information:
RHTAYL1-7.50-02-H
Pitch:7.50mm
Pin numbur:2~8 pins
H=Hosing / T=Terminal / S=Straight male pin / R= Right angle male pin
Specifications
◆Material: Nylon UL 94V0
◆Contact : Brass
◆Finish : Plated Tin or Gold Flash Lead over Nickel
◆Current rating:7A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-35℃~+85℃
◆Insulationresistance:1000MΩ/Min.
◆Withstanding voltage:1500V AC/minute
◆Contact resistance:10mΩ/Max.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

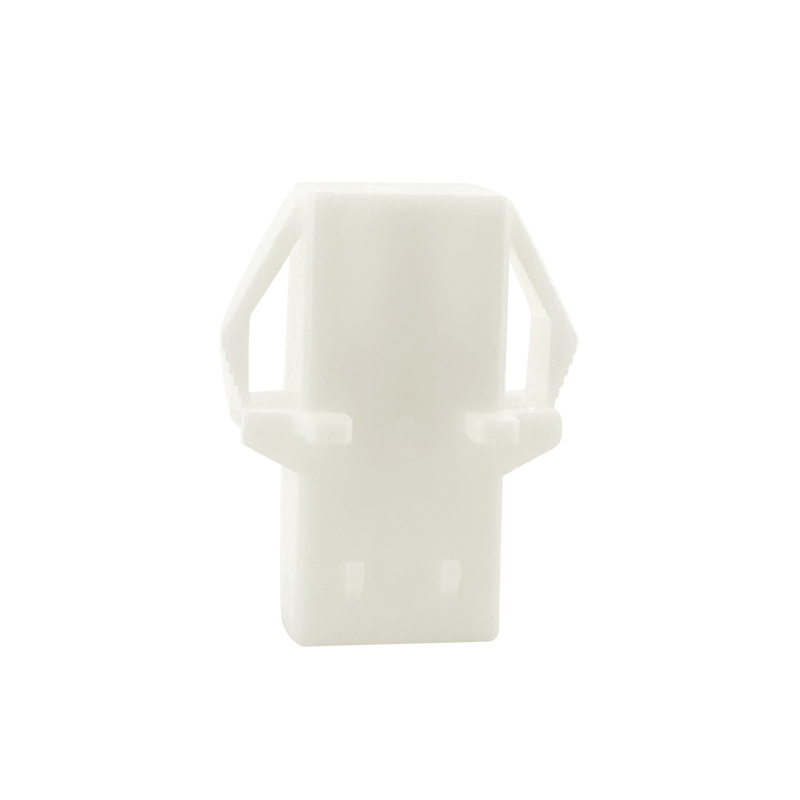

MOLEX 35728-0201 6.20mm JST L Type Wire To Wire Connector:RHTAYM1-6.20

Series Part No:RHTAYM1-6.20

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

MOLEX 35728-0201

Features

-Current Rating: Specifies the maximum electrical current the connector can safely carry without overheating or causing damage. This rating ensures compatibility with the electrical load of the connected devices.

-Voltage Rating: Indicates the maximum voltage the connector can safely handle without risk of electrical breakdown. It ensures safe operation within specified voltage levels.

-Termination Style: Describes how wires are terminated or connected to the connector. Common termination styles include crimping, soldering, or insulation displacement.

-Contact Material: Typically made from materials like phosphor bronze or brass, chosen for their conductivity and durability. The material composition affects electrical performance and reliability.

Applications

1.LED Lighting

2.Security Systems

3.Aerospace and Defense

4.Renewable Energy

Specifications

6.20mm Molex Wire To Wire Connector

Order information:

RHTAYM1-6.20-2X02-FH

Pitch:6.20mm

Pins:1=Single layer 2=Double layer 3=Three layer

Pin numbur:1~15 pins

MH=Male Hosing / FH=Female Hosing / MT=Male Terminal / FT=Female Terminal

Specifications

◆Material: Nylon UL 94V0

◆Contact : Phosphor Bronze

◆Finish : Plated Tin or Gold Flash Lead over Nickel

◆Current rating:8~13A AC,DC

◆Voltage rating:300V AC,DC

◆Temperature range:-35℃~+85℃

◆Insulationresistance:1000MΩ/Min.

◆Withstanding voltage:5000V AC/minute

◆Contact resistance:10mΩ/Max.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

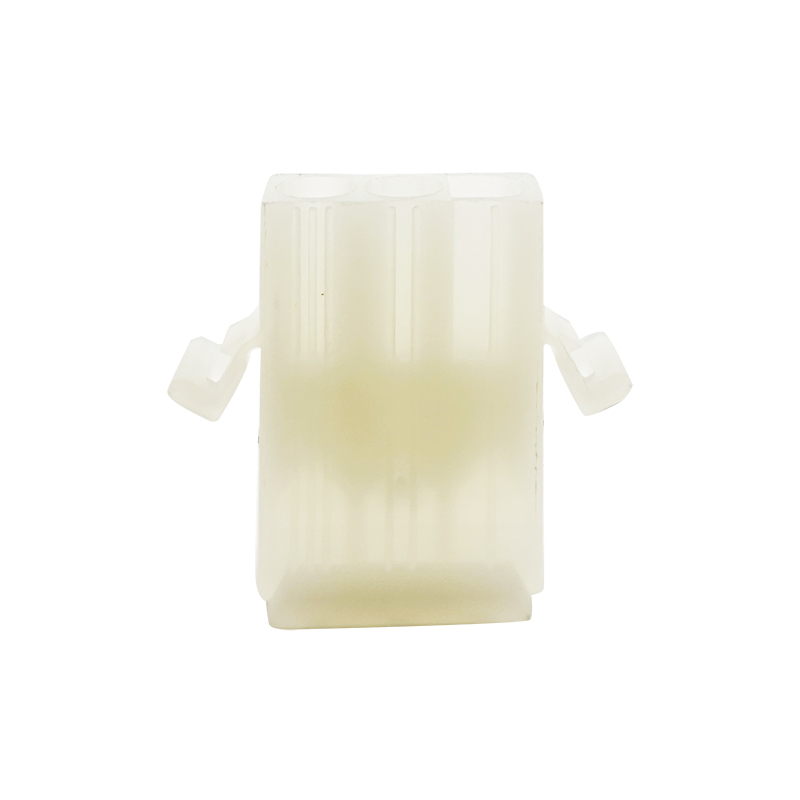

MOLEX 19-09-20x8 6.70mm pitch MOLEX3191 Wire To Board Connectors :RHTAY6.70

Series Part No:RHTAY6.70

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

MOLEX 19-09-20x8

Features

-Number of Positions: Specifies the number of individual contacts within the connector. This can vary depending on the specific model and configuration, accommodating different wire sizes and connection requirements.

-Termination Style: Common termination styles include crimping, soldering, or insulation displacement, depending on the connector design and application needs. Crimp-style terminations are often used for secure and reliable wire connections.

-Current Rating: Indicates the maximum electrical current the connector can safely carry without overheating or causing damage. This rating ensures compatibility with the electrical load of the connected devices or circuits.

-Voltage Rating: Specifies the maximum voltage the connector can safely handle without risk of electrical breakdown. It ensures safe operation within specified voltage levels.

Applications

1.Telecommunications Equipment

2.Medical Devices

3.Power Supplies and LED Lighting

4.Security Systems

Specifications

Specifications:

Voltage rating:300v.Ac/Dc

Current rating:12~8A

Contact resistance:≤0.01Ω

Insulation resistance:≥1000MΩ

Withstand voltage:2000v.Ac/1min

Poles:1、2、3、4、6、9、12、15

Applicable PC board thickness:1.6mm

Temperature range:-25℃~85℃

Material:

Plug housing:PA66 UL94V-2(0)

Receptacle housing:PA66 UL94V-2(0)

Terminal:Phos.bronze Tin/plated

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

1.50mm Crimp Style Connector : RHTAYL3-1.50

Series Part No:RHTAYL3-1.50

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Fine Pitch Design： 1.50mm pitch enables compact, high-density interconnections for space-saving layouts.
-Crimp Termination Style： Provides strong mechanical retention and consistent electrical performance.
-Secure Mating： Locking mechanism ensures stable and reliable connection even under vibration.
-High-Precision Contacts： Tin- or gold-plated contacts offer excellent conductivity and corrosion resistance.

Applications

1.Consumer Electronics
2.Wearable Devices
3.Medical Equipment
4.Communication Devices

Specifications

Specifications:
Material:NY66,UL 94V-0
Voltage rating:350V AC DC
Current rating:3A AC DC
Withstanding voltage:500V AC/minute
Insulationresistance:≧500MΩ
Contact resistance:≦10mΩ
Temperature range:-40℃~+105℃

Technical Documents

Please contact us for more information.

X

X

Previous page 1 2 3 4 5 6 7 8 next page
