USB 2.0 connectors

USB 2.0 Connectors are engineered for dependable data communication and power connectivity across a wide range of electronic devices. Their design focuses on contact resistance, terminal alignment, insertion durability, electrical clearance and housing strength. Optimized structural details help maintain consistent connections during repeated use, while compact configurations support flexible PCB integration in computers, peripherals, control equipment and consumer electronics.

Enlarge

Quick View

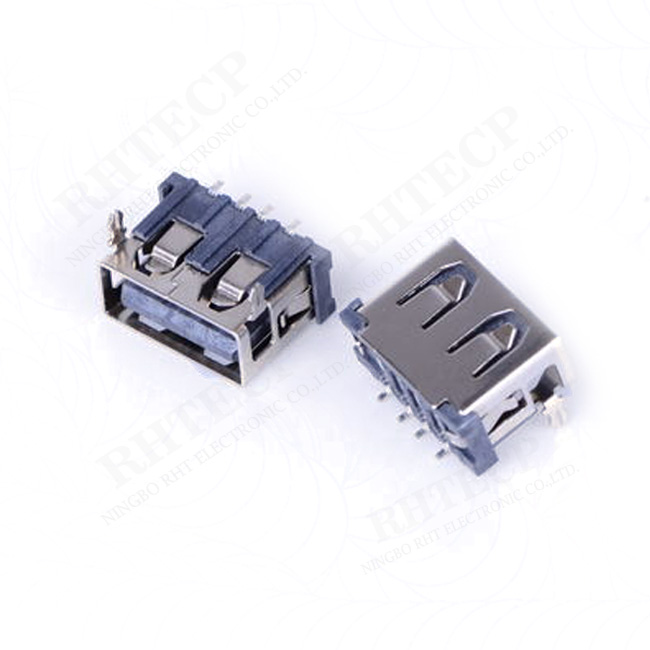

A Female SMD USB Connector L10.0mm : RHTAY832

Series Part No:RHTAY832

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Surface Mount Design: SMD (Surface-Mount Device) type ensures easy and efficient mounting on PCBs with automated assembly processes.
-Compact Size: 10.0mm length offers a slim profile suitable for space-constrained electronic devices.
-Standard USB Type-A Interface: Compatible with USB 2.0 standards, supporting reliable data transfer and power delivery.
-Durable Construction: High-quality plastic housing combined with a robust metal shell ensures mechanical strength and long-term durability

Applications

1.Consumer Electronics
2.Computer Peripherals
3.Mobile Devices
4.Industrial Automation

Specifications

Material
Housing:Hing Temperature Thermoplastic,
UL94V-0 LCP,Black/White.
Contact:Copper Alloy C2680.
Shell:Copper Alloy C2680/SPCC.
Finish:
Contact:Plated Gold In Mating Area;Tin On Solder Tails.
Shell:Nickel Plating.
Electrical:
Current Rating:1.5A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:500 V AC AT Sea Level.
Insulation Resistance:1000MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.75kgf Max.
Unmated Force:1.02kgf Min.
Terminal Retenion:1.2kgf Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

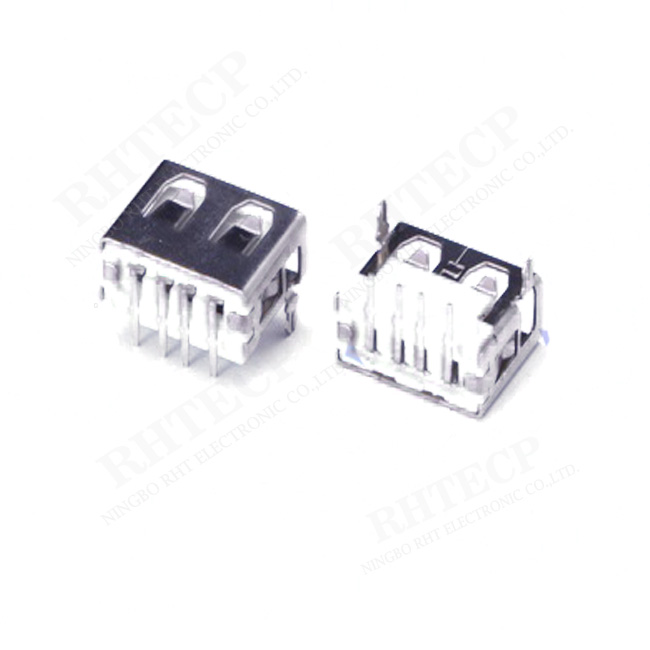

A Female Dip 90 USB Connector L10.0mm :RHTAY807

Series Part No:RHTAY807

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Right-Angle DIP Design: 90-degree orientation for efficient PCB edge mounting and optimized board space usage.
-Standard USB Type-A Interface: Fully compliant with USB 2.0 specifications, supporting stable data transmission and power supply.
-Robust Construction: High-quality plastic housing combined with a durable metal shell for mechanical strength and reliable electrical contact.
-Length of 10.0mm: Compact size suitable for a variety of electronic devices requiring a low-profile USB interface.

Applications

1.Medical Equipment
2.Telecommunications
3.Automotive Electronics
4.IoT Devices

Specifications

Material
Housing:Hing Temperature Thermoplastic,
UL94V-0 PBT,Black/White.
Contact:Copper Alloy C2680.
Shell:Copper Alloy C2680/SPCC.
Finish:
Contact:Plated Gold In Mating Area;
Tin On Solder Tails.
Shell:Nickel Plating.
Electrical:
Current Rating:1.5A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:
500 V AC AT Sea Level.
Insulation Resistance:1000MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.75kgf Max.
Unmated Force:1.02kgf Min.
Terminal Retenion:1.2kgf Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

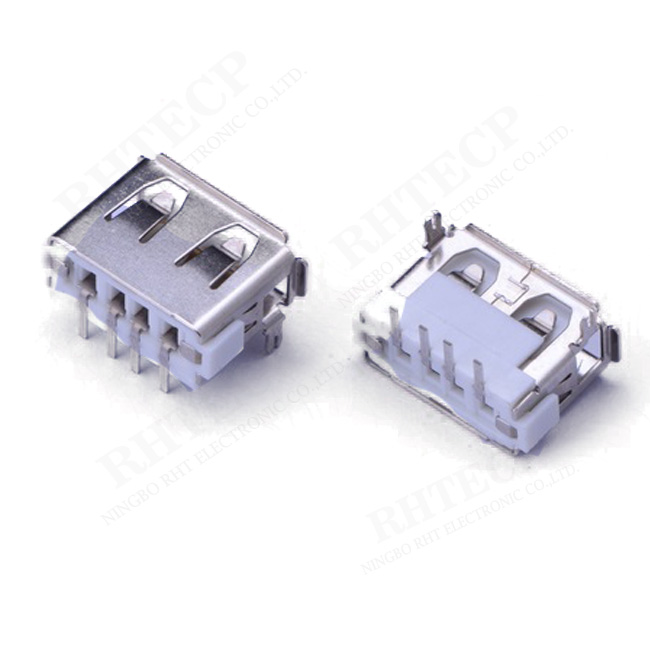

A Female Dip 90 USB Connector L10.0mm: RHTAY804

Series Part No:RHTAY804

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Length of 10.0mm: Compact size suitable for a variety of electronic devices requiring a low-profile USB interface.
-Secure and Stable Connection: Precision contacts ensure a firm fit with USB plugs, minimizing connection issues.
-Versatile Applications: Ideal for computer peripherals, consumer electronics, embedded systems, and industrial equipment.
-RoHS Compliant: Manufactured according to environmental and safety standards, ensuring lead-free and eco-friendly materials.

Applications

1.Automotive Electronics
2.IoT Devices
3.Embedded Systems
4.Audio & Video Equipment

Specifications

Material
Housing:Hing Temperature Thermoplastic,
UL94V-0 PBT,Black/White.
Contact:Copper Alloy C2680.
Shell:Copper Alloy C2680/SPCC.
Finish:
Contact:Plated Gold In Mating Area;
Tin On Solder Tails.
Shell:Nickel Plating.
Electrical:
Current Rating:1.5A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:
500 V AC AT Sea Level.
Insulation Resistance:1000MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.75kgf Max.
Unmated Force:1.02kgf Min.
Terminal Retenion:1.2kgf Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

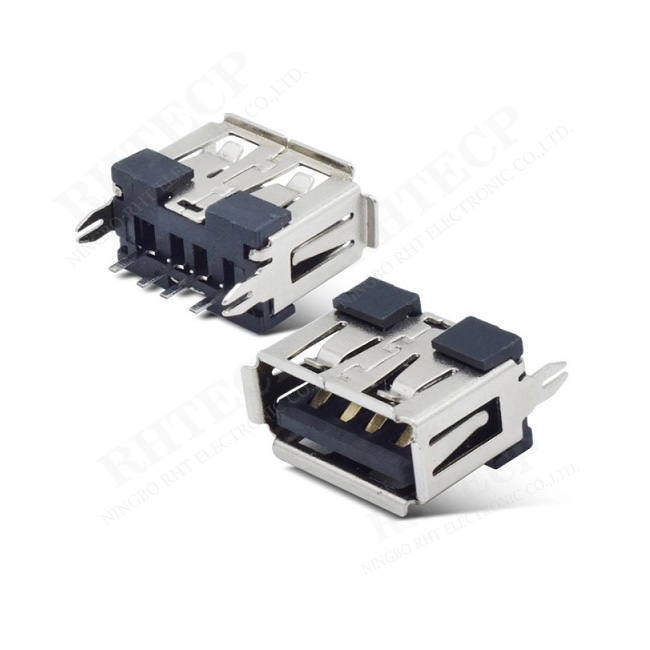

A Female Dip 180 USB Connector L10.0mm :RHTAY805

Series Part No:RHTAY805

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Straight 180-Degree DIP Design: Designed for vertical through-hole mounting, allowing stable and straightforward integration onto PCBs.
-Standard Type-A USB Interface: Fully compliant with USB 2.0, ensuring consistent performance in data transfer and power delivery.
-Compact Length (L10.0mm): Ideal for compact electronic assemblies, offering a space-efficient solution for various device layouts.
-Durable Build Quality: Features a strong plastic housing and a reinforced metal shell for enhanced mechanical reliability and long service life.

Applications

1.Embedded Systems
2.Audio & Video Equipment

3.Networking Devices
4.Gaming Consoles

Specifications

Material
Housing:Hing Temperature Thermoplastic,UL94V-0 PBT/LCP,Black/White.
Contact:Copper Alloy C2680.
Shell:Copper Alloy C2680/SPCC.
Finish:
Contact:Plated Gold In Mating Area;Tin On Solder Tails.
Shell:Nickel Plating.
Electrical:
Current Rating:1.5A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:500 V AC AT Sea Level.
Insulation Resistance:1000MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.75kgf Max.
Unmated Force:1.02kgf Min.
Terminal Retenion:1

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

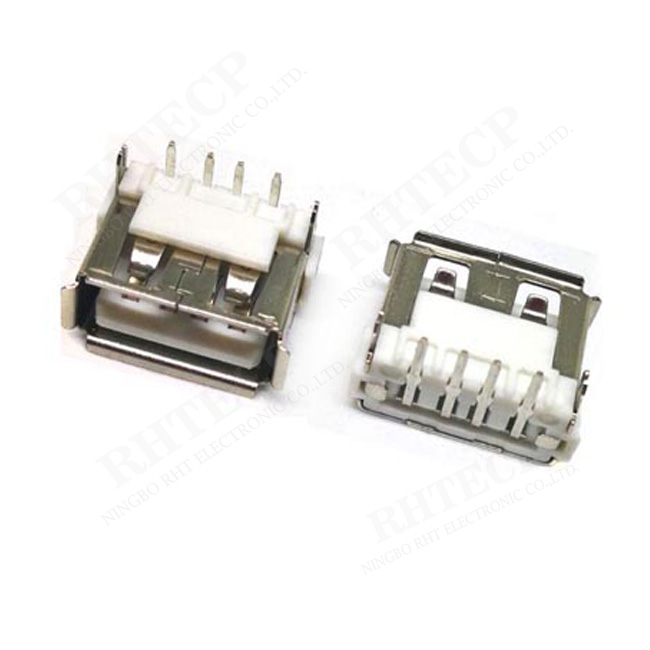

A Female Dip 90 USB Connector L10.0mm : RHTAY96

Series Part No:RHTAY96

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Length of 10.0mm: Compact size suitable for a variety of electronic devices requiring a low-profile USB interface.
-Secure and Stable Connection: Precision contacts ensure a firm fit with USB plugs, minimizing connection issues.
-Versatile Applications: Ideal for computer peripherals, consumer electronics, embedded systems, and industrial equipment.
-RoHS Compliant: Manufactured according to environmental and safety standards, ensuring lead-free and eco-friendly materials

Applications

1.Smart Home Devices
2.Wearable Technology

3.Data Storage Devices

4.Robotics

Specifications

Material
Housing:Hing Temperature Thermoplastic,
UL94V-0 PBT,Black/White.
Contact:Copper Alloy C2680.
Shell:Copper Alloy C2680/SPCC.
Finish:
Contact:Plated Gold In Mating Area;
Tin On Solder Tails.
Shell:Nickel Plating.
Electrical:
Current Rating:1.5A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:
500 V AC AT Sea Level.
Insulation Resistance:1000MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.75kgf Max.
Unmated Force:1.02kgf Min.
Terminal Retenion:1.2kgf Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

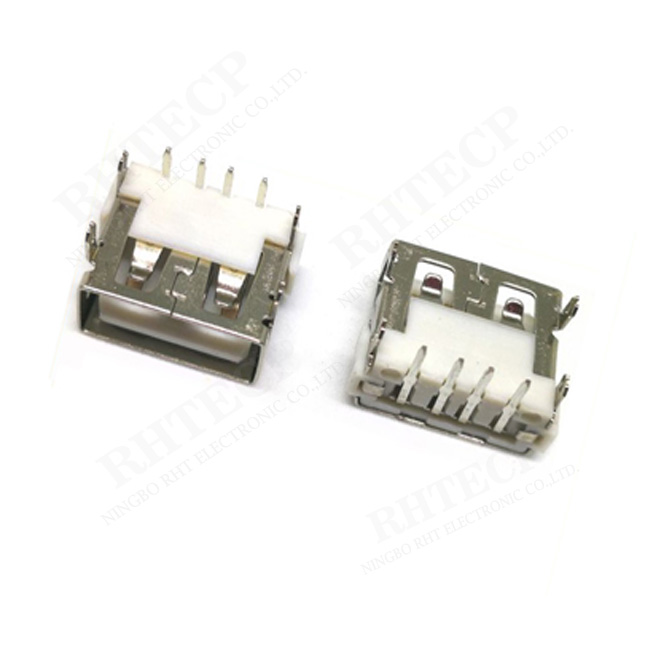

A Female Dip 90 USB Connector L10.0mm : RHTAY95

Series Part No:RHTAY95

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Right Angle Design (90° DIP Mounting): Ideal for parallel PCB mounting, providing a compact layout and efficient space utilization.
-Standard USB Type-A Female Interface: Ensures broad compatibility with USB devices, including flash drives, peripherals, and charging equipment.
-10.0mm Length Tail: Offers reliable insertion depth for secure soldering and stable electrical performance.
-Through-Hole Mounting (DIP): Enhances mechanical strength and is well-suited for applications requiring strong PCB anchoring.

Applications

1.Test & Measurement Instruments
2.Security Systems

3.Office Equipment

4.Educational Electronic

Specifications

Material
Housing:Hing Temperature Thermoplastic,
UL94V-0 PBT,Black/White.
Contact:Copper Alloy C2680.
Shell:Copper Alloy C2680/SPCC.
Finish:
Contact:Plated Gold In Mating Area;
Tin On Solder Tails.
Shell:Nickel Plating.
Electrical:
Current Rating:1.5A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:
500 V AC AT Sea Level.
Insulation Resistance:1000MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.75kgf Max.
Unmated Force:1.02kgf Min.
Terminal Retenion:1.2kgf Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

USB 2.0 connectors : other A Female USB Connector L10.0mm

Series Part No:other A Female USB Connector L10.0mm

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Material
Housing:Hing Temperature Thermoplastic,
UL94V-0 LCP,Black/White.
Contact:Copper Alloy C2680.
Shell:Copper Alloy C2680/SPCC.
Finish:
Contact:Plated Gold In Mating Area;Tin On Solder Tails.
Shell:Nickel Plating.
Electrical:
Current Rating:1.5A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:500 V AC AT Sea Level.
Insulation Resistance:1000MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.75kgf Max.
Unmated Force:1.02kgf Min.
Terminal Retenion:1.2kgf Min.

X

X
Enlarge

Quick View

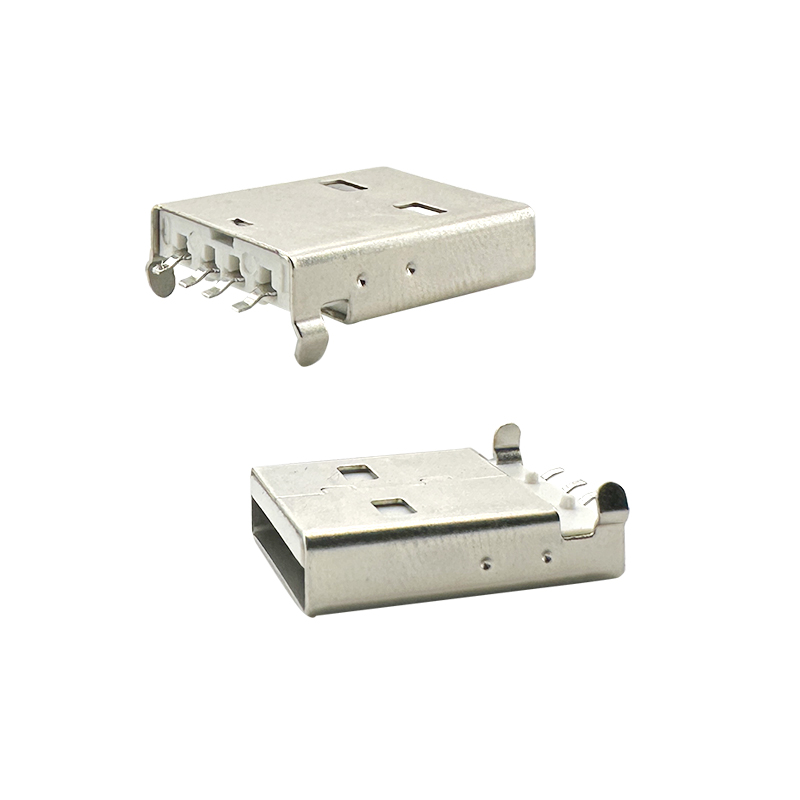

SMD A Male Plug USB Connector:RHTAY80B

Series Part No:RHTAY80B

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Compact Design: SMD connectors are designed for surface mounting directly onto printed circuit boards (PCBs), allowing for a compact and space-efficient layout.

-Standard USB Compatibility: They adhere to USB standards (USB 1.1, USB 2.0, USB 3.0), ensuring compatibility with a wide range of devices and peripherals.

-Durability: These connectors are designed for durability, with robust construction that withstands repeated insertions and removals.

-High-Speed Data Transfer: Capable of supporting high-speed data transfer rates specified by USB standards, making them suitable for applications requiring rapid data exchange.

Applications

1.IoT Devices

2.Military and Aerospace

3.Gaming Consoles and Accessories

4.Point-of-Sale (POS) Systems

Specifications

Material

Housing:Hing Temperature Thermoplastic,

UL94V-0 PBT/LCP,Black/White.

Contact:Copper Alloy C2680.

Shell:Copper Alloy C2680/SPCC.

Finish:

Contact:Plated Gold In Mating Area;

Tin On Solder Tails.

Shell:Nickel Plating.

Electrical:

Current Rating:1.5A/Contact Terminal.

Voltage Rating:30V DC

Contact Resistance:30mΩ Max.

Dielectric Withstanding Voltage:

500 V AC AT Sea Level.

Insulation Resistance:1000MΩ Min.

Connector Mate and Unmated Force

Mate Force:3.75kgf Max.

Unmated Force:1.02kgf Min.

Terminal Retenion:1.2kgf Min.

Technical Documents

Please contact us for more information.

X

X

Previous page 1 2 3 4 5 6
