Features
-6P (6 Pins) or 6P 1P Configuration: Available in configurations with either 6 pins or 6 pins with an additional pole for flexibility, making it compatible with different circuit requirements.
-Height: Designed with a low profile height of 1.35mm, making it suitable for compact mobile devices where space is limited.
-Connector Type: Designed specifically for Micro SIM (Subscriber Identity Module) cards used in mobile devices.
-Push-Push Mechanism: Utilizes a push-push mechanism for easy insertion and removal of the Micro SIM card. Users push the card inward to insert it, and push again to eject it, providing a convenient and secure method for managing SIM cards.
-RoHS Compliant: Environmentally friendly design, adhering to RoHS standards to limit hazardous substances.
Applications
1.Smartphones and Feature Phones
2.Tablets and Mobile Devices
3.IoT Devices
4.Automotive Applications
Specifications

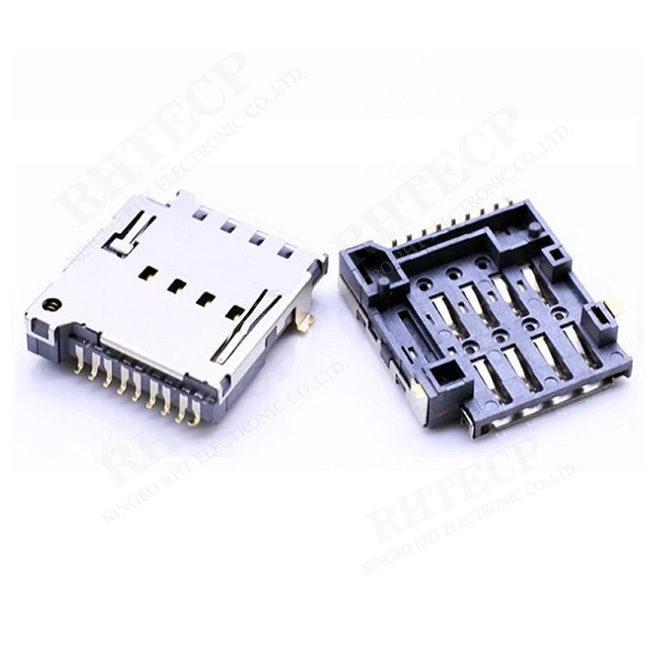

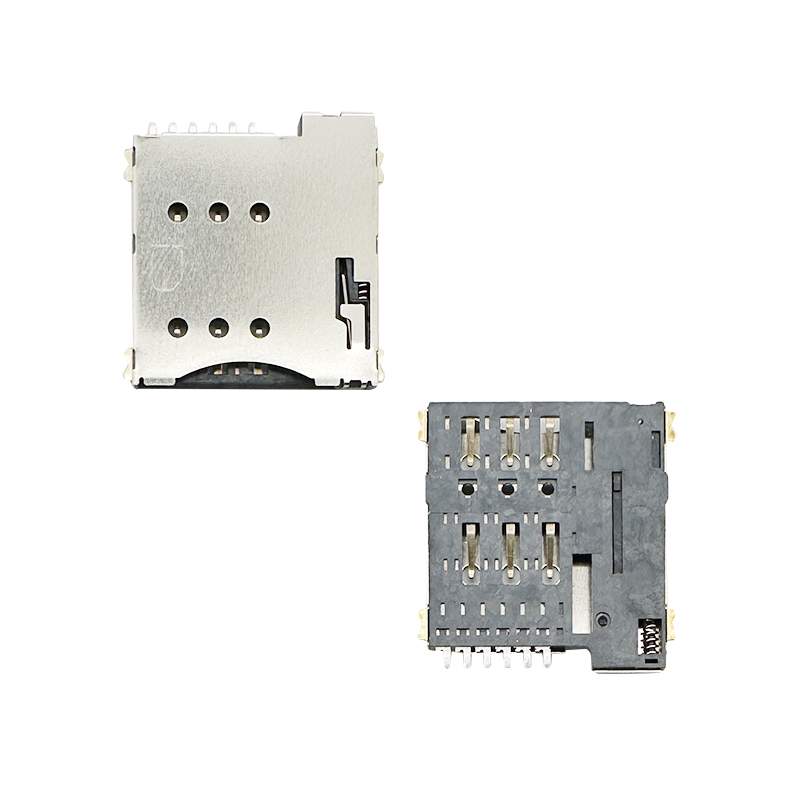

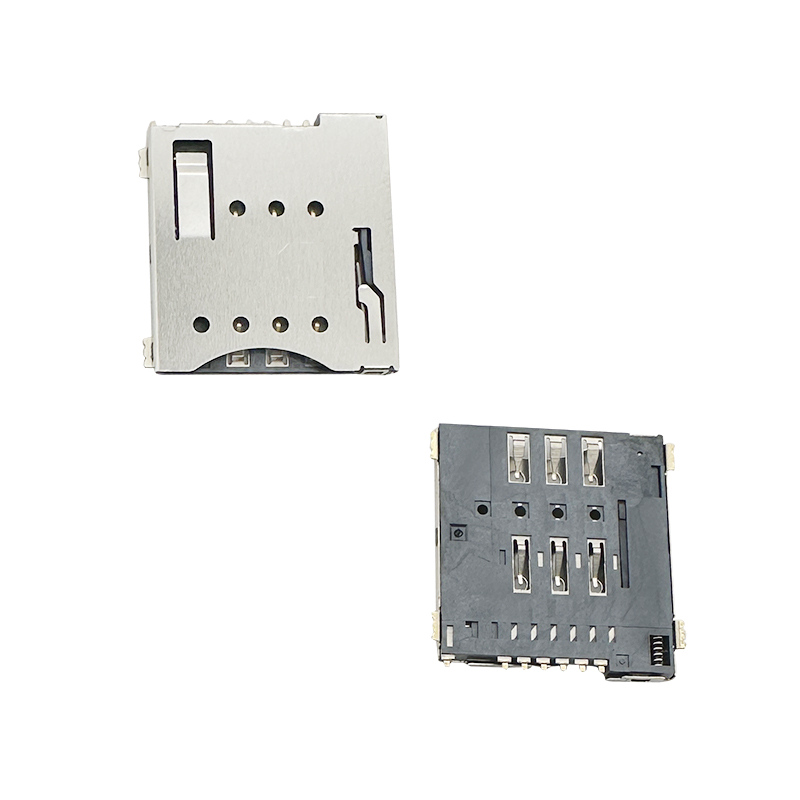

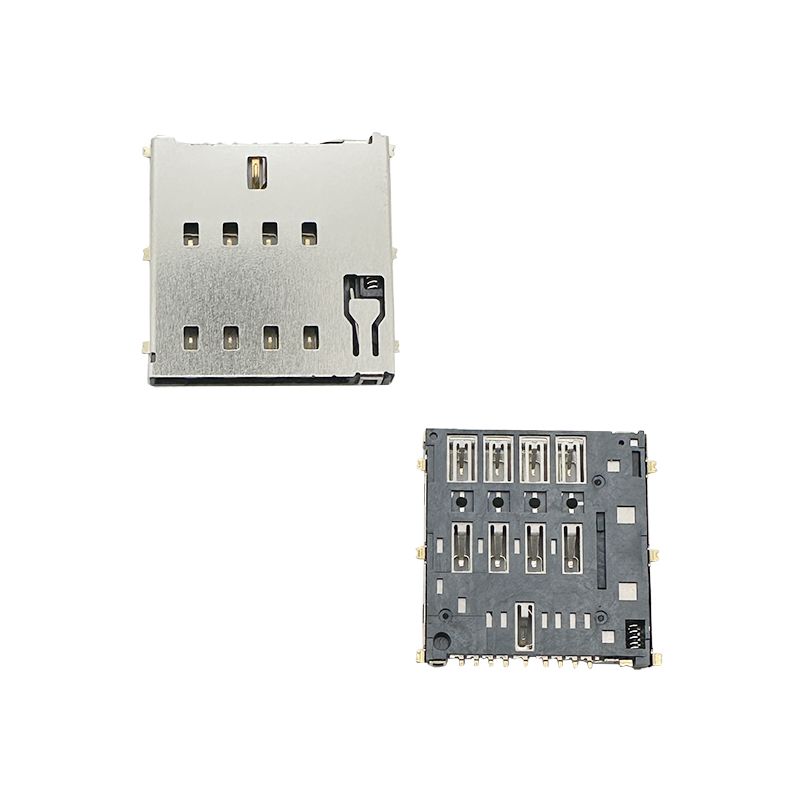

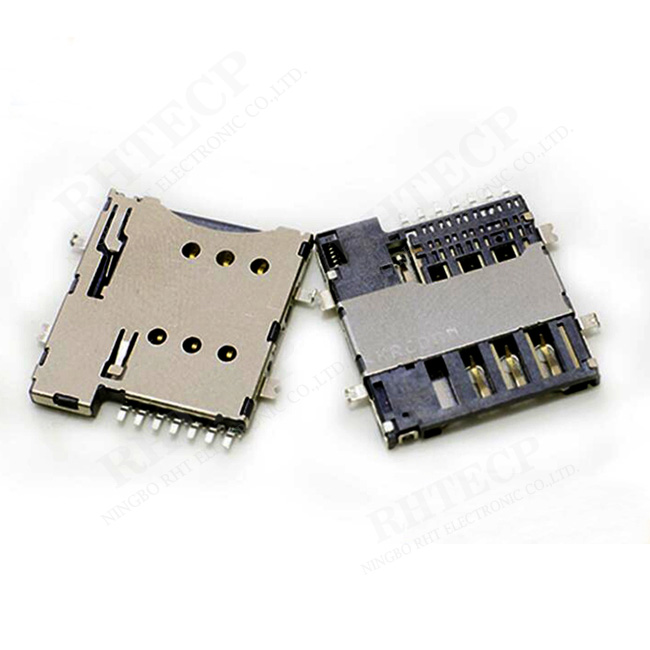

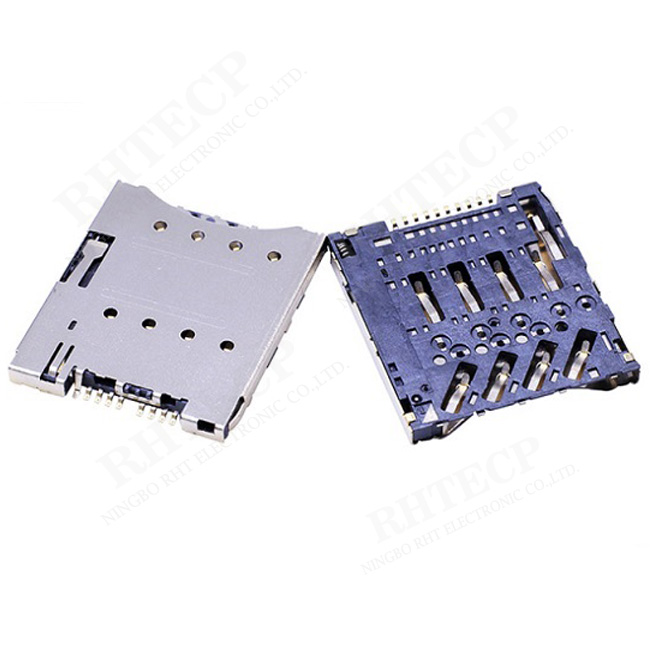

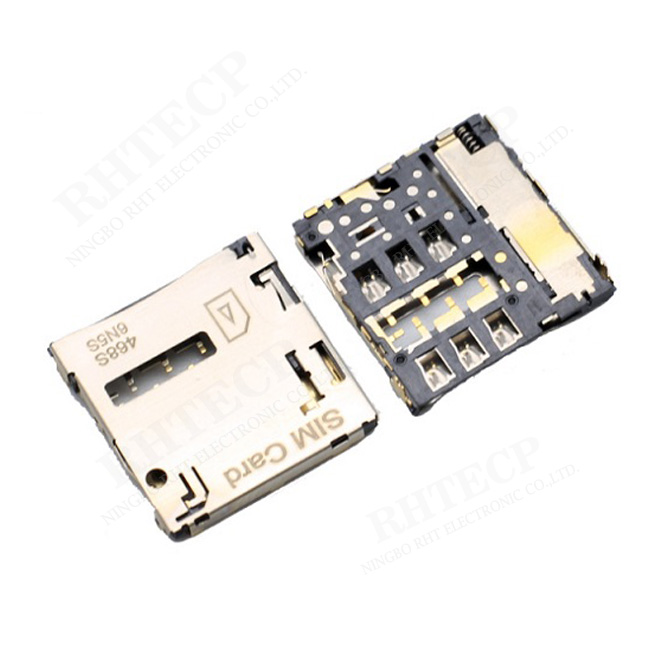

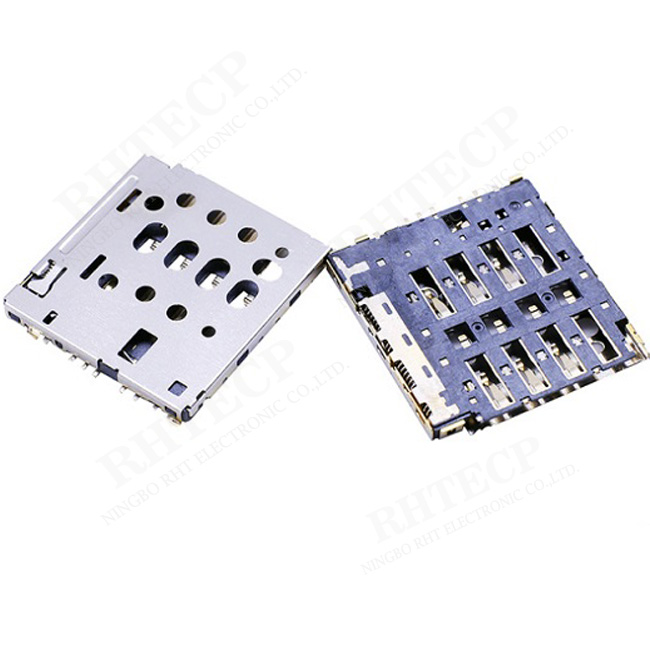

Micro SIM Card Connector;PUSH PUSH,6P Or 6P+1P,H1.35mm,Without post.
Material:
Insulator:High Temperature Thermoplastic,UL94V-0
Contact:Copper Alloy,Plated 50U" Ni Overall Contact Au 1U
Shell:SUS,Plated 50U" Ni Overall Plated 1u" Au Selective Contact Area
Electrical:
Current Rating: 0.5A Max.
Voltage Rating: 5V AC/DC
Contact Resistance:100m Max.
Insulation Resistance:1000M Min./500VDC
Ambient Humidity Range:95% R.H. Max.
Mating Cycles:10000 Insertions
Mating Cycles:5000 Insertions
Operating Temperature: -45ºC~+85ºC
Technical Documents
Please contact us for more information.
