FFC/FPC connectors

FFC connectors, FPC connectors, flat flexible cable connectors, flexible printed circuit connectors, FPC ribbon connectors, FFC ribbon connectors, low-profile connectors, high-density connectors, surface-mount FPC connectors, through-hole FPC connectors, FPC cable connectors, flexible circuit board connectors, electronic component connectors, flexible cable interconnects, FPC to PCB connectors, FFC to PCB connectors, FPC socket connectors, FFC socket connectors, flexible interconnect solutions.

Enlarge

Quick View

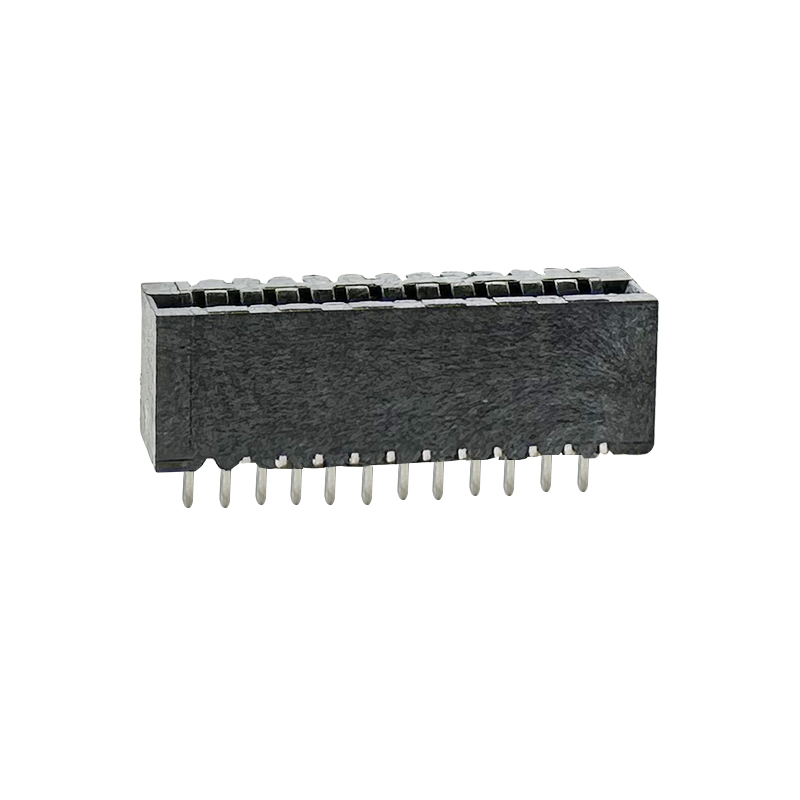

1.0mm SMD Dual Contact NO-ZIF H2.85mm FFC/FPC Connectors :RHTAY40C&RHTAY40I

Series Part No:RHTAY40C&RHTAY40I

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Connector Type: FPC (Flexible Printed Circuit) / FFC (Flat Flexible Cable) connectors designed with a Dual Contact NO-ZIF (Non-Zero Insertion Force) type. This indicates that each contact in the connector has a dual contact point for secure connectivity without a ZIF mechanism.

-Mounting Style: Surface Mount Device (SMD) configuration, allowing for direct placement on the surface of a PCB (Printed Circuit Board), which simplifies assembly and saves space.

-Height: H2.85mm refers to the height profile of the connector, indicating the overall vertical dimension from the PCB surface to the top of the connector.

-Contacts: Dual contact design means that each pin or contact point in the connector has two points of contact with the corresponding pads on the FPC/FFC, ensuring reliable electrical connections.

Applications

1. Industrial Equipment

2. Telecommunications

3. Consumer Appliances:

4. Handheld Devices and Wearables

Specifications

1.0mm SMD Dual Contact NO-ZIF H2.85mm FFC/FPC Connectors

Order Information

RHTAY40C-XX-RT-R

XX-No.of 04 ~ 35pin

RT-SMT Pin

T-Tube packing R-Reel packing

Order Information

RHTAY40I-2.85-XX-R

XX-No.of 04 ~ 35pin

T-Tube packing R-Reel packing

Material:

Housing: LCP UL94V-0

Contact: Phosphor Bronze

Plating: Tin Plated Over Nickel

Electrical Characteristics:

Voltage rating: 50 VAC

Current rating: 0.5 AMP

Withstandingf Voltage: 500 Ｖ

Insulation resistance: 800Ｍ ohm Min

Contact resistance: 30m ohm. max.

Temperature range: -40℃ To +105℃

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

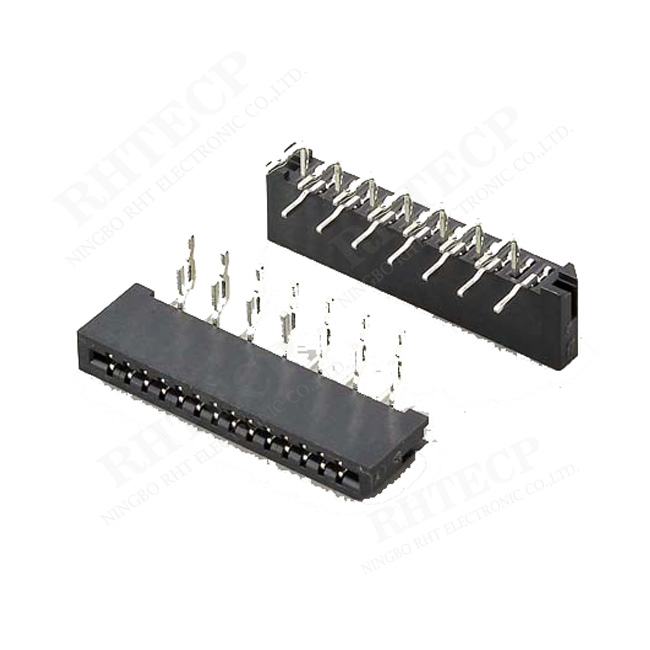

1.0mm Dual Contact NO-ZIF Type H4.4mm FFC/FPC Connectors :RHTAY40B

Series Part No:RHTAY40B

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-1.0mm Dual Contact Pitch: Provides a compact and precise connection suitable for space-constrained electronic devices.
-NO-ZIF (No Zero Insertion Force) Design: Allows easy insertion and secure connection without the need for locking mechanisms, simplifying assembly and reducing installation time.
-4.4mm Height Profile: Low-profile design ideal for slim and compact applications where vertical space is limited.
-Supports Both FFC and FPC: Compatible with flexible flat cables (FFC) and flexible printed circuits (FPC), offering versatility across different device designs

Applications

1.Consumer Electronics
2.Automotive Electronics
3.Industrial Equipment
4.Medical Devices

Specifications

1.0mm Dual Contact NO-ZIF Type H4.4mm FFC/FPC Connectors
Order Information
RHTAY40B-XX-T-B-PT
XX-No.of 04 ~ 35pin
S-Straight Pin R-Right Angle Pin T-SMT Pin
B-Black
P-Positive needle A-Anti-needle
T-Tubes R-Reel( Only SMT with MYLAR)
Material:
Housing: LCP UL94V-0
Contact: Phosphor Bronze
Plating: Tin Plated Over Nickel
Electrical Characteristics:
Voltage rating: 50 VAC
Current rating: 0.5 AMP
Withstandingf Voltage: 500 Ｖ
Insulation resistance: 800Ｍ ohm Min
Contact resistance: 30m ohm. max.
Temperature range: -40℃ To +105℃

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

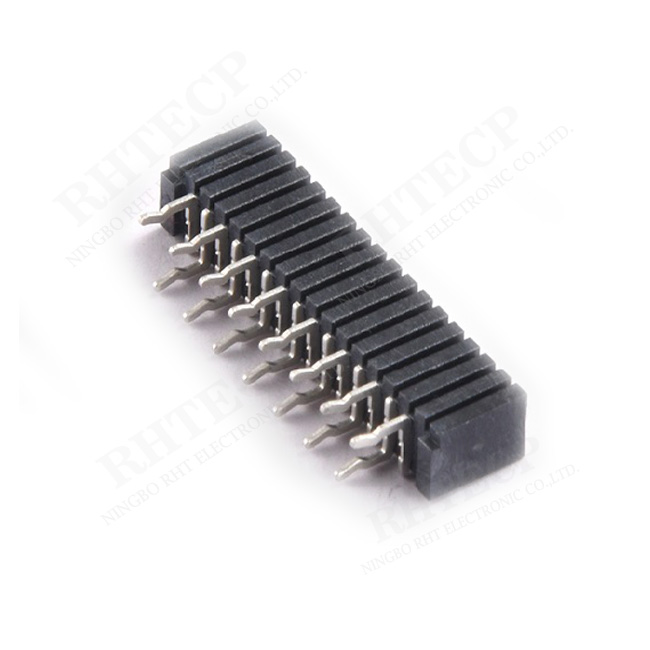

1.25mm SMT Dual Contact NO-ZIF H3.5mm FFC/FPC Connectors:RHTAY20F

Series Part No:RHTAY20F

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Height: H3.5mm refers to the vertical dimension of the connector from the PCB surface to the top of the connector body. This low profile is beneficial for applications where board stacking or height constraints are considerations.

-Contact Configuration: Dual-contact design, providing two points of contact with the FFC/FPC, which enhances reliability and ensures stable electrical performance.

-Locking Mechanism: Although NO-ZIF connectors do not use a Zero Insertion Force mechanism, they may include locking features to secure the flexible circuit in place once inserted, preventing accidental disconnections.

-Current Rating: Capable of handling different current ratings depending on the wire gauge and application requirements, ensuring reliable electrical performance.

Applications

1. Consumer Electronics:

2. Automotive Electronics:

3. Medical Devices:

4. Industrial Equipment:

Specifications

1.25mm SMT Dual Contact NO-ZIF H3.5mm FFC/FPC Connectors

Order Information

RHTAY20F- XX -T-R

XX-No.of 04 ~ 33pin

T-SMD Pin

R- Reel Packing T-Tube Packing

Material:

Housing: LCP UL94V-0

Contact: Phosphor Bronze

Plating: Tin Plated Over Nickel

Electrical Characteristics:

Voltage rating: 50 VAC

Current rating: 0.5 AMP

Withstandingf Voltage: 500 Ｖ

Insulation resistance: 800Ｍ ohm Min

Contact resistance: 40m ohm. max.

Temperature range: -40℃ To +105℃

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

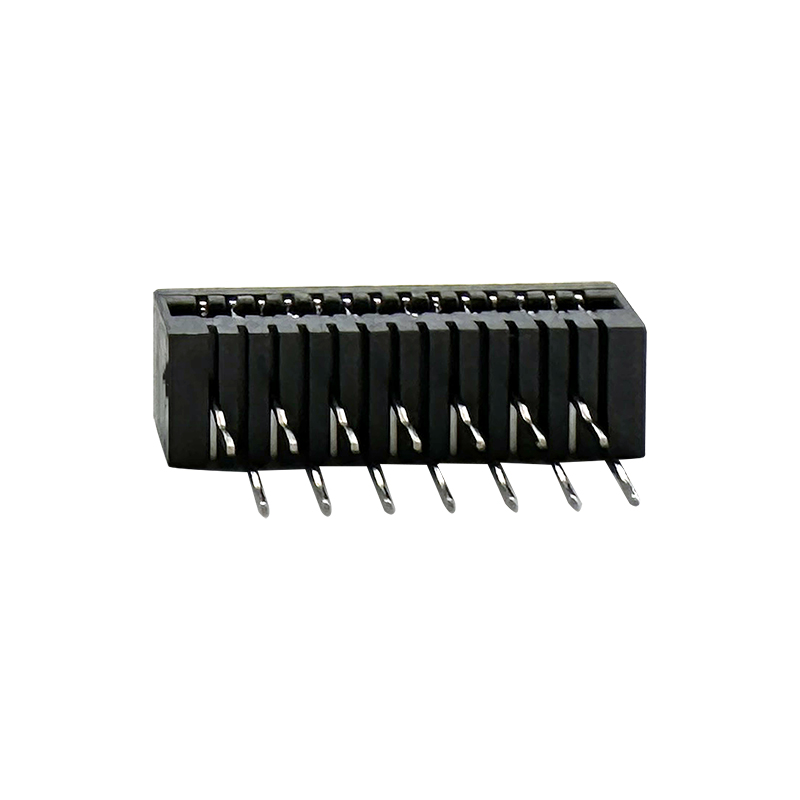

1.25mm Right Angle Pin Dual Contact NO-ZIF Type H5.5mm FFC/FPC Connectors:RHTAY20E

Series Part No:RHTAY20E

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Contacts: Dual-contact design, providing multiple points of contact with the FFC/FPC, which enhances reliability and ensures stable electrical performance.

-Termination: Typically features options for solder termination or other suitable methods for securing the connector to the PCB, ensuring mechanical stability and electrical continuity.

-Locking Mechanism: Although NO-ZIF connectors do not use a Zero Insertion Force mechanism, they may include locking features to secure the flexible circuit in place once inserted, preventing accidental disconnections.

-Durability: Designed with materials and construction methods that ensure durability and reliability in various environmental conditions and during repeated mating cycles.

Applications

1. Medical Devices

2. Industrial Equipment

3. Telecommunications

4. Consumer Appliances

Specifications

1.25mm Right Angle Pin Dual Contact NO-ZIF Type H5.5mm FFC/FPC Connectors

Order Information

RHTAY20E-XX-R-P

XX-No.of 04 ~ 33pin

R-Right Angle Pin

P-Positive needle A-Anti-needle

Specifications:

Material

Housing: LCP, UL94V-0

Contact: Phosphor Bronze,Tin Plated

Electrical

Voltage rating: 50 V

Current rating: 0.5 A

Withstanding Voltage: 250 V

Insulation resistance: 50 MΩ.Min.

Contact resistance: 20 mΩ.max.

Mechanical

Temp. Range: -25 ° C ~ + 85 ° C

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

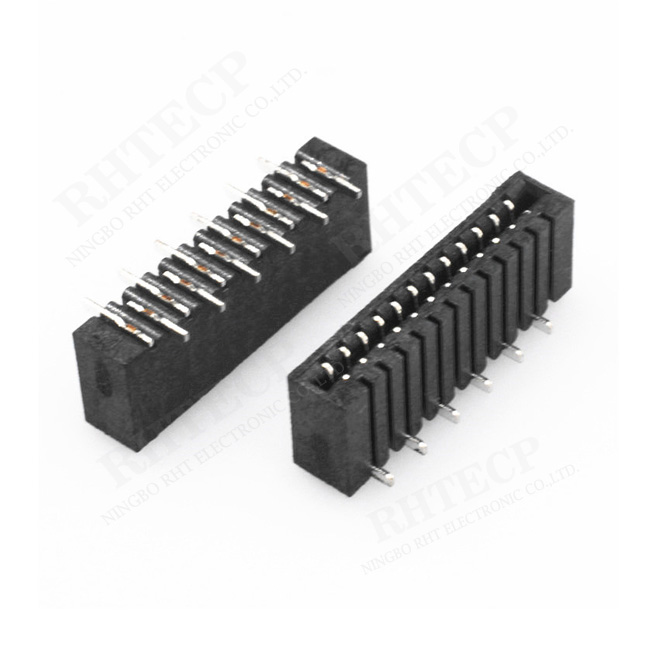

1.25mm Dual Contact NO-ZIF Type H5.5mm FFC FPC Connectors : RHTAY20B

Series Part No:RHTAY20B

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-NO-ZIF (Non-Zero Insertion Force) : Allows easy insertion and removal of cables without extra force, preventing connector damage.
-H5.5mm Height : Low-profile design for space-saving in compact applications.
-FFC/FPC Compatibility : Suitable for Flexible Flat Cables (FFC) and Flexible Printed Circuits (FPC).
-Durable Construction : Made from high-quality materials for long-lasting and reliable performance.

Applications

1.Medical Devices
2.Wearable Technology
3.Networking Equipment
4.PCB Assemblies

Specifications

1.25mm Dual Contact NO-ZIF Type H5.5mm FFC FPC Connectors
Order Information
RHTAY20B-XX-R-P-T
XX-No.of 04 ~ 36pin
R-Right angle Pin S-Straight Pin T-SMD Pin
P-Positive needle A-Anti-needle
T-Tube pack R-Rell pack
Material
Housing: LCP, UL94V-0
Contact: Phosphor Bronze,Tin Plated
Electrical
Voltage rating: 50 V
Current rating: 0.5 A
Withstanding Voltage: 500 V
Insulation resistance: 1000 MΩ.Min.
Contact resistance: 30 mΩ.max.
Mechanical
Temp. Range: -25 ° C ~ + 85 ° C

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

1.25mm Dual Contact NO-ZIF Type H5.5mm FFC FPC Connectors : RHTAY20G

Series Part No:RHTAY20G

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-1.25mm Pitch : The 1.25mm pitch ensures a compact and space-efficient design, making it ideal for miniaturized electronic products and tight PCB layouts where maximizing space is critical. This feature allows manufacturers to pack more components into smaller, more efficient designs.
-Dual Contact Design : Featuring dual contact points, this connector provides enhanced reliability and stronger electrical conductivity. This dual contact approach minimizes signal loss and ensures stable performance even under high vibration or mechanical stress conditions, reducing the risk of connectivity failure over time.
-NO-ZIF (Non-Zero Insertion Force) : The NO-ZIF design eliminates the need for excessive force during insertion, which not only makes installation quicker and easier but also reduces the risk of damage to both the connector and the cable. This feature is essential for improving the longevity of connectors in high-use environments.
-H5.5mm Height : With a low-profile height of just 5.5mm, this connector can fit into applications with limited vertical space. This feature is crucial for portable devices like wearables, laptops, and mobile phones, where maintaining a slim profile is necessary without sacrificing performance.

Applications

1.Industrial Equipment
2.Medical Devices
3.Networking Equipment
4.Robotics

Specifications

1.25mm Dual Contact NO-ZIF Type H5.5mm FFC FPC Connectors
Order Information
RHTAY20G-XX-S-P
XX-No.of 04 ~ 33pin
S-Straight Pin
P-Positive needle A-Anti needle
Specifications:
Material
Housing: PA9T, UL94V-0
Contact: Phosphor Bronze,Tin plated
Electrical
Voltage rating: 50 V
Current rating: 0.5 A
Withstanding Voltage: 200 V
Insulation resistance: 800MΩ.Min.
Contact resistance: 40 mΩ.max.
Mechanical
Temp. Range: -25 ° C ~ + 85 ° C

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

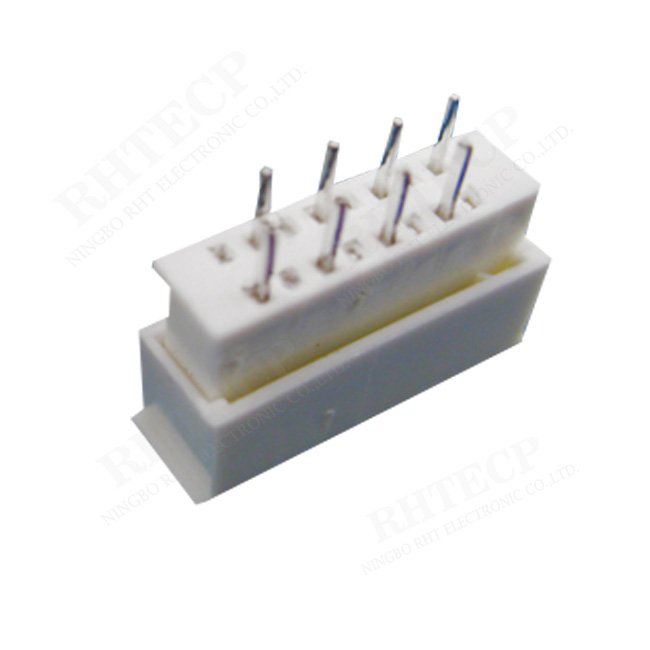

1.25mm Single Contact NO-ZIF Type H7.5mm FFC FPC Connectors :RHTAYB20

Series Part No:RHTAYB20

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Contact Configuration: Single-contact design, providing one point of contact with the FFC/FPC, which ensures a stable electrical connection.

-Termination: Typically features options for solder termination or other suitable methods for securing the connector to the PCB, ensuring mechanical stability and electrical continuity.

-Locking Mechanism: Although NO-ZIF connectors do not use a Zero Insertion Force mechanism, they may include locking features to secure the flexible circuit in place once inserted, preventing accidental disconnections.

-Durability: Designed with materials and construction methods that ensure durability and reliability in various environmental conditions, ensuring long-term performance

Applications

1. Automotive Electronics

2. Medical Devices

3. Industrial Equipment

4. Telecommunications

Specifications

1.25mm Single Contact NO-ZIF Type H=7.5mm FFC FPC Connectors

Order Information

RHTAYB20-XX-S-P

XX-No.of 04 ~ 40pin

S-Straight Pin R-Right Angle Pin

P-Positive needle A-Anti needle

Material:

Housing: PBT UL94V-0

Contact: Phosphor Bronze

Plating: Tin Plated Over Nickel

Electrical Characteristics:

Voltage rating: 200VAC RMS

Current rating: 1 AMP

Withstandingf Voltage: 500 VAC

Insulation resistance: 5000M ohms Min

Contact resistance: 20m ohm. max.

Temperature range: -40℃ To +105℃

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

1.25mm Single Contact ZIF-lock Type H10mm FFC FPC Connectors :RHTAY20C

Series Part No:RHTAY20C

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-1.25mm Pitch : Compact 1.25mm pitch design, ideal for high-density, space-constrained applications.
-Single Contact Design : Provides a single point of contact for stable, reliable electrical connections.
-ZIF-lock (Zero Insertion Force) : Enables easy, tool-free insertion and removal of FFC/FPC cables with minimal effort, reducing the risk of damage during installation.
-H10mm Height : Low-profile design at 10mm height, suitable for applications with limited vertical space while ensuring a secure connection.

Applications

1.Television and Display Panels
2.Automotive Electronics
3.Industrial Equipment
4.Medical Devices

Specifications

1.25mm Single Contact ZIF-lock Type H10mm FFC FPC Connectors
Order Information
RHTAY20C-XX-S-P
XX-No.of 03 ~ 32pin
S-Straight Pin R-Right Angle Pin
P-Positive needle A-Anti needle
Material
Housing: PBT,UL94V-0
Terminal:Copper Alloy
Electrical
Voltage rating: 200 V
Current Rating: 1 A
Withstanding Voltage: 500 V
Insulation resistance: 500MΩ.Min.
Contact resistance: 20 mΩ.Max.
Mechanical
Temp. Range: -20 ° C ~ + 85 ° C

Technical Documents

Please contact us for more information.

X

X

Previous page 1 2 3 4 5 6
