FFC/FPC Connectors are engineered for compact, flexible circuit connections where space and routing efficiency are critical. Their design focuses on contact pitch, insertion depth, locking structure, cable retention and terminal reliability. Optimized contact geometry and actuator mechanisms help ensure accurate alignment, secure cable engagement and stable signal transmission, supporting high-density PCB layouts in displays, control modules, consumer electronics and industrial equipment.

Enlarge

Quick View

1.0mm ZIF SMT H1.2mm lower/upper contacts FPC/FFC connector : RHTAY240E-2.5-XX-S

Series Part No:RHTAY240E-2.5-XX-S

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-1.0mm Pitch: The 1.0mm pitch allows for high-density connections, making it ideal for compact designs like smartphones, tablets, and other portable devices where every millimeter of space matters.
-ZIF (Zero Insertion Force): With zero insertion force, this connector allows for easy and damage-free insertion and removal of FPC/FFC cables. It minimizes wear and tear on both the cable and connector.
-SMT (Surface-Mount Technology): Designed for surface mounting on PCBs, this type of connector enables automated assembly, making it cost-effective for mass production. It also saves space compared to traditional through-hole connectors.
-H1.2mm Height: The low-profile height of 1.2mm allows it to fit into ultra-thin designs without compromising performance. It’s perfect for devices with strict height constraints.

Applications

1.Consumer Electronics
2.Automotive
3.Medical Devices
4.Industrial Equipment

Specifications

1.0mm Straight Pin zif-lock H5.4mm FPC/FFC connectors
Order Information
RHTAY240E-2.5-XX-S-P-T
XX-No.of 02 ~ 35pin
S-Straight Pin
P-Positive needle A-Anti-needle
T-Tube R-Reel
Material:
Housing: LCP UL94V-0
Lock: PA46, UL94V-0
Plug spring: phosphor bronze, Tin Plated / Gold Plated
Electrical Characteristics:
Rated current:0.5A
Rated voltage:50V
Withstand voltage:500V
Contact resistance:≤20mΩ
Insulation resistance:800MΩ
Operating Temperature: -20℃ To +85℃

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

1.0mm Right Angle Pin zif-lock H2.5mm FPC/FFC connectors : RHTAY240E-2.5-XX-R

Series Part No:RHTAY240E-2.5-XX-R

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-ZIF (Zero Insertion Force) Lock: The ZIF mechanism ensures that the FPC/FFC cable can be inserted and removed easily without requiring significant force. This reduces the risk of damage to both the connector and the cable, increasing the connector’s lifespan and reliability.
-H2.5mm Height: With a low-profile height of 2.5mm, this connector fits seamlessly into slim designs, making it ideal for thin devices such as tablets, laptops, and other compact electronics without compromising on functionality.
-High Durability: Designed to withstand up to 10,000 mating cycles, this connector offers long-term reliability and durability, ensuring that it can handle frequent connections and disconnections in various applications without failure.
-SMT (Surface-Mount Technology): The surface-mount design allows for efficient, automated assembly, reducing manufacturing costs and improving production speed. SMT also offers enhanced connection stability and reduces the risk of solder joint failure.

Applications

1.Automotive
2.Medical Devices
3.Industrial Equipment
4.Wearable Devices

Specifications

1.0mm Right Angle Pin zif-lock H2.5mm FPC/FFC connectors
Order Information
RHTAY240E-2.5-XX-R-P-T
XX-No.of 02 ~ 30pin
r-Right Angle Pin
P-Positive needle A-Anti-needle
T-Tube R-Reel
Material:
Housing: LCP UL94V-0
Lock: PA46, UL94V-0
Plug spring: phosphor bronze, Tin Plated / Gold Plated
Electrical Characteristics:
Rated current:0.5A
Rated voltage:50V
Withstand voltage:500V
Contact resistance:≤20mΩ
Insulation resistance:800MΩ
Operating Temperature: -20℃ To +85℃

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

1.0mm SMT Double contact H2.0mm Horizontal Type : RHTAY240G-2.0

Series Part No:RHTAY240G-2.0

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-1.0mm Pitch: Allows for compact, high-density connections, ideal for space-constrained designs.
-SMT (Surface-Mount Technology): Enables automated assembly, improving production efficiency and ensuring a secure PCB connection.
-Double Contact: Provides enhanced reliability and stable connection by minimizing contact failure risks.
-H2.0mm Height: Low-profile design, perfect for compact devices that require space-saving solutions.

Applications

1.Consumer Electronics
2.Medical Devices
3.Automotive Electronics
4.Industrial Equipment

Specifications

1.0mm FPC Horizontal SMT Double contact H2.0mm Type
Order Information
RHTAY240G-2.0-XX-T-R
XX-No.of 04 ~ 32pin
T-SMT Pin
R- Reel Packing T-Tube Packing
Material
Housing: LCP, UL94V-0
Contact: Phosphor Bronze,Tin plated
Electrical
Voltage rating: 50 V
Current rating: 1 A
Withstanding Voltage: 200 V
Insulation resistance: 800MΩ.Min.
Contact resistance: 40 mΩ.max.
Mechanical
Temp. Range: -40 ° C ~ + 85 ° C

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

1.0mm zif-lock SMT H2.7mm Horizontal Type FPC/FFC connectors : RHTAY40S-2.7

Series Part No:RHTAY40S-2.7

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Pitch Size 1.0mm Pitch: The distance between the pins (center-to-center) is 1.0mm, which is ideal for compact designs.
-Horizontal Type：The connector is designed for horizontal insertion, meaning the FPC/FFC cable is inserted horizontally into the connector.Surface-Mount Technology (SMT)
-Designed for SMT (Surface-Mount Technology), the connector mounts directly onto the surface of the PCB, simplifying the automated assembly process.
-Height (2.7mm)'2.7mm Height: The connector’s low profile makes it suitable for devices with limited thickness, saving space.

Applications

1.Consumer Electronics
2.Automotive
3.Industrial
4.Medical Devices

Specifications

Material
Housing: LCP, UL94V-0
Contact: Phosphor Bronze,Tin plated
Electrical
Voltage rating: 50 V
Current rating: 0.5 A
Withstanding Voltage: 500 V
Insulation resistance: 500MΩ.Min.
Contact resistance: 30 mΩ.max.
Mechanical
Temp. Range: -40 ° C ~ + 85 ° C

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

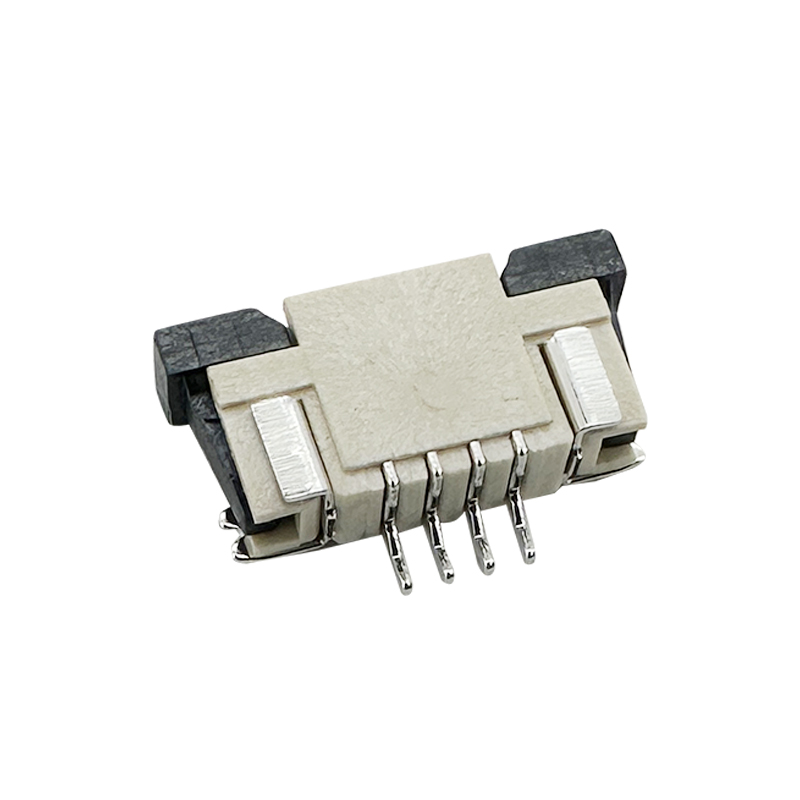

FFC/FPC connectors : RHTAY240N-2.5&RHTAY240Q-2.5

Series Part No:RHTAY240N-2.5&RHTAY240Q-2.5

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Pitch: 1.0mm pitch, indicating the center-to-center distance between adjacent contacts.

-Connector Type: FPC (Flexible Printed Circuit) / FFC (Flat Flexible Cable) connectors designed with a ZIF mechanism. ZIF connectors allow for easy and secure insertion and removal of flexible circuits without applying force to the contacts, minimizing the risk of damage to the circuit.

-Mounting Style: Surface Mount Technology (SMT), allowing for direct placement on the surface of a PCB (Printed Circuit Board), which simplifies assembly and saves space compared to through-hole mounting.

-Height: H2.5mm refers to the height profile of the connector, indicating the overall vertical dimension from the PCB surface to the top of the connector.

Applications

1. Consumer Electronics

2. Automotive Electronics

3. Medical Devices

4. Industrial Equipment

Specifications

1.0mm ZIF SMT H2.5mm lower/upper contacts 4-40P FPC/FFC connector

Order Information

RHTAY240N-2.5-XX-T-U-R

XX-No.of 04 ~ 40pin

T-Horizontal SMT

U-Upper Contact

R-Reel T-Tubes

Order Information

RHTAY240Q-2.5-XX-T-L-R

XX-No.of 04 ~ 40pin

T-Horizontal SMT

L-Lower Contact

R-Reel T-Tubes

Material:

Housing: LCP UL94V-0

Lock: PA46, UL94V-0

Plug spring: phosphor bronze, Tin Plated / Gold Plated

Soldering lug: Brass, Tin Plated / Gold Plated

Electrical Characteristics:

Rated current:0.4A

Rated voltage:50V

Withstand voltage:200V

Contact resistance:≤20mΩ

Insulation resistance:500MΩ

Operating Temperature: -20℃ To +85℃

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

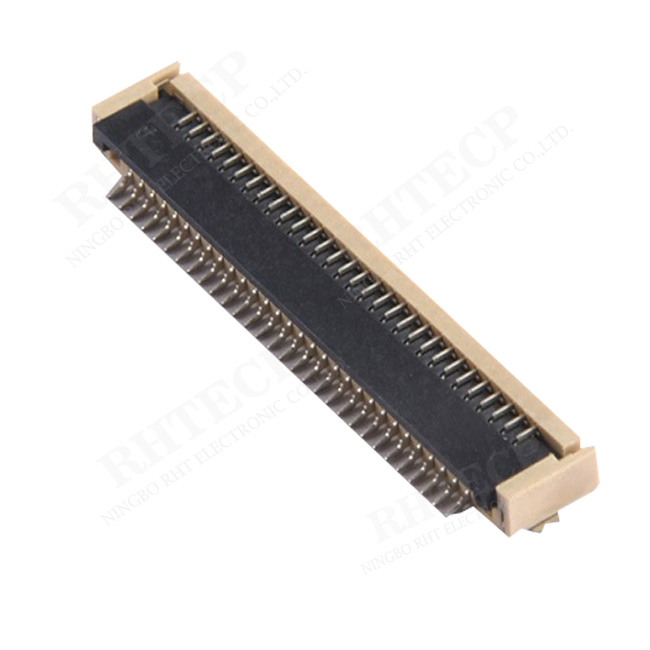

1.0mm Front insert Back flip-lock SMT ZIF type with big socket FPC/FFC connectors : RHTAY40Q-2.0

Series Part No:RHTAY40Q-2.0

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-ZIF (Zero Insertion Force) Type : The ZIF mechanism makes connection and disconnection simple and effortless, preventing any damage to the connector or the PCB. This feature ensures long-lasting functionality and minimizes wear over time.
-Big Socket : The large socket design increases the contact area, improving electrical performance by ensuring consistent and reliable conductivity. It also enhances durability by reducing the risk of contact wear and tear.
-FPC/FFC Compatibility : Compatible with both Flexible Printed Circuits (FPC) and Flexible Flat Cables (FFC), this connector offers versatility for a wide range of electronic applications, from consumer electronics to industrial systems.
-High Durability : Built to withstand multiple mating cycles, the connector is designed for long-term performance even under demanding conditions. It’s ideal for applications that require frequent assembly and disassembly without degradation in quality.

Applications

1.Consumer Electronics
2.Smartphones and Tablets
3.Wearable Devices
4.Laptops and Notebooks

Specifications

1.0mm Front insert Back flip-lock SMT ZIF type with big socket FPC/FFC connectors
Order Information
RHTAY40Q-2.0-XX-T-R
XX-No.of 04 ~ 40pin
T-SMT Pin
T-Tube packing R-Reel packing
Material:
Housing: LCP UL94V-0
Contact: Phosphor Bronze
Plating: Tin Plated Over Nickel
Electrical Characteristics:
Voltage rating: 50 VAC
Current rating: 0.5 AMP
Withstandingf Voltage: 250 Ｖ
Insulation resistance: 500Ｍ ohm Min
Contact resistance: 30m ohm. max.
Temperature range: -40℃ To +105℃

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

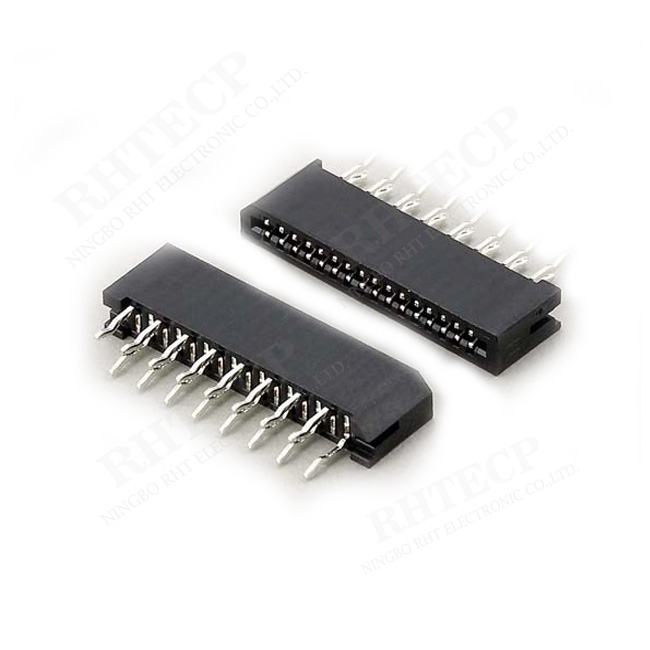

1.00mm Dual Contact NO-ZIF Type H5.5mm FFC FPC Connectors : RHTAY240B

Series Part No:RHTAY240B

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-NO-ZIF (Non-Zero Insertion Force) : Easy insertion and removal without requiring extra force, preventing damage to connectors.
-H5.5mm Height : Low-profile design, ideal for space-constrained applications.
-FFC/FPC Compatibility : Supports Flexible Flat Cables (FFC) and Flexible Printed Circuits (FPC) for versatile use.
-High-Quality Construction : Made from durable materials for long-term performance in various electronic devices.

Applications

1.Consumer Electronics
2.Mobile Devices
3.Laptops and Tablets
4.Television and Display Panels

Specifications

1.00mm Dual Contact NO-ZIF Type H5.5mm FFC FPC Connectors
Order Information
RHTAY240B-XX-S-B-P-T
XX-No.of 04 ~ 32pin
S-Straight Pin R-Right Angle Pin T-SMT Pin
B-Black
P-Positive needle A-Anti-needle
PACK: T-Tube R-Reel
Material
Housing:PA9T, UL94V-0
Terminal:Phosphor Bronze
Plating: Tin/Lead Plated Over Nickel
Electrical
Voltage rating: 50 V
Current Rating: 0.4 A
Withstanding Voltage: 200 V
Insulation resistance: 500MΩ.Min.
Contact resistance: 20 mΩ.Max.
Mechanical
Temp. Range: -25 ° C ~ + 85 ° C

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

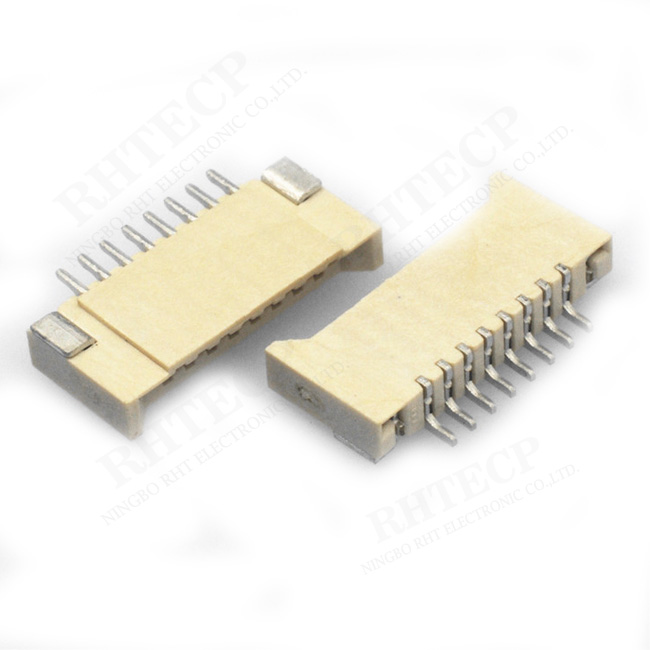

1.0mm Single Contact NO-ZIF Type H5.5mm FFC FPC Connectors :RHTAY40

Series Part No:RHTAY40

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Pitch: 1.0mm pitch, indicating the center-to-center distance between adjacent contacts.

-Connector Type: FPC (Flexible Printed Circuit) / FFC (Flat Flexible Cable) connectors designed with a NO-ZIF (Non-Zero Insertion Force) type, meaning they do not utilize a Zero Insertion Force mechanism for connecting FPC/FFC.

-Height: H5.5mm refers to the height profile of the connector, indicating the overall vertical dimension from the PCB surface to the top of the connector.

-Mounting Style: These connectors are typically available in surface mount technology (SMT) configuration, allowing for direct placement on the surface of a PCB (Printed Circuit Board).

Applications

1. Industrial Equipment

2. Telecommunications

3. Consumer Electronics

4. Handheld Devices and Wearables

Specifications

1.0mm Single Contact NO-ZIF Type H5.5mm FFC FPC Connectors

Order Information

RHTAY40-XX-S-P-T

XX-No.of 04 ~ 30pin

S-Straight Pin R-Right Angle Pin T-SMT Pin

P-Positive needle A-Anti-needle

R-Reel Packing T-Tube Packing

Material:

Housing: PBT UL94V-0

Contact: Phosphor Bronze

Plating: Tin Plated Over Nickel

Electrical Characteristics:

Voltage rating: 50 VAC

Current rating: 0.5 AMP

Dielectric Withstandingf Voltage: 500 VAC R.M.S.

Insulation resistance: 500m ohm Min

Contact resistance: 30m ohm. max.

Temperature range: -40℃ To +105℃

Technical Documents

Please contact us for more information.

X

X

Previous page 1 2 3 4 5 6 next page
