Female header connectors

Female header connectors, PCB connectors, electronic connectors, wire-to-board connectors, dual-row female header connectors, single-row female header connectors, through-hole connectors, SMT connectors, durable connectors, reliable connectors, high-performance connectors, electronic component connectors, customizable connectors, solderable connectors, industrial connectors, secure connections, compact connectors, efficient connectors, high-quality female header connectors, connector suppliers, connector manufacturers, precision connectors, affordable connectors

Enlarge

Quick View

2.54mm Pitch Female Header Connector Height 5.7mm : RHTAY08Y-5.7

Series Part No:RHTAY08Y-5.7

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Long-Term Durability: Engineered to endure numerous mating and unmating cycles, maintaining consistent electrical performance over the product’s lifespan.
-Low Contact Resistance: Ensures minimal signal loss and power dissipation, supporting high-frequency and sensitive electronic applications.
-Wide Application Range: Suitable for consumer electronics, embedded systems, industrial controls, communication devices, and medical equipment.
-Environmental Compliance: RoHS compliant, meeting environmental and safety standards for sustainable manufacturing.

Applications

1.Consumer Electronics
2.Industrial Automation
3.Embedded Systems
4.Communication Devices

Specifications

2.54mm Pitch Female Header Connector Height 5.7mm
Order Information
RHTAY08Y-5.7-2-XX-T-B
Height: 5.7mm
1-Single layer 2-Double layer
XX-Total pin number (No.of 1~80pin)
S-Straight Pin R-Right Angle Pin T-SMT Pin
Material:A=PBT B=PA6T C=LCP
Material:
Housing: 30% Glass filled PBT / PA6T UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u" Ni
Electrical Characteristics:
Current Rating: 3 AMP
Insulator Resistance: 1000M Ohm min. at DC 1000V
Contact Resistance: 20m Ohm max.
Operating Temperature: -40ºC~+105ºC
Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

2.54mm Pitch Female Header Connector Height 5.7mm 6.0mm 6.8mm:RHTAY08YB-5.7&RHTAY08YB-6.0&RHTAY08YB-6.8

Series Part No:RHTAY08YB-5.7&RHTAY08YB-6.0&RHTAY08YB-6.8

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Standard 2.54mm Pitch: Industry-standard spacing ensures broad compatibility with a wide range of PCBs and components.
-Multiple Height Options: Available in 5.7mm, 6.0mm, and 6.8mm heights to meet various clearance and design needs.
-Flexible Connector Design: Female header style allows for easy mating with male pin headers, ensuring secure and stable connections.
-Mounting Types: Offered in both through-hole and surface mount versions for different assembly processes.

Applications

1.Embedded Systems
2.Communication Devices
3.Medical Equipment
4.Networking Hardware

Specifications

2.54mm Pitch Female Header Connector High 5.7mm & 6.0mm & 6.8mm
Order Information
RHTAY08YB-6.8-1-XX-S-A
Plastics height-5.7mm,6.0mm,6.8mm
1-Single layer 2-Double layer
XX-Total pin number (No.of 1~80pin)
S-Straight Pin T-SMT Pin
Material:A=PBT B=PA6T C=LCP
Material:
Housing: 30% Glass filled PBT / PA6T UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u" Ni
Electrical Characteristics:
Current Rating: 3 AMP
Insulator Resistance: 1000M Ohm min. at DC 1000V
Contact Resistance: 20m Ohm max.
Operating Temperature: -40ºC~+105ºC
Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

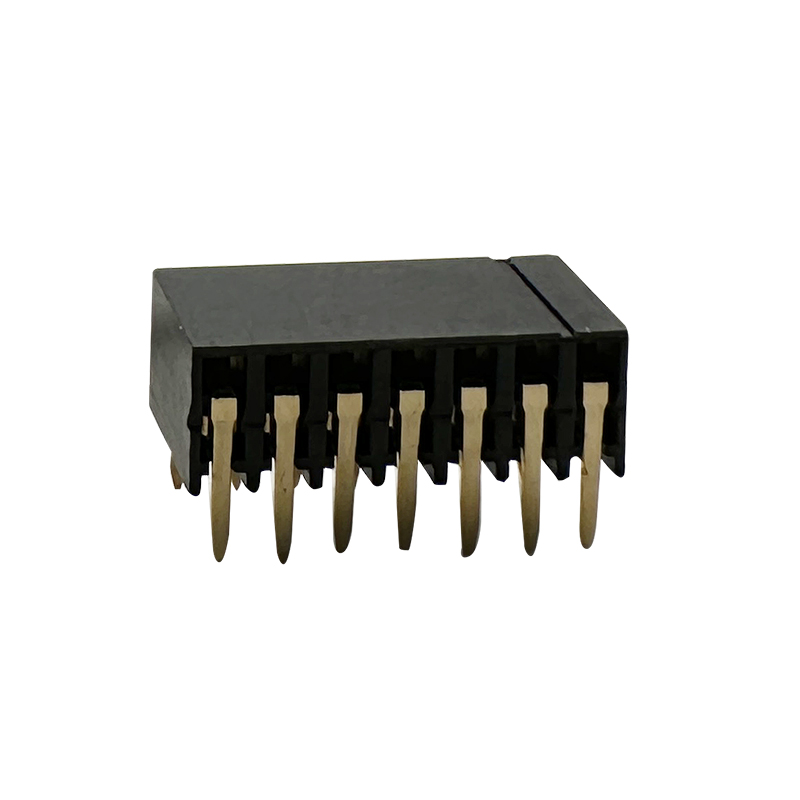

2.54mm Pitch Female Header Connector Height 3.4mm & 5.9mm Side Entry:RHTAY08A-5.9&RHTAY08A-8.1

Series Part No:RHTAY08A-5.9&RHTAY08A-8.1

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Female Socket Connector: Designed to mate with 2.54mm pitch male headers.

-Side Entry Configuration: The pins enter the connector from the side, providing more flexibility in layout and PCB design.

-Single-Row or Dual-Row Versions: Available in both single and dual-row versions, providing varying pin counts (e.g., 4, 6, 8, 10, 20, etc.).

-Current Rating: Typically 1A – 3A per pin, depending on the material and plating.

Applications

1. PCB (Printed Circuit Board) Connections

2. Interfacing with Cables

3. Signal Transfer and Communication

4. Consumer Electronics

Specifications

Order Information

RHTAY08A-5.9-1-XX-R-B

1-Single layer 2-Double layer

XX-Total pin number (No.of 1~80pin)

R-Right Angle Pin T-SMT Pin

Material:A=PBT B=PA6T C=LCP

Material:

Housing: 30% Glass filled PBT / PA6T UL94V-0

Contacts: Brass or Phosphor Bronze

Plating: Au or Sn over 50u" Ni

Electrical Characteristics:

Current Rating: 3 AMP

Insulator Resistance: 1000M Ohm min. at DC 1000V

Contact Resistance: 20m Ohm max.

Operating Temperature: -40ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

2.54mm Pitch Female Header Connector Height 7.1mm : RHTAY08Y-7.1

Series Part No:RHTAY08Y-7.1

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Standard 2.54mm Pitch: Ensures compatibility with most PCB layouts and industry-standard pin spacing, enabling easy integration into existing designs.
-7.1mm Height Profile: Provides sufficient clearance for stacking boards or accommodating specific mechanical constraints in compact or multi-layer assemblies.
-Female Connector Type: Designed to securely mate with male pin headers, offering reliable electrical connections and preventing accidental disconnections.
-Robust Contact Material: Typically features gold or tin plating on contacts to guarantee excellent conductivity, corrosion resistance, and long-term durability.

Applications

1.PCB Connections
2.Microcontroller and Development Boards
3.Prototyping and Testing
4.Signal and Low-Power Transmission

Specifications

2.54mm Pitch Female Header Connector Height 7.1mm U terminal
Order Information
RHTAY08Y-7.1-1-XX-R-A
7.1-Plastics height 7.1mm
1-Single layer 2-Double layer
XX-Total pin number (No.of 1~80pin)
S-Straight Pin T-SMT Pin
Material:A=PBT B=PA6T C=LCP
Material:
Housing: 30% Glass filled PBT / PA6T UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u" Ni
Electrical Characteristics:
Current Rating: 3 AMP
Insulator Resistance: 1000M Ohm min. at DC 1000V
Contact Resistance: 20m Ohm max.
Operating Temperature: -40ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

2.54mm Pitch Female Header Connector Height 8.0mm : RHTAY08-8.0

Series Part No:RHTAY08-8.0

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Standard 2.54mm Pitch: Provides compatibility with a wide range of electronic components and breadboards, making it ideal for prototyping and production.
-8.0mm Height: Taller profile allows for stacking or accommodating taller components, offering flexibility in PCB design.
-Female Header Design: Ensures secure and reliable mating with corresponding male headers or pins, ideal for board-to-board or cable connections.
-Versatile Mounting: Available in both through-hole and surface-mount (SMT) options to suit different manufacturing and assembly methods.

Applications

1.Medical Equipment
2.Networking Hardware
3.Automotive Electronics
4.Test and Measurement Instruments

Specifications

2.54mm Pitch Female Header Connector Height 8.0mm
Order Information
RHTAY08-8.0-1-XX-S-A
8.0-Plastics height 8.0mm
1-Single layer 2-Double layer
XX-Total pin number (No.of 1~80pin)
S-Straight Pin R-Right Angle Pin T-SMT Pin
Material:A=PBT B=PA6T C=LCP
Material:
Housing: 30% Glass filled PBT / PA6T UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u" Ni
Electrical Characteristics:
Current Rating: 3 AMP
Insulator Resistance: 1000M Ohm min. at DC 1000V
Contact Resistance: 20m Ohm max.
Operating Temperature: -40ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

2.54mm Pitch Female Header Connector Height 8.5mm U terminal : RHTAY08U

Series Part No:RHTAY08U

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Pitch: 2.54mm Standard spacing between pins, compatible with a wide range of components.
-Height: 8.5mm Provides sufficient clearance for various applications.
-Terminal Type: U-Terminal — Offers secure and reliable connections.
-Mounting Style: Surface Mount Technology (SMT) — Facilitates automated assembly processes.

Applications

1.Automotive electrical systems
2.Industrial control devices
3.Computer and peripheral interfaces
4.Embedded systems and development boards

Specifications

2.54mm Pitch Female Header Connector Height 8.5mm U terminal
Order Information
RHTAY08U-1-XX-R-A
1-Single layer 2-Double layer
XX-Total pin number (No.of 1~80pin)
S-Straight Pin R-Right Angle Pin T-SMT Pin
Material:A=PBT B=PA6T C=LCP
Material:
Housing: 30% Glass filled PBT / PA6T UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u" Ni
Electrical Characteristics:
Current Rating: 3 AMP
Insulator Resistance: 1000M Ohm min. at DC 1000V
Contact Resistance: 20m Ohm max.
Operating Temperature: -40ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

2.54mm Pitch Female Header Connector Height 8.5mm bottom entry : tor Height 8.5mm bottom entry : RHTAY08V

Series Part No:RHTAY08V

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-2.54mm Standard Pitch: Ensures compatibility with widely used pin headers and PCB layouts.
-Female Header Type: Designed to receive male pins for secure electrical connections.
-Bottom Entry Design: Ideal for vertical mounting from the underside of the PCB.
-Height 8.5mm: Provides stable support and sufficient clearance for component stacking.

Applications

1.Automotive Electronics
2.Embedded Systems
3.Test & Measurement Devices
4.Networking Hardware

Specifications

2.54mm Pitch Female Header Connector Height 8.5mm Bottom Entry
Order Information
RHTAY08V-1-XX-S-A
1-Single layer 2-Double layer
XX-Total pin number (No.of 1~80pin)
Straight Pin-S & S1 Bottom Entry-W & W1
Material:A=PBT B=PA6T C=LCP
Material:
Housing: 30% Glass filled PBT / PA6T UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u" Ni
Electrical Characteristics:
Current Rating: 3 AMP
Insulator Resistance: 1000M Ohm min. at DC 1000V
Contact Resistance: 20m Ohm max.
Operating Temperature: -40ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

2.54mm Pitch Female Header Connector Height 8.5mm : RHTAY19X&RHTAY19Y

Series Part No:RHTAY19X&RHTAY19Y

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Connector Type: Female headers have sockets designed to accept male pins or headers securely, facilitating easy connection and disconnection of components.

-Height: The height of 8.5mm refers to the total vertical distance from the bottom of the PCB to the top of the connector when mounted. This dimension is crucial for determining clearance requirements in tight spaces or when components need to be mounted close together.

-Mounting Style: Designed for Surface Mount Technology (SMT), where the connectors are directly soldered onto the surface of the PCB. This method eliminates the need for through-holes, allowing for a more compact and space-efficient design on the PCB.

-Material: Typically constructed from durable materials such as high-temperature plastic for the housing and metal (often tin-plated brass or phosphor bronze) for the contacts. These materials ensure mechanical strength and reliable electrical connections, even in demanding environments.

Applications

1.Consumer Electronics

2. Networking Equipment

3. Automotive Electronics

4.Industrial Applications

Specifications

2.54mm Pitch Female Header Connector Height 8.5mm

Order Information

RHTAY19X-2-XX-S-A

Type-19X,19Y

2-Double layer

XX-Total pin number (No.of 1~80pin)

S-Straight Pin R-Right Angle Pin T-SMT Pin

Material:A=PBT B=PA6T C=LCP

Material:

Housing: 30% Glass filled PBT / PA6T UL94V-0

Contacts: Brass or Phosphor Bronze

Plating: Au or Sn over 50u" Ni

Electrical Characteristics:

Current Rating: 3 AMP

Insulator Resistance: 1000M Ohm min. at DC 1000V

Contact Resistance: 20m Ohm max.

Operating Temperature: -40ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X

Previous page 1 2 3 4 5
