MOLEX 70021-0021
Features

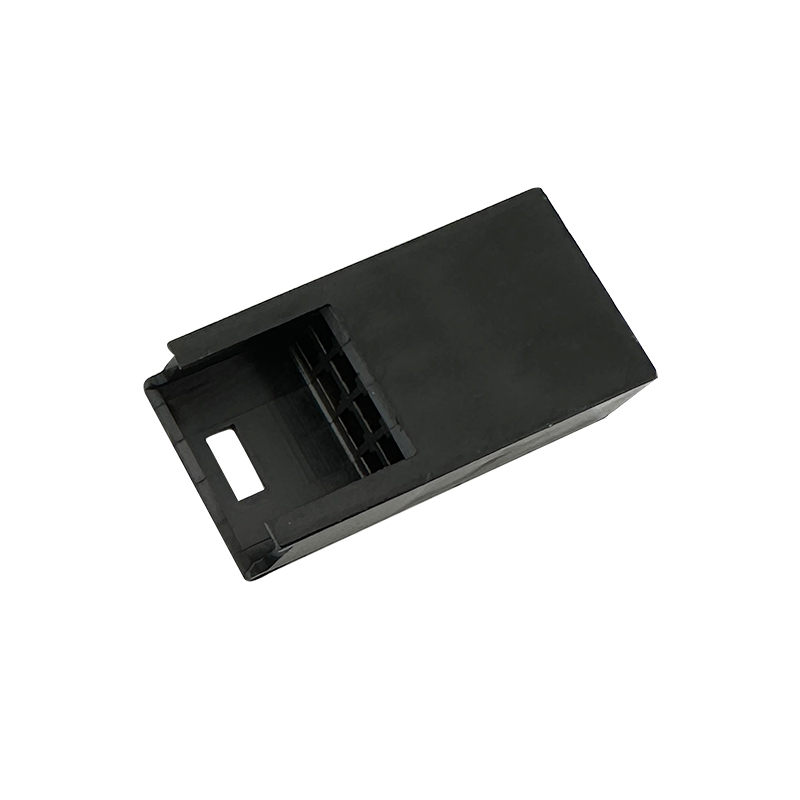

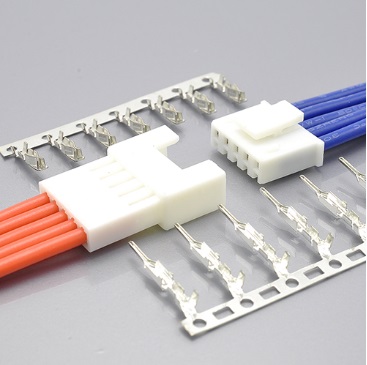

-Termination Style: Designed for crimp-style wire termination, where the stripped ends of wires are inserted into the connector's contacts and crimped to secure them in place. This termination method provides a secure electrical connection and strain relief for the wires, preventing accidental disconnection.
-Current Rating and Voltage: The connector is rated for specific current carrying capacities and voltage levels, ensuring compatibility with the electrical requirements of various applications. These ratings are typically specified by the manufacturer.
-Keying and Polarization: To prevent mismating and ensure proper alignment during connection, the Molex 70058/70066 connector may feature keying or polarization features. These ensure that connectors can only be mated in the correct orientation, maintaining electrical integrity and preventing damage.
-Environmental Considerations: Designed to operate reliably in various environmental conditions, including temperature fluctuations, vibration, and mechanical stress. This makes the Molex 70058/70066 connector suitable for use in applications where durability and reliability are critical.
Applications
1.Industrial Automation
2.Automotive Electronics
3.LED Lighting Systems
4.Medical Devices
Specifications

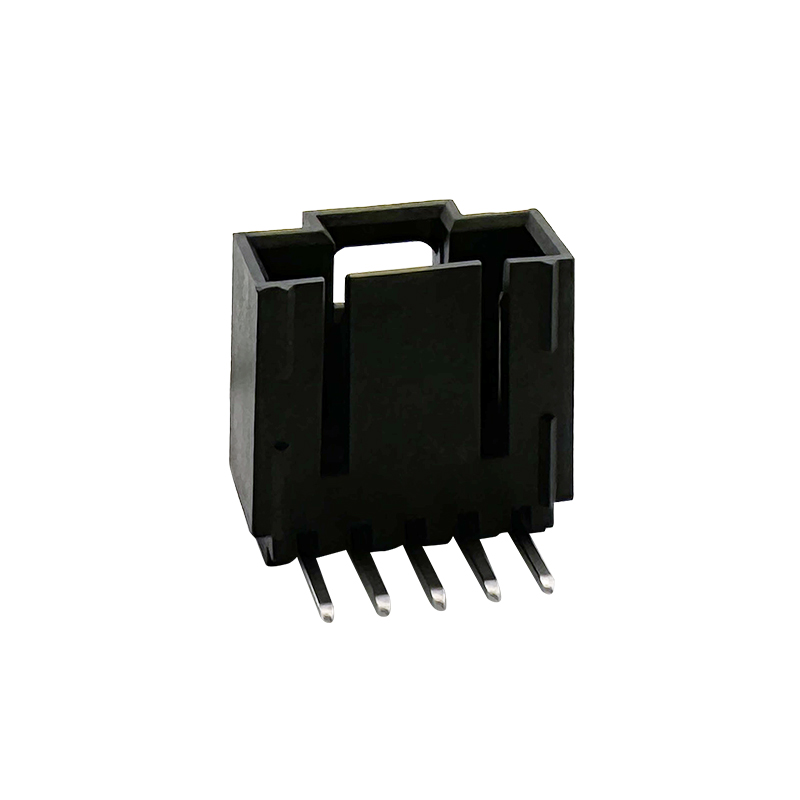

2.54mm Molex 70058/70066 Wire To Board Connector
Electrical Specification:
Rated Voltage: 250V AV.DC
Rated Current: 3A
Contact Resistance: 0.02Ω max
Insulation Resistance: 1000MΩ min
Withstand voltage: 1000V AC/min
Temperature range for usage : -40ºC~+105ºC
P.C board thickness : 0.8~1.6mm
Material:
Housing: PA66 (PA66) UL94V-0
Contacts: Phosphor Bronze or Brass
Plating: Tin 50u" over 100u" nickel
Wire range : AWG#30~#22
