Features

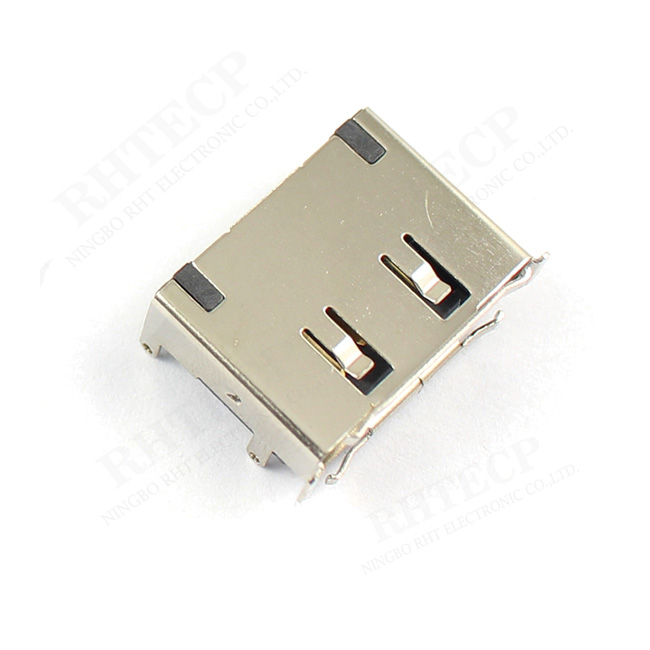

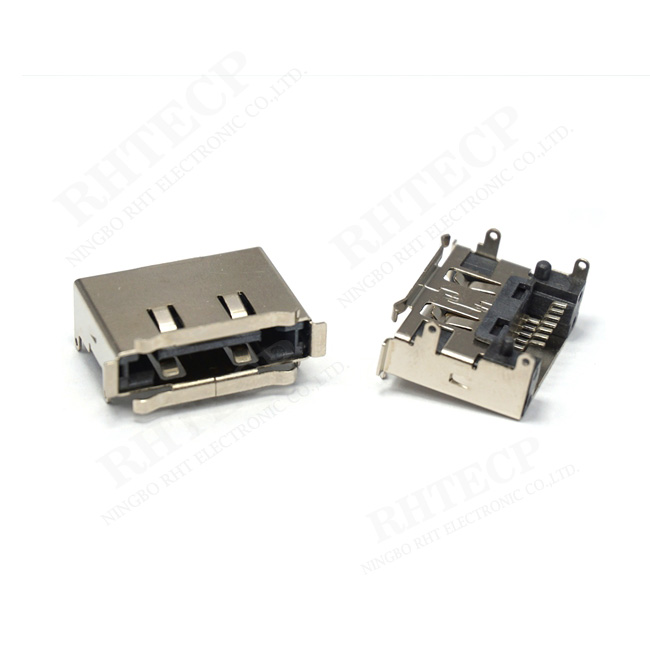

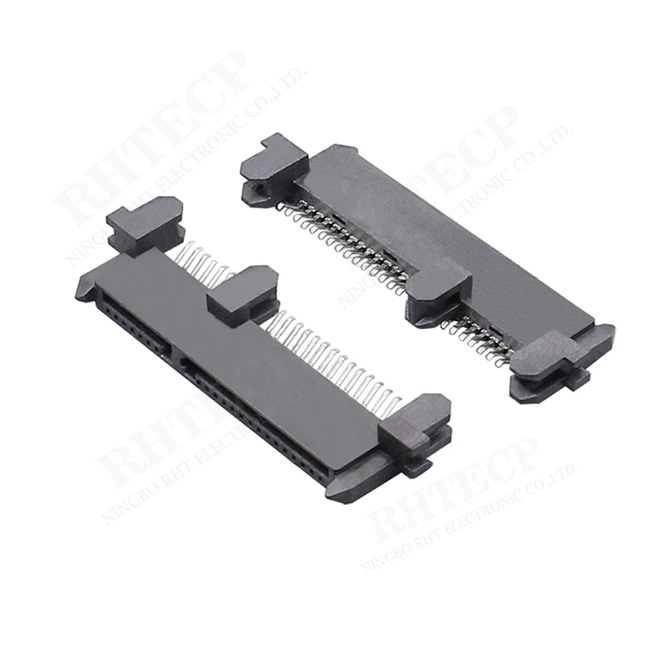

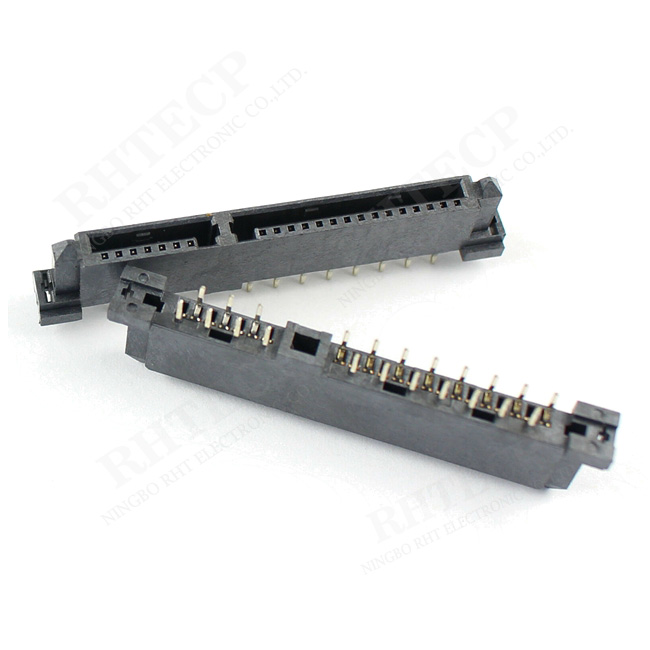

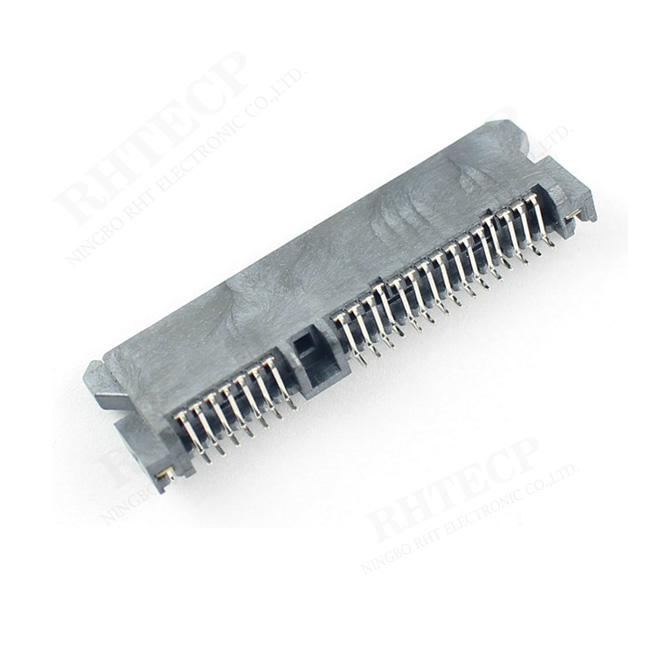

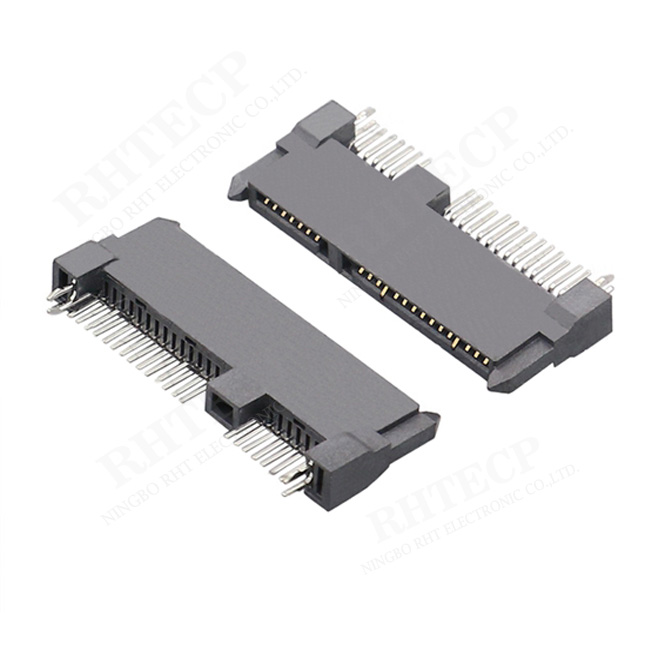

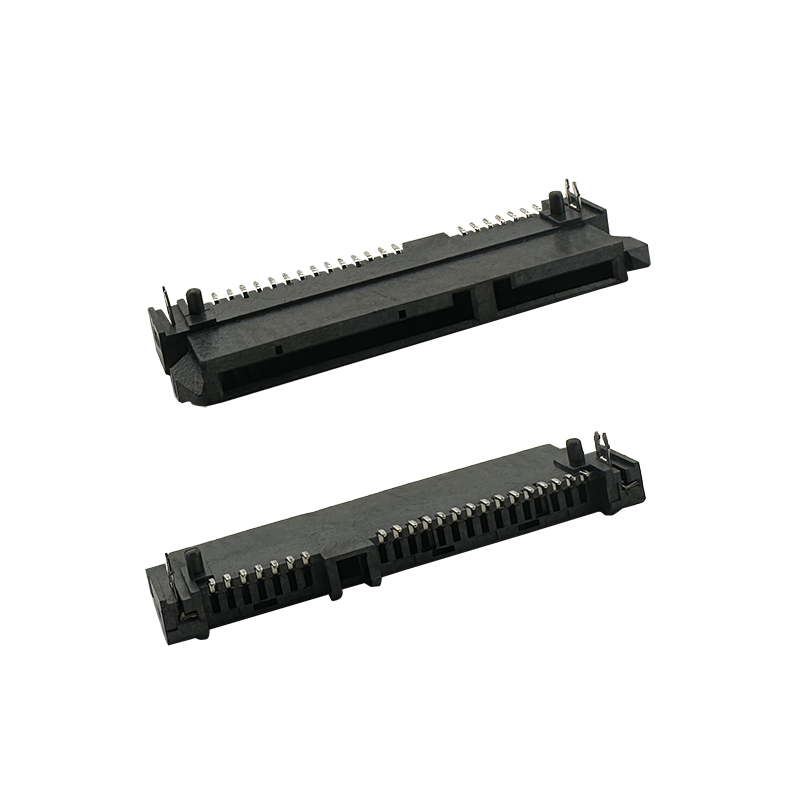

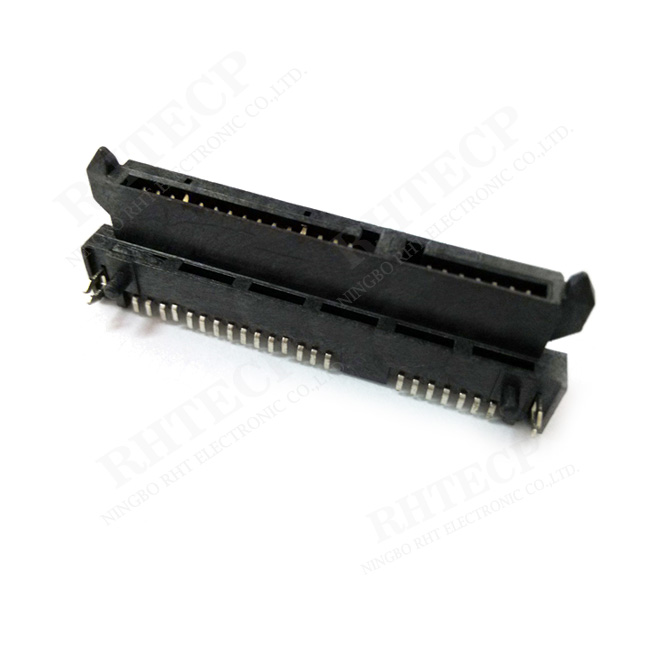

-Connector Type: SATA 7+15P refers to a connector that combines both power (15 pins) and data (7 pins) connections in a single interface, commonly used for connecting storage devices like hard disk drives (HDDs), solid-state drives (SSDs), and optical drives.
-SMD (Surface-Mount Device):
Designed for surface-mounting directly onto the PCB (Printed Circuit Board), facilitating automated assembly processes in manufacturing.
Saves space on the PCB compared to through-hole mounting, enhancing design flexibility and compactness.
-Height (H6.70mm):
Specifies the vertical clearance required above the PCB surface for the connector, ensuring proper spacing for components and airflow within the electronic device.
The 6.70mm height typically includes the connector body and soldering pads.
-Pin Configuration:
Combines 7 data pins for transmitting SATA data signals (such as TX, RX, ground) and 15 power pins for supplying voltage (such as +3.3V, +5V, +12V) to the connected device.
Pins are designed to provide reliable electrical connections for high-speed data transfer and power delivery.
Applications
1.Workstations:
2.Network Attached Storage (NAS) Devices:
3.External Hard Drive Enclosures:
4.Consumer Electronics
Specifications
MATERIAL:
Housing:LCP,UL94-V0 ,Black
Contact:Copper alloy,50u"min. Nickel plating
Overall;100u" min.Tin on solder tail;
Gold plating on contact area.
Hook:Copper alloy,Nickel and Tin plating overall.
ELECTRICAL:
Contact Resistance: 25 mΩ Max.
Insulation Resistance:1000 MΩ Min.
Dielectric Withstanding Voltage: 500VRMS Min.
Technical Documents
Please contact us for more information.
