Memory card connectors

Memory card connectors, SD card connectors, microSD card connectors, MMC connectors, UHS connectors, card slot connectors, high-speed memory connectors, memory card interfaces, embedded memory card connectors, flash memory connectors, compact memory connectors, memory card reader connectors, mobile device connectors, portable storage connectors, memory card sockets, memory card interface connectors, electronics connectors, data transmission connectors, USB memory connectors, memory card slot designs.

Enlarge

Quick View

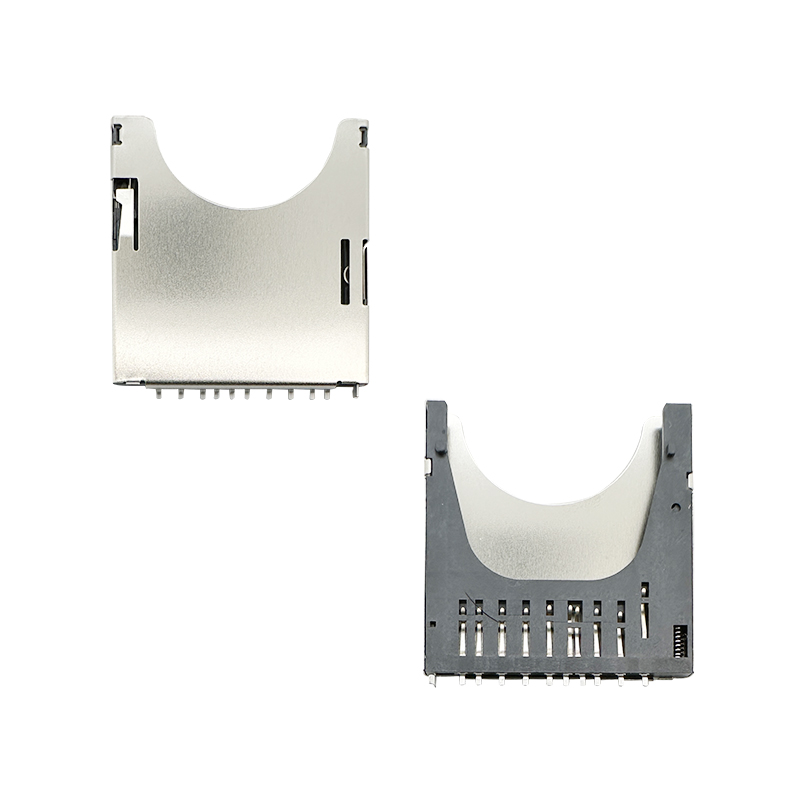

SD card connector push push,H2.8mm,with CD pin :RHTAYD-001&RHTAYD-101

Series Part No:RHTAYD-001&RHTAYD-101

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Card Detect (CD) Pin:The CD pin detects the presence or absence of an SD card. This feature allows the device to know when an SD card is inserted or removed, enabling functionalities like software notifications or hardware triggers.

-Height (H2.8mm):With a height of 2.8mm, it provides adequate space for reliable connection and secure housing of the SD card within the device.

-High Durability:Constructed to withstand numerous insertion and removal cycles, ensuring long-term reliability and performance.

-Secure Connection:Provides a stable and secure connection to the SD card, minimizing the risk of disconnection due to vibrations or impacts.

Applications

1.Laptops and Notebooks

2.Portable Gaming Consoles

3.Audio Recorders

4.MP3 Players and Music Devices

Specifications

SD card connector push push,H2.8mm,with CD pin

Material:

Insulator:High Temperature Thermoplastic,UL94V-0.

Contact:Copper Alloys.Plated 50u" Ni Overall Plated Au Selective Contact Area,Plated 100u" Sn Over Ni On Solder Area.

Shell:Plated 50u" Ni Overall.

Electrical:

Voltage Rating:125V AC/DC

Current Rating:0.5mA AC/DC Max.

Ambient Humidity Range:95% R.H. Max.

Contact Resistance:100mΩ Max.

Insulation Resistance:1000MΩ Min./500V DC

Mating Cycles:10000 Insertions.

Operating Temperature: -45ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

Memory card connectors : RHTAYD002

Series Part No:RHTAYD002

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Compact and Space-Efficient Design: Ideal for devices with limited space, such as smartphones, cameras, and portable electronics.
-Efficient and Fast Data Transfer: Supports high-speed data transfer for quick file access, improving overall device performance.
-Corrosion and Wear Resistance: Made from premium materials that resist corrosion, oxidation, and wear, ensuring long-term, reliable performance even in harsh environments.
-Low Power Consumption: Optimized to consume minimal power, enhancing the battery life of portable devices and reducing overall energy use.

Applications

1.Laptops and PCs
2.Gaming Consoles
3.Automotive Systems
4.Security Systems

Specifications

SD card connector push pull,H2.8mm,with CD pin
Material:
Housing:LCP,UL94V-0.Black.
Terminal:C5191R-EH T=0.20,Contact G/F,Ni 40u" min,Soldering Tin 80u
WP Pin:C5191R-EH T=0.20,Contact G/F,Ni 40u" min,Soldering Tin 80u
CD Pin:C5191R-EH T=0.20,Contact G/F,Ni 40u" min,Soldering Tin 80u
Shell:C2680-H,T=0.20,NI 40u" min.
Electrical:
Contact Current Rating:0.5Amperes.
Dielectric Withstanding Voltage:AC500V rms.
Insulation Resistance:1000MΩ Min.
Contact Resistance:100mΩ Max.
Operating Temperature:-20%%DC TO +85%%DC
Mating Cycles:10000 Cycles.
Operating Temperature: -45ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

Memory card connectors :RHTAYD003

Series Part No:RHTAYD003

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Wide Temperature Range: Operates effectively in both extreme cold and heat, ensuring reliability across diverse environments and applications.
-Easy Integration and Mounting: Features a straightforward design that allows for easy soldering or mounting on PCB boards, simplifying manufacturing and assembly processes.
-Data Security: Some models include additional shielding or contacts designed to prevent accidental data loss and enhance data integrity.
-Cost-Effective: Provides a balance of performance and affordability, making it a cost-effective solution for manufacturers and end-users alike.

Applications

1.Security Systems
2.Portable Devices
3.Wearable Devices
4.Consumer Electronics

Specifications

SD card connector Reverse MID MOUNT 1.75mm,DIP with CD Pin
Material:
Housing:LCP S475,UL94V-0.Black.
Shell:Stainless Steel SUS304.
Contact:Copper Alloy C5210.
Finish:
Contact:Gold Plated on Contact Area.Matte Tin 100u" Min On Soldertail Area.50u" Min Nickel Plating Overall.
Shell:30u" Min Solderable Nickel Plating Overall.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

Memory card connectors : RHTAYD112

Series Part No:RHTAYD112

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-High Durability: Designed to withstand frequent insertion and removal, ensuring long-lasting performance and minimizing wear over time. Ideal for devices with high card usage.
-Reliable Data Transfer: Optimized for fast, secure, and efficient data transmission between memory cards and devices, reducing latency and ensuring quick file transfers.
-Compact Design: Space-efficient, ideal for small electronics like smartphones, tablets, and cameras, without sacrificing the functionality of the connector.
-Versatile Compatibility: Supports a wide range of memory card types, such as SD, microSD, and miniSD, making it suitable for diverse electronic applications.

Applications

1.Smartphones and Tablets
2.Digital Cameras and Camcorders
3.Laptop and Desktop Computers
4.Game Consoles

Specifications

SD card connector push pull,H2.75mm,with CD pin
Material:
Housing:High Temperature Thermoplastic.
Contact:Copper Alloy.
Shell:Copper Alloy,Plated gold on the solder tails,Underplated Nickel over all.
Plating:
Contact Area:Gold Plated over Ni.
Solder Tail:30u" Min Sn Plated Over Ni.
Electrical:
Current Rating:0.5A.
Voltage Rating:250VRMS
Contact Resistance:40mΩ
Dielectric Withstanding Voltage:500V AC.
Insulation Resistance:100MΩ
Insertion Force:40N Max.
Extraction Force:2N Min.
Operating Temperature: -45ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

Memory card connectors : RHTAYF-005

Series Part No:RHTAYF-005

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Low Power Consumption: Designed to minimize power usage, which is especially important for battery-operated devices, contributing to extended device runtime.
-Corrosion Resistance: Made with high-quality materials that protect against environmental elements such as moisture, dust, and corrosion, ensuring reliability even in harsh conditions.
-Secure Connection: Equipped with robust locking mechanisms or spring-loaded contacts to provide a stable, secure connection, reducing the risk of connection loss or data corruption.
-Easy Integration: Features a user-friendly design that makes it simple to integrate into various electronic devices, from consumer electronics to industrial equipment.

Applications

1.Portable Media Players
2.Medical Devices
3.Security Systems
4.IoT Devices

Specifications

SD card connector push pull,H3.4mm,with CD pin
Material:
Housing:High Temperature Thermoplastic
Contacts:Copper Alloy
Specification:
Current rating:0.5A
Voltage Rating:250VRM
Contact resistance:100mΩ Max.
Insulation resistance:100ΜΩ Min.
Dielectric Withstanding Voltage:500VAC
Mating Cycle:10000 Cycles Minute.
Operating temperature:-25ºC~+90ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

Memory card connectors : RHTAYF-005S

Series Part No:RHTAYF-005S

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Compact Design: Space-efficient, ideal for small electronics like smartphones, tablets, and cameras, without sacrificing the functionality of the connector.
-Versatile Compatibility: Supports a wide range of memory card types, such as SD, microSD, and miniSD, making it suitable for diverse electronic applications.
-Low Power Consumption: Designed to minimize power usage, which is especially important for battery-operated devices, contributing to extended device runtime.
-Corrosion Resistance: Made with high-quality materials that protect against environmental elements such as moisture, dust, and corrosion, ensuring reliability even in harsh conditions.

Applications

1.Game Consoles
2.Automotive Electronics
3.Industrial Equipment
4.Portable Media Playe

Specifications

SD card connector push pull,H3.4mm,with CD pin
Material:
Insulator:Thermal Plastic UL94V-0
Contacts:Copper Alloy
Specification:
Current rating:1Amps Max
Contact resistance:100mΩ Max.
Insulation resistance:1000ΜΩ Min.
Mating Cycle:10000 Cycles Minute.
Operating temperature:-40ºC~+85ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

Memory card connectors : RHTAYF-006

Series Part No:RHTAYF-006

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Compact Design: Small footprint ideal for space-constrained applications like handheld devices, embedded systems, and IoT solutions.
-High Durability: Engineered for thousands of insertion/removal cycles, ensuring long-term performance in consumer and industrial environments.
-Secure Data Transmission: Maintains strong electrical contact for stable data transfer, minimizing data loss or corruption.
-Card Compatibility: Supports multiple card types, including SD, microSD, MMC, and CompactFlash, depending on the connector series.

Applications

1.GPS Navigation Systems
2.Industrial Control Equipment
3.Drones and UAVs
4.Automotive Infotainment Systems

Specifications

SD card connector push pull,H3.75mm
Material:
Housing:Thermoplastic,UL94V-0.Natural.
Terminal:Copper Alloy,Au Plating.Contact Area:G/F;Matte Tin Plated On Soldering.
Shell:Stainless Steel.
Electrical:
Contact Resistance:80mΩ Max.
Insulation Resistance:100MΩ Min.
Dielectric Withstanding Voltage:500V AC.
Mechanical Characteristics Retention Force:Min.100gf/Pin.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

Memory card connectors : RHTAYF-020

Series Part No:RHTAYF-020

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Gold-Plated Contacts: Corrosion-resistant and high-conductivity contacts improve electrical performance and product longevity.
-Environmental Resistance: Designed to withstand temperature extremes, shock, and vibration—ideal for automotive and rugged applications.
-RoHS Compliant: Environmentally friendly materials and manufacturing processes ensure global regulatory compliance.
-Application Versatility: Widely used in digital cameras, smartphones, drones, GPS devices, industrial control panels, and multimedia systems.

Applications

1.Laptops and Notebooks
2.Consumer Electronics
3.Security and Surveillance Systems
4.Data Loggers and Recorders

Specifications

SD card connector push pull,H2.5mm,with CD pin
Material:
Housing:Hi-Temp plastic,UL94V-0.
Contact:Copper Alloy.
Nail:Stainless Steel.
Finish:
Contact:G/F Gold plated on conatct area;
G/F plated on solder tails,Base Nickel 50u" Min
Nail:50u" Nickel Under,100u" Tin Overall.

Technical Documents

Please contact us for more information.

X

X

Previous page 1 2 3 4
