FFC/FPC connectors

FFC connectors, FPC connectors, flat flexible cable connectors, flexible printed circuit connectors, FPC ribbon connectors, FFC ribbon connectors, low-profile connectors, high-density connectors, surface-mount FPC connectors, through-hole FPC connectors, FPC cable connectors, flexible circuit board connectors, electronic component connectors, flexible cable interconnects, FPC to PCB connectors, FFC to PCB connectors, FPC socket connectors, FFC socket connectors, flexible interconnect solutions.

Enlarge

Quick View

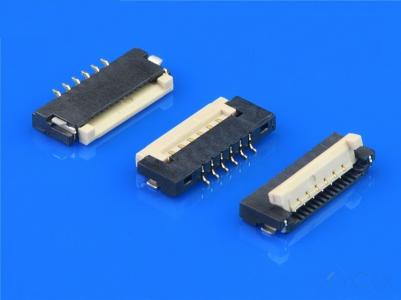

1.0mm hinged lock SMT H1.5mm bottom contacts FPC/FFC connectors: RHTAY40N-1.5

Series Part No:RHTAY40N-1.5

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Hinged Lock Mechanism: Provides a secure and reliable connection, ensuring the cable stays firmly in place during operation, while still being easy to remove when needed.
-SMT (Surface-Mount Technology): Designed for surface-mount assembly, offering precision placement and ease of automated production.
-H1.5mm Height: Low-profile design, perfect for slim and compact devices, minimizing space usage without sacrificing performance.
-Bottom Contacts: Features bottom contacts for optimal PCB integration, reducing the footprint on the PCB while maintaining strong, stable connections.

Applications

1.Industrial Machinery
2.Networking & Communication Devices
3.Aerospace Applications
4.Consumer Appliances

Specifications

1.0mm hinged lock SMT H1.5mm bottom contacts 4-60P FPC/FFC connectors
Order Information
RHTAY40N-1.5-XX-T-L-R
XX-No.of 04 ~60pin
T-Horizontal SMT
L-Lower Contact
R-Reel T-Tubes
Material:
Housing: LCP UL94V-0
Lock: LCP, UL94V-0
Plug spring: phosphor bronze, Tin Plated / Gold Plated
Soldering lug: phosphor bronze, Tin Plated / Gold Plated
Electrical Characteristics:
Rated current:0.4A
Rated voltage:50V
Withstand voltage:200V
Contact resistance:≤20mΩ
Insulation resistance:500MΩ
Operating Temperature: -20℃ To +85℃

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

1.0mm hinged lock SMT H2.0mm bottom contacts FPC/FFC connectors :RHTAY40M-2.0

Series Part No:RHTAY40M-2.0

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Connector Type: Designed with a hinged lock mechanism, ensuring secure mating and preventing accidental disconnection of Flexible Printed Circuits (FPC) or Flexible Flat Cables (FFC).

-Mounting Style: Surface Mount Technology (SMT), allowing for direct placement on the surface of a PCB (Printed Circuit Board), which simplifies assembly and saves space.

-Contact Type: Bottom contacts, where the contacts are located on the bottom side of the connector, suitable for connecting to corresponding pads on the PCB

-Height: H2.0mm refers to the height profile of the connector, which is important for determining the overall space required on the PCB.

Applications

1. Telecommunications

2. Automotive Electronics

3. Medical Devices

4. Industrial Equipment

Specifications

1.0mm hinged lock SMT H2.0mm bottom contacts 4-35P FPC/FFC connectors

Order Information

RHTAY40M-2.0-XX-T-L-R

XX-No.of 04 ~ 35pin

T-Horizontal SMT

L-Lower Contact

R-Reel T-Tubes

Material:

Housing: LCP UL94V-0

Lock: LCP, UL94V-0

Plug spring: phosphor bronze, Tin Plated / Gold Plated

Soldering lug: phosphor bronze, Tin Plated / Gold Plated

Electrical Characteristics:

Rated current:0.4A

Rated voltage:50V

Withstand voltage:200V

Contact resistance:≤20mΩ

Insulation resistance:500MΩ

Operating Temperature: -20℃ To +85℃

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

1.0mm ZIF SMT H1.2mm lower/upper contacts FPC/FFC connector : RHTAY240S-1.2&RHTAY240T-1.2

Series Part No:RHTAY240S-1.2&RHTAY240T-1.2

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-H1.2mm Height: Compact profile that allows for integration in tight spaces without compromising performance.
-Lower/Upper Contacts: Versatile connection options for both the upper and lower contacts, optimizing design flexibility.
-High Durability: Built to withstand numerous mating cycles, ensuring a long-lasting and reliable connection.
-Reliable Signal Transmission: Offers stable and consistent electrical performance for high-frequency signals.

Applications

1.Consumer Electronics
2.Mobile Devices
3.Laptops and Tablets
4.Wearable Technology

Specifications

1.0mm ZIF SMT H1.2mm lower/upper contacts 6-60P FPC/FFC connector
Order Information
RHTAY240S-1.2-XX-T-U-R
XX-No.of 04 ~ 30pin
T-Horizontal SMT
U-Upper Contact
R-Reel T-Tubes
Order Information
RHTAY240T-2.5-XX-T-L-R
XX-No.of 04 ~ 30pin
T-Horizontal SMT
L-Lower Contact
R-Reel T-Tubes
Material:
Housing: LCP UL94V-0
Lock: PA46, UL94V-0
Plug spring: phosphor bronze, Tin Plated / Gold Plated
Soldering lug: Brass, Tin Plated / Gold Plated
Electrical Characteristics:
Rated current:0.3A
Rated voltage:50V
Withstand voltage:200V
Contact resistance:≤20mΩ
Insulation resistance:500MΩ
Operating Temperature: -20℃ To +85℃

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

1.0mm ZIF SMT H2.0mm lower/upper contacts FPC/FFC connector :RHTAY40F-2.0&RHTAY40G-2.0

Series Part No:RHTAY40F-2.0&RHTAY40G-2.0

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Connector Type: FPC (Flexible Printed Circuit) / FFC (Flat Flexible Cable) connectors designed with a ZIF mechanism. ZIF connectors allow for easy and secure insertion and removal of flexible circuits without applying force to the contacts, minimizing the risk of damage to the circuit.

-Mounting Style: Surface Mount Technology (SMT), allowing for direct placement on the surface of a PCB (Printed Circuit Board), which simplifies assembly and saves space compared to through-hole mounting.

-Height: H2.0mm refers to the height profile of the connector, indicating the overall vertical dimension from the PCB surface to the top of the connector.

-Contacts: These connectors typically have lower and upper contacts, meaning they provide electrical connections on both sides of the connector, ensuring a secure and reliable connection with the flexible circuit (FPC/FFC).

Applications

1. Medical Devices

2. Industrial Equipment

3. Telecommunications

4. Consumer Appliances

Specifications

1.0mm ZIF SMT H2.0mm lower/upper contacts FPC/FFC connector

Order Information

RHTAY40F-2.0-XX-T-U-R

XX-No.of 02 ~ 30pin

T-Horizontal SMT

U-Upper Contact

R-Reel T-Tubes

Order Information

RHTAY40G-2.0-XX-T-L-R

XX-No.of 02 ~ 30pin

T-Horizontal SMT

L-Lower Contact

R-Reel T-Tubes

Material:

Housing: LCP UL94V-0

Lock: LCP, UL94V-0

Plug spring: phosphor bronze, Tin Plated / Gold Plated

Soldering lug: phosphor bronze, Tin Plated / Gold Plated

Electrical Characteristics:

Rated current:0.5A

Rated voltage:50V

Withstand voltage:500V

Contact resistance:≤20mΩ

Insulation resistance:500MΩ

Operating Temperature: -20℃ To +85℃

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

1.0mm smt 180 zif-lock H4.5mm FPC/FFC connectors : RHTAY42E-4.7

Series Part No:RHTAY42E-4.7

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-1.0mm Pitch: Compact and space-efficient design for high-density applications.
-180° ZIF-lock Mechanism: Provides a secure and reliable connection by locking the flexible flat cable (FFC/FPC) in place.
-H4.5mm Height: Low-profile design ideal for tight spaces in electronic devices.
-SMT Mounting: Surface mount technology allows for easy and automated assembly on PCBs.

Applications

1.Consumer Electronics
2.Laptops and Tablets
3.Smartphones and Mobile Devices
4.Cameras and Imaging Devices

Specifications

1.0mm fpc socket pcb smt 180 zif-lock H4.5mm FPC/FFC connectors
Order Information
RHTAY42E-4.7-XX-T-P-R
XX-No.of 02~30pin
T-Vertical SMT
P-Positive needle A-Anti-needle
R-Reel T-Tubes
Material:
Housing: LCP UL94V-0
Lock: LCP, UL94V-0
Plug spring: phosphor bronze, Tin Plated / Gold Plated
Soldering lug: phosphor bronze, Tin Plated / Gold Plated
Electrical Characteristics:
Voltage rating: 50 VAC
Current rating: 0.4 AMP
Dielectric Withstandingf Voltage: 500 VAC R.M.S.
Insulation resistance: 500m ohm Min
Contact resistance: 20m ohm. max.
Temperature range: -20℃ To +85℃

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

FFC/FPC connectors : RHTAY240D-5.5

Series Part No:RHTAY240D-5.5

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Mounting Style: Surface Mount Technology (SMT), enabling direct placement on the surface of a PCB (Printed Circuit Board). This method facilitates automated assembly processes and saves space compared to through-hole mounting.

-Height: H5.5mm refers to the vertical dimension of the connector from the PCB surface to the top of the connector body.

-Durability: Constructed with materials and design considerations that ensure durability and reliability under various environmental conditions and during repeated mating cycles.

-Contacts: These connectors typically have multiple contacts aligned to match the requirements of the flexible circuit, ensuring proper electrical connectivity.

Applications

1. Automotive Electronics

2. Medical Devices

3. Industrial Equipment

4. Telecommunications

Specifications

1.0mm fpc socket pcb smt 180 zif-lock H5.5mm FPC/FFC connectors

Order Information

RHTAY240D-5.5-XX-T-P-R

XX-No.of 04 ~ 30pin

T-Vertical SMT

P-Positive needle A-Anti-needle

R-Reel T-Tubes

Material:

Housing: LCP UL94V-0

Lock: LCP, UL94V-0

Plug spring: phosphor bronze, Tin Plated / Gold Plated

Soldering lug: phosphor bronze, Tin Plated / Gold Plated

Electrical Characteristics:

Voltage rating: 50 VAC

Current rating: 0.5 AMP

Dielectric Withstandingf Voltage: 500 VAC R.M.S.

Insulation resistance: 800M ohm Min

Contact resistance: 20m ohm. max.

Temperature range: -20℃ To +85℃

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

1.0mm smt 180 zif-lock H5.4mm FPC/FFC connectors : RHTAY240H-5.4

Series Part No:RHTAY240H-5.4

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-1.0mm Pitch: A compact pitch that enables high-density connections, ideal for space-constrained applications in compact electronics like mobile devices.
-180° ZIF Locking Mechanism: Zero Insertion Force (ZIF) ensures easy cable insertion without stress. The 180° design allows for efficient, flat cable routing while securely locking the cable in place, preventing accidental disconnections.
-5.4mm Height: The low-profile design makes it perfect for applications with limited vertical space, maintaining a sleek and compact form factor.
-SMT (Surface Mount Technology): Allows for efficient, automated PCB assembly and is ideal for high-density circuits. This technology minimizes assembly time and costs.

Applications

1.Cameras and Imaging Devices
2.Wearable Technology
3.Automotive Electronics
4.Industrial Equipment

Specifications

1.0mm fpc socket pcb smt 180 zif-lock H5.4mm FPC/FFC connectors
Order Information
RHTAY240H-5.4-XX-T-R
XX-No.of 02 ~ 30pin
T-Vertical SMT
R-Reel T-Tubes
Material:
Housing: LCP UL94V-0
Lock: PA46, UL94V-0
Plug spring: phosphor bronze, Gold/Tin Plated
Electrical Characteristics:
Voltage rating: 50 VAC
Current rating: 0.5 AMP
Withstandingf Voltage: 500 V
Insulation resistance: 800M ohm Min
Contact resistance: 20m ohm. max.
Temperature range: -40℃ To +105℃

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

1.0mm smt 180 zif-lock H5.4mm FPC/FFC connectors :RHTAY240E-5.4

Series Part No:RHTAY240E-5.4

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Mounting Style: Surface Mount Technology (SMT), allowing for direct placement on the surface of a PCB (Printed Circuit Board), which simplifies assembly and saves space.

-ZIF-lock Mechanism: ZIF (Zero Insertion Force) locking mechanism, which allows for easy and secure insertion and removal of FPC/FFC without applying significant force. This mechanism minimizes the risk of damaging the flexible circuit during insertion and removal.

-Height: H5.4mm refers to the height profile of the connector, indicating the overall vertical dimension from the PCB surface to the top of the connector.

-Contacts: Available with multiple contacts (pins) aligned to match the specific requirements of the flexible circuit or cable, ensuring proper electrical connectivity.

Applications

1. Industrial Equipment

2. elecommunications

3. Consumer Appliances

4. Handheld Devices and Wearables

Specifications

1.0mm fpc socket pcb smt 180 zif-lock H5.4mm FPC/FFC connectors

Order Information

RHTAY240E-5.4-XX-T-R

XX-No.of 02 ~ 30pin

T-Vertical SMT

R-Reel T-Tubes

Material:

Housing: LCP UL94V-0

Lock: PA46, UL94V-0

Plug spring: phosphor bronze, Gold/Tin Plated

Electrical Characteristics:

Voltage rating: 50 VAC

Current rating: 0.5 AMP

Withstandingf Voltage: 500 V

Insulation resistance: 800M ohm Min

Contact resistance: 20m ohm. max.

Temperature range: -40℃ To +105℃

Technical Documents

Please contact us for more information.

X

X

Previous page 1 2 3 4 5 6 next page
