Features
-Pin Plating:Commonly plated with gold or tin to enhance corrosion resistance, ensure reliable electrical connections, and improve solderability.
-Housing Material:The connector body is typically made from high-temperature plastic materials such as PBT (polybutylene terephthalate) or Nylon, offering good mechanical strength and durability.
-Current Rating:Rated for low to moderate current levels, typically ranging from 1A to 3A per pin, depending on the specific design and application.
-Operating Temperature Range:Designed to operate within a broad temperature range, typically from -40°C to +105°C, making them suitable for various environmental conditions.
Applications
1. PCB Interconnection
2. Development and Prototyping
3. Networking and Telecommunications
4. Industrial Control and Automation
Specifications

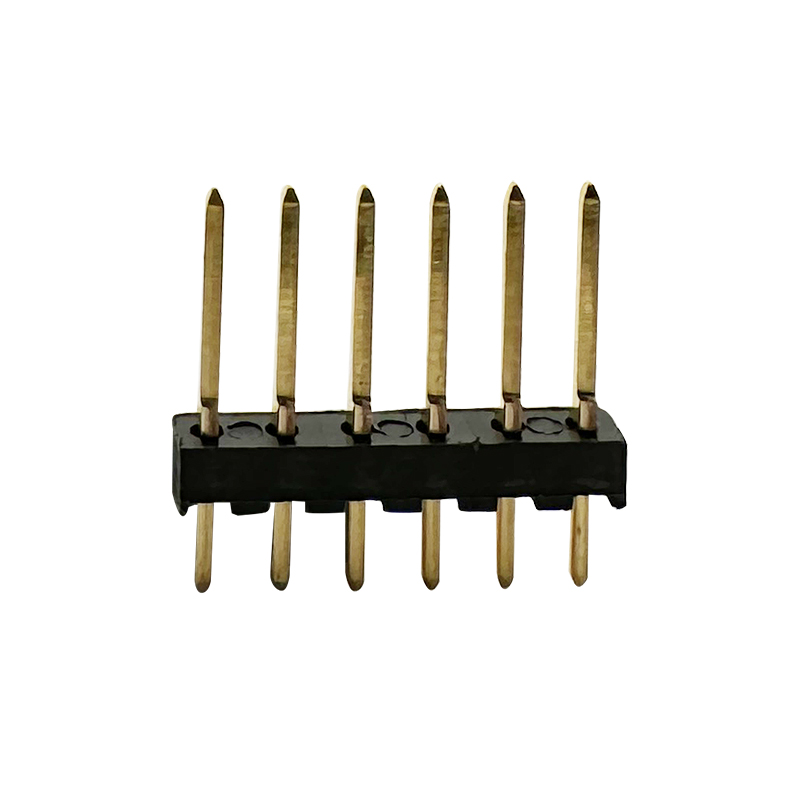

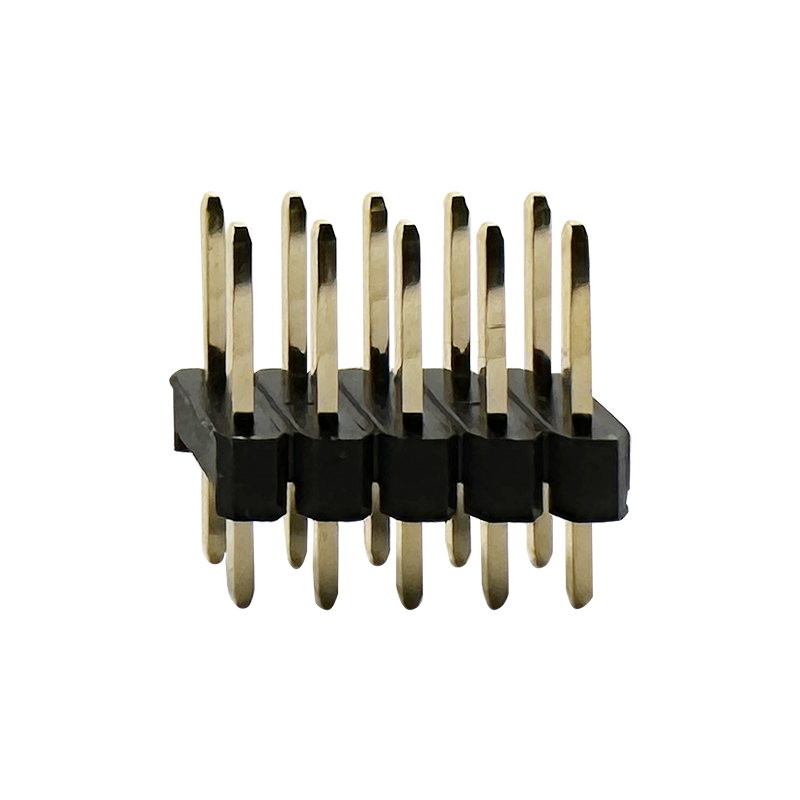

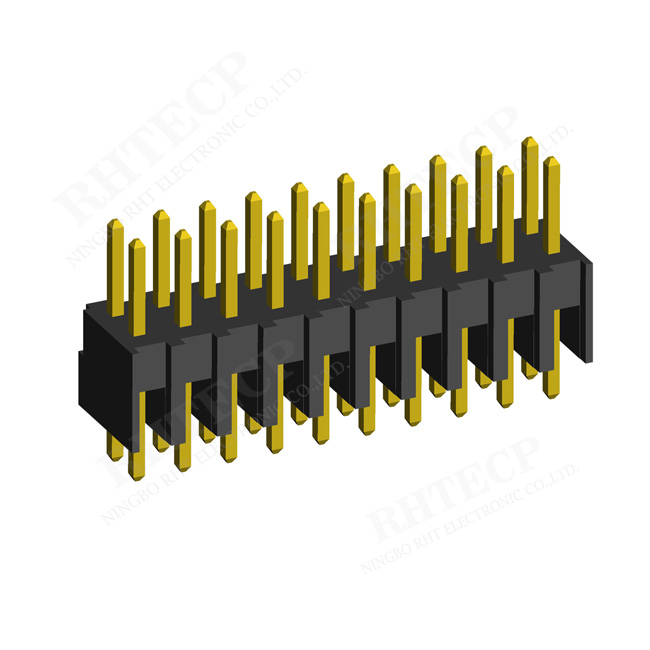

3.96mm Pitch Pin Header Connector
Order Information
RHTAY3.96D-1-XX-S-L1*L2*L3-SN
3.96D-3.96mm pitch pin haeder
1-Single layer
XX-Total pin number (No.of 1~30pin)

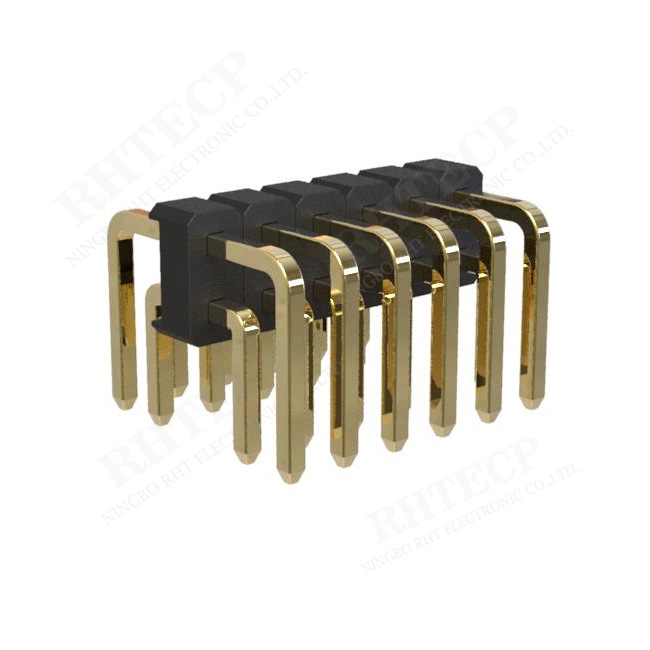

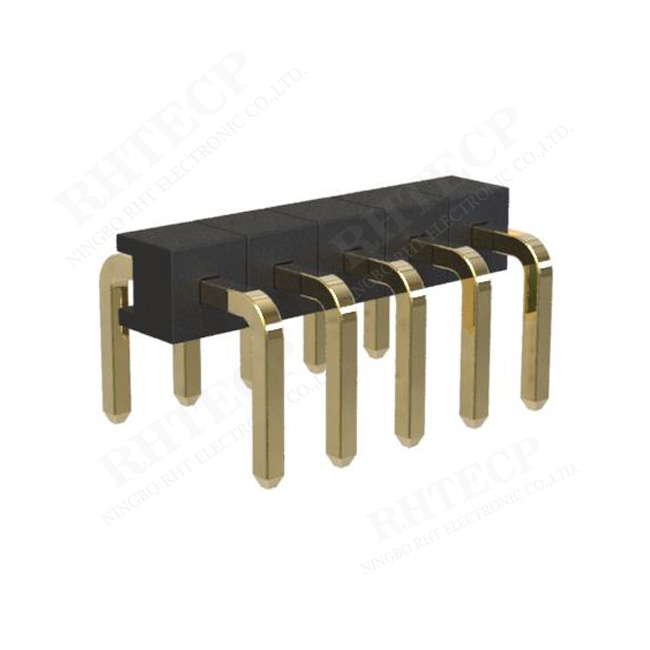

S-Straight Pin R1-Right Angle Pin T-SMT Pin
SIZE:L1*L2*L3
Plating:G0=Gold Flash G1=1u" Gold G10=10u" Gold G15=15u" Gold G30=30u" Gold SN=Tin
Material:
Standard:LCP
Contact: Brass
Insulator:Polyester,UL94V-0
Electrical Characteristics:
Rated Current: 5AMP
Contact Resistance: 20mΩ Max
Withstand Voltage: 500V AC/DC
Insulator Resistance: 1000MΩ Min
Mechanical
Operating Temperature: -40°C~+105°C
Max.Processing Temp:230°C for 30-60
seconds (260°C for 5 seconds)
Technical Documents
Please contact us for more information.
