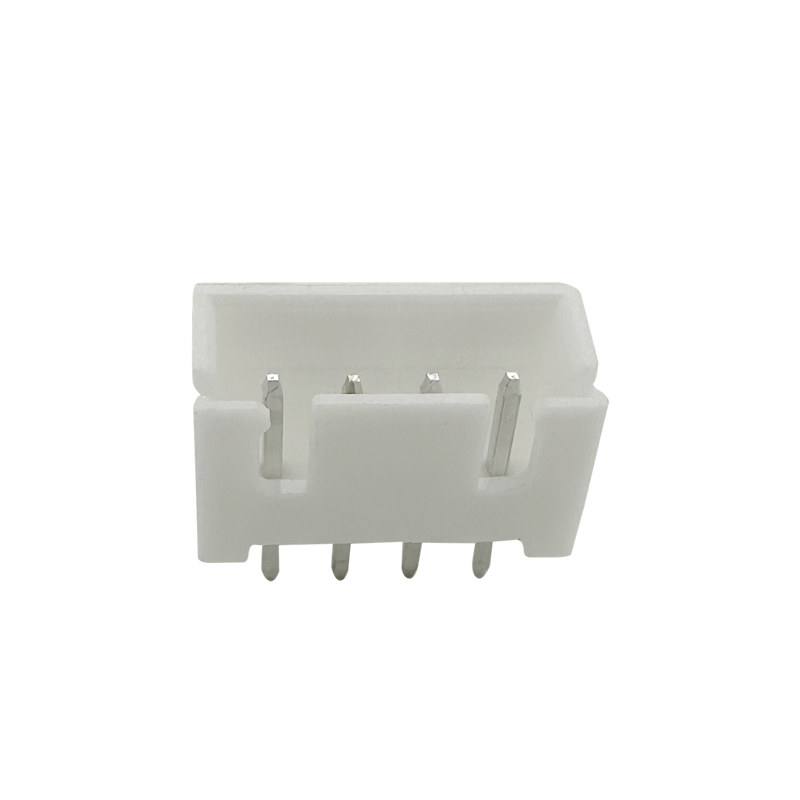

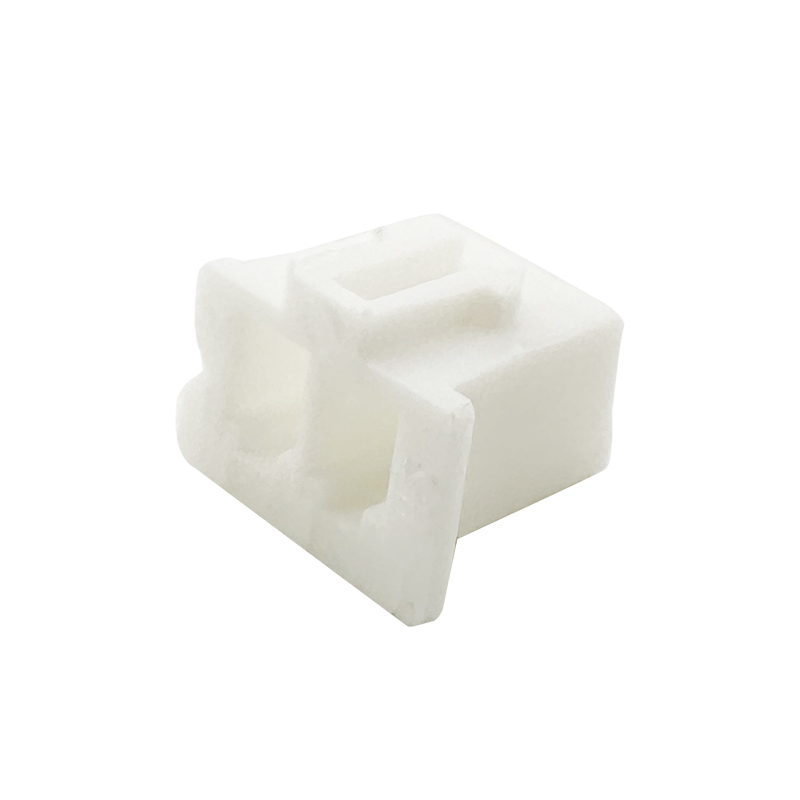

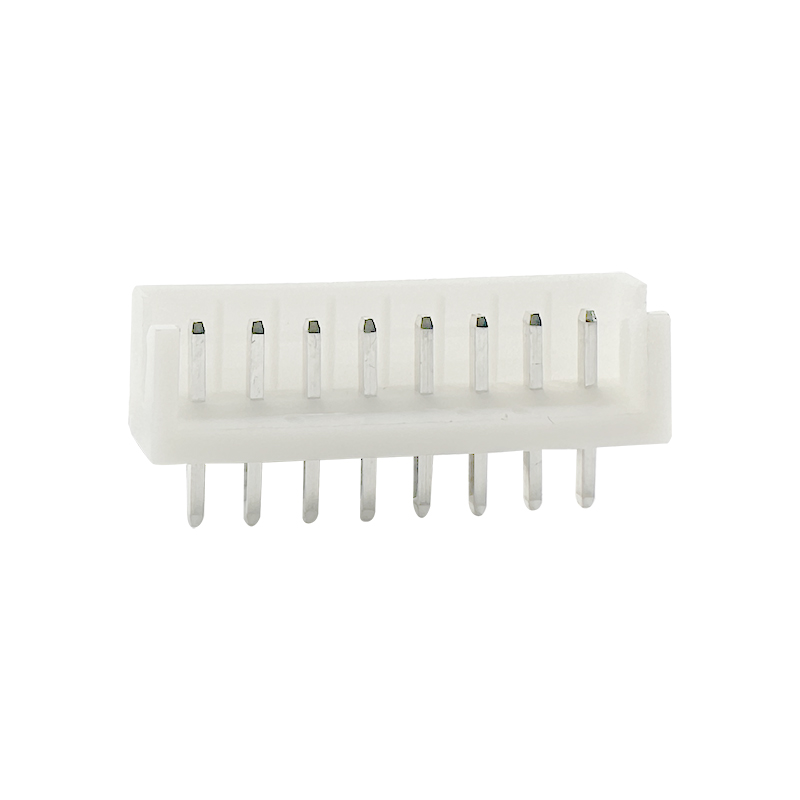

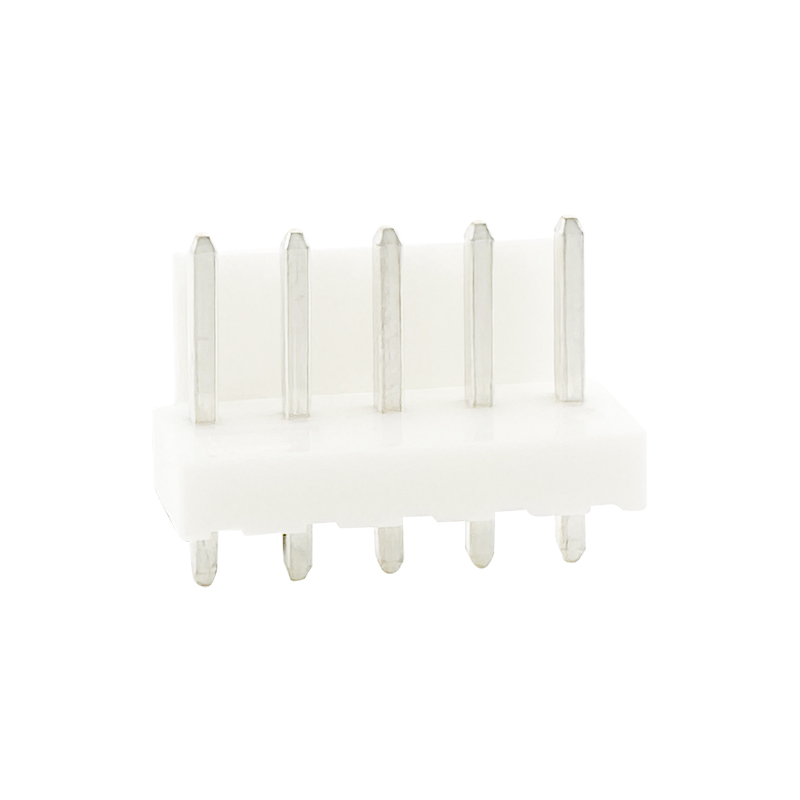

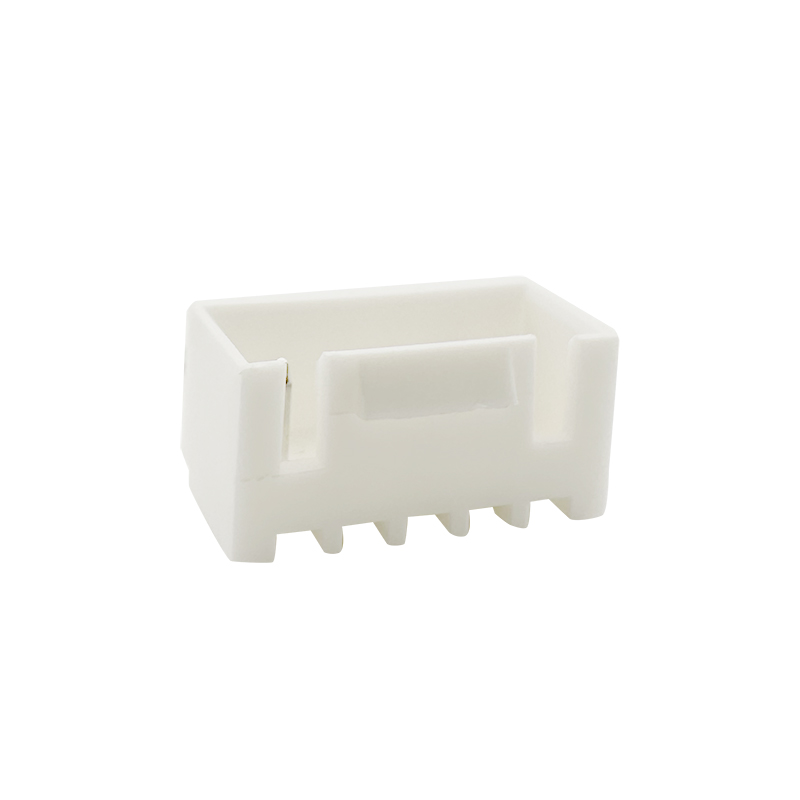

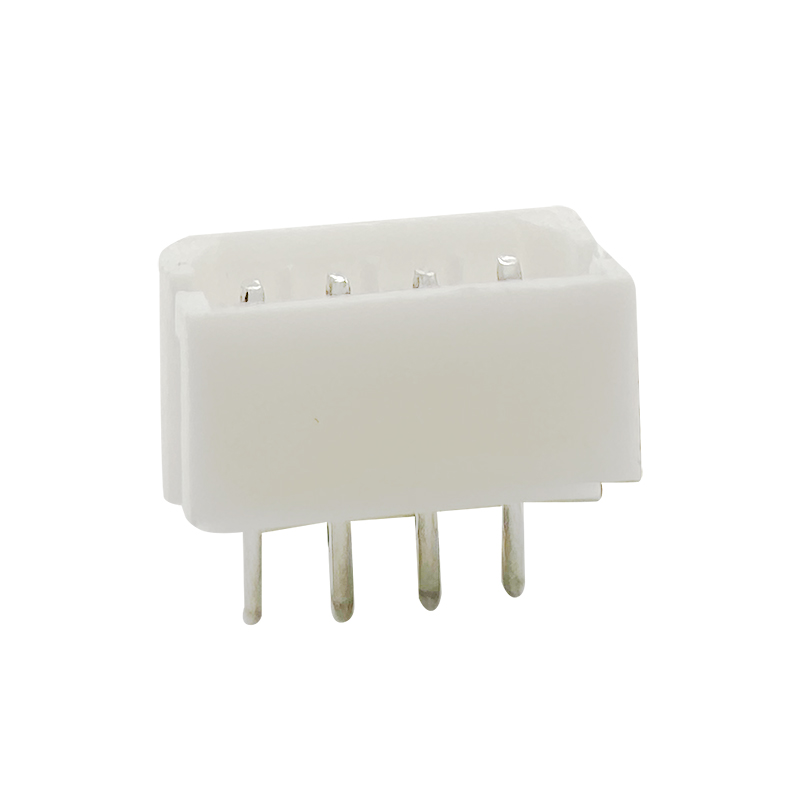

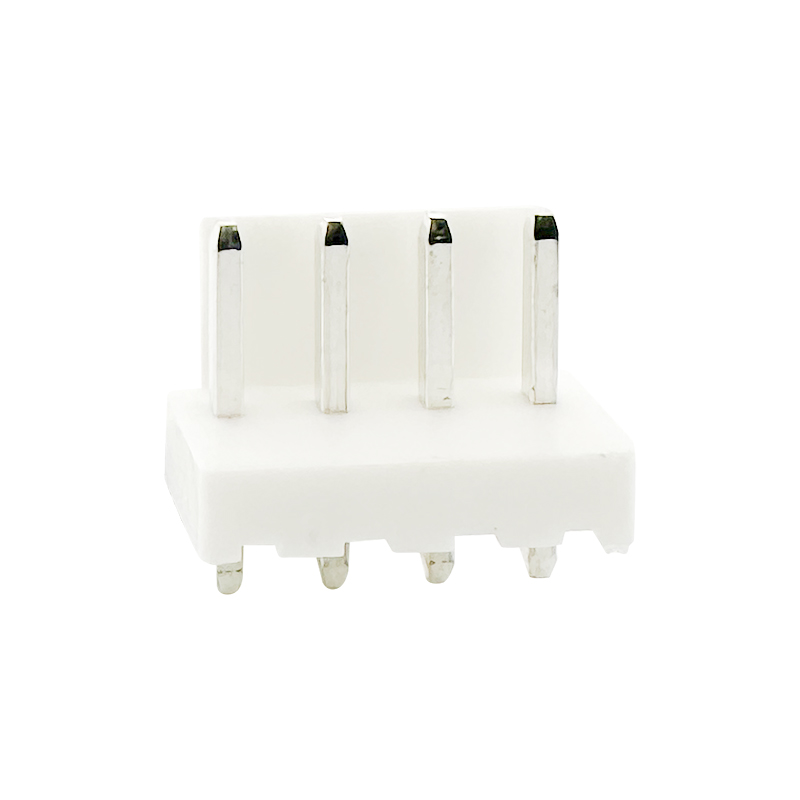

MOLEX 5268-xxA/02205-7xx5
Features

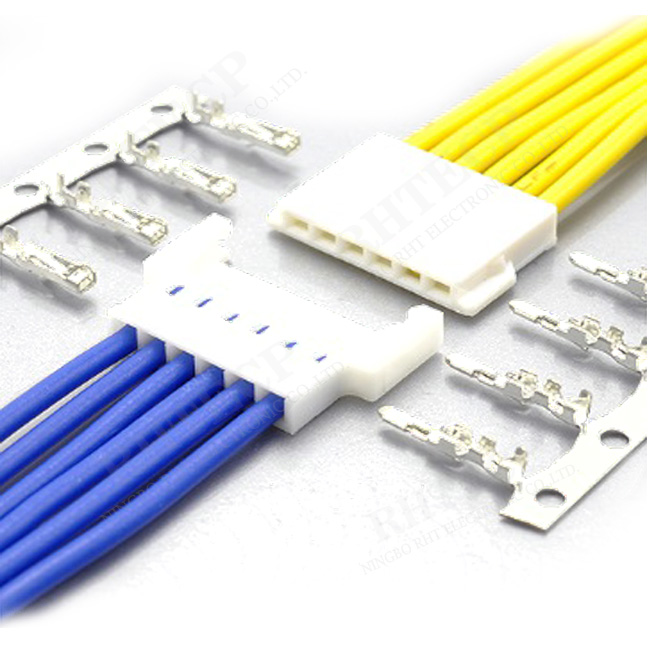

-Termination Style: Designed for crimp-style wire termination, where the stripped ends of wires are inserted into the connector's contacts and crimped to secure them in place. This termination method provides a secure electrical connection and strain relief for the wires, preventing accidental disconnection.
-Current Rating and Voltage: The connector is rated for specific current carrying capacities and voltage levels, ensuring compatibility with the electrical requirements of various applications. These ratings are typically specified by the manufacturer.
-Keying and Polarization: To prevent mismating and ensure proper alignment during connection, the Molex 5264 connector may feature keying or polarization features. These ensure that connectors can only be mated in the correct orientation, maintaining electrical integrity and preventing damage.
-Environmental Considerations: Designed to operate reliably in various environmental conditions, including temperature fluctuations, vibration, and mechanical stress. This makes the Molex 5264 connector suitable for use in applications where durability and reliability are critical.
Applications
1.Telecommunications and Networking
2.LED Lighting Systems
3.Medical Devices
4.DIY Electronics and Prototyping
Specifications
Electrical Specification:
Rated Voltage: 250V AV.DC
Rated Current: 3A
Contact Resistance: 0.02Ω max
Insulation Resistance: 1000MΩ min
Withstand voltage: 1000V AC/min
Temperature range for usage : -25ºC~+85ºC
P.C board thickness : 0.8~1.6mm
Material:
Housing: PA66 (PA66) UL94V-0
Contacts: Phosphor Bronze or Brass
Plating: Tin 50u" over 100u" nickel
Wire range : AWG#30~#22
Technical Documents
Please contact us for more information.
