SATA connectors

SATA Connectors are engineered for high-speed data transmission and reliable connections between storage devices and circuit boards. Their design focuses on contact alignment, impedance control, insertion force, signal integrity and mechanical stability. Optimized connector geometry and shielding help reduce signal loss and interference, supporting consistent data transfer, secure assembly and long-term performance in computers, servers and storage equipment.

Enlarge

Quick View

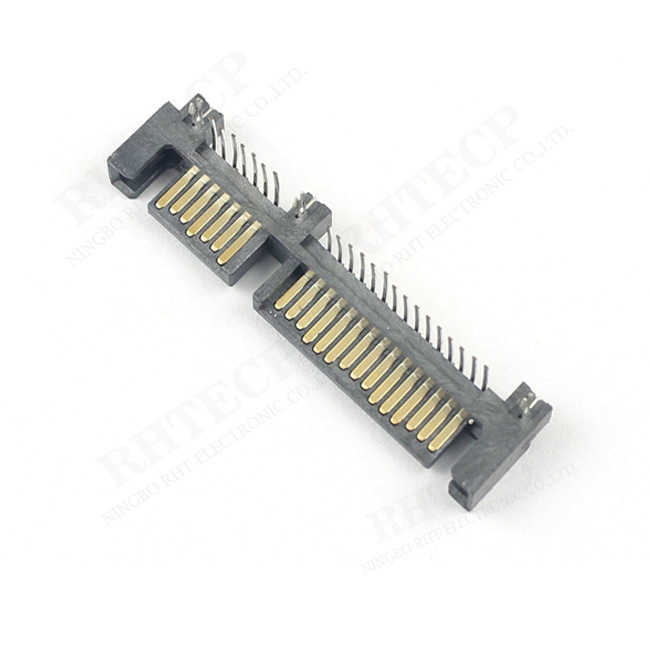

SATA 7+15P Male Connector,Right angle：RHTAYATA402

Series Part No:RHTAYATA402

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-7+15 Pin Design: Provides stable power transmission for high-capacity SATA devices
-Right Angle Orientation: Ideal for space-constrained PCB layouts and compact systems
-SMD / Through-Hole Compatibility: Supports flexible mounting options for various PCB designs
-Durable Construction: High-quality, corrosion-resistant materials ensure long-term reliability

Applications

1.Desktop PCs
2.Laptop Computers
3.Data Center Storage
4.Embedded Systems

Specifications

MATERIAL:
Housing:LCP,UL94-V0 ,Black
Contact:Copper alloy,50u"min. Nickel plating
Overall;100u" min.Tin on solder tail;
Gold plating on contact area.
Hook:Copper alloy,Nickel and Tin plating overall.
ELECTRICAL:
Contact Resistance: 25 mΩ Max.
Insulation Resistance:1000 MΩ Min.
Dielectric Withstanding Voltage: 500VRMS Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

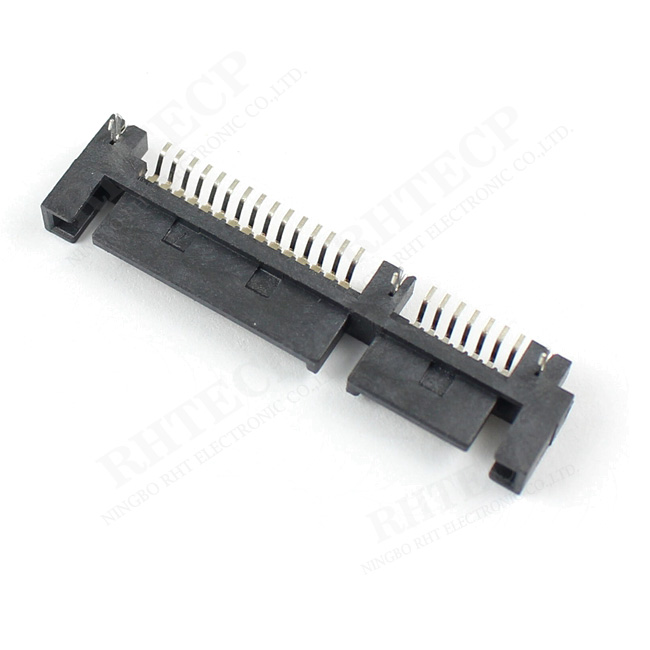

SATA 7+15P Male Connector,SMD ：RHTAYATA403

Series Part No:RHTAYATA403

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Compact SMD design：saves PCB space and supports high-density layouts.
-7+15 pin configuration：integrates data (7 pins) and power (15 pins) in a single interface.
-High-speed data transfer：compliant with SATA standards for stable and efficient performance.
-Reliable soldering：surface mount technology ensures strong PCB attachment and stability.

Applications

1.Consumer Electronics
2.Computers & Laptops
3.Data Storage Devices (HDD, SSD, ODD)
4.Servers & Networking Equipment

Specifications

MATERIAL:
Housing:LCP,UL94-V0 ,Black
Contact:Copper alloy,50u"min. Nickel plating
Overall;100u" min.Tin on solder tail;
Gold plating on contact area.
Hook:Copper alloy,Nickel and Tin plating overall.
ELECTRICAL:
Contact Resistance: 25 mΩ Max.
Insulation Resistance:1000 MΩ Min.
Dielectric Withstanding Voltage: 500VRMS Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

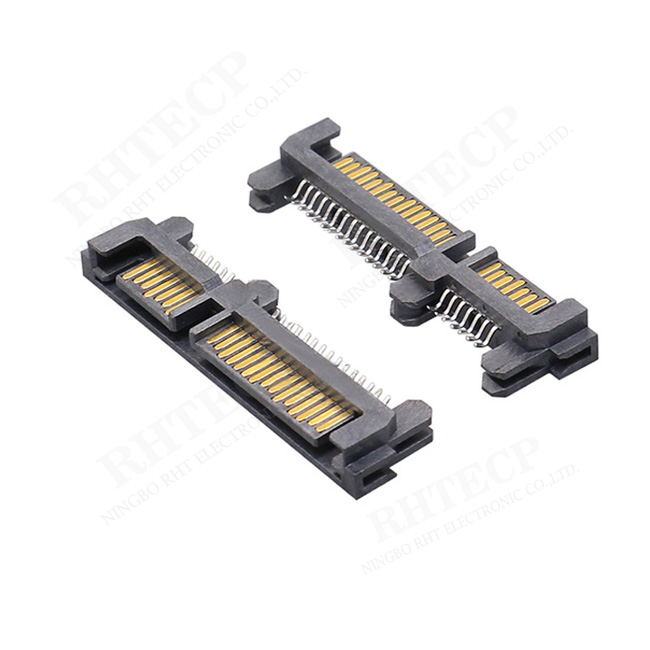

SATA 7+15P Male Connector,Board EDGE SMD：RHTAYATA404

Series Part No:RHTAYATA404

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Compact board edge SMD design：saves PCB space and allows high-density layouts.
-7+15 pin configuration：integrates data (7 pins) and power (15 pins) in a single connector.
-High-speed data transfer：compliant with SATA standards for stable and efficient signal transmission.
-Reliable soldering：surface mount technology ensures strong attachment to the PCB.

Applications

1.Embedded Systems
2.Industrial Automation
3.Digital Storage Devices
4.Workstations & Servers

Specifications

MATERIAL:
Housing:LCP,UL94-V0 ,Black
Contact:Copper alloy,50u"min. Nickel plating
Overall;100u" min.Tin on solder tail;
Gold plating on contact area.
Hook:Copper alloy,Nickel and Tin plating overall.
ELECTRICAL:
Contact Resistance: 25 mΩ Max.
Insulation Resistance:1000 MΩ Min.
Dielectric Withstanding Voltage: 500VRMS Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

SATA 7+15P Female Connector,Straight ：RHTAYATA405

Series Part No:RHTAYATA405

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Straight Mount Design: Easy PCB installation, space-saving, ideal for compact layouts
-Dual Interface: 7+15 pins provide both power and data connections in a single connector
-High-Speed Data Transfer: Supports SATA 3.0 standard for fast read/write performance
-Durable Construction: Made with robust materials for long-lasting reliability

Applications

1.Computers & Laptops
2.Servers & Data Storage
3.Industrial Equipment
4.Consumer Electronics

Specifications

MATERIAL:
Housing:LCP,UL94-V0 ,Black
Contact:Copper alloy,50u"min. Nickel plating
Overall;100u" min.Tin on solder tail;
Gold plating on contact area.
Hook:Copper alloy,Nickel and Tin plating overall.
ELECTRICAL:
Contact Resistance: 25 mΩ Max.
Insulation Resistance:1000 MΩ Min.
Dielectric Withstanding Voltage: 500VRMS Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

SATA 7+15P Female Connector,Right angle DIP,H3.50mm：RHTAYATA406

Series Part No:RHTAYATA406

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Board Mount Type: Secure and stable PCB attachment ensures reliable electrical performance
-Compact Size: Space-efficient form factor, ideal for laptops, slim desktops, and embedded electronics
-Reliable Contact: Gold-plated pins provide excellent conductivity, resist oxidation, and maintain signal integrity
-Wide Application: Compatible with internal HDDs, SSDs, external storage devices, and industrial storage systems

Applications

1.Computing Devices
2.Data Storage & Servers
3.Industrial Equipment
4.Consumer Electronics

Specifications

MATERIAL:
Housing:LCP,UL94-V0 ,Black
Contact:Copper alloy,50u"min. Nickel plating
Overall;100u" min.Tin on solder tail;
Gold plating on contact area.
Hook:Copper alloy,Nickel and Tin plating overall.
ELECTRICAL:
Contact Resistance: 25 mΩ Max.
Insulation Resistance:1000 MΩ Min.
Dielectric Withstanding Voltage: 500VRMS Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

SATA 7+15P Female Connector,Right angle DIP,H4.00mm ：RHTAYATA407

Series Part No:RHTAYATA407

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Right Angle DIP Design: Optimized for PCB through-hole mounting, saves board space, ideal for compact layouts
-Dual Interface: 7+15 pins provide both power and data connections in a single connector
-High-Speed Data Transfer: Supports SATA 3.0 standard for fast read/write performance
-Durable Construction: Made with high-quality materials for long-term reliability

Applications

1.Networking Devices
2.Embedded Systems
3.External Storage Devices
4.Media Players & Set-Top Boxes

Specifications

MATERIAL:
Housing:LCP,UL94-V0 ,Black
Contact:Copper alloy,50u"min. Nickel plating
Overall;100u" min.Tin on solder tail;
Gold plating on contact area.
Hook:Copper alloy,Nickel and Tin plating overall.
ELECTRICAL:
Contact Resistance: 25 mΩ Max.
Insulation Resistance:1000 MΩ Min.
Dielectric Withstanding Voltage: 500VRMS Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

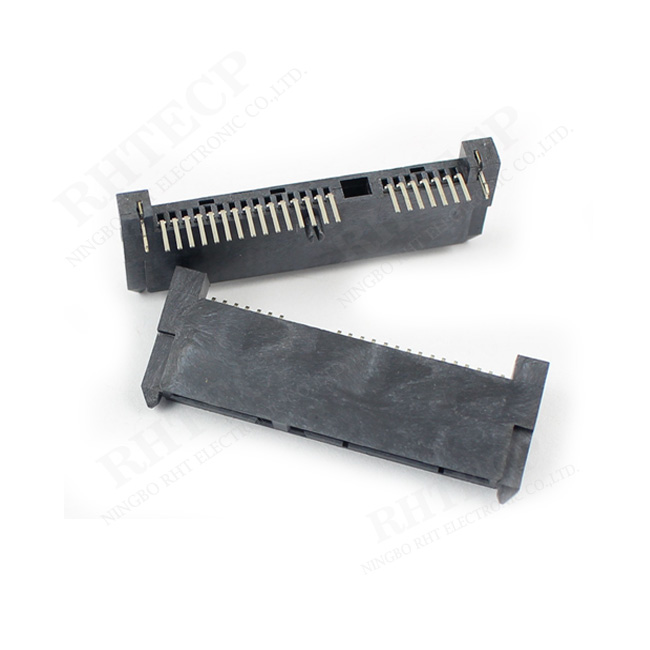

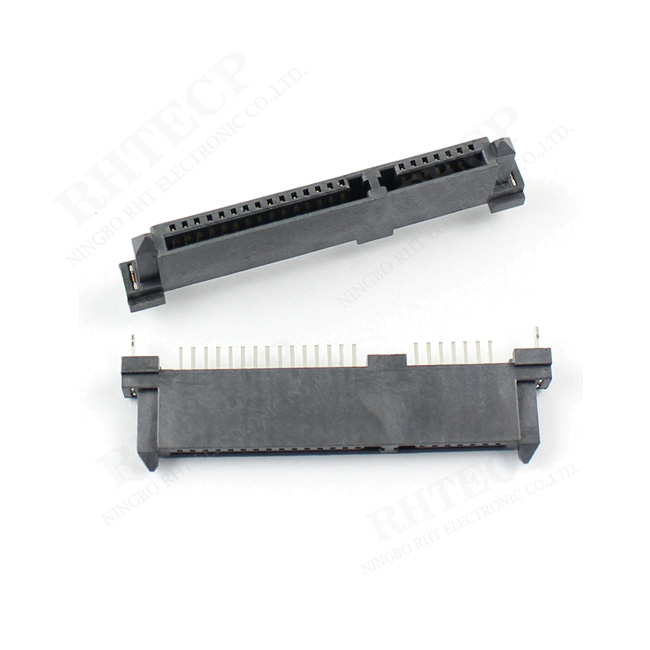

SATA 7+15P Female Connector,Right angle DIP,H4.20mm：RHTAYATA408

Series Part No:RHTAYATA408

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Enhanced Signal Integrity: Carefully engineered pin layout minimizes crosstalk and electromagnetic interference, ensuring stable and reliable data transmission
-Versatile Usage: Suitable for consumer electronics, industrial machines, servers, and data centers
-Maintenance-Friendly: Durable design reduces wear and tear, lowering maintenance needs over time
-Optimized for High Performance: Engineered for reliable high-speed connectivity, ideal for modern storage applications

Applications

1.Networking Equipment
2.Multimedia Devices
3.Embedded Systems
4.Home Appliances

Specifications

MATERIAL:
Housing:LCP,UL94-V0 ,Black
Contact:Copper alloy,50u"min. Nickel plating
Overall;100u" min.Tin on solder tail;
old plating on contact area.
Hook:Copper alloy,Nickel and Tin plating overall.
ELECTRICAL:
Contact Resistance: 25 mΩ Max.
Insulation Resistance:1000 MΩ Min.
Dielectric Withstanding Voltage: 500VRMS Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

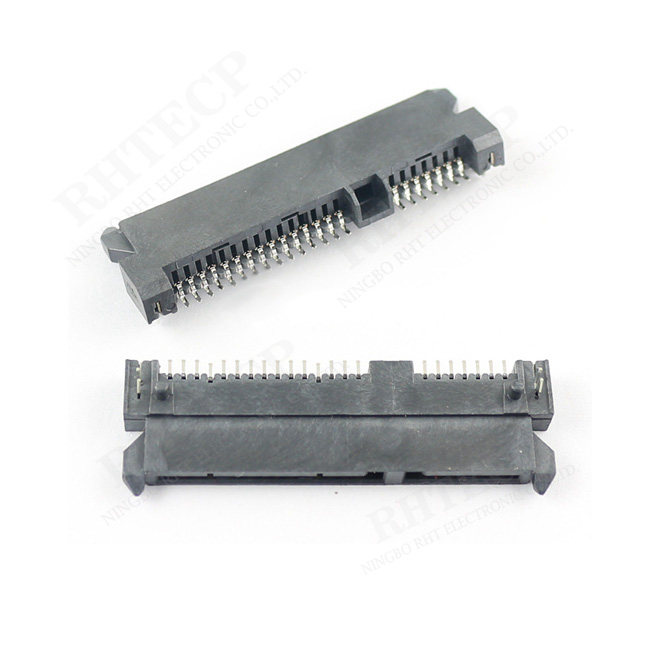

SATA 7+15P Female Connector,SMD,H4.20mm：RHTAYATA409

Series Part No:RHTAYATA409

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-SMD Mounting：Surface Mount Device design for seamless PCB assembly and automated production
-Compact Design (H4.20mm)：Saves PCB space, ideal for high-density and slim electronic devices
-7+15 Pin Configuration：7 data pins and 15 power pins for full SATA functionality
-High-Speed Data Transfer：Supports SATA I/II/III standards up to 6 Gbps for fast and stable communication

Applications

1.Embedded Systems
2.Industrial Equipment
3.Networking Equipment
4.Multimedia Devices

Specifications

MATERIAL:
Housing:LCP,UL94-V0 ,Black
Contact:Copper alloy,50u"min. Nickel plating
Overall;100u" min.Tin on solder tail;
Gold plating on contact area.
Hook:Copper alloy,Nickel and Tin plating overall.
ELECTRICAL:
Contact Resistance: 25 mΩ Max.
Insulation Resistance:1000 MΩ Min.
Dielectric Withstanding Voltage: 500VRMS Min.

Technical Documents

Please contact us for more information.

X

X

Previous page 1 2 3 4 next page
