Smart card connectors

Smart Card Connectors are engineered for accurate card positioning and dependable signal transmission in compact electronic devices. Their design focuses on contact arrangement, spring force, card insertion, contact wear and housing dimensions. Optimized contact geometry helps maintain stable electrical performance through repeated card cycles, supporting secure data communication in payment terminals, identification systems, access devices and embedded electronics.

Enlarge

Quick View

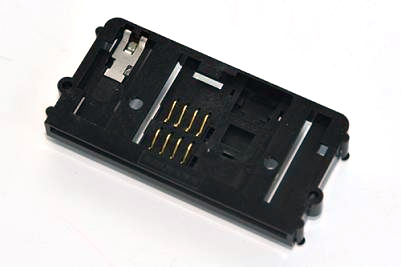

Smart Card Connector PUSH PULL,8P+2P :RHTAYSC-F041

Series Part No:RHTAYSC-F041

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Push-Pull Mechanism: Smooth and secure card insertion and removal, reducing wear on card contacts and preventing accidental disconnection.

-High Contact Count (8P+2P): Supports multiple signal lines plus additional contacts for extra functionality, ideal for complex electronic applications.

-Durable Construction: Made from high-quality, corrosion-resistant materials that ensure long-term reliability even under frequent use.

-Stable Electrical Performance: Low contact resistance guarantees reliable data transmission and minimal signal loss.

Applications

1.Telecommunications Devices

2.Networking Equipment

3.Identity Verification Systems

4.Banking & ATM Machines

Specifications

Smart Card Connector PUSH PULL,8P+2P
Electrical Characteristics
Plastic: black high temperature UL94V-0;
Terminal: copper alloy
Rated current: 1.0A max
Rated voltage: 50V AC/DC
Operating temperature: -40°C ~ +85°C
Contact resistance: 100m ohms max.
Withstand voltage: 500V AC / 1 minute
Insulation resistance: 1000M ohms min./500VDC
Durability:100,000 cycles min
Product temperature resistance: 260±5°C 10S
Flatness: 0.10mm MAX.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

Smart Card Connector PUSH PULL,8P+2P :RHTAYSC-F007M

Series Part No:RHTAYSC-F007M

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Stable Electrical Performance: Low contact resistance guarantees reliable data transmission and minimal signal loss.

-Compact and Space-Saving Design: Optimized footprint allows easy integration into PCB boards of limited size without compromising performance.

-Flexible Mounting Options: Supports both surface mount (SMT) and through-hole (THT) PCB installation to fit diverse device designs.

-Enhanced Card Retention: Secure locking mechanism holds cards firmly in place while still enabling easy push-pull operation.

Applications

1.Ticketing Systems

2.Security Systems

3.Healthcare Devices

4.Transportation & Transit Systems

Specifications

Smart Card Connector PUSH PULL,8P+2P
Electrical Characteristics
Plastic: black high temperature UL94V-0;
Terminal: copper alloy
Contact Resistance:20mΩ max.
Insulation Resistance:1000MΩ min
Current Rating: 2A
Dielectric withstanding voltage:AC 500V(r.m.s) /60s
Operating temperature: -40°C ~ +85°C
Product temperature resistance: 260±5°C 10S

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

Smart Card Connector PUSH PULL,8P+2P :RHTAYSC-F007E

Series Part No:RHTAYSC-F007E

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Enhanced Card Retention: Secure locking mechanism holds cards firmly in place while still enabling easy push-pull operation.

-Wide Application Range: Suitable for smart card readers, payment terminals, access control systems, vending machines, and other electronic devices requiring reliable card connections.

-Industry Standard Compliant: Ensures compatibility with a variety of smart cards and meets global quality and safety standards.

-Long Service Life: Designed for thousands of insertion and removal cycles, providing consistent performance over time.

Applications

1.Loyalty / Membership Card Systems

2.Automated Kiosks

3.Gaming Machines

4.Retail POS Systems

Specifications

Smart Card Connector PUSH PULL,8P+2P
Electrical Characteristics
Plastic: black high temperature UL94V-0;
Terminal: copper alloy
Contact Resistance:20mΩ max.
Insulation Resistance:1000MΩ min
Current Rating: 2A
Dielectric withstanding voltage:AC 500V(r.m.s) /60s
Operating temperature: -55°C ~ +125°C
Product temperature resistance: 260±5°C 10S

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

Smart Card Connector PUSH PULL,8P+2P :RHTAYSC-F007K

Series Part No:RHTAYSC-F007K

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Industry Standard Compliant: Ensures compatibility with a variety of smart cards and meets global quality and safety standards.

-Long Service Life: Designed to withstand thousands of insertion and removal cycles, maintaining consistent performance over time.

-High-Frequency & Secure Communication: Supports complex signal transmission for applications requiring secure, high-speed data communication.

-User-Friendly Operation: Ergonomically designed push-pull action reduces user effort while maintaining reliable connectivity.

Applications

1.Gaming Machines

2.Retail POS Systems

3.IoT Devices with Card Interface
4.Industrial Control Systems

Specifications

Smart Card Connector PUSH PULL,8P+2P
Electrical Characteristics
Plastic: black high temperature UL94V-0;
Terminal: copper alloy
Contact Resistance:20mΩ max.
Insulation Resistance:1000MΩ min
Current Rating: 2A
Dielectric withstanding voltage:AC 500V(r.m.s) /60s
Operating temperature: -55°C ~ +125°C
Product temperature resistance: 260±5°C 10S

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

Smart Card Connector PUSH PULL,8P+2P :RHTAYSC-F010A-MF

Series Part No:RHTAYSC-F010A-MF

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Multi-Contact Design (8P+2P): Supports multiple signal lines with additional contacts for extended functionality, suitable for complex electronic applications.

-Durable & Reliable Construction: Made with high-quality, corrosion-resistant materials that guarantee long-term performance even under frequent use.

-Stable Electrical Performance: Low contact resistance ensures consistent signal transmission, reliable data transfer, and minimal signal loss.

-Compact, Space-Saving Design: Optimized footprint allows integration into compact PCB layouts without compromising performance.

Applications

1.Smart Card Readers

2.Payment Terminals

3.Access Control Systems

4.Vending Machines

Specifications

Smart Card Connector PUSH PULL,8P+2P
Material:
Housing:LCP,UL94V-0
Contact: Copper Alloy.
Electrical:
Current Rating:2 A
Contact Resistance:20mΩ max.
Insulation Resistance:1000 MΩ min.
Dielectric Withstanding Voltage:AC 500V(r.m.s)/60s.
Durability:100000 cycles min.
Operating Temperature:-55℃~+125℃

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

Smart Card Connector PUSH PULL,8P+2P :RHTAYSC-F010E

Series Part No:RHTAYSC-F010E

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Compact, Space-Saving Design: Optimized footprint allows integration into compact PCB layouts without compromising performance.

-Flexible Mounting Options: Compatible with both surface mount (SMT) and through-hole (THT) installation, supporting various PCB designs.

-Enhanced Card Retention: Secure locking mechanism keeps cards firmly in place while allowing easy push-pull operation for user convenience.

-Wide Application Range: Ideal for smart card readers, POS terminals, access control systems, vending machines, and other devices requiring reliable card connections.

Applications

1.Smart Card Readers

2.Payment Terminals

3.Access Control Systems

4.Vending Machines

Specifications

Smart Card Connector PUSH PULL,8P+2P
Material:
Housing:PC,UL94V-0
Contact: Copper Alloy.
Electrical:
Current Rating:1 A
Contact Resistance:50mΩ max.
Insulation Resistance:1000 MΩ min.
Dielectric Withstanding Voltage:AC 500V(r.m.s)/60s.
Durability:100000 cycles min.
Operating Temperature:-45℃~+85℃

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

Smart Card Connector PUSH PULL,8P+2P :RHTAYSC-F010F

Series Part No:RHTAYSC-F010F

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Wide Application: Ideal for smart card readers, payment terminals, access control devices, and other electronic equipment.

-Compliance Standards: Meets industry standards for smart card connectors, ensuring compatibility and safety.

-Push-Pull Mechanism: Smooth and secure card insertion and removal, reducing wear on card contacts and preventing accidental disconnection.

-High Contact Count (8P+2P): Supports multiple signal lines plus additional contacts for extra functionality, ideal for complex electronic applications.

Applications

1.Vending Machines

2.Telecommunications Devices

3.Networking Equipment

4.Identity Verification Systems

Specifications

Smart Card Connector PUSH PULL,8P+2P
Material:
Housing:PC,UL94V-0
Contact: Copper Alloy.
Electrical:
Current Rating:2 A
Contact Resistance:20mΩ max.
Insulation Resistance:1000 MΩ min.
Dielectric Withstanding Voltage:AC 500V(r.m.s)/60s.
Durability:100000 cycles min.
Operating Temperature:-55℃~+125℃

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

Smart Card Connector PUSH PULL,8P+2P :RHTAYSC-F010I

Series Part No:RHTAYSC-F010I

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Wide Application: Ideal for smart card readers, payment terminals, access control devices, and other electronic equipment.

-Compliance Standards: Meets industry standards for smart card connectors, ensuring compatibility and safety.

-Push-Pull Mechanism: Smooth and secure card insertion and removal, reducing wear on card contacts and preventing accidental disconnection.

-High Contact Count (8P+2P): Supports multiple signal lines plus additional contacts for extra functionality, ideal for complex electronic applications.

Applications

1.Identity Verification Systems

2.Banking & ATM Machines

3.Ticketing Systems

4.Security Systems

Specifications

Smart Card Connector PUSH PULL,8P+2P
Material:
Housing:PC,UL94V-0
Contact: Copper Alloy.
Electrical:
Current Rating:1 A
Contact Resistance:50mΩ max.
Insulation Resistance:1000 MΩ min.
Dielectric Withstanding Voltage:AC 500V(r.m.s)/60s.
Durability:100000 cycles min.
Operating Temperature:-45℃~+85℃

Technical Documents

Please contact us for more information.

X

X

Previous page 1 2 3 4 5 6 next page
