Features
-Push-Push Locking Mechanism: Provides a secure and reliable connection by locking the card in place with a simple push, preventing accidental disconnection during operation.
-Compact 6.05mm Pitch: The connector’s compact pitch size helps save PCB space, making it suitable for slim and portable device designs.
-High-Speed Data Transfer: Supports fast and stable data communication, ideal for applications requiring rapid access to storage media such as CFast cards.
-Surface Mount Technology (SMT) Compatibility: Designed for efficient and automated PCB assembly processes, ensuring precise placement and soldering on the board.
Applications
1.Networking Equipment
2.Consumer Electronics
3.Automotive Electronics
4.Medical Devices
Specifications

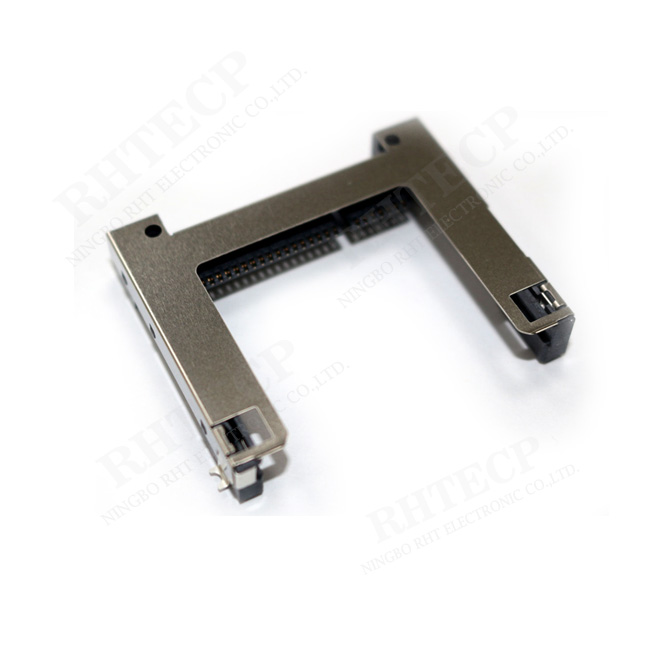

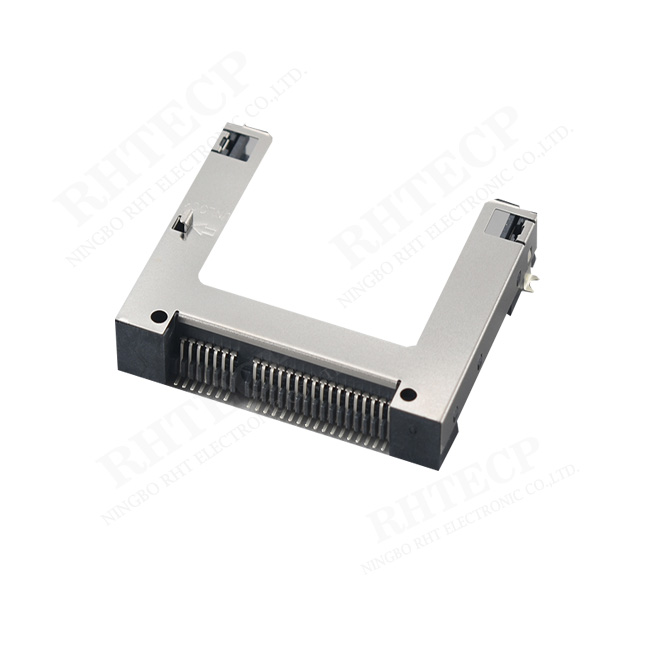

CFast Host Connector,PUSH PUSH H6.05
Material
Housing:Engineering plastic,LCP with G.F reinforced,black per,UL 94V-0,rate.
Slider:Engineering plastic,LCP with G.F reinforced,black per,UL 94V-0,rate.
Terminal:Phosphor Bronze,per JIS 5210,0.2T
Spring:Piano thread Metal cover:Stainless steel sheet SUS304 0.2T,
Crank:Stainless rod SUS 304.
Card lock:Stainless steel SUS 304
Plating
Contacts:30u" gold plating in contact area and 100u" min.matte Tin in soldering zone,
over entire contact underplated with 50u" min,Nickel over all.
Solder zone:100u" matte Tin,50u" min,Nickel underplating over all.
Technical Documents
Please contact us for more information.
