Features
-High Pin Density: Provides a high pin density in a compact space, allowing for multiple signal lines to be transmitted through a single connector.
-Standard Size: Follows industry-standard sizes for D-Sub connectors, ensuring compatibility with existing equipment and systems.
-Metal Shell: Typically made from steel or other durable metals, providing mechanical strength and EMI shielding properties. Plastic shells are also used in some applications for lighter weight and cost efficiency.
-Contacts: Made from materials such as phosphor bronze or brass, offering good electrical conductivity and resistance to corrosion. Gold plating on contacts enhances conductivity and prevents oxidation, ensuring reliable signal transmission.
Applications
1.Telecommunications
2.Test and Measurement Instruments
3.Aerospace and Defense
4.Medical Devices
Specifications

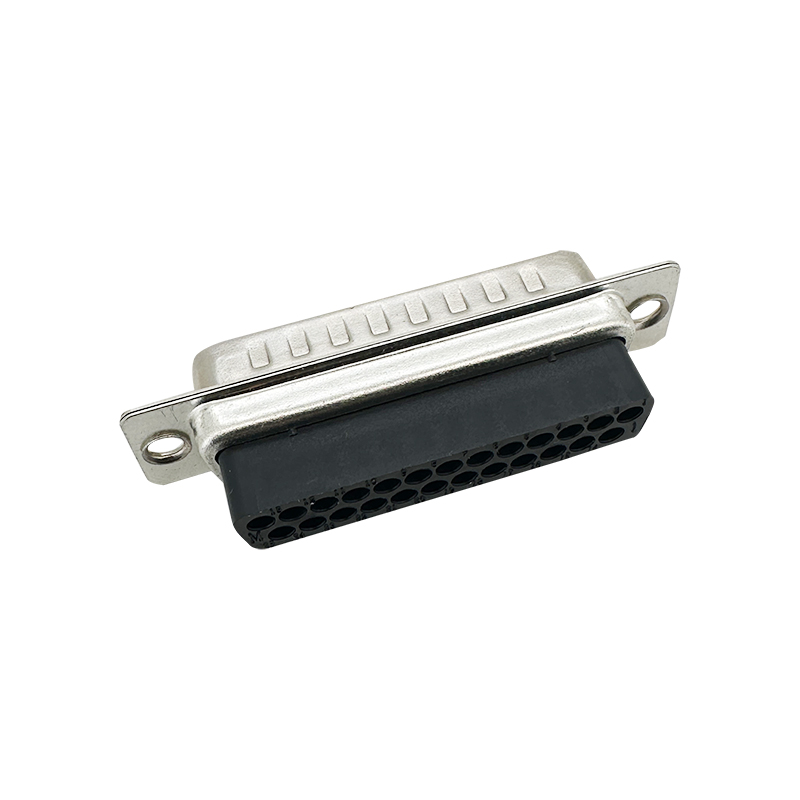

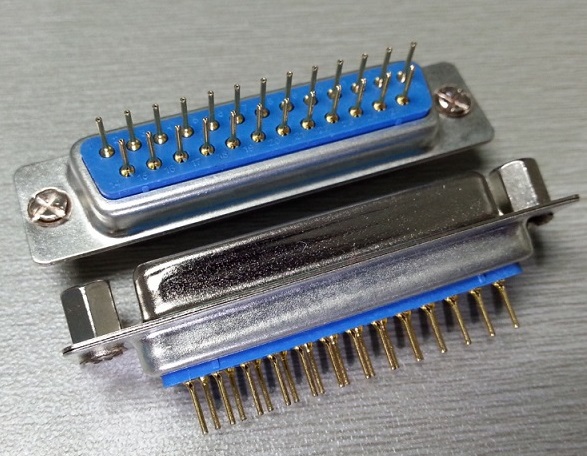

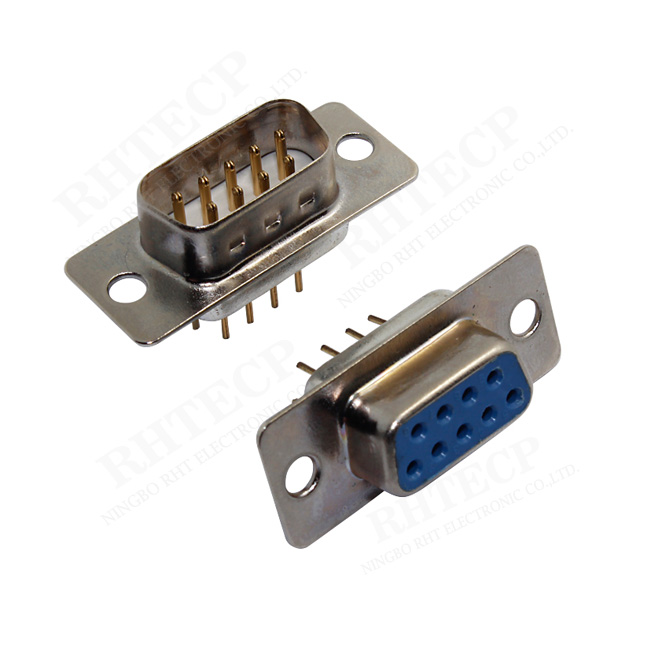

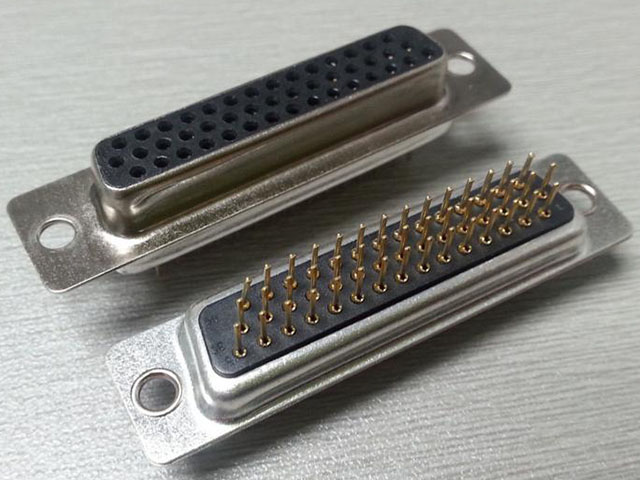

2 Row D-SUB Connector Adapter 9 15 25 37 pins Male Female
Order Information
RHTAY76A-XX-M-B
XX-No.of 09,15,25,37pins
M-Male F-Female
L-Blue B-Black
Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Brass or Phosphor Bronze
Shell: Steel, 100u" Tin Over 50u" min Nickel
Clinch Nut: Brass, 100u" min Nickel Plated
Screwlock: Brass, 100u" min Nickel Plated
Electrical Characteristics:
Current Rating: 2AMP
Insulator Resistance: 5000M ohms min. at DC 500V
Contact Resistance: 20m ohms max. at DC 100mA
Operating Temperature: -55ºC~+105ºC
Technical Documents
Please contact us for more information.
