Features
-This allows the user to insert and eject the Micro SD card by pressing it in once for insertion and pressing again to eject. This feature eliminates the need for a mechanical lock, making it easy and user-friendly.
-The H1.85mm height indicates the compact profile of the connector. This low height ensures that the connector can fit into devices with space constraints, such as small electronics, wearables, or portable devices.
-The connector supports Micro SD cards, which are widely used for data storage in small devices like smartphones, tablets, cameras, and other portable devices.
-The design is optimized for space efficiency, allowing it to be used in small form-factor devices.
Applications
1.Medical Devices
2.Automotive Electronics
3.Consumer Electronics
4.Industrial Automation
Specifications

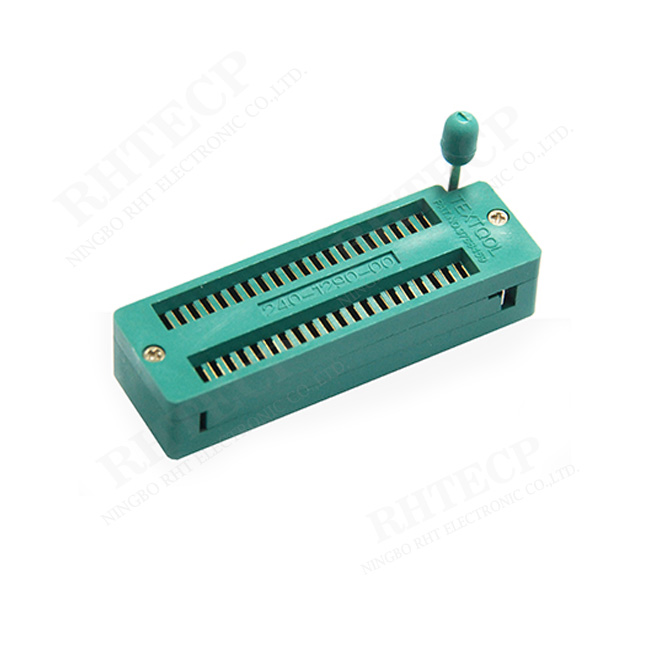

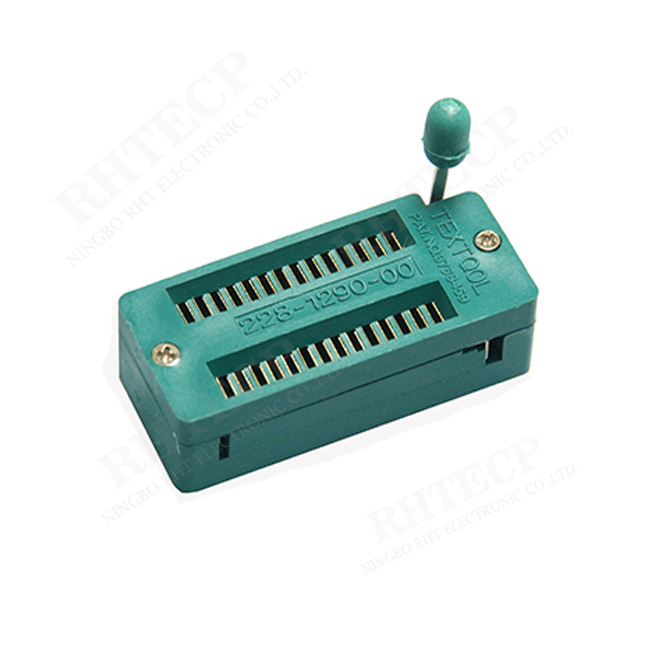

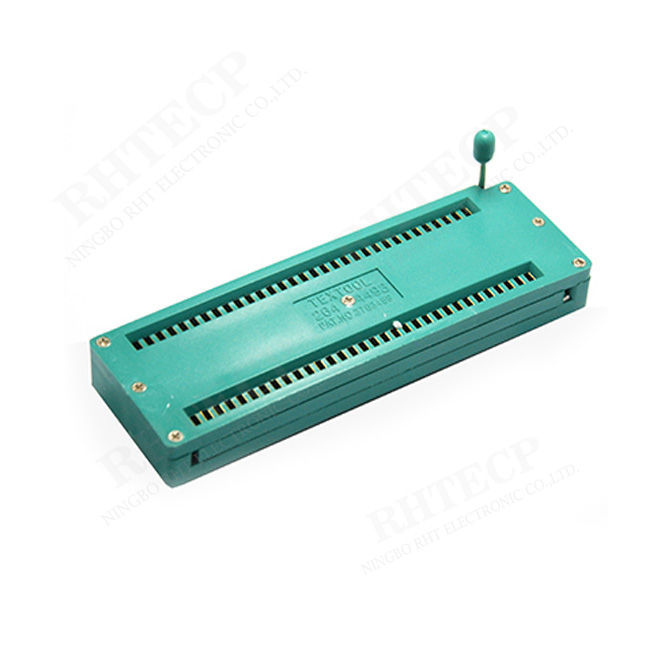

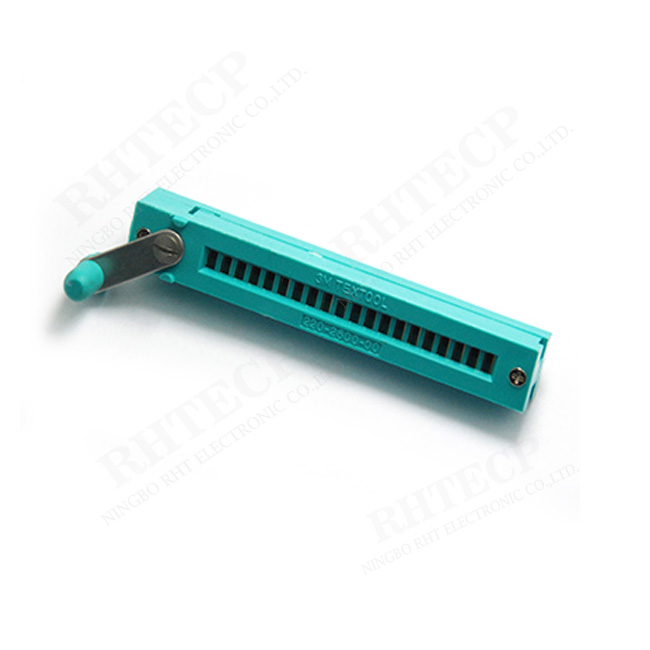

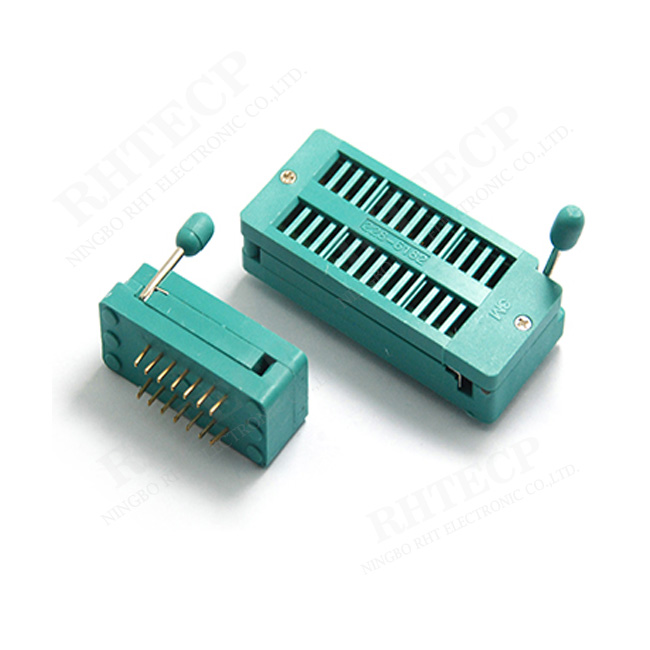

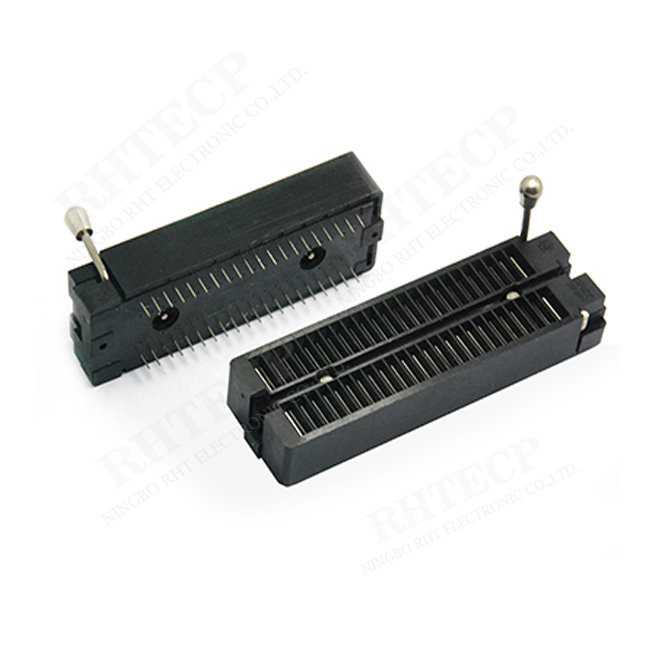

2.54mm Pitch ARIES ZIP Socket Connector
Order Information
RHTAY08M-XX
XX-No.of 24~48pin
Specification:
Material:
Housing: 30% Glass filled PBT UL 94V-0
Contacts: Phosphor Bronze
Plating: Gold plated: 3u" over 50u" nickel
Tin plated: 100u" over 50u" nickel
Electrical Characteristics:
Current rating: 1AMP.
Insulator resistence: 5000MΩmin, at DC 500V
Contact resistence: 20MΩmax, at DC 100mA
Operating Temperature: -55°C~+105°C
Features:
For DIPs with. 070" lead spacing
Lever actuated zero insertion force mechanism
Socket easily disassembles for repair ability
Technical Documents
Please contact us for more information.
