Features
-Number of Contacts: Available in single-row or multi-row configurations, accommodating different levels of connectivity requirements. Multi-row headers allow for higher density and more connections within a compact space.
-Housing Material: The housing is usually made from durable thermoplastics that provide mechanical strength and insulation between contacts. The housing design may include features such as polarization keys, guides, or notches to ensure correct alignment and prevent misalignment during insertion.
-Ejector Latch Mechanism: The key feature of IDC ejector header connectors is the ejector latch mechanism. This mechanism allows for the easy insertion and removal of flat cables by engaging or disengaging the latch, which securely holds the cable in place when inserted and facilitates its removal when necessary.
-Features:Insulation Displacement Technology: IDC connectors feature insulation displacement contacts that pierce the insulation of flat cables to make direct contact with the conductors. This eliminates the need for stripping insulation or soldering, simplifying assembly processes.
Applications
1. Telecommunications and Networking Equipment:
2. Industrial Automation and Control Systems:
3. Automotive Electronics
4. Medical and Healthcare Devices
Specifications

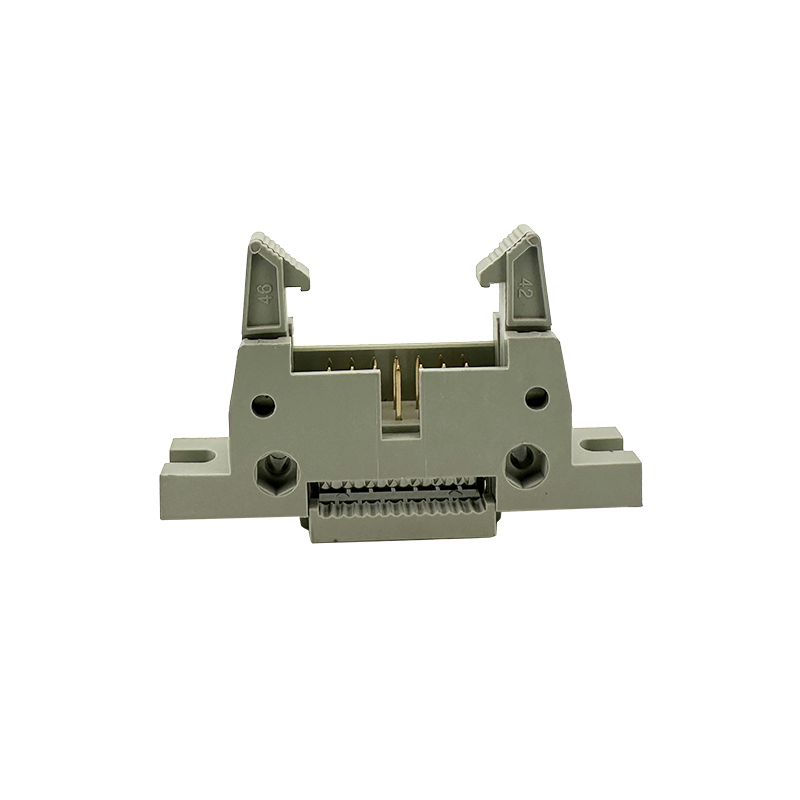

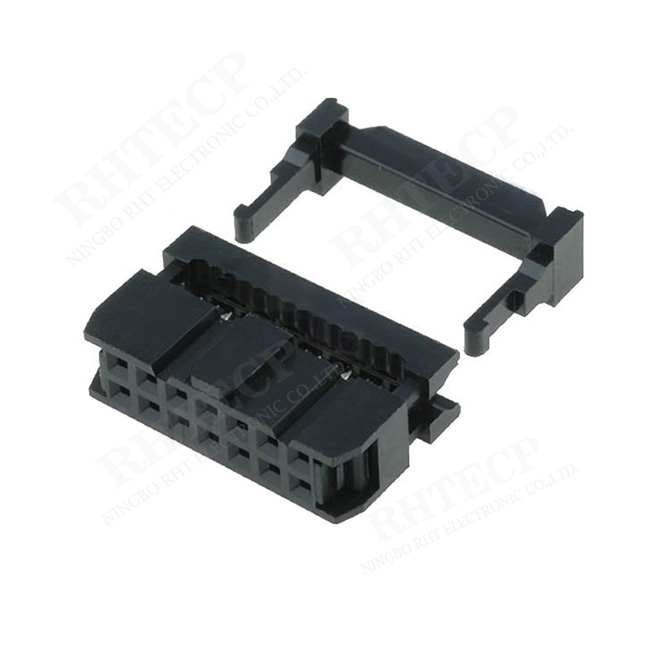

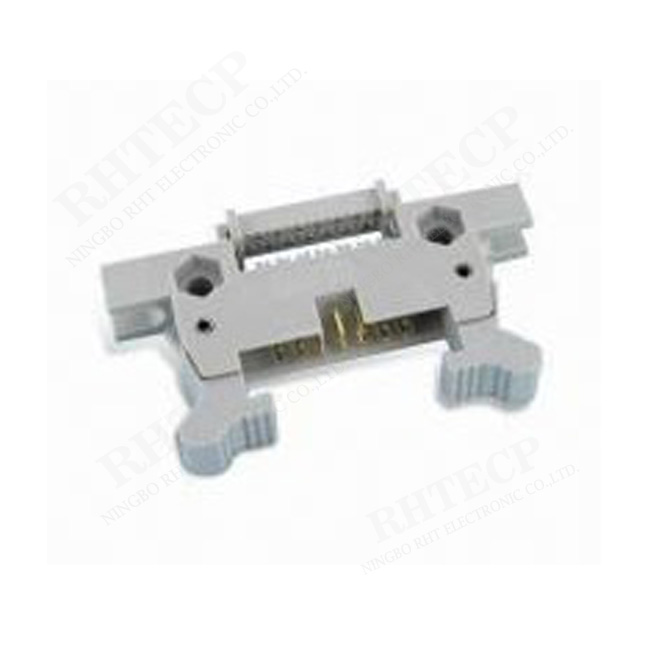

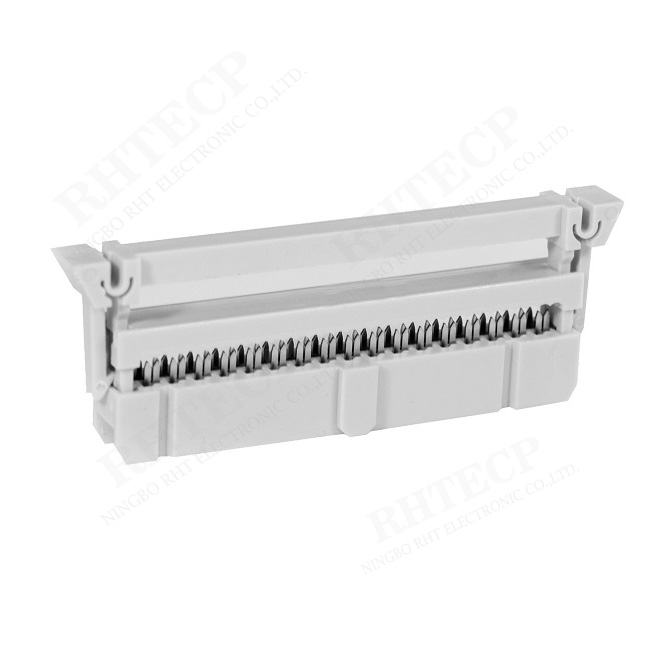

2.54mm Pitch IDC Ejector header connectors
Order Information:
RHTAY01Y-XX-G-E
XX-No.of 06~64pin
B-Black G-Gray
E-With ears N-Without ears
Material:
Housing: PBT UL94V-0
Contacts: Brass
Plating: Au or Sn Over Ni
Cable: 1.27mm (0.050") pitch flat cable
Electrical Characteristics:
Current Rating: 3.0 AMP
Withsstand Voltage:1000V AC
Insulator Resistance: 1000M Ohm min
Contact Resistance: 20m Ohm max.
Operating Temperature: -40ºC~+105ºC
Technical Documents
Please contact us for more information.
