Features
-Compact and Space-Saving Design:The Micro Match Dip Plug IDC Connector is engineered to occupy minimal PCB space, making it ideal for applications where size constraints are critical.
-Insulation Displacement Contact (IDC) Technology:Utilizes IDC technology for fast and reliable cable termination without the need for stripping wires, ensuring consistent electrical contact and reducing assembly time.
-High-Density Pin Configuration:Offers a dense pin layout that maximizes connection points in a small footprint, supporting complex wiring schemes and enhancing system integration.
-Durable Housing and Mechanical Stability:Constructed with robust materials to withstand mechanical stress, vibration, and repeated mating cycles, ensuring long-term reliability.
Applications
1.Consumer Electronics
2.Telecommunications Equipment
3.Computer and Peripheral Devices
4.Industrial Automation Systems
Specifications

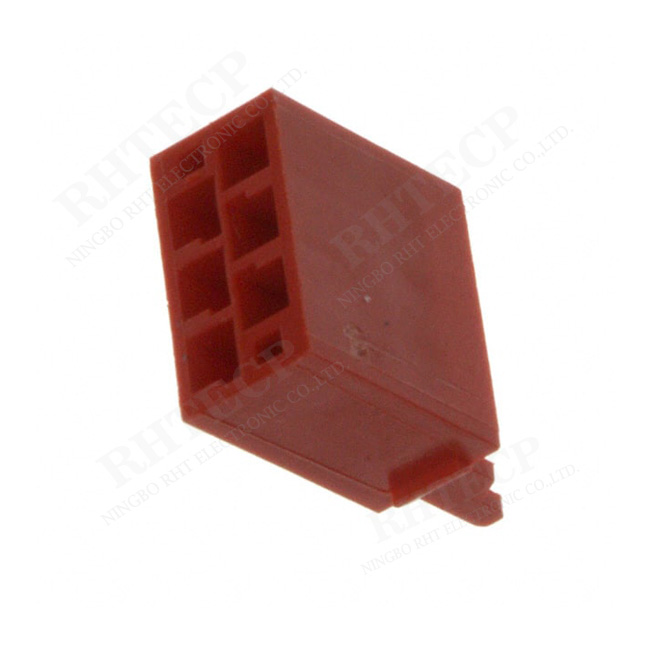

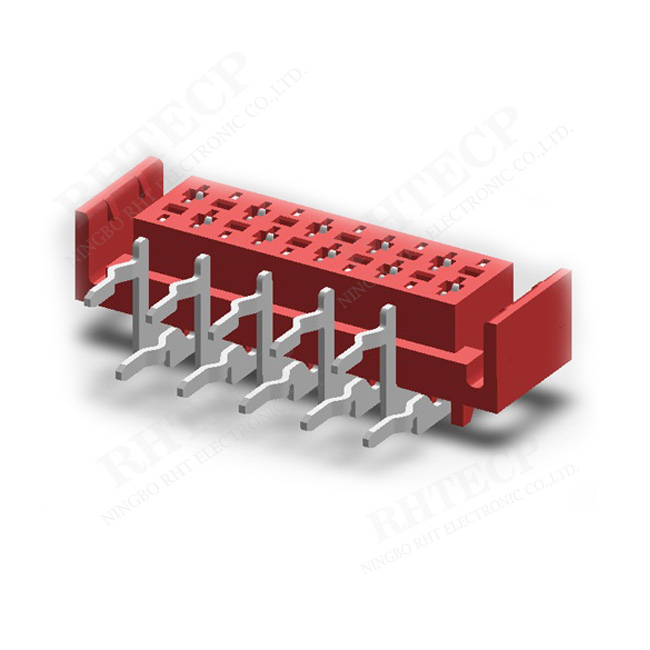

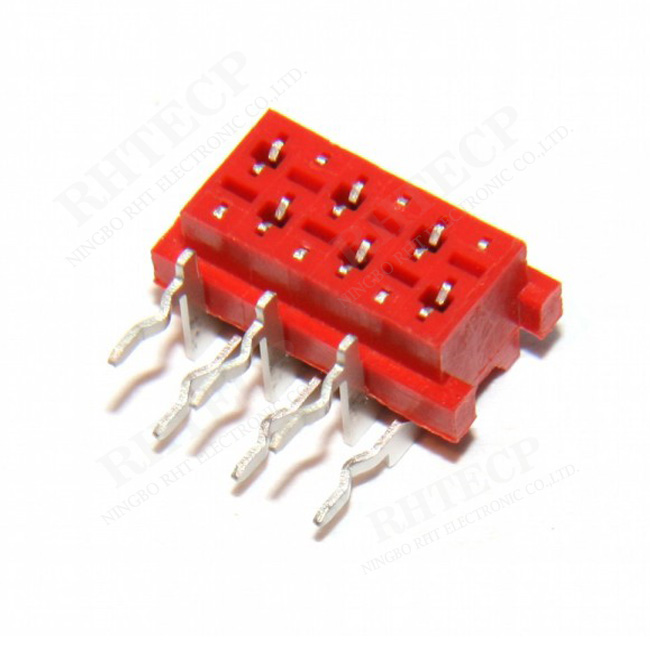

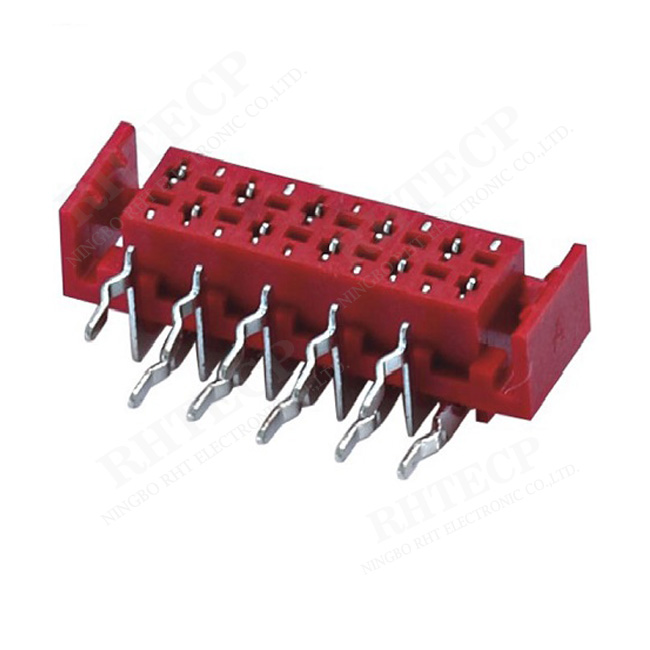

Micro Match Connector Female DIP 90 With Ear
Order Information:
RHTAY04AS-XX-R-口-C-R
XX-No.of 04~26pin
Color: R=Red B=Black
Material: D=PA9T E=PA46
Packing: T=Tube C-R=Cap+Reel
Material:
Housing: PA46/PA9T UL94V-0
Contacts: Phosphor bronze
Plating:Sn over 50u" nickel
Electrical Characteristics:
Current Rating: 1.0 AMP
Voltage Rating: 230V AC/DC
Withstand voltage:500V AC/Minute
Contact Resistance: 20m Ohm max.
Insulator Resistance: 1000M Ohm min.
Operating Temperature: -40ºC~+105ºC
Technical Documents
Please contact us for more information.
