Features
- Pitch: The pitch of 2.0mm refers to the distance between the centerlines of adjacent contacts (pins). This standard pitch ensures compatibility with other components and boards designed for 2.0mm pitch connectors.
- Connector Type: Box header connectors are characterized by a rectangular housing that encloses the pins, providing additional mechanical stability and protection compared to standard headers. This design also helps in guiding and aligning mating connectors during insertion.
- Height: The height of 5.7mm specifies the vertical dimension of the connector when mounted on a PCB. This height provides ample clearance and mechanical stability, making it suitable for applications where a taller connector is necessary to accommodate components or ensure secure connections.
-Number of Contacts: Box header connectors are available in various configurations with different numbers of contacts (pins). They can range from single-row configurations with a few pins to dual- row configurations with many pins, depending on the specific application requirements.
Applications
1. Automotive Electronics
2. Medical Devices
3. Test and Measurement Equipment
4. Aerospace and Defense
Specifications

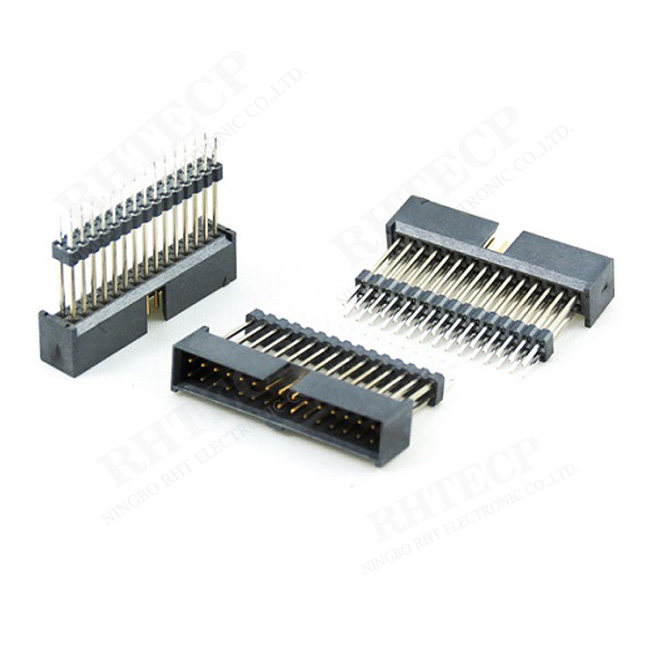

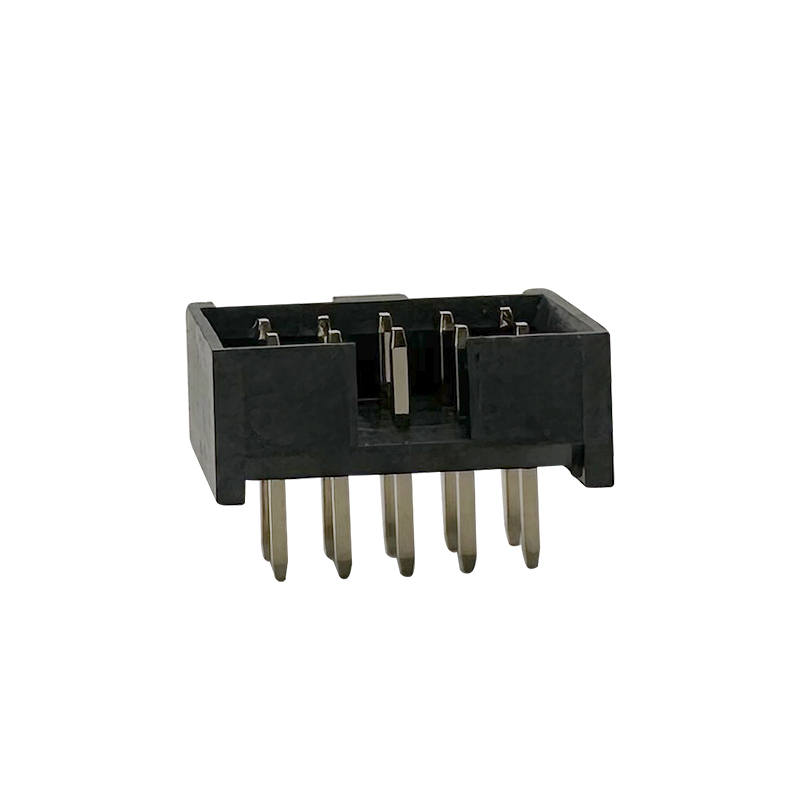

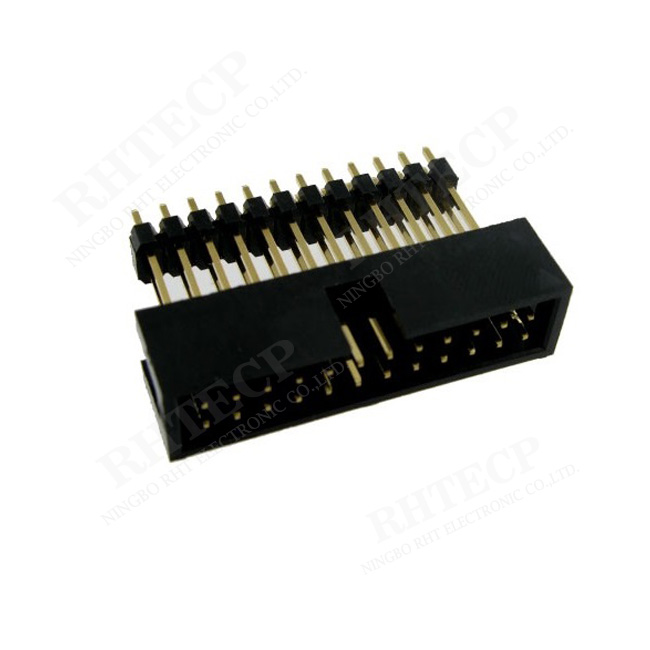

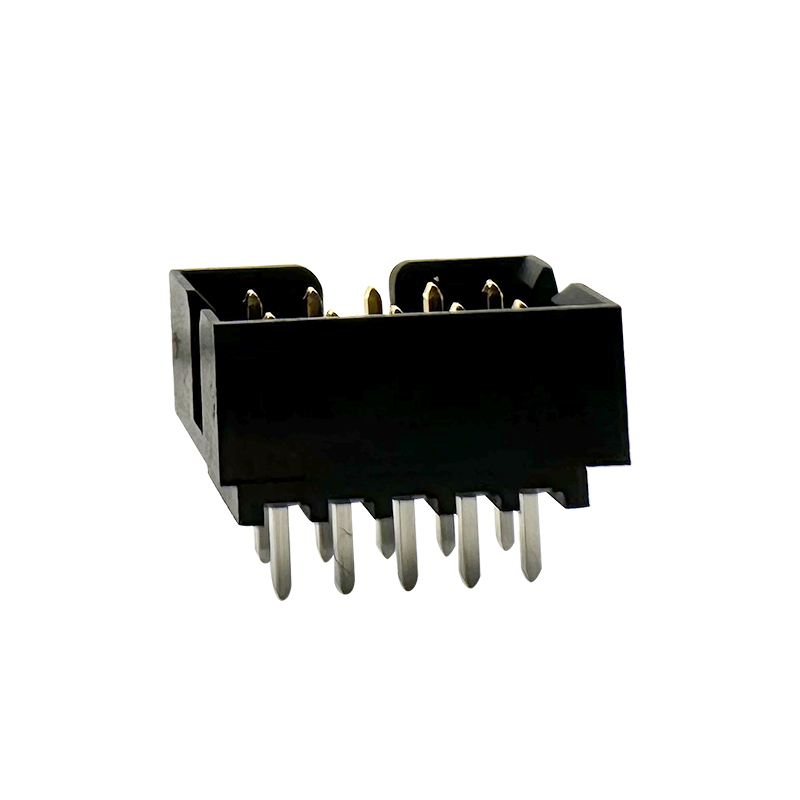

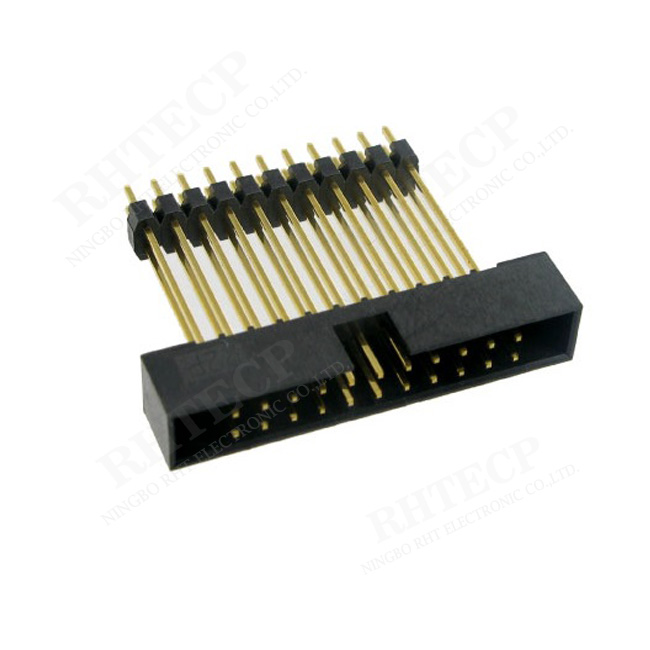

2.0mm Pitch Box Header Connector Height 5.7mm
Order Information
RHTAY02B-XX-S-B-口
XX-No.of 06~64pin

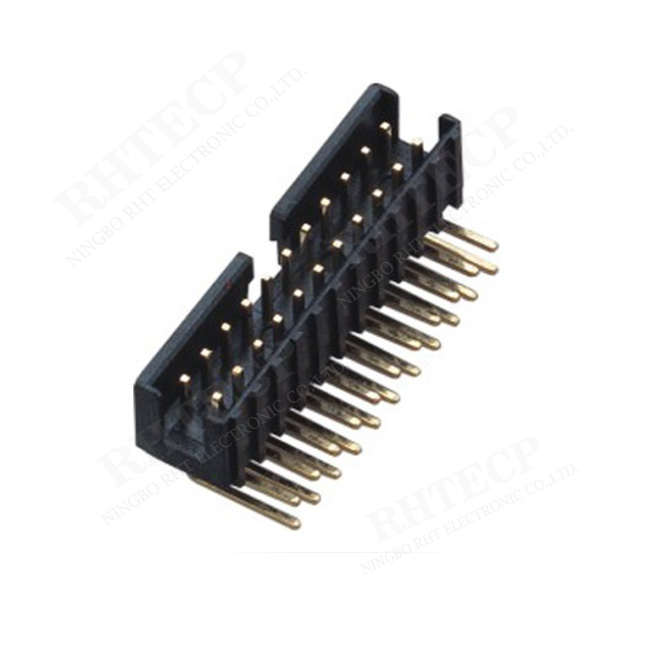

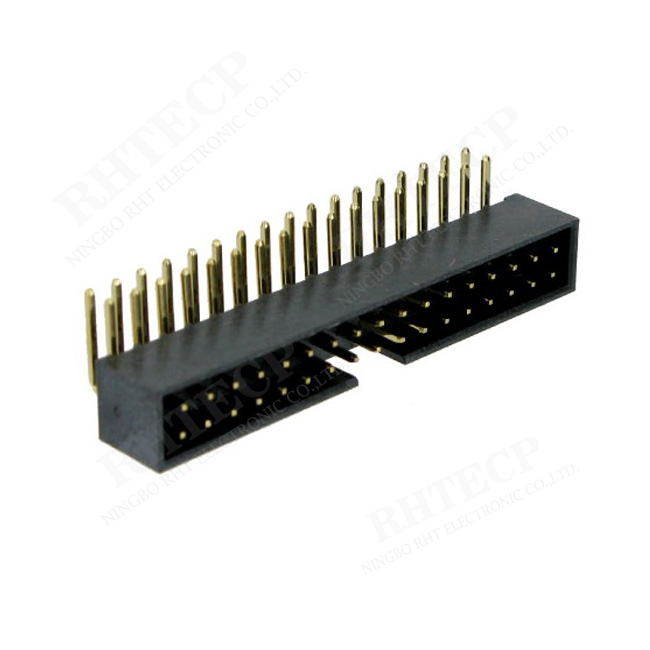

S-Straight pin R-Right Angle Pin T-SMT Pin
B-Black G-Gray L-Blue
Material:NONE=PA6T A=PBT C=LCP
Material:
Housing: PA6T UL94V-0
Contacts: Brass
Plating:Gold 1u" over 50u" nickel
Electrical Characteristics:
Current Rating: 1.5 AMP
Contact Resistance: 20m Ohm max.
Insulator Resistance: 800M Ohm min.
Withstand voltage:400V AC/DC
Operating Temperature: -45ºC~+105ºC
Technical Documents
Please contact us for more information.
