Wire to board connectors & Wire to wire connectors

Wire to Board Connectors and Wire to Wire Connectors are engineered for efficient electrical connections between wires, PCBs and cable assemblies. Their design considers terminal geometry, contact force, locking mechanisms, wire retention and housing strength. Optimized structures help improve assembly accuracy, vibration resistance and connection stability, supporting reliable power and signal transmission in control systems, automotive electronics and industrial equipment.

Enlarge

Quick View

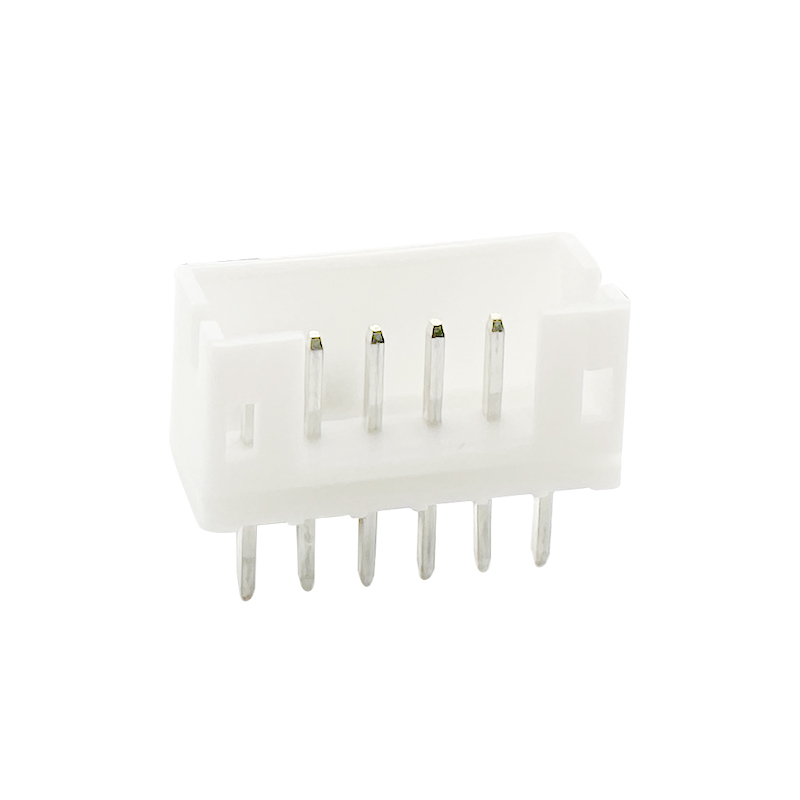

JST SPH-002T-P0.5S 2.00mm JST PH type Wire to Board Connector:RHTAYL1-2.00

Series Part No:RHTAYL1-2.00

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

JST SPH-002T-P0.5S

Features

-Materials: Contacts are often made from phosphor bronze with tin or gold plating, providing good conductivity, durability, and resistance to corrosion.

-Keying: Designed with polarization features such as keying slots or tabs to prevent incorrect insertion and ensure proper orientation of the connector.

-Termination Options: Supports various wire termination methods including crimping, soldering, and IDC (Insulation Displacement Contact), offering flexibility in assembly processes.

-Operating Conditions: Typically rated for a wide range of operating temperatures (often between -25°C to +85°C or higher), ensuring reliable performance in various environmental conditions.

Applications

1.Industrial Equipment

2.Automotive Electronics

3.Medical Devices

4.Consumer Goods

Specifications

Electrical Specification:

Rated Voltage: 125V AC.DC

Rated Current: 2A

Contact Resistance: 0.02 Ohm max

Insulation Resistance: 1000M Ohm min

Withstand voltage: 800V AC/MIN

Temperature range for usage : -40ºC~+105ºC

P.C board thickness : 0.8~1.6mm

Material:

Housing: PA66 UL94V-2

Contacts: Phosphor Bronze or Brass

Plating: Tin 50u" over 100u" nickel

Wire range : AWG#32~#22

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

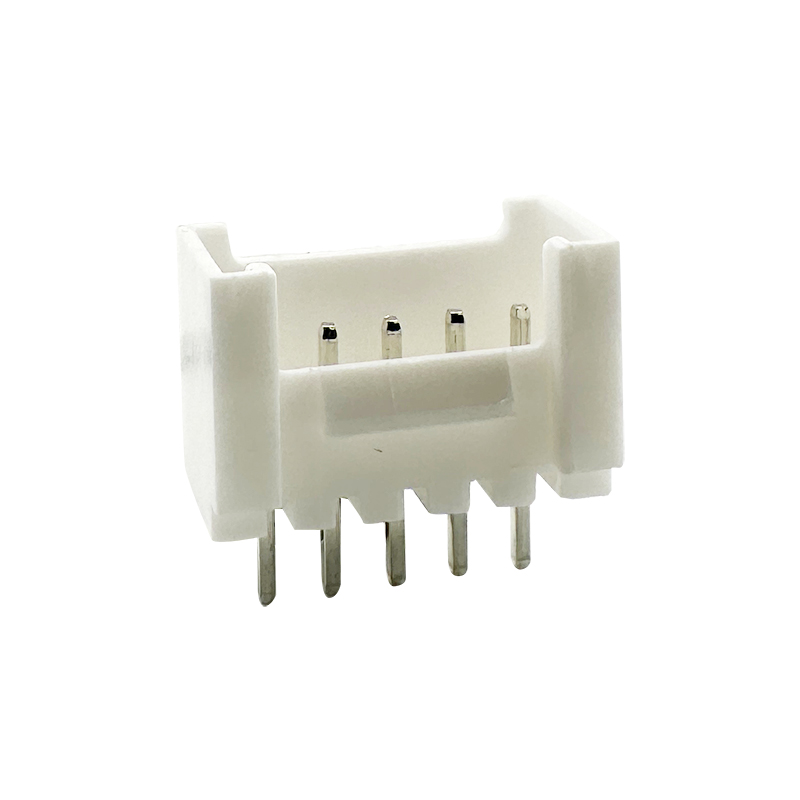

YEONHO YST200 2.00mm JST PH With Lock type Wire to Board Connector :RHTAYL2-2.00

Series Part No:RHTAYL2-2.00

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

YEONHO YST200

Features

-Electrical Performance: Capable of handling moderate currents, depending on the specific model and configuration, ensuring safe operation under typical electronic loads.

-Materials: Contacts are typically made from phosphor bronze with tin or gold plating. This choice of materials provides good conductivity, durability, and resistance to corrosion, ensuring long-term reliability.

-Keying: Designed with polarization features such as keying slots or tabs to prevent incorrect insertion and ensure proper orientation of the connector. This feature helps in avoiding damage to the connector and the circuit.

-Operating Conditions: Designed to operate within a wide range of temperatures, typically between -25°C to +85°C or higher, ensuring reliable performance in various environmental conditions.

Applications

1.Telecommunications Equipment

2.Industrial Equipment

3.Automotive Electronics

4.Medical Devices

Specifications

Order information:

RHTAYL2-2.00-XX-H
Pitch:2.00mm
XX-No.of 02~16 pins
H-Housing T-Terminal S-Straight male pin R-Right angle male pin VM-Vertical SMT Pin RM-Horizontal SMT Pin

Material: PA66/LCP UL 94V-0
Contact : Brass
Finish : Plated Tin over Nickel
Current rating:3.0A AC,DC
Voltage rating:250V AC,DC
Temperature range:-45℃~+105℃
Insulationresistance:1000MΩ Min.
Withstanding voltage:1000V AC minute
Contact resistance:30mΩ Max.
Wire range : AWG#24~#30

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

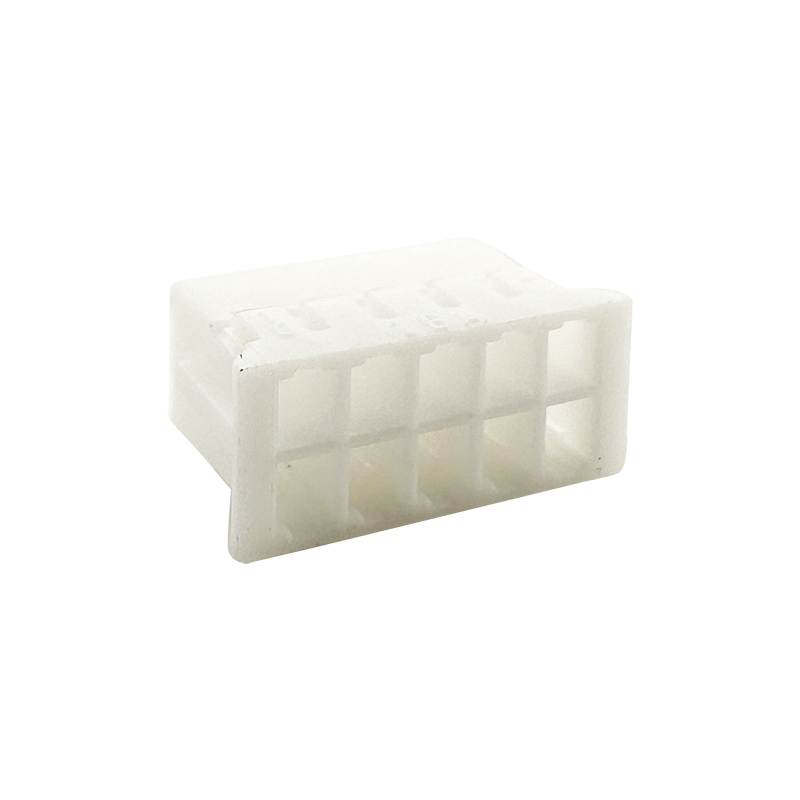

JST BxxB-PHDSS 2.00mm JST PHD type Double Wire to Board Connector :RHTAYA1-2.00

Series Part No:RHTAYA1-2.00

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

JST BxxB-PHDSS

Features

-Electrical Performance: Capable of handling moderate currents depending on the specific model and configuration, ensuring safe operation under typical electronic loads for both wire pairs.

-Materials: Contacts are typically made from phosphor bronze with tin or gold plating. This choice of materials provides good conductivity, durability, and resistance to corrosion, ensuring long-term reliability.

-Keying: Designed with polarization features such as keying slots or tabs to prevent incorrect insertion and ensure proper orientation of the connector. This feature helps in avoiding damage to the connector and the circuit.

-Operating Conditions: Designed to operate within a wide range of temperatures, typically between -25°C to +85°C or higher, ensuring reliable performance in various environmental conditions.

Applications

1.LCD Displays and Monitors

2.Automotive Electronics

3.Telecommunication Equipment

4.Industrial Automation

Specifications

Rated Voltage: 250V AC.DC

Rated Current: 3A

Contact Resistance: 0.02 Ohm max

Insulation Resistance: 1000M Ohm min

Withstand voltage: 1000V AC/MIN

Temperature range for usage : -40ºC~+105ºC

P.C board thickness : 0.8~1.6mm

Material:

Housing: PA66 UL94V-2

Contacts: Phosphor Bronze or Brass

Plating: Tin 50u" over 100u" nickel

Wire range : AWG#30~#

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

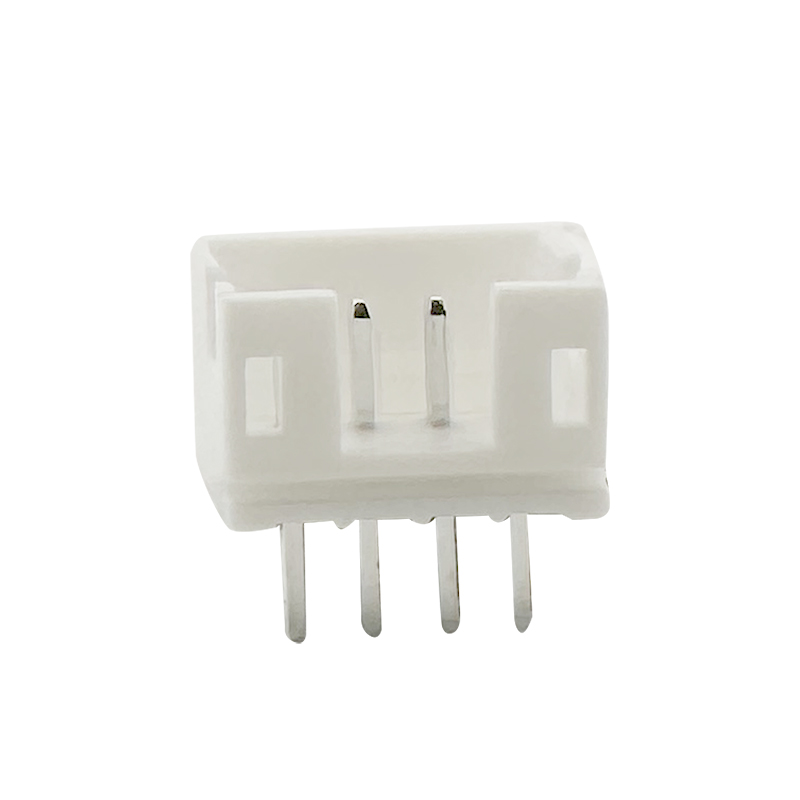

MOLEX 53014-xx10 2.00mm Wire to Board Connector:RHTAYL3M-2.00

Series Part No:RHTAYL3M-2.00

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

MOLEX 53014-xx10

Features

-Operating Conditions: Designed to operate within a wide range of temperatures, typically between -25°C to +85°C or higher, ensuring reliable performance in various environmental conditions.

-Termination Options: Supports various wire termination methods including crimping and soldering. Some models may also support IDC (Insulation Displacement Contact) termination, offering flexibility in assembly processes.

-Certification: Complies with industry standards and certifications such as UL, RoHS, and REACH, ensuring reliability, safety, and environmental compatibility.

-Design: Compact and space-saving design suitable for applications where board space is limited but reliable connectivity is crucial.

Applications

1.Telecommunication Equipment:

2.Medical Devices:

3.IoT (Internet of Things) Devices:

4.LED Lighting Systems:

Specifications

2.00mm Molex 51004 type Wire to Board Connector

Order information:

RHTAYL3M-2.00-02-H

Pitch:2.00mm

pins:2~16

H=Hosing / T=Terminal / S=Straight male pin / R= Right angle male pin

Specifications

◆Material: Nylon UL 94V0 (Lead Free)

◆Contact : Phosphor Bronze

◆Finish : Plated Tin or Gold Flash Lead over Nickel

◆Current rating:2A AC,DC

◆Voltage rating:125V AC,DC

◆Temperature range:-35℃~+85℃

◆Insulationresistance:1000MΩ/Min.

◆Withstanding voltage:800V AC/minute

◆Contact resistance:20mΩ/Max.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

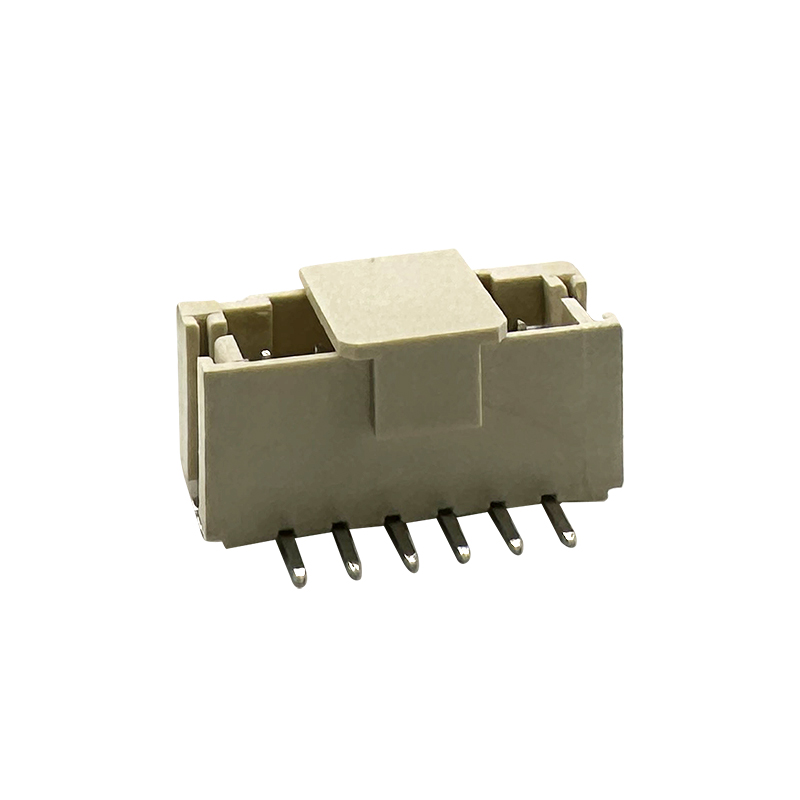

YEONHO SMAW200-xxC 2.00mm YST200 Double With Lock type Wire to Board Connector:RHTAY4-2.00

Series Part No:RHTAY4-2.00

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

YEONHO SMAW200-xxC

Features

-Double with lock type: This indicates that the connector features a locking mechanism that securely holds the mating halves together, providing additional stability and preventing accidental disconnections.

-Contact Configuration:Available in various configurations including single-row and double-row designs, accommodating different wire sizes and pin counts. Double-row configurations increase the contact density while maintaining overall compactness.

-Contact Material:Contacts are typically made from materials such as phosphor bronze or brass. These materials offer good electrical conductivity, mechanical strength, and resistance to corrosion.

-Contact Plating:Contacts may be plated with materials such as gold or tin to enhance conductivity, prevent oxidation, and improve durability. Gold plating is preferred for its superior corrosion resistance and low contact resistance, ensuring reliable electrical performance over time.

Applications

1.Consumer Electronics:

2.Telecommunications Equipment:

3.Industrial Automation

4.Automotive Electronics

Specifications

2.00mm Double With Lock type Wire to Board Connector

Order information:

RHTAY4-2.00-2X01-H

Pitch:2.00mm

Pins:2=Double layer

Pin numbur:2~60 pins

H=Hosing / T=Terminal / S=Straight male pin / R= Right angle male pin

Specifications

◆Material: Nylon UL 94V0 (Lead Free)

◆Contact : Phosphor Bronze

◆Finish : Plated Tin or Gold Flash Lead over Nickel

◆Current rating:2A AC,DC

◆Voltage rating:250V AC,DC

◆Temperature range:-35℃~+85℃

◆Insulationresistance:1000MΩ/Min.

◆Withstanding voltage:800V AC/minute

◆Contact resistance:20mΩ/Max.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

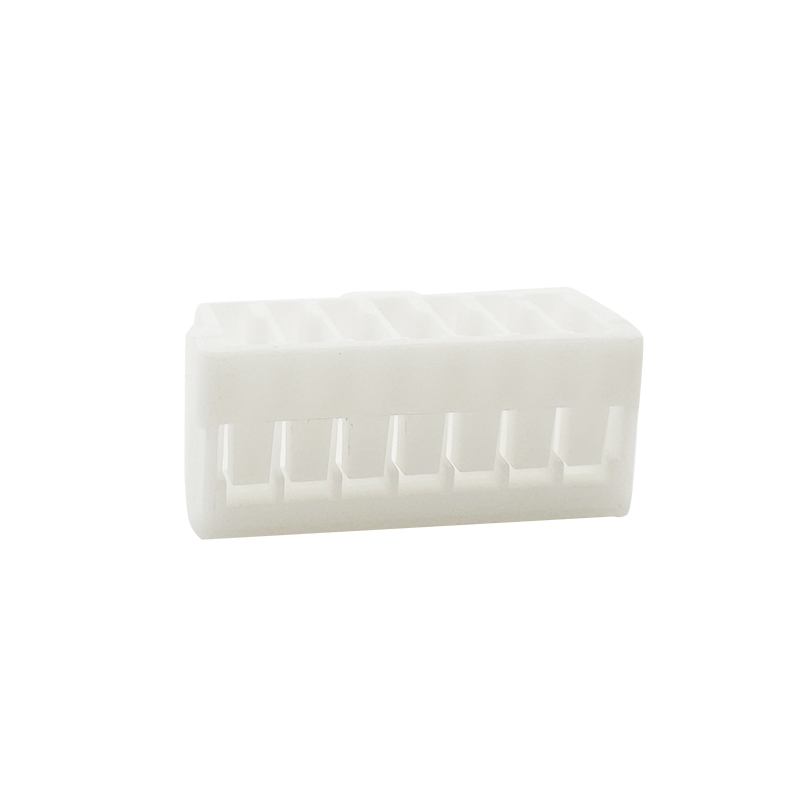

179228 292133 2.00mm Pitch Wire to Board Connector:RHTAYC1-2.0

Series Part No:RHTAYC1-2.0

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

179228 292133

Features

-Pitch Size: 2.00mm between pins, allowing for compact designs.

-Contact Configuration: Multiple contact positions (e.g., 2 to 20 or more) depending on the model.

-Durability: Designed for high durability, often rated for several thousand mating cycles.

-Current Rating: Typically rated for a specific current (e.g., 3A or more, depending on the specific connector).

Applications

1.Consumer Electronics

2.Telecommunications Equipment

3.Medical Devices

4.Home Appliances

Specifications

2.00mm Pitch 179228 292133 Wire to Board Connector

Order information:

RHTAYC1-2.00-XX-H

Pitch:2.00mm

XX-No.of 02~15 pins

H-Housing T-Terminal S-Straight male pin R-Right angle male pin

Specifications

Material: PA66 UL 94V-0

Contact : Brass

Finish : Plated Tin over Nickel

Current rating:4.0A AC,DC

Voltage rating:125V AC,DC

Temperature range:-45℃~+105℃

Insulationresistance:1000MΩ Min.

Withstanding voltage:1000V AC minute

Contact resistance:20mΩ Max.

Wire range : AWG#22~#28

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

JST SMxxB-PASS 2.00mm pitch With lock Wire To Board Connectors :RHTAYX200

Series Part No:RHTAYX200

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

JST SMxxB-PASS

Features

-Locking Feature: Equipped with a locking mechanism that ensures a secure and stable connection between the connector and the mating header or receptacle. This feature prevents accidental disconnections due to vibrations or movements, enhancing reliability.

-Electrical Performance: Capable of handling moderate currents depending on the specific model and configuration, ensuring safe operation under typical electronic loads.

-Materials: Contacts are typically made from phosphor bronze with tin or gold plating. This choice of materials provides good conductivity, durability, and resistance to corrosion, ensuring long-term reliability.

-Keying: Designed with polarization features such as keying tabs or slots to prevent incorrect insertion and ensure proper orientation of the connector. This helps prevent damage to the connector and the circuit.

Applications

1.Automotive Electronics

2.Industrial Equipment

3.Telecommunication Equipment

4.Medical Devices

Specifications

2.00mm With Lock Wire To Board Connectors

Electrical Specification:

Contact rating:3A AC,DC

Voltage rating:250V AC,DC

Contact Resistance:10mΩ Max.

Insulation Resistance:1000MΩ Min.

Withstand voltage:800V AC/minute

Temperature range:-40ºC~+105ºC

Material:

Housing:Nylon 66,UL94V-0

Contacts: Brass/Tin over Nickel

Color:White

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

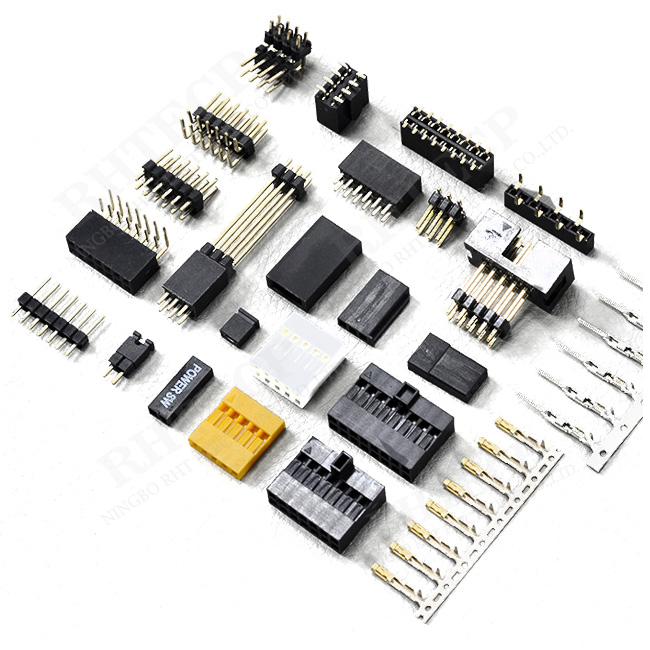

2.00mm & 2.54mm Wire To Board Connector : RHTAY40B-2.00&RHTAY40A-2.54

Series Part No:RHTAY40B-2.00&RHTAY40A-2.54

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Multiple Pitch Options: Offered in both 2.00mm and 2.54mm pitch configurations to support a wide range of design requirements and PCB layouts.
-Space-Saving Design: Compact and low-profile construction is ideal for high-density electronic assemblies where board space is limited.
-Reliable Electrical Connection: Designed with precision contact systems that provide consistent electrical performance and secure wire retention.
-Polarized and Locking Mechanism: Built-in polarization and optional locking features help prevent mismating and ensure a firm and stable connection under vibration or mechanical stress.

Applications

1.Consumer Electronics
2.LED Lighting Systems
3.Industrial Control Equipment
4.Communication Devices

Specifications

RHTAY40A:
Electrical Specification:
Current Rating: 3 AMP
Insulator Resistance: 5000M Ohm min. at DC 500V
Contact Resistance: 20m Ohm max. at DC 100mA
Withstand voltage:800V AC/MIN
Operating Temperature: -55ºC~+105ºC
Material:
Housing: Nylon 66 UL94V-0
Contacts: Phosphor Bronze
Plating: Tin 50u" over 100u" nickel
----------------------------------------------------------------------
RHTAY40B:
Electrical Specification:
Current Rating: 2 AMP/250V AC,DC
Insulator Resistance: 1000M Ohm min. at DC 500V
Contact Resistance: 20m Ohm max. at DC 100mA
Withstand voltage:1000V AC/min
Operating Temperature: -55ºC~+105ºC
Material:
Housing: Nylon 66 UL94V-0
Contacts: Phosphor Bronze
Plating: Tin 50u" over 100u" nickel

Technical Documents

Please contact us for more information.

X

X

Previous page 1 2 3 4 5 6 7 8 next page
