SATA connectors

SATA Connectors are engineered for high-speed data transmission and reliable connections between storage devices and circuit boards. Their design focuses on contact alignment, impedance control, insertion force, signal integrity and mechanical stability. Optimized connector geometry and shielding help reduce signal loss and interference, supporting consistent data transfer, secure assembly and long-term performance in computers, servers and storage equipment.

Enlarge

Quick View

SATA Type A 7 Pin Male Connector,Right Angle,Double Row：RHTAYATA009

Series Part No:RHTAYATA009

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

Durable Gold-Plated Contacts: Provides corrosion resistance and long-lasting electrical performance.
Compact Footprint: Saves valuable PCB space without compromising functionality.
Robust Plastic Housing: Enhances mechanical strength and ensures secure mating.
Polarized Connector: Prevents incorrect insertion and guarantees proper alignment.

Applications

1.Computers & Laptops
2.Data Storage Systems
3.Servers & Data Centers
4.Embedded Systems

Specifications

MATERIAL:
Housing:Thermoplastic,UL94-V0
Contact:Copper alloy,50u"min. Nickel plating
Overall;100u" min.Tin on solder tail;
Gold plating on contact area.
Hook:Copper alloy,Nickel and Tin plating overall.
ELECTRICAL:
Contact Resistance: 25 mΩ Max.
Insulation Resistance:1000 MΩ Min.
Dielectric Withstanding Voltage: 500VRMS Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

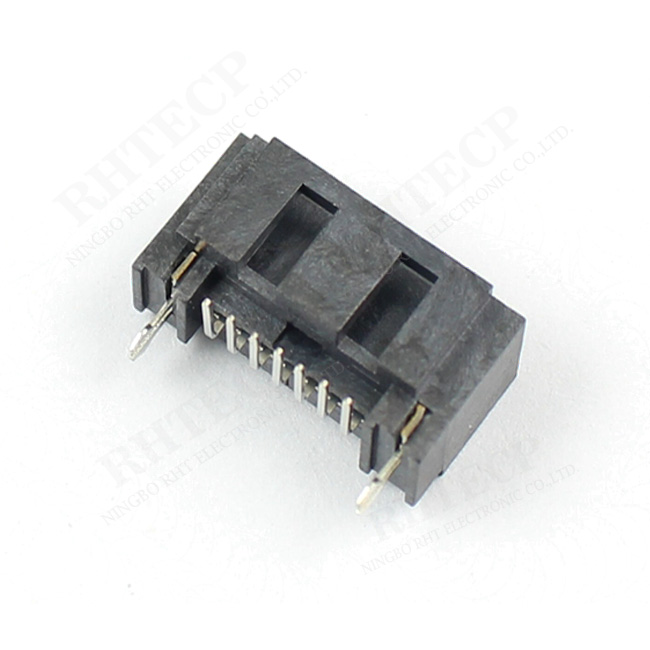

SATA Type B 7P Male Connector,Vertical SMD：RHTAYATA010

Series Part No:RE-C-SATA010

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-pin interface：supports standard SATA data transfer for HDDs, SSDs, and optical drives.
-Vertical SMD design：suitable for compact PCB layouts and modern slim devices.
-High-speed data transmission：compatible with SATA I/II/III standards up to 6Gb/s.
-Durable contacts：gold-plated for excellent conductivity, corrosion resistance, and long-term reliability.

Applications

1.Storage devices
2.Motherboards and host controllers
3.Industrial embedded systems
4.Networking and media devices

Specifications

MATERIAL:
Housing:LCP,UL94-V0 ,Black
Contact:Copper alloy,50u"min. Nickel plating
Overall;100u" min.Tin on solder tail;
Gold plating on contact area.
Hook:Copper alloy,Nickel and Tin plating overall.
ELECTRICAL:
Contact Resistance: 25 mΩ Max.
Insulation Resistance:1000 MΩ Min.
Dielectric Withstanding Voltage: 500VRMS Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

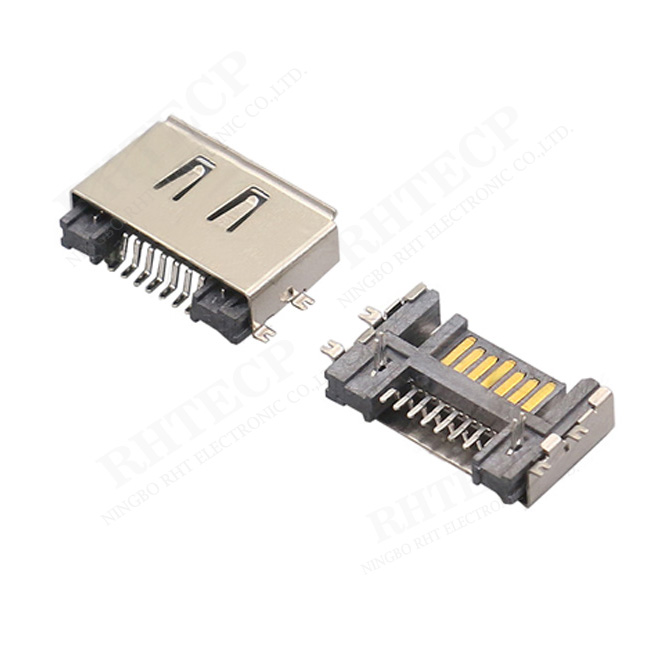

SATA 7P Male Connector,SMD,with SHELL：RHTAYATA011

Series Part No:RHTAYATA011

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-SMD (Surface Mount Device) design：suitable for automated PCB assembly and compact layouts
-With protective shell：enhances mechanical stability and shielding against EMI
-High-speed data transmission：compliant with SATA I/II/III standards up to 6Gb/s
-Durable gold-plated contacts：ensures long-term reliability and corrosion resistance

Applications

1.Motherboards and host controllers
2.Industrial embedded systems
3.Networking and media devices
4.Consumer electronics

Specifications

MATERIAL:
Housing:LCP,UL94-V0 ,Black
Contact:Copper alloy,50u"min. Nickel plating
Overall;100u" min.Tin on solder tail;
Gold plating on contact area.
Hook:Copper alloy,Nickel and Tin plating overall.
ELECTRICAL:
Contact Resistance: 25 mΩ Max.
Insulation Resistance:1000 MΩ Min.
Dielectric Withstanding Voltage: 500VRMS Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

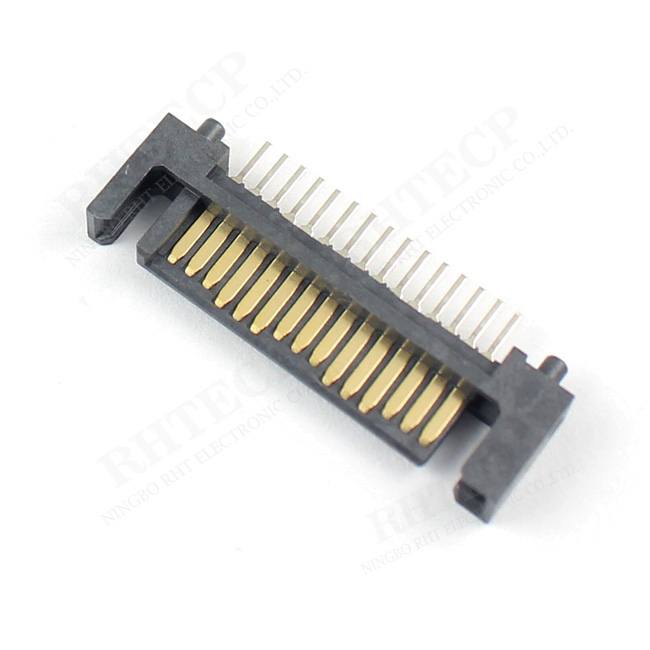

SATA Type A 15P Male Connector,Straight ：RHTAYATA201

Series Part No:RHTAYATA201

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-15-pin interface：supports standard SATA power and data connections for HDDs, SSDs, and optical drives
-Straight PCB mount：ideal for vertical mounting on printed circuit boards and compact layouts
-High-speed data transfer：compliant with SATA I/II/III standards up to 6Gb/s
-Durable contacts：gold-plated for excellent conductivity, corrosion resistance, and long-term reliability

Applications

1.Storage devices
2.Motherboards and host controllers
3.Industrial embedded systems
4.Networking and media devices

Specifications

MATERIAL:
Housing:LCP,UL94-V0 ,Black
Contact:Copper alloy,50u"min. Nickel plating
Overall;100u" min.Tin on solder tail;
Gold plating on contact area.
Hook:Copper alloy,Nickel and Tin plating overall.
ELECTRICAL:
Contact Resistance: 25 mΩ Max.
Insulation Resistance:1000 MΩ Min.
Dielectric Withstanding Voltage: 500VRMS Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

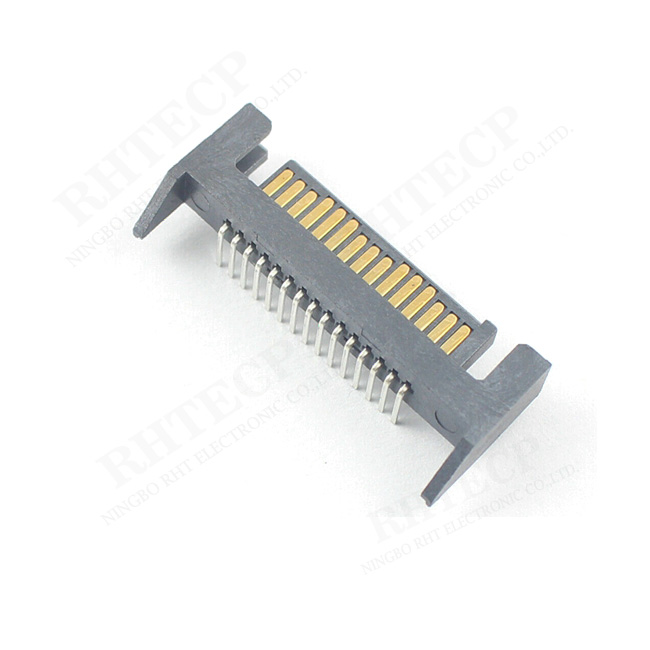

SATA Type A 15P Male Connector,Right angle：RHTAYATA202

Series Part No:RHTAYATA202

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-15-pin interface：supports standard SATA power and data connections for HDDs, SSDs, and optical drives

-Right-angle PCB mount：ideal for horizontal mounting on printed circuit boards, saving vertical space

-igh-speed data transfer：compliant with SATA I/II/III standards up to 6Gb/s

-Durable contacts：gold-plated for excellent conductivity, corrosion resistance, and long-term reliability

Applications

1.Motherboards and host controllers
2.Industrial embedded systems
3.Networking and media devices
4.Consumer electronics

Specifications

MATERIAL:
Housing:LCP,UL94-V0 ,Black
Contact:Copper alloy,50u"min. Nickel plating
Overall;100u" min.Tin on solder tail;
Gold plating on contact area.
Hook:Copper alloy,Nickel and Tin plating overall.
ELECTRICAL:
Contact Resistance: 25 mΩ Max.
Insulation Resistance:1000 MΩ Min.
Dielectric Withstanding Voltage: 500VRMS Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

SATA Type A 15P Male Connector,SMD：RHTAYATA203

Series Part No:RHTAYATA203

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-15-pin interface：supports standard SATA power and data connections for HDDs, SSDs, and optical drives
-SMD (Surface Mount Device) design：ideal for automated PCB assembly and compact layouts
-High-speed data transfer：compliant with SATA I/II/III standards up to 6Gb/s
-Durable contacts：gold-plated for excellent conductivity, corrosion resistance, and long-term reliability

Applications

1.Desktop and Laptop PCs
2.Servers and Storage Arrays
3.Embedded Systems
4.Media and Entertainment Devices

Specifications

MATERIAL:
Housing:LCP,UL94-V0 ,Black
Contact:Copper alloy,50u"min. Nickel plating
Overall;100u" min.Tin on solder tail;
Gold plating on contact area.
Hook:Copper alloy,Nickel and Tin plating overall.
ELECTRICAL:
Contact Resistance: 25 mΩ Max.
Insulation Resistance:1000 MΩ Min.
Dielectric Withstanding Voltage: 500VRMS Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

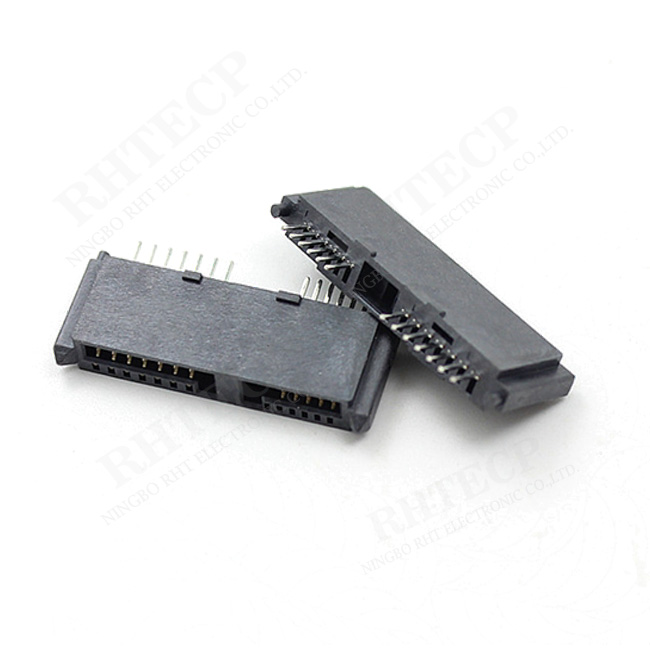

SATA 7+6P Female Connector,Straight：RHTAYATA301

Series Part No:RHTAYATA301

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-+6 Pin Design: Provides stable power transmission for SATA devices, supporting both HDDs and SSDs
-Straight Orientation: Simplifies installation on PCBs or inside compact storage systems
-SMD / Through-Hole Compatibility: Flexible mounting options for different PCB layouts and assembly processes
-Durable Construction: Made with high-quality, corrosion-resistant materials for long-term reliability

Applications

1.Computer Storage Devices
2.Data Transmission Interfaces
3.Consumer Electronics
4.Industrial Control Equipmen

Specifications

MATERIAL:
Housing:LCP,UL94-V0 ,Black
Contact:Copper alloy,50u"min. Nickel plating
Overall;100u" min.Tin on solder tail;
Gold plating on contact area.
Hook:Copper alloy,Nickel and Tin plating overall.
ELECTRICAL:
Contact Resistance: 25 mΩ Max.
Insulation Resistance:1000 MΩ Min.
Dielectric Withstanding Voltage: 500VRMS Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

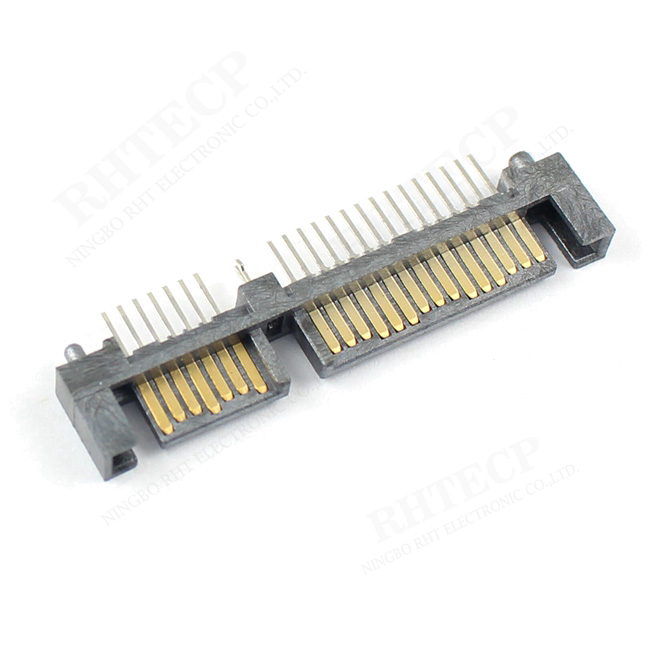

SATA 7+15P Male Connector,Straight：RHTAYATA401

Series Part No:RHTAYATA401

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-7+15 Pin Design: Provides stable power transmission for high-capacity SATA devices
-Straight Orientation: Simplifies installation on PCBs or inside storage systems
-SMD / Through-Hole Compatibility: Flexible mounting for various PCB layouts and assembly processes
-Durable Construction: Made with high-quality, corrosion-resistant materials for long-term reliability

Applications

1.Computers
2.Servers
3.NAS Storage
4.Industrial Equipment

Specifications

MATERIAL:
Housing:LCP,UL94-V0 ,Black
Contact:Copper alloy,50u"min. Nickel plating
Overall;100u" min.Tin on solder tail;
Gold plating on contact area.
Hook:Copper alloy,Nickel and Tin plating overall.
ELECTRICAL:
Contact Resistance: 25 mΩ Max.
Insulation Resistance:1000 MΩ Min.
Dielectric Withstanding Voltage: 500VRMS Min.

Technical Documents

Please contact us for more information.

X

X

Previous page 1 2 3 4 next page
