Micro USB connectors

Micro USB Connectors are engineered for compact electronic devices requiring dependable power and data interfaces. Their design emphasizes terminal precision, contact resistance, insertion cycles, housing strength and connector retention. Optimized internal structures help maintain consistent contact performance and minimize connection failures, supporting reliable integration in mobile devices, portable equipment, embedded systems and other space-constrained electronic applications.

Enlarge

Quick View

Micro USB connectors :RHTAY38

Series Part No:RHTAY38

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Compact surface-mount (SMD) design: Optimized for ultra-slim PCB layouts, enabling space-saving device structures and efficient internal component arrangement
-5-position Micro USB interface: Guarantees stable, high-integrity data transmission and reliable power delivery even under continuous operation
-Durable SMD construction: Ensures strong mechanical retention and reliable soldering performance, ideal for high-volume automated PCB assembly
-Reinforced metal housing: Provides enhanced resistance to mechanical stress, vibration, and repeated insertions, ensuring long-term connector durability

Applications

1.Portable Electronics

2.Consumer Devices

3.Smart Home Devices

4.Medical Devices

Specifications

Material:
Housing:High temperature thermoplastic
with G.F,UL94V-0
Contact:copper alloy,t=0.20mm
Shell:copper ally,t=0.25mm
Specification:
Current rating:1 AMax.
Dielectric withtanding volatage:
100V(ac)for 1min.
Contact resistance:50mΩ Max.
Total unmating force:1.0 kgf Min.
Temperature rating:-30°C~ +80°C

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

CONN RCPT 5POS MICRO USB SMD : RHTAY242

Series Part No:RHTAY242

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-High insertion–withdrawal endurance: Maintains electrical and mechanical performance after frequent mating cycles, supporting devices with regular plug/unplug operations
-Secure contact design: Minimizes signal loss, ensures consistent electrical connectivity, and improves overall device performance
-Reliable PCB retention: Reduces risk of connector displacement during manufacturing or operation, maintaining stable solder joints
-Wide range of applications: Suitable for portable electronics, handheld devices, smart IoT modules, wearable devices, embedded control systems, and industrial automation equipment

Applications

1.Smartphones

2.Tablets

3.Wearables

4.IoT Devices

Specifications

Material
Housing:Hing Temperature Thermoplastics,
UL94V-0 LCP,Black.
Contact:Copper Alloy C5191.
Shell:Copper Alloy C2680.
Finish:
Contact:Plated Gold In Mating Area;
Tin On Solder Talls.
Shell:Nickel Plating.
Electrical:
Current Rating:1.0A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:50mΩ Max.
Dielectric Withstanding Voltage:
300 V AC AT Sea Level.
Insulation Resistance:100MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.0kgf Max.
Unmated Force:0.7kgf Min.
Terminal Retenion:0.5kgf Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

CONN RCPT 5POS MICRO USB SMD : RHTAY243

Series Part No:RHTAY243

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Reliable PCB retention: Reduces risk of connector displacement during manufacturing or operation, maintaining stable solder joints
-Wide range of applications: Suitable for portable electronics, handheld devices, smart IoT modules, wearable devices, embedded control systems, and industrial automation equipment
-Optimized for high-volume production: Simplifies assembly alignment, reduces errors, and improves throughput in automated manufacturing lines
-Long lifecycle and performance stability: Designed for demanding environments, providing reliable connectivity, robust mechanical strength, and consistent operation over the product’s lifespan

Applications

1.GPS Modules

2.Cameras

3.Handheld Gadgets

4.Embedded Systems

Specifications

Material
Housing:Hing Temperature Thermoplastics,
UL94V-0 LCP,Black.
Contact:Copper Alloy C5191.
Shell:Copper Alloy C2680.
Finish:
Contact:Plated Gold In Mating Area;
Tin On Solder Talls.
Shell:Nickel Plating.
Electrical:
Current Rating:1.0A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:50mΩ Max.
Dielectric Withstanding Voltage:
300 V AC AT Sea Level.
Insulation Resistance:100MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.0kgf Max.
Unmated Force:0.7kgf Min.
Terminal Retenion:0.5kgf Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

CONN RCPT 5POS MICRO USB SMD:RHTAY246

Series Part No:RHTAY246

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Power and Data Transfer: Supports both power charging and data transfer functionalities, providing a versatile connection for various devices.

-Mechanical Specifications: Includes dimensions and mounting details optimized for surface mounting on PCBs, facilitating efficient assembly in manufacturing.

-Electrical Specifications: Specifies voltage ratings, current ratings, and signal integrity characteristics to ensure reliable performance in different operating conditions.

-Shielding: Typically includes shielding to minimize electromagnetic interference (EMI), ensuring signal integrity during data transmission.

Applications

1.Consumer Electronics

2.Medical Devices

3.Automotive Applications

4.Industrial Applications

Specifications

Material

Housing:Hing Temperature Thermoplastics,

UL94V-0 LCP,Black.

Contact:Copper Alloy C2680.

Shell:Copper Alloy C2680.

Finish:

Contact:Plated Gold In Mating Area;

Tin On Solder Talls.

Shell:Nickel Plating.

Electrical:

Current Rating:1.0A/Contact Terminal.

Voltage Rating:30V DC

Contact Resistance:50mΩ Max.

Dielectric Withstanding Voltage:

300 V AC AT Sea Level.

Insulation Resistance:100MΩ Min.

Connector Mate and Unmated Force

Mate Force:3.0kgf Max.

Unmated Force:0.7kgf Min.

Terminal Retenion:0.5kgf Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

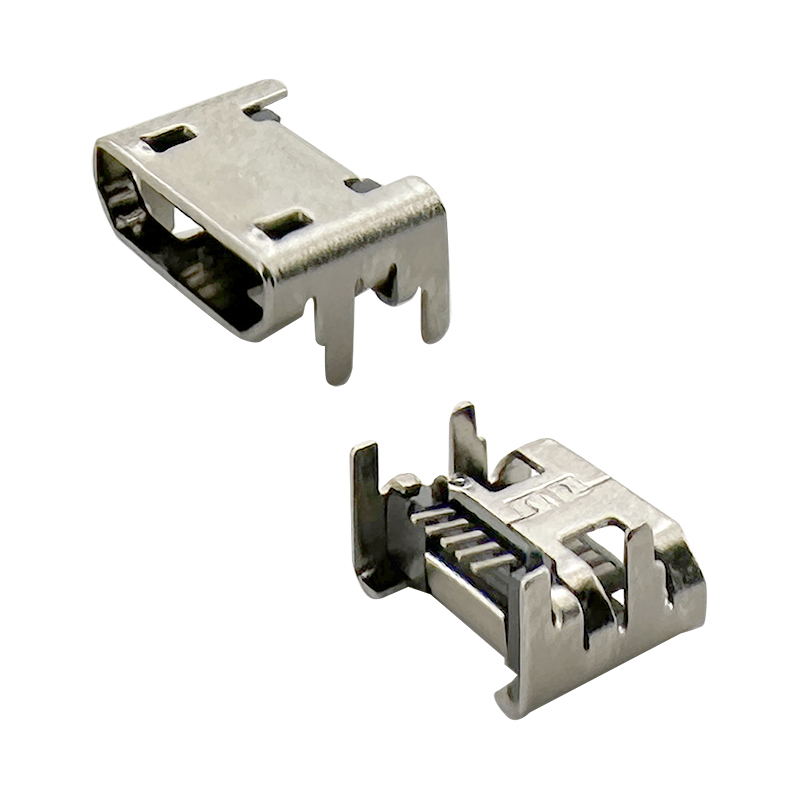

CONN RCPT 5POS MICRO USB SMD:RHTAY244

Series Part No:RHTAY244

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Connector Type: Micro USB connectors are small, compact connectors widely used for data transfer and charging in various electronic devices.

-5POS: Refers to 5 positions or contacts within the connector, indicating the number of electrical connections available.

-Power and Data Transfer: Supports both power charging and data transfer functionalities, providing a versatile connection for various devices.

-Mechanical Specifications: Includes dimensions and mounting details optimized for surface mounting on PCBs, facilitating efficient assembly in manufacturing.

Applications

1.Mobile Phones and Smartphones

2.Tablets and Portable Devices

3.GPS Navigation Devices

4.Embedded Systems and IoT Devices

Specifications

Material

Housing:Hing Temperature Thermoplastics,

UL94V-0 LCP,Black.

Contact:Copper Alloy C5191.

Shell:Copper Alloy C2680.

Finish:

Contact:Plated Gold In Mating Area;

Tin On Solder Talls.

Shell:Nickel Plating.

Electrical:

Current Rating:1.0A/Contact Terminal.

Voltage Rating:30V DC

Contact Resistance:50mΩ Max.

Dielectric Withstanding Voltage:

300 V AC AT Sea Level.

Insulation Resistance:100MΩ Min.

Connector Mate and Unmated Force

Mate Force:3.0kgf Max.

Unmated Force:0.7kgf Min.

Terminal Retenion:0.5kgf Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

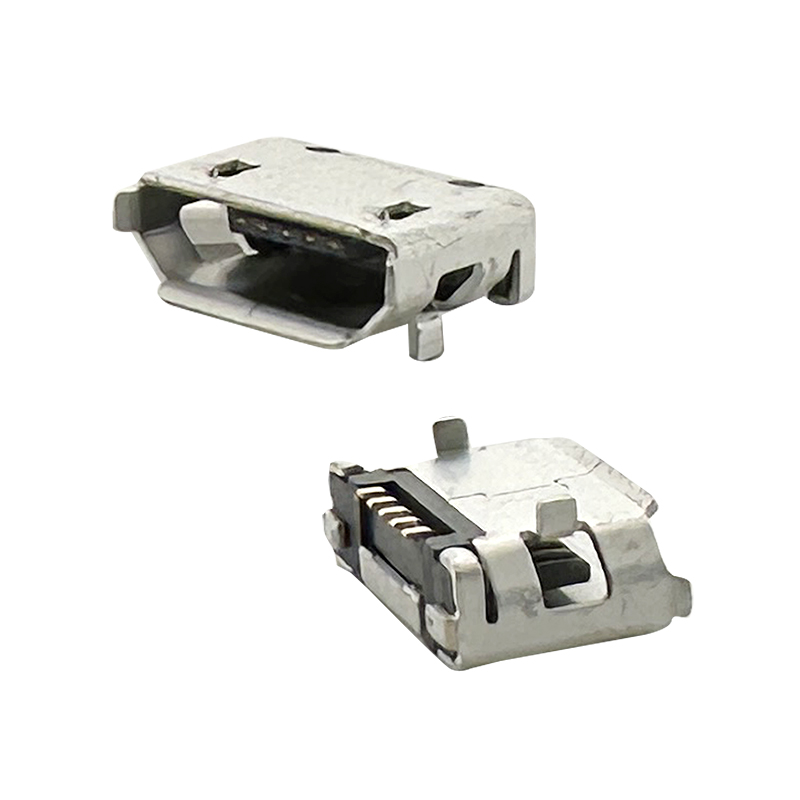

CONN RCPT 5POS MICRO USB DIP 5.9mm:RHTAY245

Series Part No:RHTAY245

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-5POS: Refers to 5 positions or contacts within the connector, indicating the number of electrical connections available.

-DIP (Dual Inline Package): Designed for through-hole mounting directly onto a printed circuit board (PCB), offering a secure and reliable connection.

-Dimensions: The 5.9mm measurement typically refers to the width of the connector package, indicating its compact size suitable for various applications.

-Design: Engineered for durability and reliability, featuring a robust housing and contacts that withstand frequent insertion and removal cycles.

Applications

1.Consumer Electronics

2.Computer Peripherals

3.Automotive Applications

4.Industrial and Embedded Systems

Specifications

Material

Housing:Hing Temperature Thermoplastics,

UL94V-0 LCP,Black.

Contact:Copper Alloy C2680.

Shell:Copper Alloy C2680.

Finish:

Contact:Plated Gold In Mating Area;

Tin On Solder Talls.

Shell:Nickel Plating.

Electrical:

Current Rating:1.0A/Contact Terminal.

Voltage Rating:30V DC

Contact Resistance:50mΩ Max.

Dielectric Withstanding Voltage:

300 V AC AT Sea Level.

Insulation Resistance:100MΩ Min.

Connector Mate and Unmated Force

Mate Force:3.0kgf Max.

Unmated Force:0.7kgf Min.

Terminal Retenion:0.5kgf Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

CONN RCPT 5POS MICRO USB SMD: RHTAY247

Series Part No:RHTAY247

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Slim SMD profile: Designed for space-constrained PCB layouts, enabling compact device integration
-Reliable 5-pin Micro USB interface: Ensures high-speed data transfer and stable power supply under continuous use
-Robust surface-mount design: Offers excellent solder joint strength and mechanical stability for automated assembly
-Reinforced shell and contacts: Enhances durability against vibration, mechanical stress, and repeated insertions

Applications

1.Industrial Electronics

2.Communication Equipment

3.Networking Devices

4.Portable Electronics

Specifications

Material
Housing:Hing Temperature Thermoplastic
with G.F,UL94V-0,Black
Contact:Copper Alloy,t=0.20mm.
Shell:Copper Alloy,t=0.25mm.
Electrical:
Current Rating:1A Max.
Dielectric Withstanding Voltage:
100 V AC for 1 min.
Contact Resistance:50mΩ Max.
Insulation Resistance:100MΩ Min.
Total Mating Force:3.57 kgf Max.
Total Unmating Force:1.0 kgf Min.
Temperature Range: -30°C Up To +80°C

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

CONN RCPT 5POS MICRO USB SMD: RHTAY248

Series Part No:RHTAY248

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-High mating durability: Supports frequent plugging and unplugging without signal degradation or loss of connectivity
-Enhanced electrical performance: Secure contact design reduces resistance, interference, and ensures stable data flow
-Versatile applications: Perfect for consumer electronics, IoT devices, portable instruments, wearable technology, and industrial equipment
-Manufacturing-friendly design: Easy alignment and strong PCB retention improve assembly efficiency and reduce defect rates

Applications

1.Networking Devices

2.Portable Electronics

3.Consumer Devices

4.Smart Home Devices

Specifications

Material
Housing:Hing Temperature Thermoplastic
with G.F,UL94V-0,Black.
Contact:Copper Alloy,t=0.15mm.
Shell:Copper Alloy,t=0.30mm.
Electrical:
Current Rating:1A Max.
Dielectric Withstanding Voltage:
100 V AC for 1 min.
Contact Resistance:50mΩ Max.
Insulation Resistance:100MΩ Min.
Total Mating Force:3.57 kgf Max.
Total Unmating Force:1.0 kgf Min.
Temperature Range: -30°C Up To +80°C

Technical Documents

Please contact us for more information.

X

X

Previous page 1 2 3 4 next page
