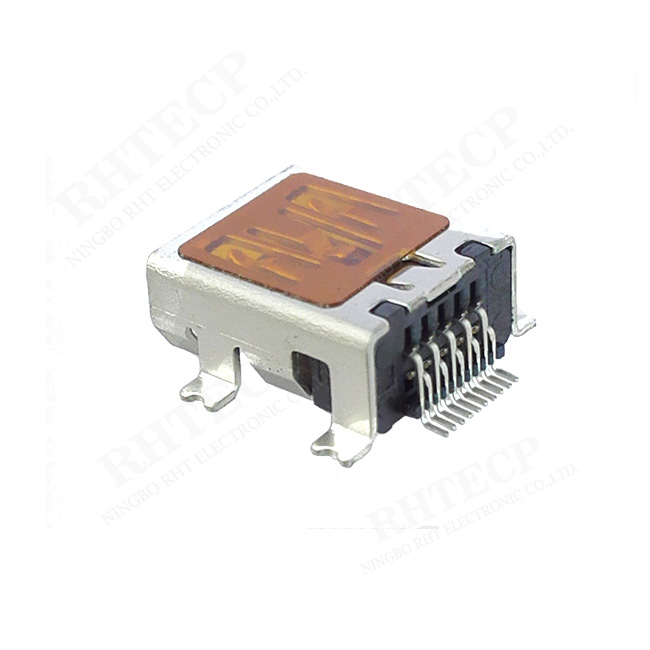

Features

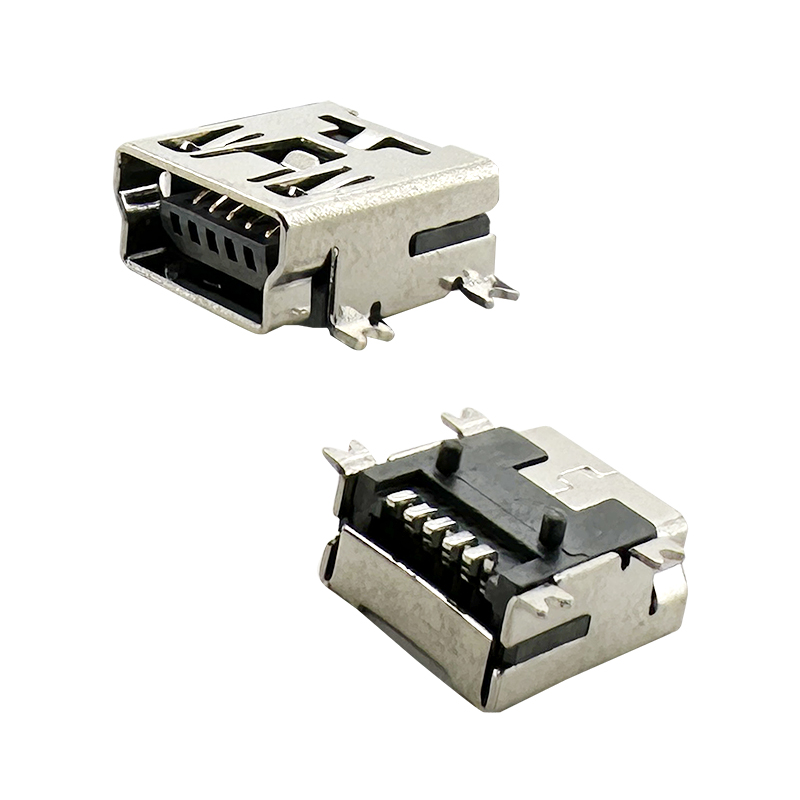

-Connector Orientation: "R/A" stands for Right Angle, indicating that the connector is designed to be mounted on a PCB with the USB port facing at a right angle to the board surface. This orientation helps save space and can be more convenient in certain device designs.
-SMD (Surface Mount Device): This indicates that the connector is designed for surface-mounting directly onto the surface of a PCB, rather than being inserted through holes and soldered from the other side (through-hole mounting).
-AB Type: The "AB type" typically refers to the shape or configuration of the Mini USB connector, which can vary slightly in dimensions and pin arrangement compared to other types like B type. It's important to consult specific datasheets for exact pin configurations.
-Number of Pins (5P): This specifies that the connector has 5 pins. Mini USB connectors typically have 5 pins arranged in a specific configuration: one for VCC (power), one for ground, and three for data (D+, D-, and sometimes an ID pin for OTG functionality).
Applications
1.Industrial Equipment
2.Consumer Electronics
3.DIY Electronics Projects
4.Wearable Technology
Specifications
Material
Housing:Hing Temperature Thermoplastic,UL94V-0 LCP,Black.
Contact::Copper Alloy C2680/C5191.
Shell:Copper Alloy C2680.
Finish:
Contact:Piated Gold In Mating Area;Tin On Solder Talls.
Shell:Nickel Plating.
Electrical:
Current Rating:1.0A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:50mΩ Max.
Dielectric Withstanding Voltage:300 V AC AT Sea Level.
Insulation Resistance:100MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.0kgf Max.
Unmated Force:0.7kgf Min.
Terminal Retenion:0.5kgf Min.
Technical Documents
Please contact us for more information.
