USB 2.0 connectors

USB 2.0 Connectors are engineered for dependable data communication and power connectivity across a wide range of electronic devices. Their design focuses on contact resistance, terminal alignment, insertion durability, electrical clearance and housing strength. Optimized structural details help maintain consistent connections during repeated use, while compact configurations support flexible PCB integration in computers, peripherals, control equipment and consumer electronics.

Enlarge

Quick View

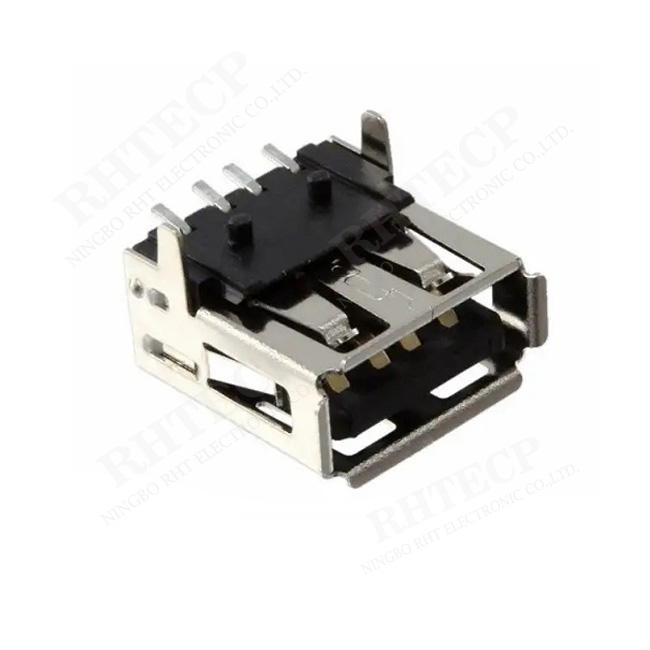

A Female Dip 180 USB Connector :RHTAY821

Series Part No:RHTAY821

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Orientation: The 180-degree orientation indicates that the connector is designed to be mounted horizontally on the PCB (Printed Circuit Board), with the pins extending out from both sides of the connector body.

-Number of Pins: Typically, USB connectors have four pins: VCC (Power), Data+, Data-, and Ground (GND). These pins facilitate power delivery and data transfer between devices.

-Mechanical Durability: Designed to withstand multiple insertion and removal cycles, ensuring reliable performance over the connector's lifespan.

-Shielding: Often includes shielding to protect against electromagnetic interference (EMI), which helps maintain signal integrity during data transmission.

Applications

1.Motherboards and Expansion Cards

2.Embedded Systems

3.Networking Equipment

4.Test and Measurement Instrumentss.

Specifications

Material

Housing:Hing Temperature Thermoplastic,UL94V-0 PBT/LCP,Black/White.

Contact:Copper Alloy C2680.

Shell:Copper Alloy C2680/SPCC.

Finish:

Contact:Plated Gold In Mating Area;Tin On Solder Tails.

Shell:Nickel Plating.

Electrical:

Current Rating:1.5A/Contact Terminal.

Voltage Rating:30V DC

Contact Resistance:30mΩ Max.

Dielectric Withstanding Voltage:500 V AC AT Sea Level.

Insulation Resistance:1000MΩ Min.

Connector Mate and Unmated Force

Mate Force:3.75kgf Max.

Unmated Force:1.02kgf Min.

Terminal Retenion:1

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

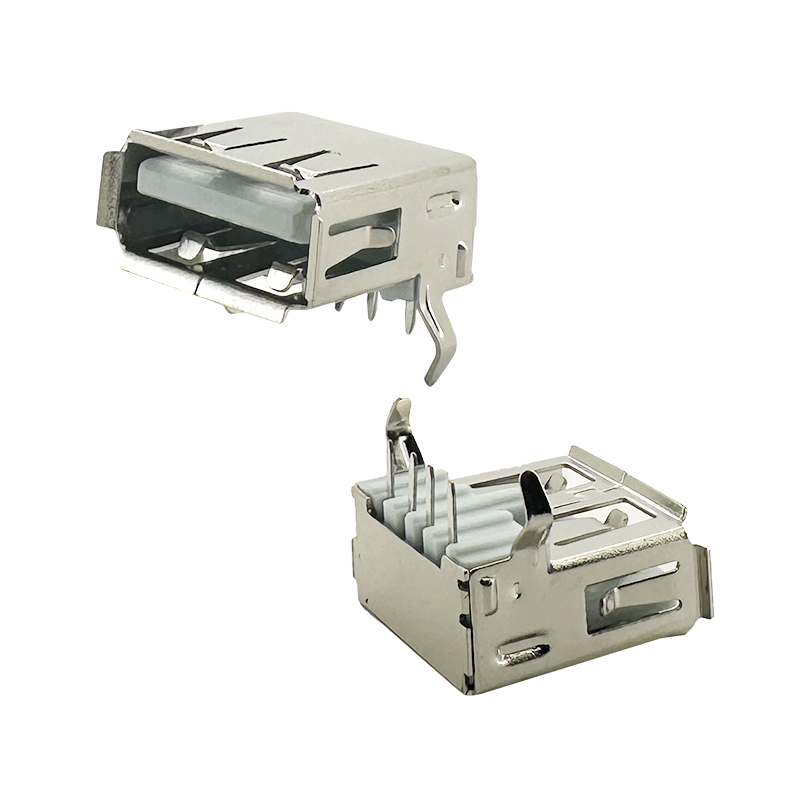

A Female Dip 90 USB Connector :RHTAY81A

Series Part No:RHTAY81A

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-USB Standard Compatibility: Supports various USB standards such as USB 2.0 or USB 3.0, depending on the specific model. USB 3.0 connectors offer higher data transfer rates compared to USB 2.0.

-Orientation: The 90-degree orientation indicates that the connector is designed to be mounted vertically on the PCB (Printed Circuit Board), with the pins extending out horizontally from one side of the connector body.

-Number of Pins: Typically, USB connectors have four pins: VCC (Power), Data+, Data-, and Ground (GND). These pins facilitate power delivery and data transfer between devices.

-Mechanical Durability: Designed to withstand multiple insertion and removal cycles, ensuring reliable performance over the connector's lifespan.

Applications

1.Medical Devices

2.Automotive Electronics

3.Networking Equipment

4.Test and Measurement Instruments

Specifications

Material

Housing:Hing Temperature Thermoplastic,

UL94V-0 PBT,Black/White.

Contact:Copper Alloy C2680.

Shell:Copper Alloy C2680/SPCC.

Finish:

Contact:Plated Gold In Mating Area;

Tin On Solder Tails.

Shell:Nickel Plating.

Electrical:

Current Rating:1.5A/Contact Terminal.

Voltage Rating:30V DC

Contact Resistance:30mΩ Max.

Dielectric Withstanding Voltage:

500 V AC AT Sea Level.

Insulation Resistance:1000MΩ Min.

Connector Mate and Unmated Force

Mate Force:3.75kgf Max.

Unmated Force:1.02kgf Min.

Terminal Retenion:1.2kgf Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

A Female Dip 90 USB Connector : RHTAY81AB&RHTAY811

Series Part No:RHTAY81AB&RHTAY811

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-USB Type A Female Interface: Designed to comply with USB 2.0 and USB 3.0 standards, ensuring broad compatibility with numerous electronic devices and peripherals requiring a standard USB Type A female port.
-DIP 90-Degree Mounting: The dual inline package (DIP) with a 90-degree right-angle configuration facilitates efficient PCB layout, especially in tight or space-constrained applications, allowing for easy cable routing.
-Robust Mechanical Design: Constructed with a high-quality nickel-plated metal shell that enhances durability, provides corrosion resistance, and shields against electromagnetic interference (EMI) to maintain signal integrity.
-Thermoplastic Insulator: Uses a flame-retardant thermoplastic insulator to ensure excellent electrical insulation, thermal stability, and reliability in various operating conditions.

Applications

1.Medical Devices
2.Communication Equipment
3.Office Equipment
4.Test and Measurement Instruments

Specifications

Material
Housing:Hing Temperature Thermoplastic,
UL94V-0 PBT,Black/White.
Contact:Copper Alloy C2680.
Shell:Copper Alloy C2680/SPCC.
Finish:
Contact:Plated Gold In Mating Area;
Tin On Solder Tails.
Shell:Nickel Plating.
Electrical:
Current Rating:1.5A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:
500 V AC AT Sea Level.
Insulation Resistance:1000MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.75kgf Max.
Unmated Force:1.02kgf Min.
Terminal Retenion:1.2kgf Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

A Female Dip 90 USB Connector : RHTAY8R1

Series Part No:RHTAY8R1

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-High Mating Durability: Engineered to withstand frequent mating cycles, the connector maintains consistent electrical performance throughout its lifespan, ideal for commercial and industrial environments.
-Stable Data and Power Transmission: Supports reliable USB data communication and power delivery, minimizing signal loss and ensuring device performance.
-RoHS and Environmental Compliance: Manufactured following Restriction of Hazardous Substances (RoHS) directives, contributing to environmentally friendly production and compliance with global safety standards.
-Compact and Space-saving: Its right-angle DIP design reduces vertical height on PCBs, optimizing space without sacrificing mechanical strength or connectivity.

Applications

1.Embedded Systems
2.Automotive Electronics
3.Networking Devices
4.Home Appliances

Specifications

Material
Housing:Hing Temperature Thermoplastic,
UL94V-0 PBT,Black/White.
Contact:Copper Alloy C2680.
Shell:Copper Alloy C2680/SPCC.
Finish:
Contact:Plated Gold In Mating Area;
Tin On Solder Tails.
Shell:Nickel Plating.
Electrical:
Current Rating:1.5A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:
500 V AC AT Sea Level.
Insulation Resistance:1000MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.75kgf Max.
Unmated Force:1.02kgf Min.
Terminal Retenion:1.2kgf Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

A Female SMD USB Connector: RHTAY81SL

Series Part No:RHTAY81SL

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-USB Type A Female Interface: Designed according to USB 2.0 and USB 3.0 standards, ensuring compatibility with a wide range of USB-enabled devices and peripherals.
-Surface Mount Technology (SMT): The SMD design allows for automated PCB assembly, improving production efficiency and reducing manufacturing costs.
-Compact and Low-Profile: Its small footprint and low height make it ideal for space-constrained electronic designs, enabling slimmer and lighter products.
-Robust Mechanical Construction: Equipped with a nickel-plated metal shell and high-quality thermoplastic insulator, the connector offers excellent mechanical strength, corrosion resistance, and electrical insulation.

Applications

1.Automotive Electronics
2.Networking Devices
3.Home Appliances
4.Point of Sale (POS) Systems

Specifications

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

A Female SMD USB Connector: RHTAY81C

Series Part No:RHTAY81C

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-High Durability: Engineered to withstand thousands of mating cycles, ensuring long-lasting and reliable connections even under frequent use.
-Reliable Data and Power Transmission: Optimized to maintain stable USB signal integrity and efficient power delivery, minimizing data loss and interference.
-EMI Shielding: The metal housing provides effective electromagnetic interference protection, helping maintain signal quality in noisy electronic environments.
-RoHS Compliant: Manufactured in compliance with Restriction of Hazardous Substances (RoHS) directives, promoting environmental safety and regulatory adherence.

Applications

1.Robotics
2.Power Supply Units
3.Data Acquisition Systems
4.Instrumentation

Specifications

Material
Housing:Hing Temperature Thermoplastic,
UL94V-0 LCP,Black/White.
Contact:Copper Alloy C2680.
Shell:Copper Alloy C2680/SPCC.
Finish:
Contact:Plated Gold In Mating Area;Tin On Solder Tails.
Shell:Nickel Plating.
Electrical:
Current Rating:1.5A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:500 V AC AT Sea Level.
Insulation Resistance:1000MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.75kgf Max.
Unmated Force:1.02kgf Min.
Terminal Retenion:1.2kgf Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

A Female SMD USB Connector : RHTAY81CL

Series Part No:RHTAY81CL

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Compact and Low-Profile: Its small footprint and low height make it ideal for space-constrained electronic designs, enabling slimmer and lighter products.
-Robust Mechanical Construction: Equipped with a nickel-plated metal shell and high-quality thermoplastic insulator, the connector offers excellent mechanical strength, corrosion resistance, and electrical insulation.
-High Durability: Engineered to withstand thousands of mating cycles, ensuring long-lasting and reliable connections even under frequent use.
-Reliable Data and Power Transmission: Optimized to maintain stable USB signal integrity and efficient power delivery, minimizing data loss and interference.

Applications

1.Security Systems
2.Smart Control Panels
3.Educational Equipment
4.3D Printers

Specifications

Material
Housing:Hing Temperature Thermoplastic,
UL94V-0 LCP,Black/White.
Contact:Copper Alloy C2680.
Shell:Copper Alloy C2680/SPCC.
Finish:
Contact:Plated Gold In Mating Area;Tin On Solder Tails.
Shell:Nickel Plating.
Electrical:
Current Rating:1.5A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:500 V AC AT Sea Level.
Insulation Resistance:1000MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.75kgf Max.
Unmated Force:1.02kgf Min.
Terminal Retenion:1.2kgf Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

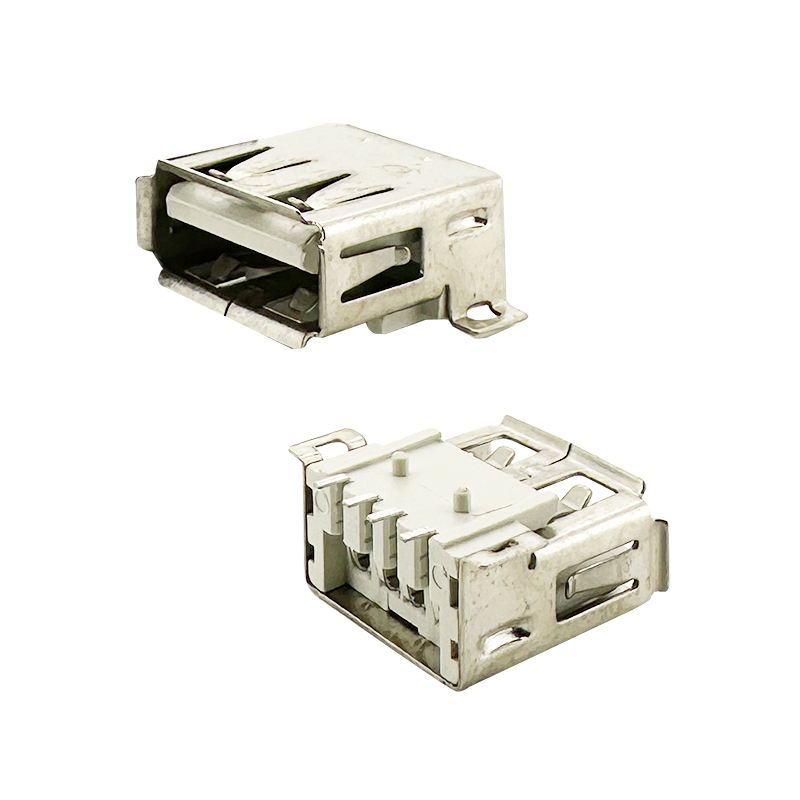

A Female SMD USB Connector :RHTAY81E&RHTAY827

Series Part No:RHTAY81E&RHTAY827

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-USB Standard Compatibility: Supports various USB standards such as USB 2.0, USB 3.0, or USB 3.1, depending on the specific model. USB 3.0 and USB 3.1 connectors offer higher data transfer rates compared to USB 2.0.

-Surface Mount Design: Designed for direct soldering onto the surface of a printed circuit board (PCB), which is space-efficient and suitable for modern compact electronic devices.

-Number of Pins: Typically, USB connectors have four pins: VCC (Power), Data+, Data-, and Ground (GND). These pins facilitate power delivery and data transfer between devices.

-Mechanical Durability: Designed to withstand multiple insertion and removal cycles, ensuring reliable performance over the connector's lifespan.

Applications

1.Automotive Electronics

2.Industrial Equipment

3.Medical Devices

4.POS (Point-of-Sale) Systems

Specifications

Material

Housing:Hing Temperature Thermoplastic,

UL94V-0 LCP,Black/White.

Contact:Copper Alloy C2680.

Shell:Copper Alloy C2680/SPCC.

Finish:

Contact:Plated Gold In Mating Area;Tin On Solder Tails.

Shell:Nickel Plating.

Electrical:

Current Rating:1.5A/Contact Terminal.

Voltage Rating:30V DC

Contact Resistance:30mΩ Max.

Dielectric Withstanding Voltage:500 V AC AT Sea Level.

Insulation Resistance:1000MΩ Min.

Connector Mate and Unmated Force

Mate Force:3.75kgf Max.

Unmated Force:1.02kgf Min.

Terminal Retenion:1.2kgf Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

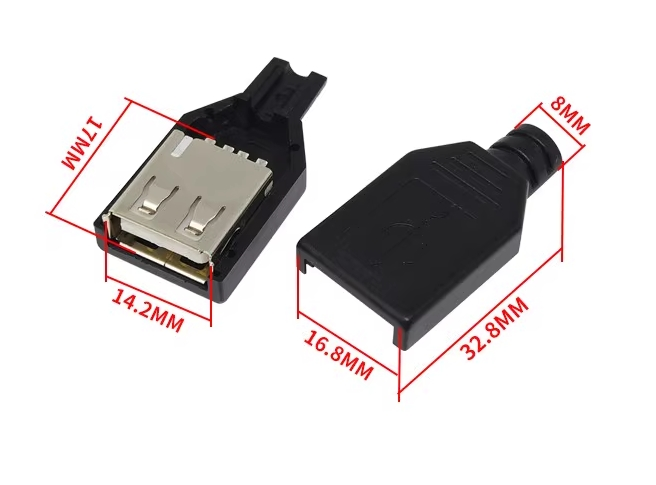

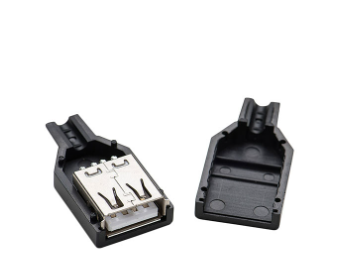

USB DIY Connector Shell Type A Socket:RHTAYUSBKT02

Series Part No:RHTAYUSBKT02

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Durable Construction: Made from high-quality materials to protect USB connectors from physical damage and wear.
-Type A Socket Compatibility: Designed specifically for USB Type A connectors, ensuring a perfect fit and secure connection.
-DIY-Friendly Design: Easy to assemble and disassemble, ideal for custom USB projects and repairs.
-Protective Housing: Shields internal USB pins and wiring from dust, moisture, and mechanical stress

Applications

1.Mobile Devices
2.Industrial Automation

3.Medical Equipment

4.Telecommunications

Specifications

USB DIY Connector Shell - Type A Socket

Technical Documents

Please contact us for more information.

X

X

Previous page 1 2 3 4 5 6 next page
