USB 3.0 connectors

USB 3.0 connectors, high-speed data transfer, backward compatibility, durable design, SuperSpeed USB, plug-and-play, reliable performance, device connectivity, USB interface, improved power efficiency, data transfer rate, universal compatibility, external storage devices, fast charging, USB 3.0 specifications, USB connector types, USB 3.0 cable, advanced data technology, industry-standard connector.

Enlarge

Quick View

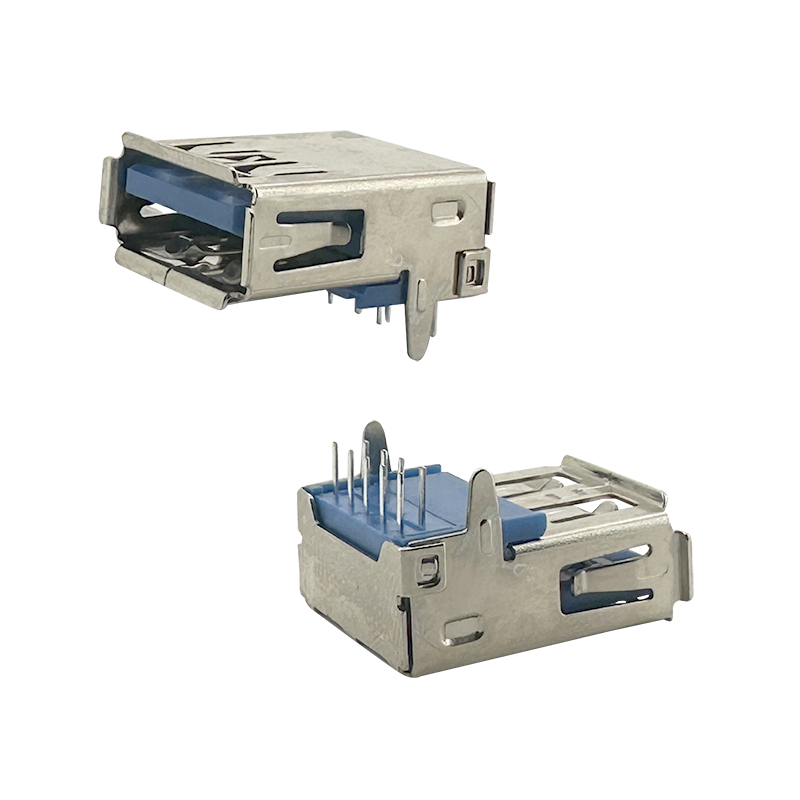

dip 90 MID mount H3.5mm A Female USB 3.0 connector : RHTAY025

Series Part No:RHTAY025

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

MID (Mechanical Insertion Depth) mount ensures a secure, stable connection and reliable mechanical performance
-H3.5mm height profile, suitable for devices needing a slightly taller connector for better clearance
-USB 3.0 compliant, supporting high-speed data transfer rates up to 5 Gbps
-A Female USB port compatible with standard USB A male plugs for broad device compatibility

Applications

1.Industrial Equipment
2.Medical Devices
3.Networking Devices
4.Consumer Electronics

Specifications

Material
Housing: Thermoplastic, Glass Fiber Filled,UL94-HB
Cover: Thermoplastic, Glass Fiber Filled, UL94V-0
USB2.0 Contact: Copper Alloy,Gold.
USB3.0 Contact: Copper Alloy,Gold.
Shell: Brass/Spcc,Nickel(Ni) T=0.30MM
Electrical
Contact Current Rating:1.5 A For
Pin1&Pin4 0.25 A Other Contacts.
Withstanding Voltage:100vac(Rms)
Contact Resistance: 30mΩ Max(Initial) For Pin1&Pin4
50mΩ Max(Initial) For Other Contacts
10mΩ Max Change For Post Test Llcr
Insulation Resistance:1000mΩ Min
Mechanical
Operating Temperature:-40°C TO +85°C.
Mating Force: 35N MAX
Unmating Force: 10N MIN.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

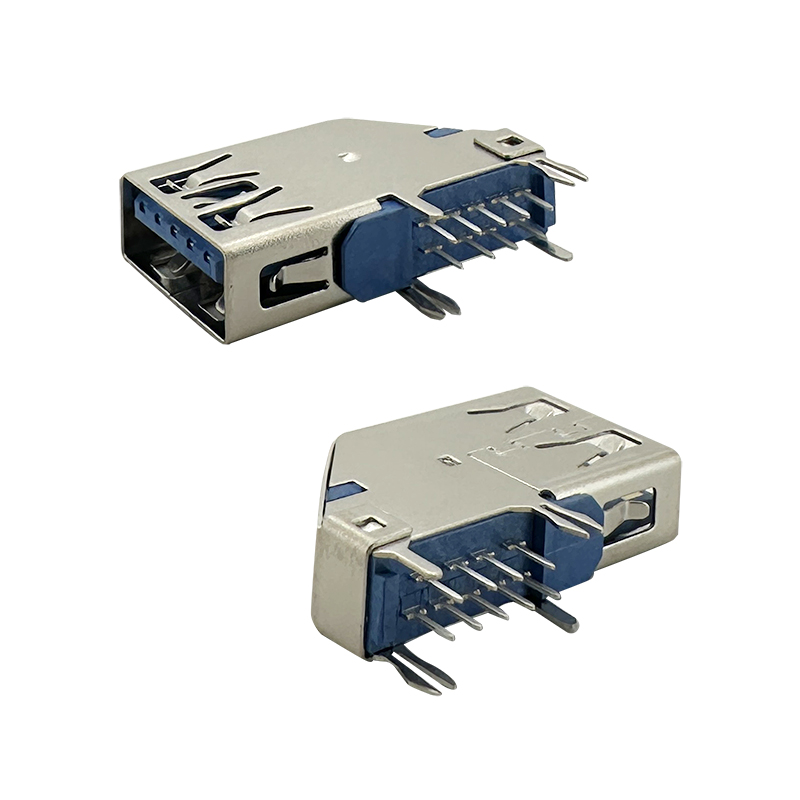

upright dip 90 A Female 9P USB 3.0 Connectors:RHTAY17

Series Part No:RHTAY17

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-USB 3.0 Standard:Compliant with USB 3.0 specifications, supporting data transfer rates up to 5 Gbps (SuperSpeed). This ensures compatibility with high-speed data applications requiring fast and reliable data transmission.

-Durability and Material:Constructed from durable materials such as thermoplastics and metal contacts, ensuring robustness and longevity even in demanding environments.

-Termination Type:Designed for through-hole mounting (DIP), allowing for secure soldering to the PCB. This method ensures stable electrical connections and mechanical strength during operation.

-High-Speed Data Transfer:Supports USB 3.0 SuperSpeed data rates up to 5 Gbps, ideal for applications requiring rapid file transfers, HD video streaming, and real-time data synchronization.

Applications

1.Networking Devices

2.Printers and Scanners

3.Audio-Visual Equipment

4.Industrial Automation

Specifications

Electrical

Current Rating: 1 8A for pin 1 & pin 4

0.25A other contacts

Contact Resistance: 30m Ohm Max. for pin

1 & pin 4 50m Ohm Max.

for other contacts

Insulator Resistance: 100M Ohm Min.

Dielectric Withstanding Voltage:100 VAC/Minute

Mechanical

Operating Temperature:-55°C TO +85°C.

Mating Force: 35N MAX

Unmating Force: 10N MIN.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

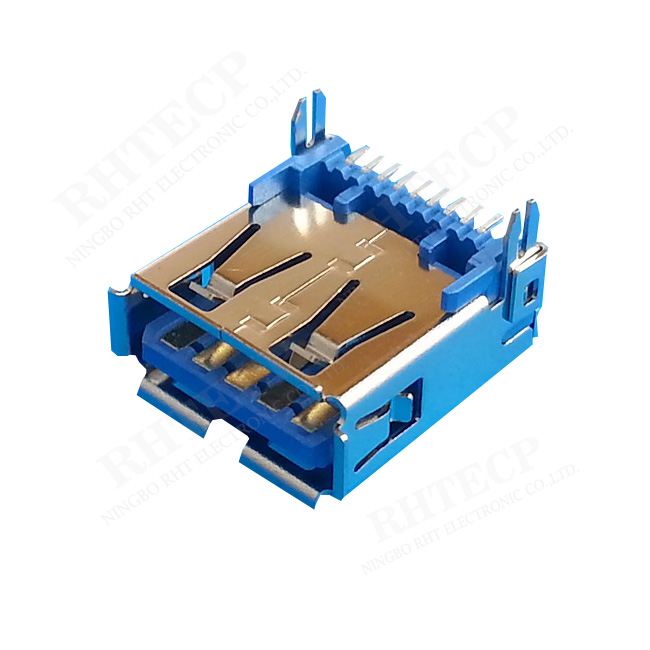

dip 90 A Female 9P USB 3.0 Connectors : RHTAY020

Series Part No:RHTAY020

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Supports USB 3.0 data transfer speeds up to 5 Gbps, providing fast and reliable connectivity for high-bandwidth applications like external storage and video streaming.
-Compact and durable design makes it suitable for a wide range of consumer electronics, embedded systems, and industrial equipment.
-Metal shielding offers excellent protection against electromagnetic interference (EMI), enhancing signal quality and minimizing data errors.
-Gold-plated contacts improve electrical conductivity and resist corrosion, ensuring long-term reliable connections even in harsh environments.

Applications

1.Desktop Computers
2.Embedded Systems
3.Industrial Equipment
4.Medical Devices

Specifications

Electrical
Voltage Current Rating:2AMP,30V AC
Insulator Resistance: 100MΩ Min
Contact Resistance: 50mΩ Max
Withstanding Voltage: 300V AC
Mechanical
Operating Temperature:-55°C TO +85°C.
Mating Force: 35N MAX
Unmating Force: 10N MIN.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

dip 90 A Female 9P USB 3.0 Connectors :RHTAY019

Series Part No:RHTAY019

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Gold-plated contacts improve electrical conductivity and resist corrosion, ensuring long-term reliable connections even in harsh environments.
-Robust plastic housing provides mechanical strength to withstand repeated plugging and unplugging without compromising connector integrity.
-Ideal for use in embedded systems, consumer devices, medical equipment, and industrial applications where high-speed USB 3.0 connections are essential.
-Easy to mount on PCBs using DIP technology, supporting efficient manufacturing and prototyping workflows.

Applications

1.3D Printers
2.Development Boards
3.Portable Devices
4.Data Storage Devices

Specifications

Electrical
Voltage Current Rating:2AMP,30V AC
Insulator Resistance: 100MΩ Min
Contact Resistance: 50mΩ Max
Withstanding Voltage: 300V AC
Mechanical
Operating Temperature:-55°C TO +85°C.
Mating Force: 35N MAX
Unmating Force: 10N MIN.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

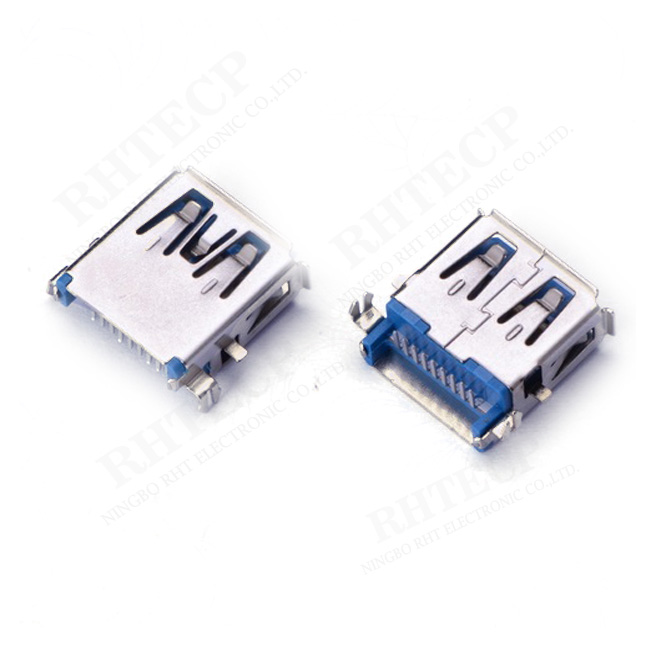

SMD A Female 9P USB 3.0 Connectors : RHTAY301

Series Part No:RHTAY301

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Surface Mount Device (SMD) design enables efficient automated PCB assembly, reducing manufacturing time and cost while ensuring precise placement and soldering.
-A Female 9-pin USB 3.0 connector provides compatibility with standard USB A male plugs, supporting both data and power transmission for versatile device connectivity.
-Supports USB 3.0 data transfer speeds up to 5 Gbps, delivering fast and reliable performance for high-bandwidth applications like video streaming and data storage.
-Compact and low-profile design is ideal for modern electronic devices where space is limited, allowing for slimmer and lighter product designs.

Applications

1.Consumer Electronics
2.Embedded Systems
3.Industrial Automation
4.Medical Devices

Specifications

Material
Housing: Thermoplastic, Glass Fiber Filled,UL94-HB
Cover: Thermoplastic, Glass Fiber Filled, UL94V-0
Contact: Copper Alloy,Gold.
Shell: Brass/Spcc,Nickel(Ni) T=0.30MM
Electrical
Contact Current Rating: 1.5 A For Pin1&Pin4
0.25 A Other Contacts.
Withstanding Voltage:100vac(Rms)
Contact Resistance: 30mΩ Max(Initial) For Pin1&Pin4
50mΩ Max(Initial) For Other Contacts
Insulation Resistance:1000MΩ Min
Mechanical
Operating Temperature:-30°C TO +80°C.
Mating Force: 35N MAX
Unmating Force: 10N MIN.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

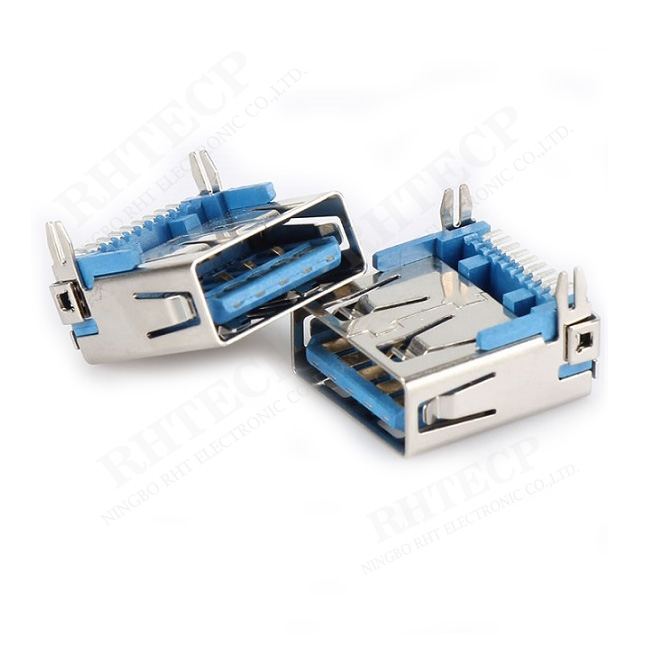

SMD A Female 9P USB 3.0 Connectors :RHTAY022

Series Part No:RHTAY022

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Compact and low-profile design is ideal for modern electronic devices where space is limited, allowing for slimmer and lighter product designs.
-Gold-plated contacts enhance electrical conductivity and resist corrosion, ensuring long-term stable connections even under frequent use and harsh conditions.
-Metal shielding offers excellent protection against electromagnetic interference (EMI), maintaining signal integrity and minimizing data errors for consistent performance.
-Durable plastic housing provides mechanical strength to withstand repeated plugging cycles and environmental stresses, extending connector lifespan.

Applications

1.Networking Equipment
2.Portable Devices
3.Data Storage Solutions
4.Communication Devices

Specifications

Material
Housing: Thermoplastic, Glass Fiber Filled,UL94-HB
Cover: Thermoplastic, Glass Fiber Filled, UL94V-0
Contact: Copper Alloy,Gold.
Shell: Brass/Spcc,Nickel(Ni) T=0.30MM
Electrical
Contact Current Rating: 1.5 A For Pin1&Pin4
0.25 A Other Contacts.
Withstanding Voltage:100vac(Rms)
Contact Resistance: 30mΩ Max(Initial) For Pin1&Pin4
50mΩ Max(Initial) For Other Contacts
Insulation Resistance:1000MΩ Min

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

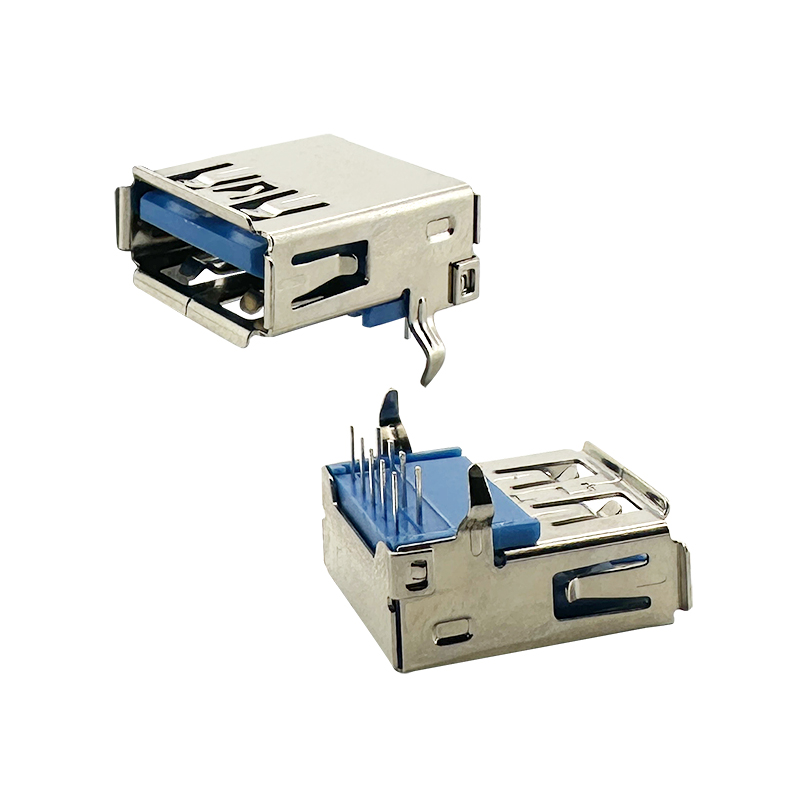

dip 90 A Female 9P USB 3.0 Connectors:RHTAY46

Series Part No:RHTAY46

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Compatibility: Compliant with USB 3.0 specifications, ensuring compatibility with devices requiring high-speed data transfer rates and backward compatibility with USB 2.0 devices.

-Design: Engineered for durability and reliability, featuring a sturdy housing and contacts that withstand frequent insertion and removal cycles.

-Speed: Supports SuperSpeed USB 3.0 data transfer rates up to 5 Gbps, enabling rapid data transfer for large files, multimedia content, and high-definition video.

-Power Delivery: Capable of enhanced power delivery compared to USB 2.0 connectors, supporting higher power output for charging and powering devices.

Applications

1.External Hard Drives and SSDs

2.Printers and Scanners

3.Audio Interfaces and Recording Equipment

4.Video Cameras and Camcorders

Specifications

Electrical

Voltage Current Rating:2AMP,30V AC

Insulator Resistance: 100MΩ Min

Contact Resistance: 50mΩ Max

Withstanding Voltage: 300V AC

Mechanical

Operating Temperature:-55°C TO +85°C.

Mating Force: 35N MAX

Unmating Force: 10N MIN.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

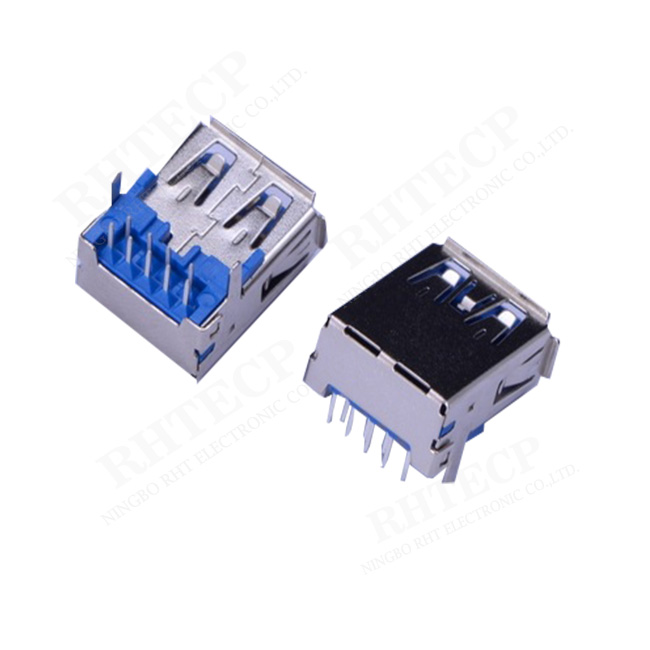

dip 90 A Female 9P USB 3.0 Connectors:RHTAY021

Series Part No:RHTAY021

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-esign: Engineered for durability and reliability, featuring a sturdy housing and contacts that withstand frequent insertion and removal cycles.

-Speed: Supports SuperSpeed USB 3.0 data transfer rates up to 5 Gbps, enabling rapid data transfer for large files, multimedia content, and high-definition video.

-Power Delivery: Capable of enhanced power delivery compared to USB 2.0 connectors, supporting higher power output for charging and powering devices.

-Shielding: Typically includes shielding to minimize electromagnetic interference (EMI), ensuring stable and reliable data transmission.

Applications

1.ndustrial Control and Automation Systems

2.Medical and Healthcare Devices

3.Gaming Consoles and Accessories

4.Data Acquisition and Measurement Systems

Specifications

Electrical

Voltage Current Rating:2AMP,30V AC

Insulator Resistance: 100MΩ Min

Contact Resistance: 50mΩ Max

Withstanding Voltage: 300V AC

Mechanical

Operating Temperature:-55°C TO +85°C.

Mating Force: 35N MAX

Unmating Force: 10N MIN.

Technical Documents

Please contact us for more information.

X

X

Previous page 1 2 3 4 next page
