USB 3.1 type C connectors

USB 3.1 Type-C connectors, reversible design, high-speed data transfer, fast charging, compact form factor, universal compatibility, improved power delivery, USB Type-C cable, 10Gbps data rate, multi-device connectivity, durable build, plug-and-play, future-proof technology, enhanced power efficiency, device synchronization, versatile interface, USB 3.1 specifications.

Enlarge

Quick View

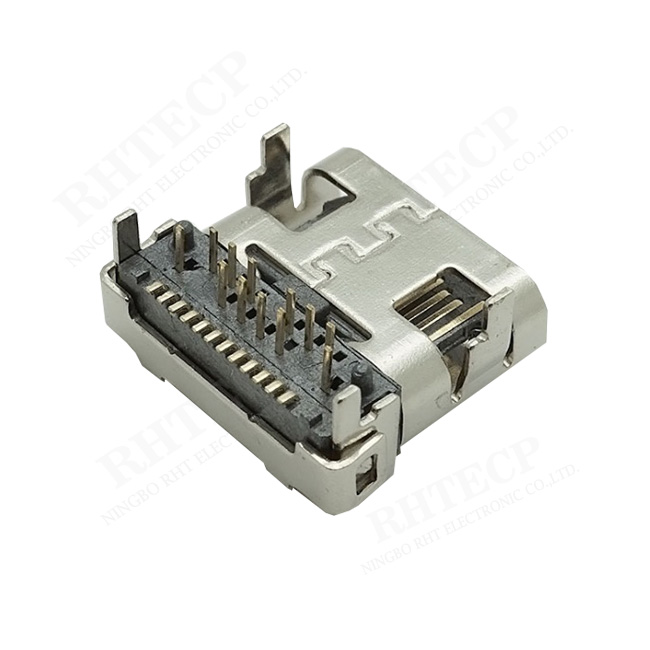

24P DIP+SMD L=10.0mm USB 3.1 type C connector female socket : RHTAY453

Series Part No:RHTAY453

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-24-Pin High-Speed Design: Supports USB 3.1 Gen 1/Gen 2 data transmission rates up to 10Gbps, ensuring fast and reliable connectivity for high-performance applications.
-DIP + SMD Hybrid Mounting: Combines Dual In-line Package (DIP) and Surface-Mount Device (SMD) technologies, offering enhanced mechanical stability and ease of PCB assembly.

-Robust Durability: Engineered for long life with high mating cycles, suitable for frequent plugging and unplugging.
-Wide Application Compatibility: Ideal for smartphones, tablets, laptops, chargers, data cables, industrial equipment, and other USB-C enabled products.

Applications

1.Data Transfer Equipment
2.Charging Devices
3.IoT Devices
4.Industrial Electronics

Specifications

24P DIP+SMD L=10.0mm USB 3.1 type C connector female socket
Electrical
Current Rating: 3.0A-5.0A Max
Voltage: 100 VAC
Contact Resistance: 40mΩ Max
Insulation Resistance: 100MΩ Min.
Mechanical
Operating Temperature:-30°C TO +85°C.
Insertion Force : 5N~20N
Unmating Force: 8N~20N
Durability:10000 Cycles

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

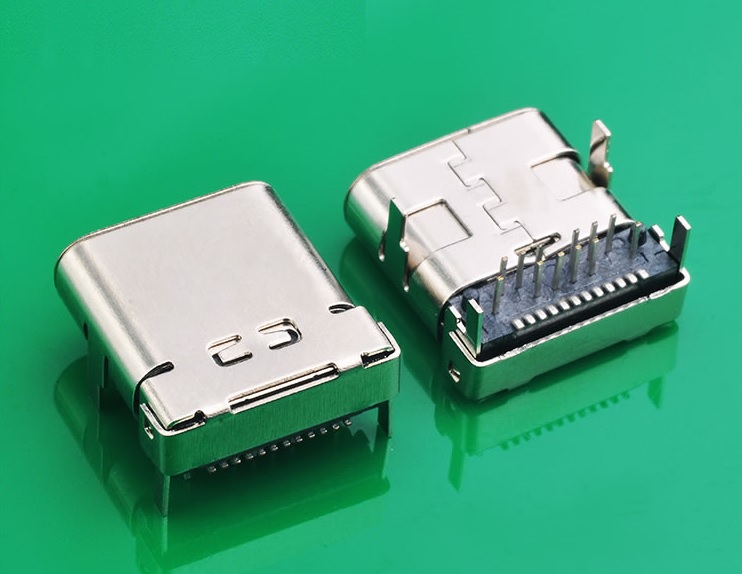

24P DIP+SMD L=10.0mm USB 3.1 type C connector female socket : RHTAY454

Series Part No:RHTAY454

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Compact Form Factor (10.0mm Length): Designed to save board space while maintaining strong performance, ideal for slim and compact electronic devices.
-Reversible USB Type-C Interface: Allows plug-in from either direction, improving user experience and device versatility.
-EMI Shielding Design: Helps reduce electromagnetic interference, improving overall signal integrity.
-RoHS & REACH Compliant: Environmentally friendly and compliant with global hazardous substance standards.

Applications

1.Consumer Electronics
2.Mobile Devices
3.Computer Peripherals
4.Charging Devices

Specifications

24P DIP+SMD L=10.0mm USB 3.1 type C connector female socket
Electrical
Current Rating: 3.0A-5.0A Max
Voltage: 100 VAC
Contact Resistance: 40mΩ Max
Insulation Resistance: 100MΩ Min.
Mechanical
Operating Temperature:-30°C TO +85°C.
Insertion Force : 5N~20N
Unmating Force: 8N~20N
Durability:10000 Cycles

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

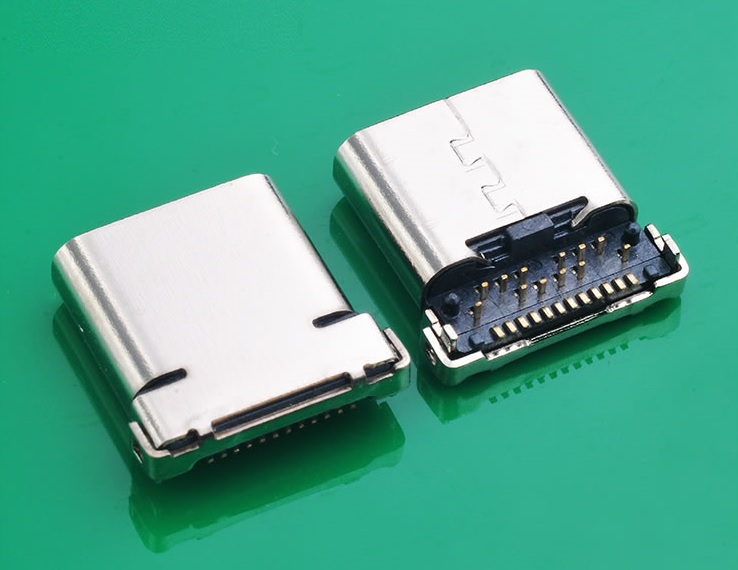

24P DIP+SMD Mid mount L=8.65mm USB 3.1 type C connector female socket : RHTAY456

Series Part No:RHTAY456

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-USB 3.1 Compliance:Supports the USB 3.1 Gen 1/2 specification with data transfer rates up to 10Gbps, ensuring fast and efficient performance for high-speed communication and multimedia transmission.
-24-Pin Full-Function Design:Equipped with 24 pins to support multiple functions including SuperSpeed data, USB Power Delivery (PD), Alternate Mode (DisplayPort, HDMI), and legacy USB protocols.
-DIP + SMD Hybrid Mounting:Combines Through-Hole (DIP) and Surface Mount (SMD) technologies, providing superior mechanical strength and easy soldering during the PCB assembly process.
-Mid-Mount Profile (L=8.65mm):The low-profile mid-mount design (length = 8.65mm) allows space-saving PCB layout, making it ideal for compact or ultra-thin devices such as tablets, ultrabooks, and handheld equipment.

Applications

1.Charging Devices
2.Automotive Electronics
3.Industrial Equipment
4.Communication Devices

Specifications

24P DIP+SMD L=8.65mm USB 3.1 type C connector female socket
Electrical
Current Rating: 3.0A-5.0A Max
Voltage: 100 VAC
Contact Resistance: 40mΩ Max
Insulation Resistance: 100MΩ Min.
Mechanical
Operating Temperature:-30°C TO +85°C.
Insertion Force : 5N~20N
Unmating Force: 8N~20N
Durability:10000 Cycles

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

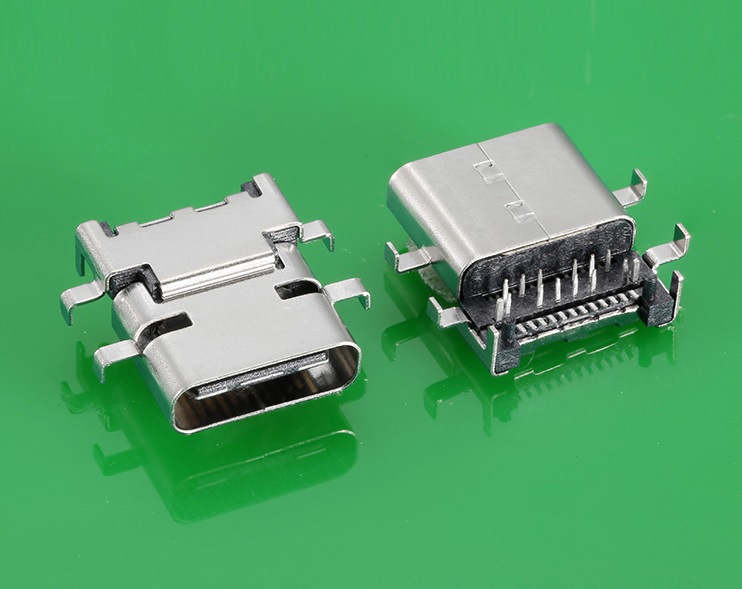

24P DIP+SMD Mid mount L=10.0mm USB 3.1 type C connector female socket : RHTAY457

Series Part No:RHTAY457

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Universal 24-Pin Interface: Supports USB 3.1 Gen 1/2 (up to 10Gbps), USB 2.0, and USB Power Delivery for fast charging and data transmission.
-DIP+SMD Hybrid Mounting: Provides a secure and stable connection to the PCB, enhancing mechanical strength while simplifying assembly.
-Mid-Mount Configuration: L=10.0mm design reduces overall connector height, making it ideal for slim, compact devices.
-Reversible Design: Symmetrical Type-C interface enables user-friendly plug-in from either direction.

Applications

1.Consumer Electronics
2.Mobile Devices
3.Computers & Peripherals
4.Industrial Equipment

Specifications

24P DIP+SMD L=10.0mm USB 3.1 type C connector female socket
Electrical
Current Rating: 3.0A-5.0A Max
Voltage: 100 VAC
Contact Resistance: 40mΩ Max
Insulation Resistance: 100MΩ Min.
Mechanical
Operating Temperature:-30°C TO +85°C.
Insertion Force : 5N~20N
Unmating Force: 8N~20N
Durability:10000 Cycles

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

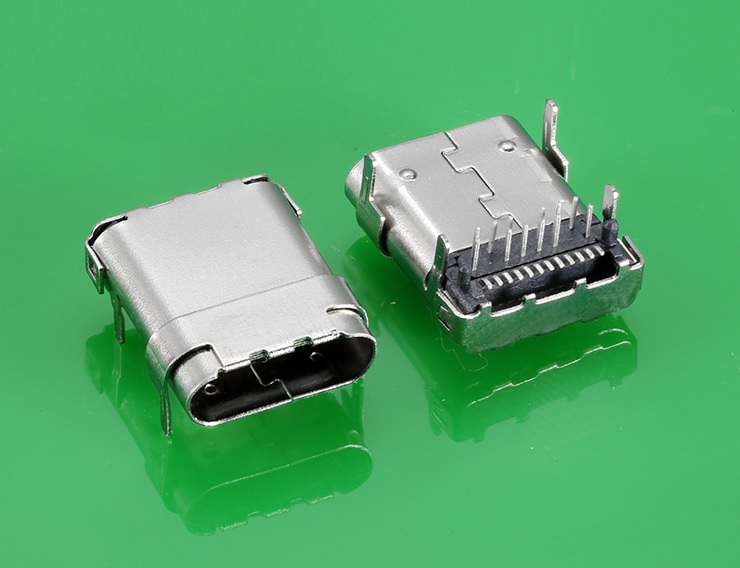

24P DIP+SMD Mid mount L=10.0mm USB 3.1 type C connector female socket : RHTAY458

Series Part No:RHTAY458

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Durable Construction: Rated for up to 10,000 insertion and withdrawal cycles, ensuring long product life and reliability.
-Robust Signal Integrity: Optimized contact design ensures stable signal transmission with minimal loss or interference.
-Power Delivery Support: Capable of handling up to 5A current and 20V voltage for rapid charging applications.
-Compliance: Fully compliant with USB-IF standards, ensuring compatibility and performance.

Applications

1.Industrial Equipment
2.Communication Devices
3.Automotive Electronics
4.Medical Devices

Specifications

24P DIP+SMD L=10.0mm USB 3.1 type C connector female socket
Electrical
Current Rating: 3.0A-5.0A Max
Voltage: 100 VAC
Contact Resistance: 40mΩ Max
Insulation Resistance: 100MΩ Min.
Mechanical
Operating Temperature:-30°C TO +85°C.
Insertion Force : 5N~20N
Unmating Force: 8N~20N
Durability:10000 Cycles

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

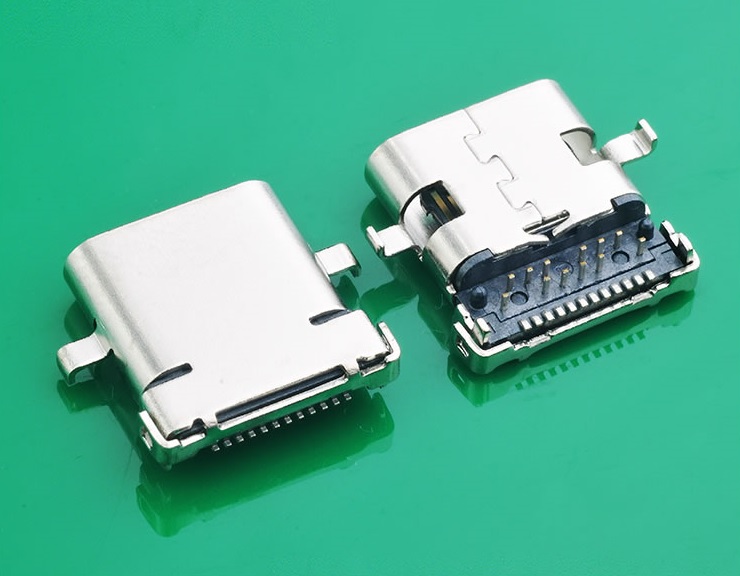

24P DIP+SMD L=10.0mm USB 3.1 type C connector female socket : RHTAY464

Series Part No:RHTAY464

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-24 Pins Configuration: Supports high-speed data transmission with 24 contact points for reliable connectivity.
-Hybrid Mounting Type: Combines DIP (Dual Inline Package) and SMD (Surface Mount Device) soldering methods, ensuring stable mechanical and electrical performance.
-Compact Length (10.0mm): Slim and space-saving design suitable for modern compact electronic devices.
-USB 3.1 Compliance: Fully compatible with USB 3.1 standards, supporting high data rates up to 10 Gbps and enhanced power delivery.

Applications

1.Consumer Electronics
2.Laptops and Notebooks
3.Smartphones and Tablets
4.Wearable Devices

Specifications

24P DIP+SMD L=10.0mm USB 3.1 type C connector female socket
Electrical
Current Rating: 3.0A-5.0A Max
Voltage: 100 VAC
Contact Resistance: 40mΩ Max
Insulation Resistance: 100MΩ Min.
Mechanical
Operating Temperature:-30°C TO +85°C.
Insertion Force : 5N~20N
Unmating Force: 8N~20N
Durability:10000 Cycles

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

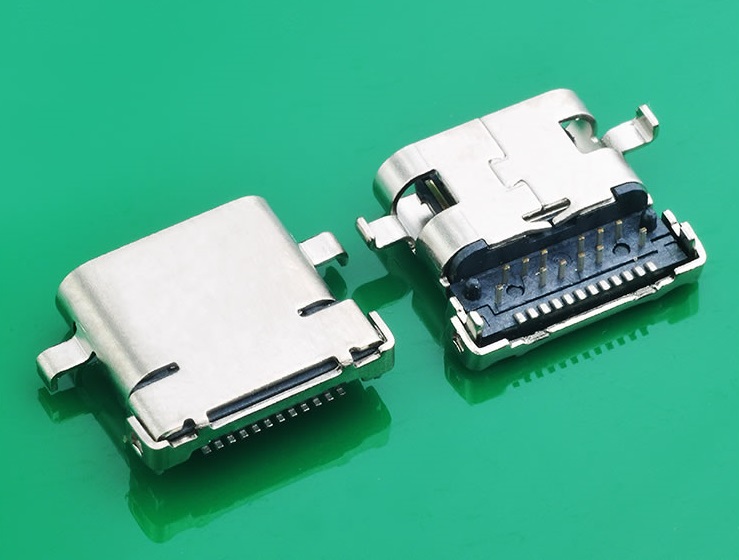

24P DIP+SMD Mid mount L=10.0mm USB 3.1 type C connector female socket : RHTAY465

Series Part No:RHTAY465

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-24-Pin High-Density Configuration: Provides multiple contact points to ensure stable and efficient high-speed data transfer, supporting USB 3.1 Gen 2 speeds up to 10 Gbps.
-Mid-Mount Design: Engineered for secure PCB integration with excellent mechanical stability, reducing stress on solder joints and enhancing durability during repeated mating cycles.
-Hybrid Mounting Technology: Combines DIP (Dual Inline Package) and Surface Mount Device (SMD) soldering methods, offering versatile assembly options and strong mechanical connection on various PCB layouts.
-Compact 10.0mm Length: Slim and low-profile design ideal for space-constrained applications in modern consumer electronics, ensuring seamless integration without compromising device thickness.

Applications

1.Wearable Devices
2.External Storage Devices
3.Docking Stations and Hubs
4.Industrial Equipment

Specifications

24P DIP+SMD L=10.0mm USB 3.1 type C connector female socket
Electrical
Current Rating: 3.0A-5.0A Max
Voltage: 100 VAC
Contact Resistance: 40mΩ Max
Insulation Resistance: 100MΩ Min.
Mechanical
Operating Temperature:-30°C TO +85°C.
Insertion Force : 5N~20N
Unmating Force: 8N~20N
Durability:10000 Cycles

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

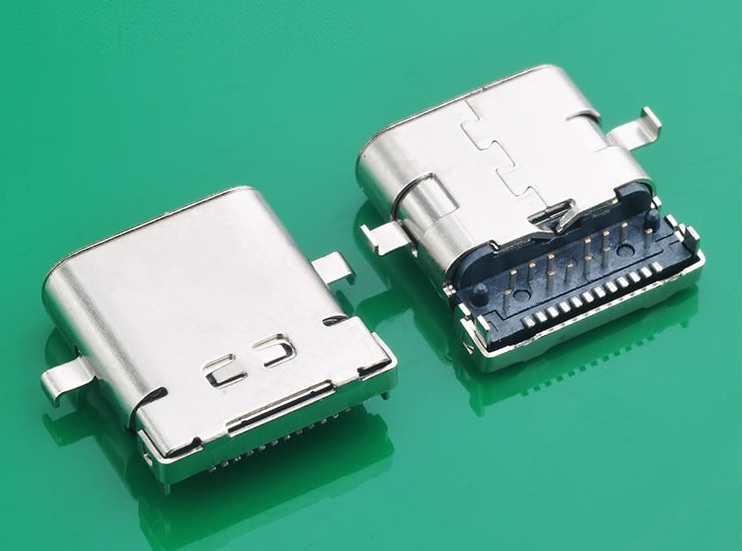

24P DIP+SMD L=8.65mm USB 3.1 type C connector female socket : RHTAY466

Series Part No:RHTAY466

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-24-Pin High-Density Configuration: Provides multiple contact points to ensure stable and efficient high-speed data transfer, supporting USB 3.1 Gen 2 speeds up to 10 Gbps.
-Hybrid Mounting Technology: Combines DIP (Dual Inline Package) and Surface Mount Device (SMD) soldering methods, allowing versatile assembly on various PCB layouts and enhancing mechanical stability.
-Compact Length of 8.65mm: Slim and low-profile design ideal for space-constrained electronic devices, enabling seamless integration without increasing device thickness.
-Reversible USB Type-C Interface: Supports reversible plug orientation, enabling easy and user-friendly connections without concern for plug direction, improving overall user experience.

Applications

1.Industrial Equipment
2.Automotive Electronics
3.Medical Devices
4.Communication Devices

Specifications

24P DIP+SMD L=8.65mm USB 3.1 type C connector female socket
Electrical
Current Rating: 3.0A-5.0A Max
Voltage: 100 VAC
Contact Resistance: 40mΩ Max
Insulation Resistance: 100MΩ Min.
Mechanical
Operating Temperature:-30°C TO +85°C.
Insertion Force : 5N~20N
Unmating Force: 8N~20N
Durability:10000 Cycles

Technical Documents

Please contact us for more information.

X

X

Previous page 1 2 3 4 5 next page
