EDGE card connectors & CF card connectors

EDGE Card Connectors and CF Card Connectors are engineered for reliable board-to-board and memory card interfaces in compact electronic systems. Their design focuses on contact layout, terminal elasticity, insertion force, signal integrity and mechanical stability. Optimized contact geometry and housing structure help ensure accurate positioning, repeated mating performance and stable data transmission in computers, embedded devices and industrial equipment.

Enlarge

Quick View

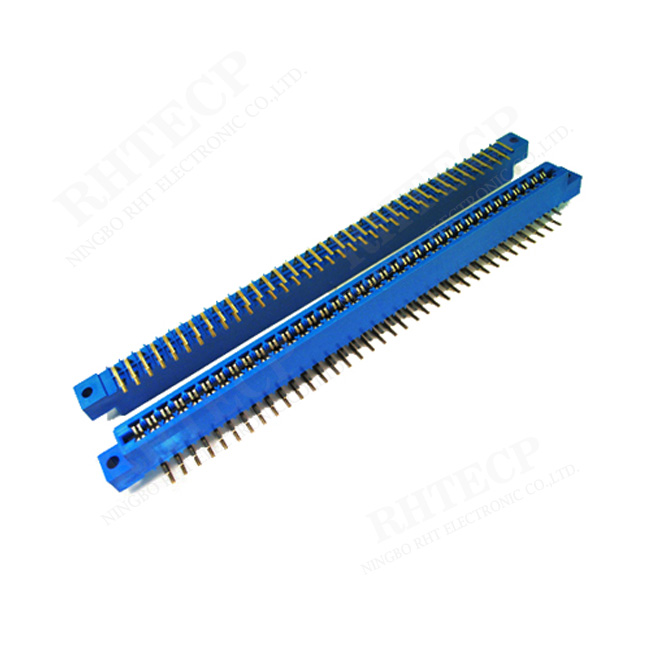

3.96mm Pitch Edge Card Connector PCB dip 180 : RHTAY03D

Series Part No:RHTAY03D

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Pitch Size: 3.96mm：This standard pitch size offers a balanced spacing that supports strong mechanical stability while maintaining compactness for various PCB designs.
-Mounting Type: PCB DIP 180°：Designed for through-hole PCB mounting with a 180-degree orientation, providing secure soldering and excellent mechanical support to prevent connector movement during operation.
-Contact Material: Gold-Plated Contacts：Contacts are plated with gold to ensure superior electrical conductivity, minimize contact resistance, and resist corrosion for long-lasting performance.
-Housing Material: High-Temperature, Flame-Retardant Thermoplastic：Made from UL94V-0 rated materials, the housing offers excellent resistance to heat and flame, ensuring reliability in harsh operating environments.

Applications

1.Industrial Automation
2.Telecommunications Equipment
3.Embedded Systems
4.Test and Measurement Devices

Specifications

3.96mm Pitch Edge Card Connector PCB Dip 180 Type
Order Information
RHTAY03D-1-XX-L
03D-Dip 180 type
1-Single row 2-Double row
XX-No,of 10~100 pin
L-Blue
Material:
Housing: Glass filled PBT UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Contact gold and Dip Tin over Nickel
Electrical Characteristics:
Current Rating: 2 AMP
Insulator Resistance: 1000M Ohm min. at DC 500V
Contact Resistance: 30m Ohm max. at DC 100mA
Withstanding Voltage:1000V AC /rms 50Hz for 1 minute
Operating Temperature: -45ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

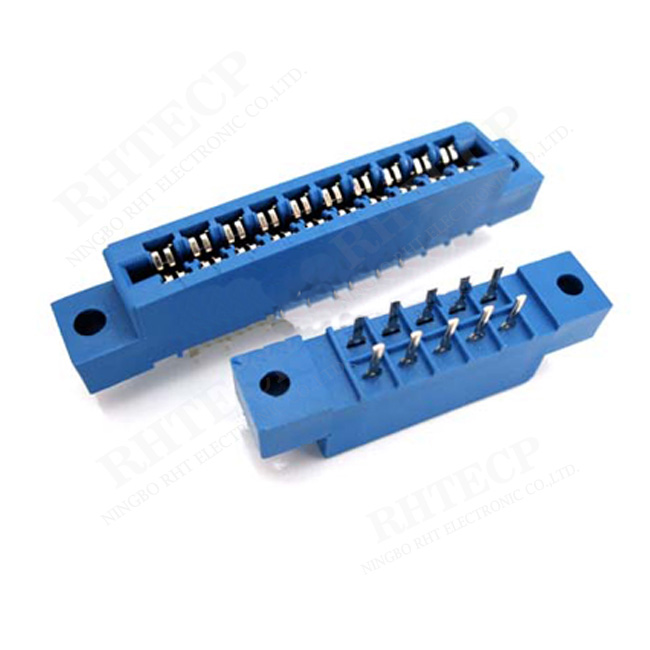

3.96mm Pitch Edge Card Connector: RHTAY03R

Series Part No:RHTAY03R

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Durable Contacts：Gold-plated contacts for excellent conductivity and corrosion resistance.
-Robust Housing：Made from high-temperature resistant, flame-retardant thermoplastic (UL94V-0 rated).
-Multiple Pin Counts：Available in various contact configurations to fit diverse design needs.
-Mounting Options：Supports through-hole or surface mount assembly for flexible PCB design.

Applications

1.Embedded Systems
2.Test and Measurement Devices
3.Networking Hardware
4.Medical Instruments

Specifications

3.96mm Pitch Edge Card Connector With PCB Dip 90 Type
Order Information
RHTAY03R-XX-L
03R-Right Angle Pin type
XX-No,of 10~100 pin
L-Blue B-Black
Material:
Housing:PBT+30% Glass fiber (UL94V-0)
Contacts: Brass or Phosphor Bronze
Plating:Gold 1u" over nickel 50u"
Electrical Characteristics:
Current Rating:3.0A
Insulator Resistance:5000MΩ Min.
Contact Resistance:0.02Ω Max.
Dielectric withstand voltage:500V AC
Operating Temperature:-45ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

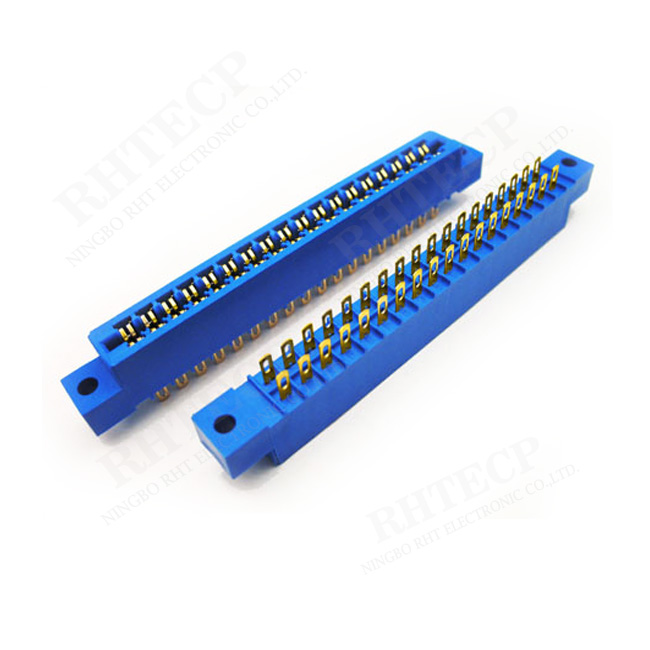

3.96mm Pitch Edge Card Connector Solder Type : RHTAY03S

Series Part No:RHTAY03S

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Precise 3.96mm pitch ensures compatibility with standard edge card designs, providing stable and consistent connections.
-Solder type termination offers strong mechanical and electrical bonding to the PCB, enhancing durability and performance under vibration or mechanical stress.
-High-quality materials ensure excellent conductivity and corrosion resistance, increasing the connector’s lifespan.
-Compact and low-profile design allows efficient use of PCB space, suitable for modern electronic devices with limited room.

Applications

1.Embedded Computing Boards
2.Data Acquisition Modules
3.Medical Devices
4.Consumer Electronics

Specifications

3.96mm Pitch Edge Card Connector Solder Type
Order Information
RHTAY03S-XX-L
903S-Solder type
XX-No,of 10~100 pin
L-Blue
Material:
Housing: Glass filled PBT UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Contact gold and Dip Tin over Nickel
Electrical Characteristics:
Current Rating: 2 AMP
Insulator Resistance: 1000M Ohm min. at DC 500V
Contact Resistance: 30m Ohm max. at DC 100mA
Withstanding Voltage:1000V AC /rms 50Hz for 1 minute
Operating Temperature: -45ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

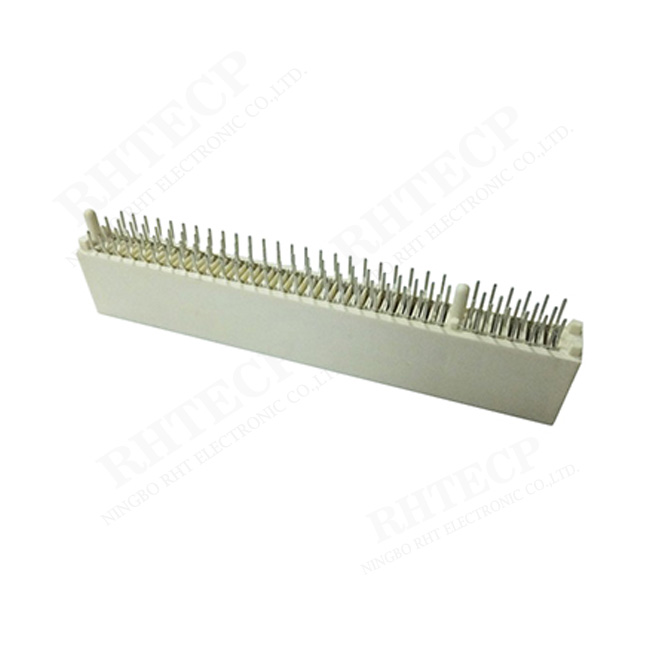

PCI Connector 120Pin 180°DIP Column type : RHTAYSFEA-1201C1B1PDV

Series Part No:RHTAYSFEA-1201C1B1PDV

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-120-Pin High-Density Design: Supports multiple signal connections in a compact footprint.
-180° DIP Configuration: Ensures easy and secure through-hole PCB mounting.
-Column Type Structure: Provides enhanced mechanical stability and reliable card retention.
-Robust Contact Materials: Gold-plated contacts for excellent conductivity and corrosion resistance.

Applications

1.Computer Hardware
2.Embedded Systems
3.Industrial Automation
4.Telecommunications

Specifications

PCI Connector 120Pin 180°DIP Column type
Material:
Housing:Glass filled High Temperature Plastic;
Termination:Brass,Gold plating at mating area,
Matte Tin plating(50u" Min) at sold
tail area,all over Nickel(30u" Min)

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

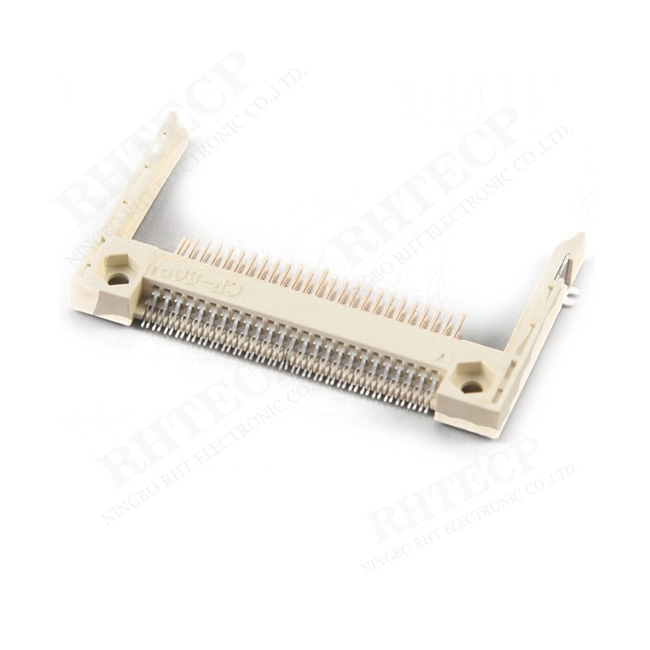

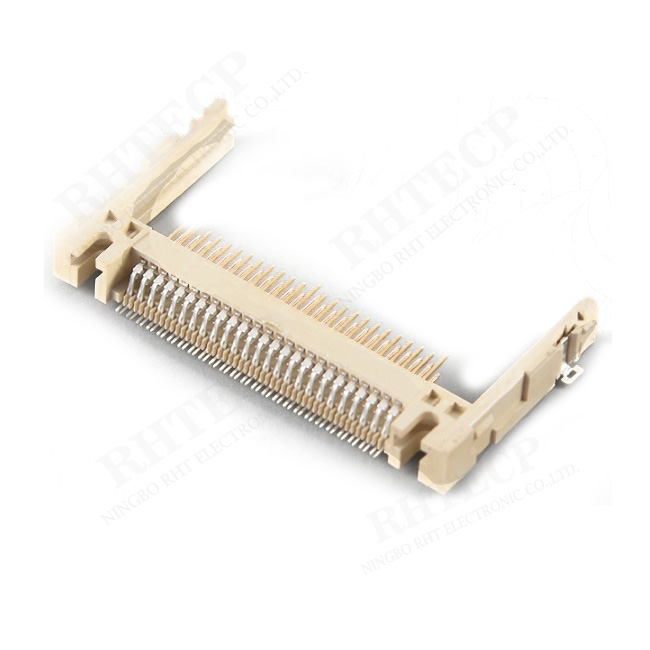

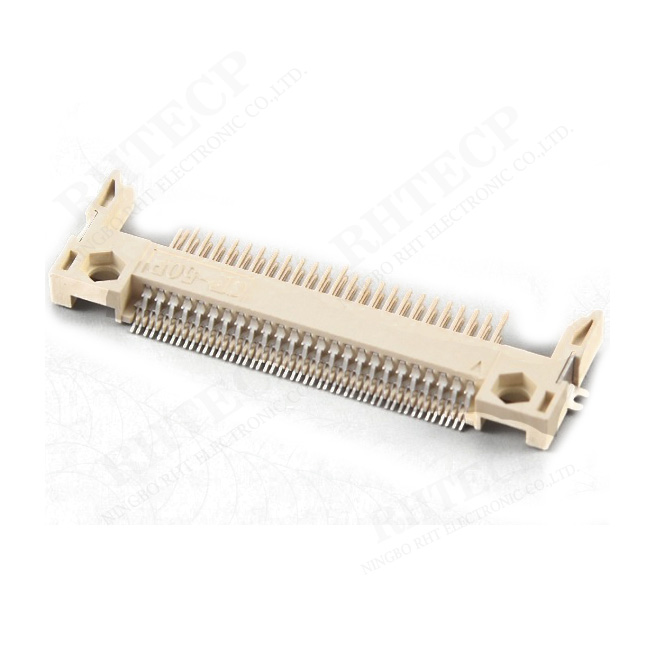

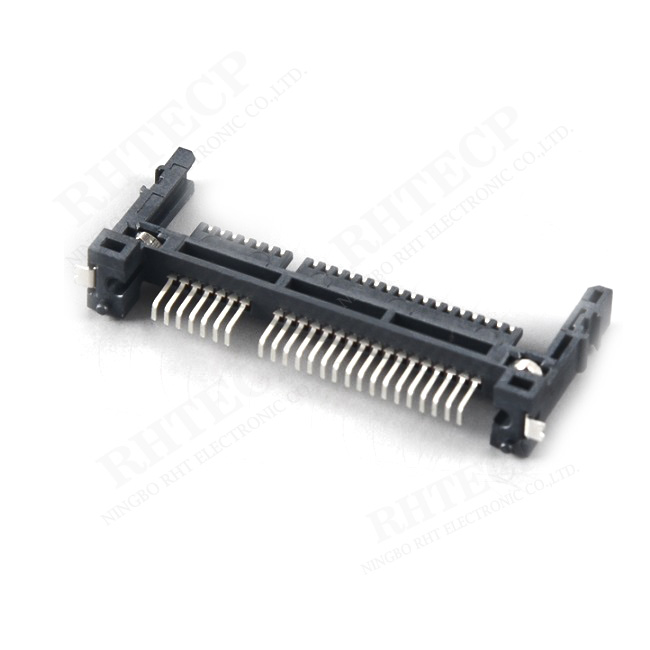

CF card Connector 50P,L26.9mm,H3.85mm: RHTAYF-001

Series Part No:RHTAYF-001

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-50-Pin Interface: Supports standard CompactFlash card connections for versatile applications.
-Compact Dimensions: Length 26.9mm and height 3.85mm ideal for space-limited device designs.
-High-Speed Data Transfer: Ensures reliable and fast communication between CF cards and host devices.
-Durable Construction: Robust housing and gold-plated contacts for long-lasting performance and corrosion resistance.

Applications

1.Consumer Electronics
2.Digital Cameras and Camcorders
3.Industrial Equipment
4.Communication Devices

Specifications

CF card Connector 50P,L26.9mm,H3.85mm
Material
Housing:LCP, UL94V-0
Electrical
Current Rating: 0.5A,AC,DC
Contact resistance:40mΩ max
Insulation resistance:1000ΜΩ min
Withstand voltage: 500V AC/minute
Operating Temperature: -45ºC~+85ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

CF card Connector 50P,L26mm,H5.4mm : RHTAYF-002

Series Part No:RHTAYF-002

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-High-Density 50-Pin Interface: Designed to support fast and stable data transmission with 50 reliable contact points, ensuring compatibility with standard CompactFlash cards.
-Compact and Slim Profile: With dimensions of 26mm length and 5.4mm height, this connector is ideal for devices where space optimization is critical.
-Robust Mechanical Design: Made from high-quality materials to withstand repeated insertion and removal cycles, ensuring durability and long service life.
-Secure Locking Mechanism: Provides reliable retention of the CF card to prevent accidental disconnection during operation or transport.

Applications

1.Medical Devices
2.Data Storage and Backup Systems
3.Embedded Systems
4.Networking Equipment

Specifications

CF card Connector 50P,L26mm,H5.4mm
Material
Housing:LCP, UL94V-0
Electrical
Current Rating: 0.5A,AC,DC
Contact resistance:40mΩ max
Insulation resistance:1000ΜΩ min
Withstand voltage: 500V AC/minute
Operating Temperature: -45ºC~+85ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

CF card Connector 50P,L13.75mm,H3.9mm : RHTAYF-003

Series Part No:RHTAYF-003

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Compact and Slim Profile: Designed with a low height of 3.9mm and length of 13.75mm, this connector is ideal for applications where space-saving is critical, such as portable devices and compact electronics.
-50-Pin High-Density Configuration: Provides stable and efficient signal transmission with a reliable 50-pin layout, ensuring compatibility with standard CompactFlash cards.
-Durable Construction: Made from high-quality materials to withstand frequent insertion and removal cycles, offering long-term reliability in both consumer and industrial environments.
-Low Contact Resistance: Ensures excellent electrical conductivity and stable signal integrity for high-speed data transfer, minimizing data loss or connection issues.

Applications

1.Digital Imaging
2.Embedded Systems
3.Networking Equipment
4.Consumer Electronics

Specifications

CF card Connector 50P,L13.75mm,H3.9mm
Material:
Housing:Thermoplastic,UL94V-V0.White.
Contact:Copper Alloy 0.40T.Gold Flash
On Contact Area Matte-Tin plated on
solder tail all over Nickel plated.
Fixing:Copper Alloy 0.30T.Tin plated on
solder tail all over Nickel plated.
Electrical:
Current Rating:0.5A AC,DC.
Contact Resistance:40mΩ Max.
Insulation Resistance:1000MΩ Min.
Withstanding Voltage:500V AC/minute
Operating Temperature: -45ºC~+85ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

CFast Host Connector, Vertical SMT : RHTAYFA-001

Series Part No:RHTAYFA-001

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Compact and Space-Saving Design: The vertical profile minimizes PCB footprint, making it suitable for compact devices where board space is limited.
-Durable and Robust Construction: Built with high-quality materials that withstand repeated insertion and removal cycles, ensuring long-term durability and consistent performance.
-Secure Card Retention: Features a reliable locking mechanism to keep the CFast card firmly in place, preventing accidental disconnection due to vibration or movement.
-Low Contact Resistance: Ensures excellent electrical connectivity, contributing to stable signals and reducing power loss during high-speed transfers.

Applications

1.Military and Aerospace
2.Data Storage
3.IoT Devices
4.Communication Equipment

Specifications

CFast Host Connector, Vertical SMT
Material
Housing:Engineering plastic,LCP with G.F reinforced,black per,UL 94V-0,rate.
Terminal:Phosphor Bronze,per JIS 5210,0.2T
Plating
Contacts:30u" gold plating in contact area and 100u" min.matte Tin in soldering zone,
over entire contact underplated with 50u" min,Nickel over all.
Solder zone:100u" matte Tin,50u" min,Nickel underplating over all.

Technical Documents

Please contact us for more information.

X

X

Previous page 1 2 3 next page
