Memory card connectors

Memory card connectors, SD card connectors, microSD card connectors, MMC connectors, UHS connectors, card slot connectors, high-speed memory connectors, memory card interfaces, embedded memory card connectors, flash memory connectors, compact memory connectors, memory card reader connectors, mobile device connectors, portable storage connectors, memory card sockets, memory card interface connectors, electronics connectors, data transmission connectors, USB memory connectors, memory card slot designs.

Enlarge

Quick View

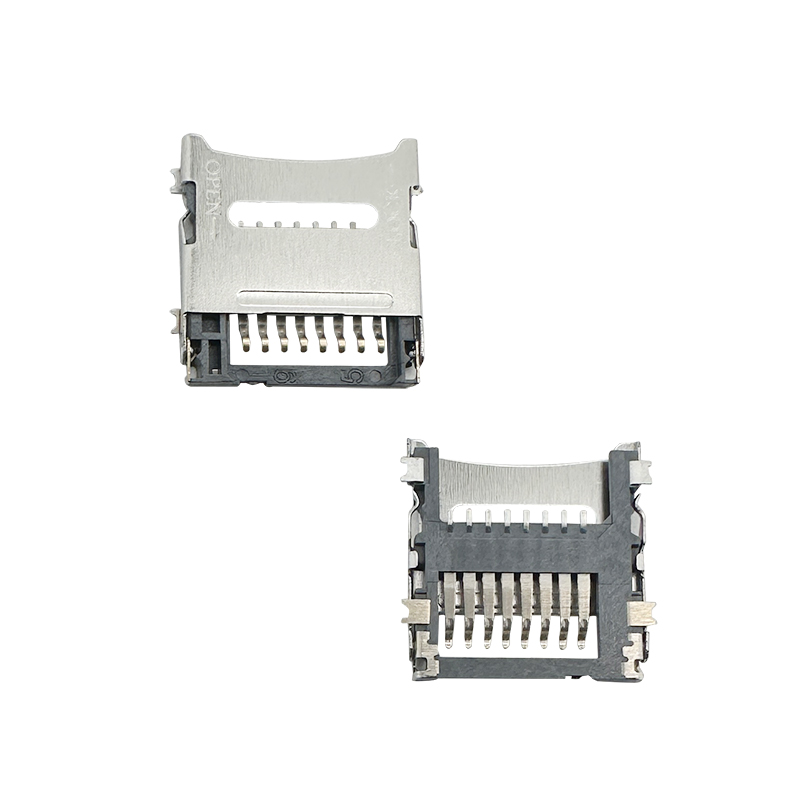

Micro SD Card CONN;HINGED TYPE,H1.5mm & H1.8mm :RHTAYF-007

Series Part No:RHTAYF-007

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Connector Type: Micro SD Card Connector with a hinged design.

-Hinged Mechanism: Allows the connector to open and close, providing protection for the Micro SD card slot and facilitating easy insertion and removal of the SD card.

-Height Options: Available in two height variants: 1.5mm and 1.8mm, allowing flexibility in design and integration into various electronic devices.

-Compact Design: Space-saving and low-profile design suitable for compact electronic devices where board space is limited.

Applications

1.Mobile Devices

2.Digital Cameras

3.Portable Media Players

4.Embedded Systems

Specifications

Micro SD Card CONN;HINGED TYPE,H1.5mm & H1.8mm

Material:

Insulator:Hi-Temperature Plastic,UL94V-0.Black.

Terminal:Copper Alloy.AU Plating on all terminal contact area,and tin plating on solder tail area.

Shell:Stainless Steel.

Electrical:

Current Rating:0.5 A

Voltage Rating:5.0 vrms

Insulation Resistance:1000MΩ Min./500V DC

Withstanding Voltage:250V AC For 1 minute.

Contact Resistance:100mΩ Max.AT 10mA/20mV Max

Operating Temperature: -45ºC~+105ºC

Mating Cycles:10000 Insertions.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

Memory card connectors:GCT MEM2075-00-140-01-A Alternative： RHTAYF-012

Series Part No:RHTAYF-012

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Surface-Mount Technology (SMT): The connector uses SMT, making it easier and more cost-effective to integrate into printed circuit boards (PCBs), streamlining the manufacturing process.
-Stable and Secure Connection: Provides a stable and consistent interface for secure data transmission, minimizing the risk of connection drops or data corruption.
-Low Power Consumption: Ideal for use in battery-powered devices, helping to extend the operational life by consuming minimal power during use.
-RoHS Compliant: Adheres to environmental regulations, being free from harmful substances like lead and cadmium, making it an eco-friendly choice for modern electronics.

Applications

1.Mobile Devices
2.Consumer Electronics
3.Wearable Devices
4.Automotive Systems

Specifications

Micro SD card connector push push,H1.4mm,with CD pin
GCT MEM2075-00-140-01-A Alternative RHTAYF-012
Material:
Insulator:High Temperature Thermoplastic,UL94V-0.
Terminal:Copper Alloy,Plated 50u" Ni Overall. Plated Au Selective
Contact Area Plated 100u" Sn Over Ni On Solder Area.
Shell:Plated 50u" Ni Overall. Plated Au Selective Contact Area
Electrical:
Current Rating:0.5 A AC/DC max.
Voltage Rating:125V AC/DC
Ambient Humidity Range:95% R.H. Max.
Contact Resistance:100mΩ Max.
Insulation Resistance:1000MΩ Min./500VDC
Mating Cycles:5000-20000 Insertions.
Operating Temperature: -45ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

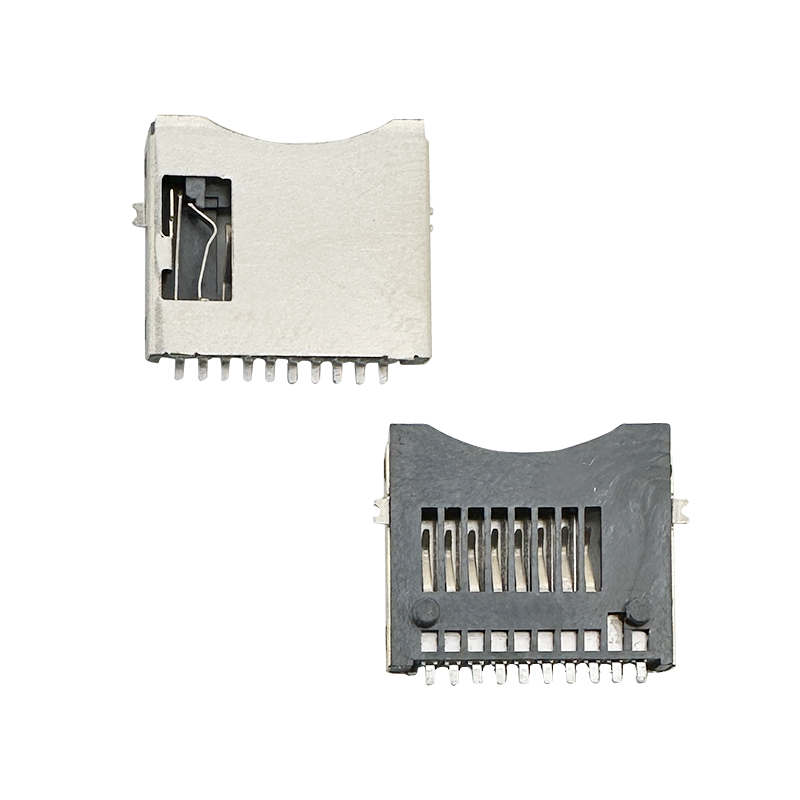

Micro SD card connector no push,H1.8mm:RHTAYF-014

Series Part No:RHTAYF-014

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Connector Type: Micro SD Card Connector without push mechanism.

-Design: Compact and low-profile design suitable for space-constrained electronic devices where board height is limited.

-Height: Specifically designed with a height of 1.8mm, which is standard for many compact devices.

-Termination Type: Surface-Mount Technology (SMT), allowing direct placement and soldering onto PCB pads for reliable electrical connections.

Applications

1.Mobile Devices

2.Digital Cameras

3.Portable Media Players

4.Embedded Systems

Specifications

Micro SD card connector no push,H1.8mm

Material:

Housing:LCP,UL94V-0,Black.

Terminal:Copper Alloy,Selective Gold On Mating Area.

Shell:Iron

Electrical:

Voltage Rating:5V

Current Rating:0.5 A Max.

Contact Resistance:100mΩ Max.

Insulation Resistance:1000MΩ Min.

Withstanding Voltage:500V 1 Minute.

Durability:10000 Cycles.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

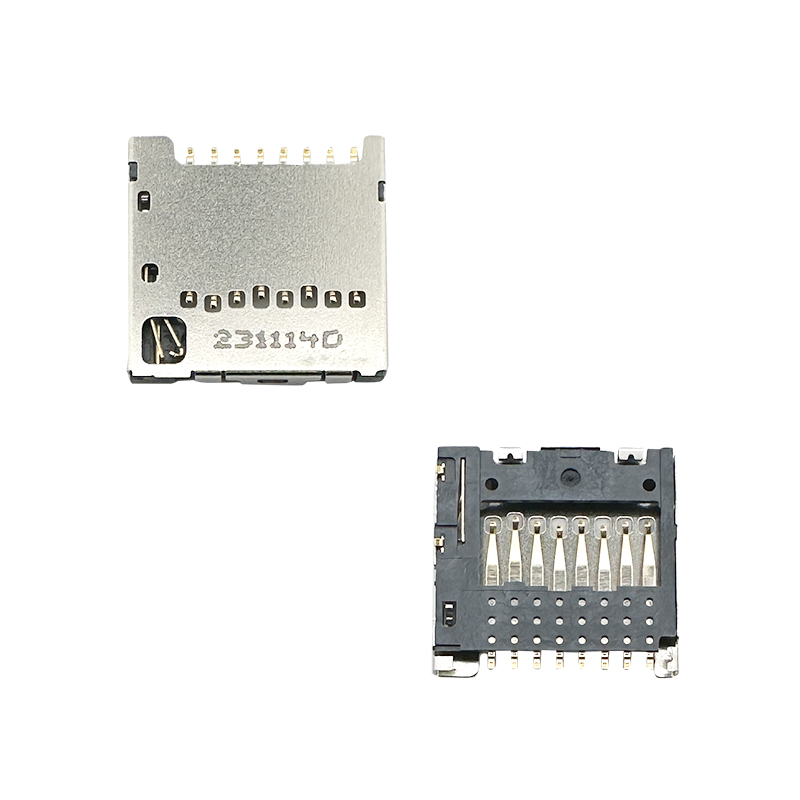

Micro SD card connector push pull,H1.42mm,with CD pin:RHTAYF-015

Series Part No:RHTAYF-015

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Height: Specifically designed with a low profile height of 1.42mm, making it suitable for compact electronic devices where space is limited.

-CD Pin (Card Detect Pin): Used to detect the presence of the Micro SD card. This pin provides a signal to the device indicating whether a card is inserted or not, facilitating automatic detection and handling of card insertion events.

-Latch or Lock Mechanism: Incorporates a latch or lock that secures the Micro SD card in place when inserted. This ensures reliable contact and prevents accidental disconnection during use.

-Durability: Constructed from durable materials to withstand repeated insertion and removal cycles, ensuring longevity and reliability.

Applications

1.Mobile Devices

2.Digital Cameras and Camcorders

3.Portable Gaming Devices

4.Embedded Systems and IoT Devices

Specifications

Micro SD card connector push pull,H1.42mm,with CD pin

Material:

Metal shell:Stainless Steel,Nickel overall 50u"

Housing:Liouid crystal polymer,UL94V-0，Black.

Contact terminals:Phosphor Bronze.Contact:Gold flash;Solder Tail:Gold 1u"Min.

Detect Terminal:Phosphor Bronze.Contact:Gold flash;Solder Tail:Gold 1u" Min.

Switch Terminal:Phosphor Bronze.Contact:Gold flash;Solder Tail:Gold 1u" Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

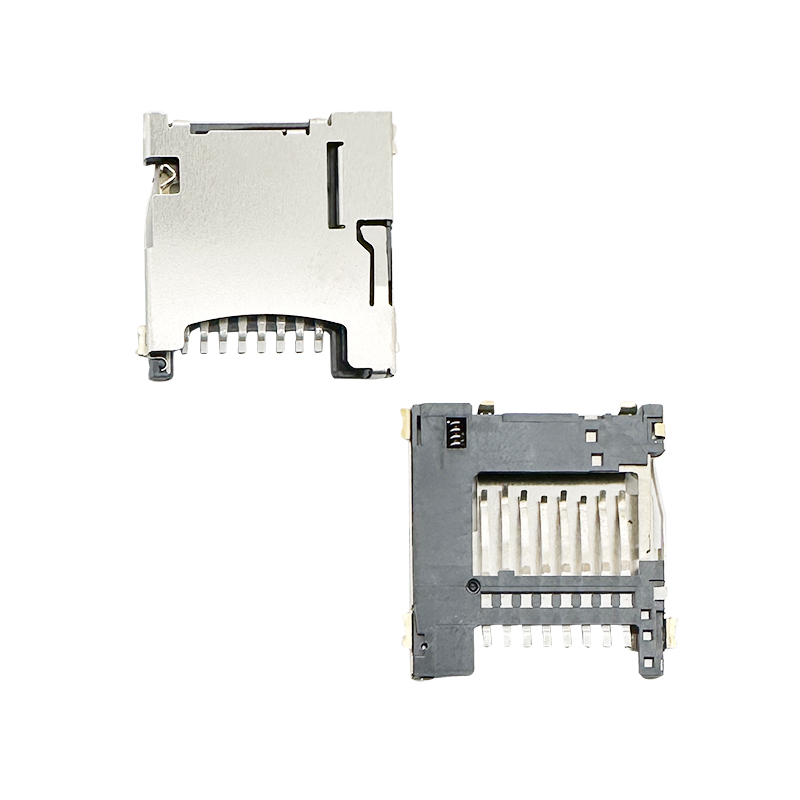

Micro SD card connector push push,H1.4mm,with CD pin:RHTAYF-016

Series Part No:RHTAYF-016

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Hinged Type Mechanism:The hinged design allows the SIM card tray to swing open, facilitating easy insertion and removal of the SIM card. This provides a secure and reliable connection once closed.

-Pin Configuration:Includes 6 pins to support all necessary electrical connections for full functionality and compatibility with standard nano SIM cards.

-Card Detect (CD) Pin:The CD pin detects the presence or absence of a SIM card. This feature allows the device to know when a SIM card is inserted or removed, enabling functionalities like software notifications or hardware triggers.

-Low Profile:With a height of 1.4mm, it is suitable for slim and compact devices, helping to maintain a sleek design.

Applications

1.Smartphones

2.Medical Devices

3.Industrial Equipment

4.Drones and Robotics

Specifications

Nano SIM Card Connector,6Pin,H1.4mm,Hinged Type,with CD Pin

Material:

Insulator:High Temperature Thermoplastic,UL94V-0.

Contact:Copper Alloy,Plated 50u" Ni Overall Contact All Au 1U.

Shell:SUS.All Ni 30U MIN.

Electrical:

Current Rating:0.5A AC/DC MAX.

Voltage Rating:125V AC/DC

Ambient Humidity Range:95% R.H. Max.

Contact Resistance:80mΩ Max.

Insulation Resistance:100MΩ Min./100V DC

Mating Cycles:5000 Insertions.

Operating Temperature: -45ºC~+85ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

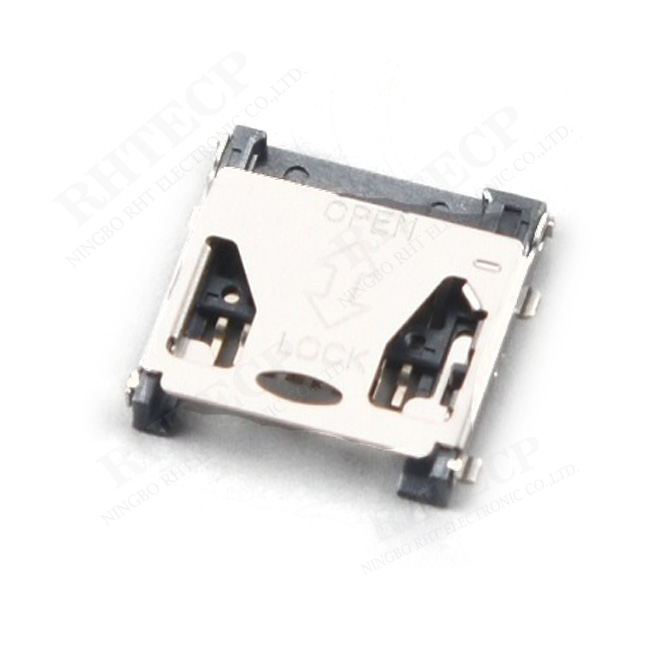

Memory card connectors : RHTAYF-017

Series Part No:RHTAYF-017

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Durability: Designed to withstand thousands of mating cycles, ensuring long-term reliability in high-use environments.
-Wide Compatibility: Supports SD, microSD, and miniSD cards, offering versatility for different storage needs across devices.
-High-Performance Data Transfer: Fast data speeds ideal for applications that require quick access to large files, like video recording or gaming.

-Versatile Applications: Commonly used in mobile devices, consumer electronics, automotive systems, and embedded solutions.

Applications

1.Industrial Equipment
2.Gaming Consoles
3.Embedded Systems
4.Cameras and Camcorders

Specifications

Micro SD card connector HINGED TYPE,H1.9mm
Material:
Insulator:High Temperature Thermoplastic
Flammability Raring,UL94V-0,Black.
Contact:Copper Alloys
Cover:Stainless Steel
Contact Area Plating:Gold voer Ni Solder Tail Coplanarity Must Be Within 0.10MAX.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

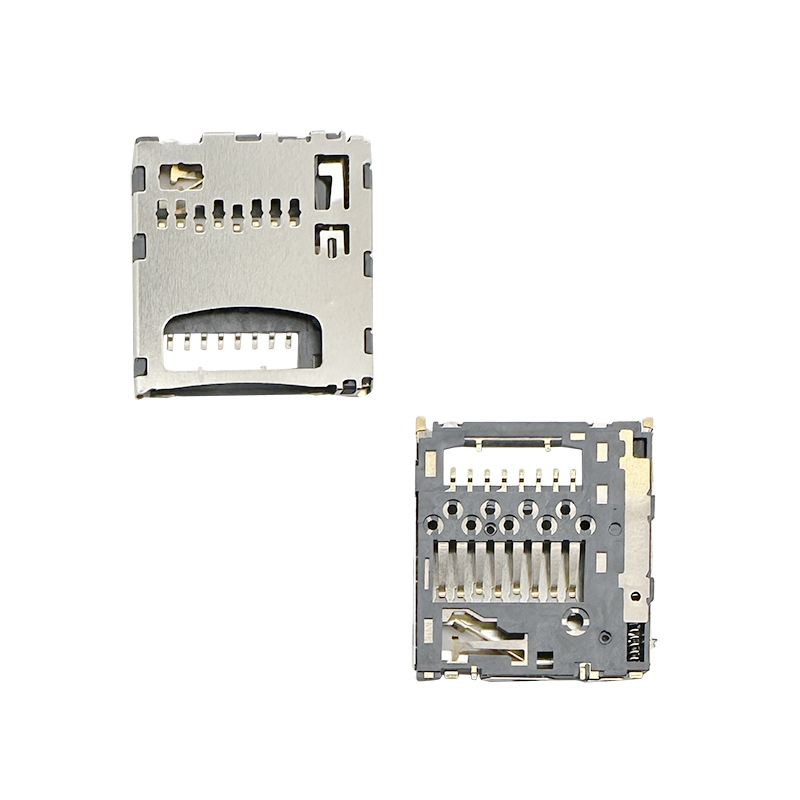

Micro SD card connector push push,H1.29mm,with CD pin :RHTAYF-018

Series Part No:RHTAYF-018

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Latch or Lock Mechanism: Incorporates a latch or lock that secures the Micro SD card in place when inserted. This ensures reliable contact and prevents accidental disconnection during use.

-Durability: Constructed from durable materials to withstand repeated insertion and removal cycles, ensuring longevity and reliability.

-Electrical Performance: Provides secure electrical contacts with low contact resistance, ensuring reliable data transfer between the Micro SD card and the device.

-Gold Plating (Optional): Some connectors may feature gold-plated contacts, which offer enhanced conductivity, corrosion resistance, and durability over standard metal contacts. This is particularly beneficial for applications requiring high reliability and signal integrity.

Applications

1.Embedded Systems and IoT Devices

2.Automotive Applications

3.Consumer Electronics

4.Medical and Healthcare Devices

Specifications

Micro SD card connector push push,H1.29mm,with CD pin

Material:

Insulator:LCP,UL94V-0,Black.

Slide:LCP,UL94V-0,Black.

Latch:Phosphor Bronze.

Contact:Phosphor Bronze.

Shell:SUS304

Spring:Stainless Steel.

Crank-axle:Stainless Steel.

Electrical:

Voltage:100V AC

Current:0.5A Max.

Contact Resistance:40mΩ Max.

Voltage Proof::500V AC

Insulation Resistance:1000MΩ Min.

Card Insertion/Withdrawal Force:10N Max.

Push in strength:10N

Durabitity:10000 Cycles.

Operating Temperature: -45ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

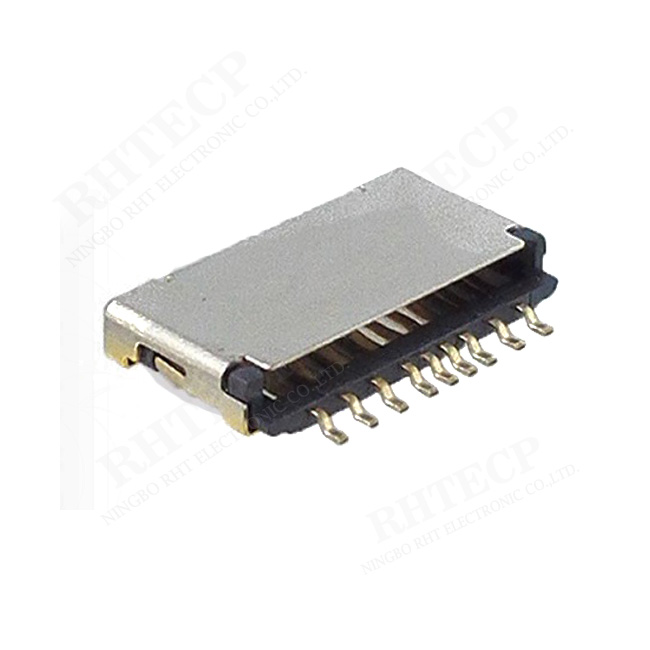

Memory card connectors : RHTAYF-019

Series Part No:RHTAYF-019

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Wide Compatibility: Supports SD, microSD, and miniSD cards, offering versatility for different storage needs across devices.
-Gold-Plated Contacts: Enhances conductivity, reduces corrosion, and ensures stable, long-lasting data transfer.
-High-Performance Data Transfer: Fast data speeds ideal for applications that require quick access to large files, like video recording or gaming.
-Surface-Mount Technology (SMT): Easy to integrate into circuit boards, making production faster and more cost-efficient.

Applications

1.Mobile Devices
2.Consumer Electronics
3.Wearable Devices
4.Automotive Systems

Specifications

Micro SD card connector push pull,H1.5mm,with CD pin
Material:
Housing:High Temperature Thermoplastic,UL94V-0,Black.
Contact:Copper Alloy T=0.15.Plated Gold Flash on Contact Area.
Shell:Stainless Steel T=0.20.Plated Gold Flash on Solder Tails.
Electrical:
Rated Current:0.5A
Rated Voltage:30V
Contact Resistance:50mΩ Max.
Insulation Resistance:100MΩ Min./100V DC
Dielectric Withstanding Voltage:100V AC
Durability:5000 Cycles.
Operating Temperature: -45ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X

Previous page 1 2 3 4 next page
