SIM card connectors & Micro SIM card connectors & Nano SIM Card Connectors

SIM Card Connectors, Micro SIM Card Connectors and Nano SIM Card Connectors are engineered for compact card interfaces and reliable signal transmission. Their design focuses on contact arrangement, spring characteristics, card positioning, insertion force and wear resistance. Optimized contact structures help maintain stable electrical performance through repeated card insertion, while compact housings support space-efficient integration in communication devices, terminals and embedded systems.

Enlarge

Quick View

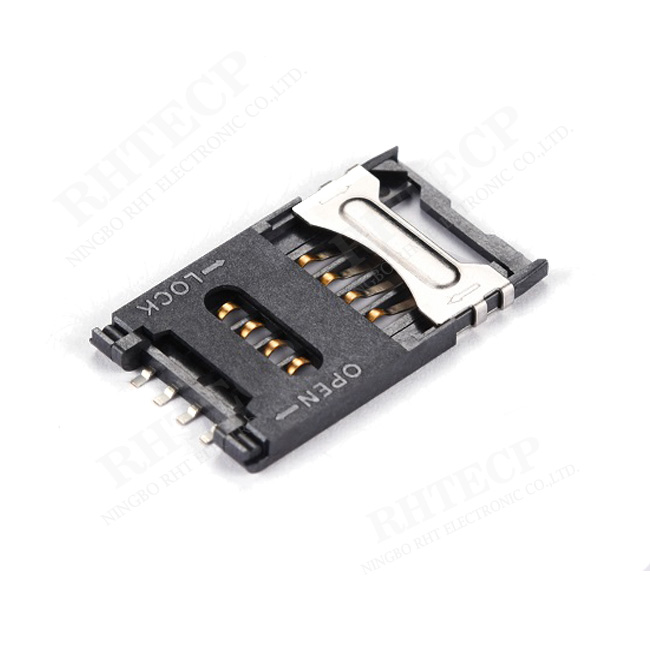

6P & 8P SIM Card Connector Hinged type,H2.5mm : RHTAYIM-012

Series Part No:RHTAYIM-012

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Hinged Mechanism: These connectors feature a hinged design that allows for easy insertion and secure locking of the SIM card, ensuring proper placement and easy removal.
-Compact Design: With a 2.5mm pitch, these connectors are designed to be space-efficient, making them ideal for compact devices where space is limited.
-Multiple Pins (6P or 8P): The 6P version has 6 pins for a standard SIM card, while the 8P version typically offers more pins, supporting additional functionalities or advanced features such as extended memory or enhanced data transfer capabilities.
-Durability and Long Life: The hinged design is built for repeated use, providing a reliable connection and resistance to wear and tear.

Applications

1.GPS Devices
2.Payment Terminals
3.Automotive Applications
4.Industrial Equipment

Specifications

6P & 8P SIM Card Connector Hinged type,H2.5mm
Material:
Housing:LCP UL94V-0
Contact Terminal:Phosphor Bronze
Metallic Shell:Stainless Steel-SUS304
Plating:
Contact Terminal Plating
Contact Area:5μ" Gold
Soldering Area:100μ" Tin
Under-plating:50μ" Nickel above
Electrical:
Voltage Rating:50 V max
Current Rating:1A max
Operating Temperature: -45ºC~+105ºC
Contact Resistance:50 mΩ typical,100mΩ max
Insulating Resistance:1000 mΩ min.(Apply 500V DC)
Dielectric Withstanding Voltage:500 VAC for 1 minute
Mechanical:
Durability:min 5,000 cycles
Packing:
R=Roll Pack T=Tube Pack

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

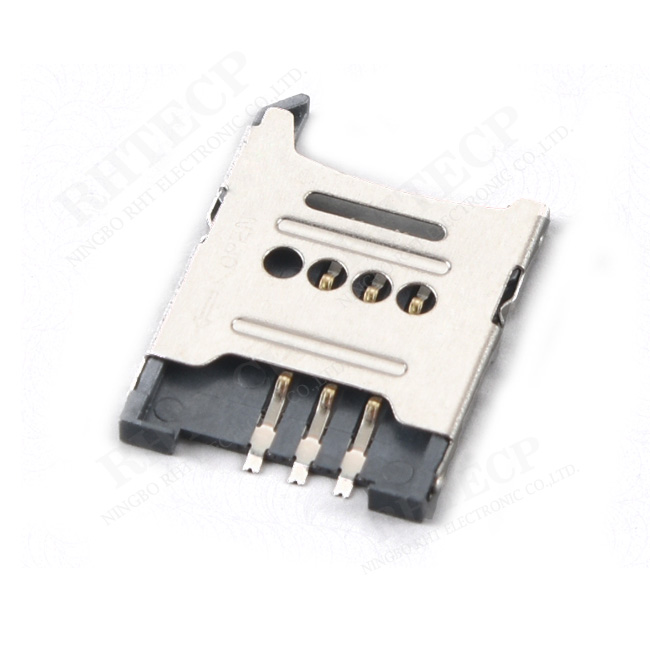

6P＋2P With Switch　SIM Card Connector,Hinged type,H2.5mm：RHTAYIM-012C

Series Part No:RHTAYIM-012C

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-6P+2P Configuration: Supports 6 pins for primary connections and 2 pins for secondary connections, offering flexible functionality.
-Hinged Type Design: Ensures easy access and secure installation, with a hinged mechanism for efficient use.
-Compact H2.5mm Pitch: The 2.5mm pitch allows for a small, space-saving design while maintaining reliable connectivity.
-Built-in Switch: Includes a switch for added functionality, allowing for easy control or power management.

Applications

1.GPS Devices
2.Smart Meters
3.Automotive Electronics
4.Consumer Electronics

Specifications

6P＋2P With Switch　SIM Card Connector,Hinged type,H2.5mm
Material:
Housing:LCP UL94V-0
Contact Terminal:Phosphor Bronze
Metallic Shell:Stainless Steel-SUS304
Plating:
Contact Terminal Plating
Contact Area:5μ" Gold
Soldering Area:100μ" Tin
Under-plating:50μ" Nickel above
Electrical:
Voltage Rating:50 V max
Current Rating:1A max
Operating Temperature: -45ºC~+105ºC
Contact Resistance:50 mΩ typical,100mΩ max
Insulating Resistance:1000 mΩ min.(Apply 500V DC)
Dielectric Withstanding Voltage:500 VAC for 1 minute
Mechanical:
Durability:min 5,000 cycles
Packing:
R=Roll Pack T=Tube Pack

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

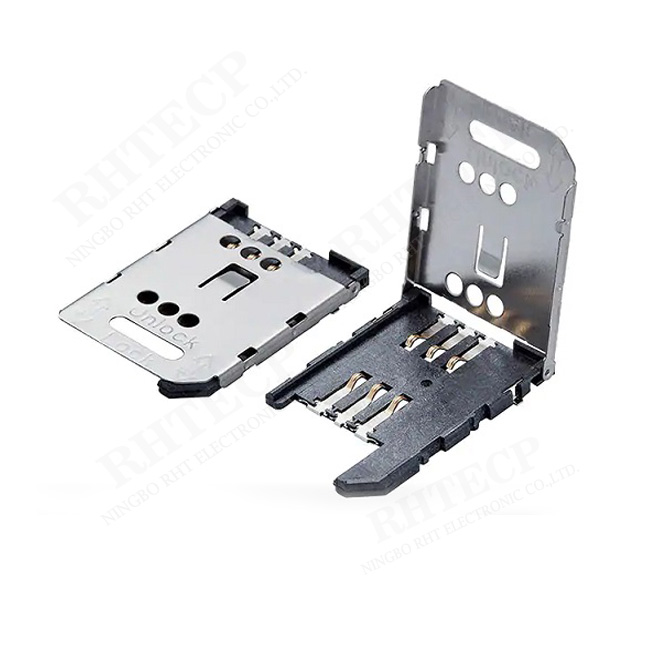

6P SIM Card Connector Hinged type,H1.8mm：RHTAYIM-018A

Series Part No:RHTAYIM-018A

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-1.8mm Height: The height of the connector is 1.8mm, which is a standard size for compact devices, ensuring the connector is slim enough for mobile phones, tablets, and other devices with limited space.
-Material: Typically, the connectors are made from durable plastic with metal contacts to ensure proper electrical connection and long-term durability. The metal contacts are usually gold-plated or nickel-plated for corrosion resistance.
-Spring Contacts: The connector uses spring-loaded pins to ensure a stable and reliable connection between the SIM card and the device, compensating for any slight misalignment during insertion.
-Low Profile: The 1.8mm height offers a low profile, which makes the connector ideal for slim designs in mobile or IoT devices.

Applications

1.Mobile Phones
2.Tablets
3.IoT Devices
4.Embedded Systems

Specifications

6P SIM Card Connector Hinged type,H1.8mm
NOTES:
1.0 RATING.
1.1 VOLTAGE:12 VAC (rms)
1.2 CURRENT: 1 AMPERES MAX. PER CONTACT
ELECTRIC CHARACTERISTICS:
2.1 CONTACT RESISTANCE:60mΩ
2.2 INSULATION RESISTANCE: 1000MΩ
2.3 DIELECTRIC WITHSTANDING
VOLTAGE:500V AC FOR 1 MINUTE
3.0 OPERATION LIFE: 5000 CYCLES
4.0 Operating Temperature: -45ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

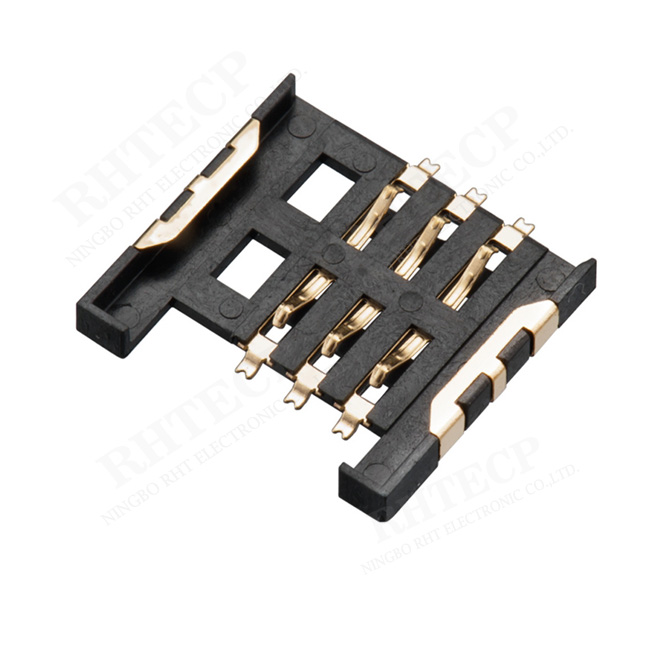

6P SIM Card Connector Hinged type,H1.9mm：6P SIM Card Connector Hinged type,H1.9mm：RHTAYIM-019

Series Part No:RHTAYIM-019

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-6-Pin (6P) Design: This design features six pins that make contact with the SIM card, ensuring a reliable electrical connection for data transfer.
-Hinged Mechanism: The hinged type allows for easy and secure insertion and removal of the SIM card. The hinge provides a smooth opening and closing action, ensuring the SIM card stays in place during use.
-1.9mm Height: The height of the connector is 1.9mm, making it a slim and compact solution ideal for devices where space is limited but a SIM card slot is necessary.
-Durable Materials: The connectors are typically made with high-quality plastic and gold-plated or nickel-plated metal contacts to ensure long-term durability and resistance to corrosion.

Applications

1.Mobile Phones
2.Tablets
3.Wearable Devices
4.IoT Devices

Specifications

6P SIM Card Connector Hinged type,H1.9mm
Material:
Housing:LCP,UL94V-0.Black.
Terminal:C5210R-EH T=0.15mm
Shell:SUS304R-1/2H,T=0.20mm
Operating Temperature: -45ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

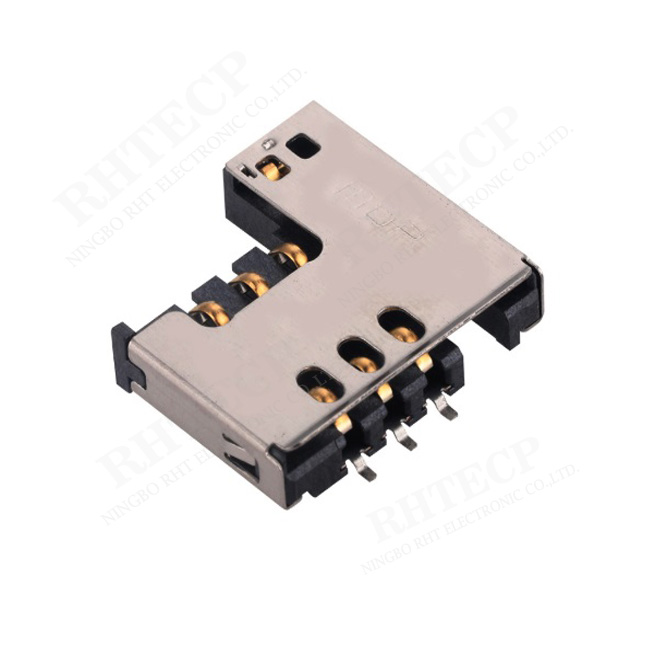

SIM Card Connector;PUSH PULL,6P+2P,H3.0mm : RHTAYIM-C727-2

Series Part No:RHTAYIM-C727-2

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Push-Pull Eject Mechanism： Designed for tool-free, user-friendly SIM card insertion and removal, perfect for applications requiring frequent access.
-6P+2P Contact Configuration： Offers 6 standard SIM contacts plus 2 extra pins for added features like card detection or grounding, enhancing circuit flexibility.
-Ultra-Low Profile (H3.0mm)： Slim 3.0mm height ideal for space-constrained designs such as GPS trackers, wearables, and IoT modules.
-Reliable Electrical Performance： Gold-plated contacts ensure strong signal transmission, excellent conductivity, and long-term durability in harsh environments.

Applications

1.Security Systems
2.Wireless Communication Terminals
3.Industrial Control Units
4.Embedded SIM Solutions

Specifications

SIM Card Connector;PUSH PULL,6P+2P,H3.0mm
Material:
Base:Hi Temp Thermoplastic,Black UL94V-0
Cover:Stainless Steel
Data Contact:Copper Alloy, Gold plated
Switch Contact 1:Copper Alloy,Gold plated
Switch Contact 2:Copper Alloy,Gold plated
General Characteristics
Dimensions:15.85L*16.50W*3.00H mm
Weight:Approx 0.78%%P0.2g
Durability:5000 cycles min.
Electrical Characteristics
Contact Resistance:50mΩ typical 100mΩ Max.
Insulation Resistance:1000MΩ Min./500V DC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

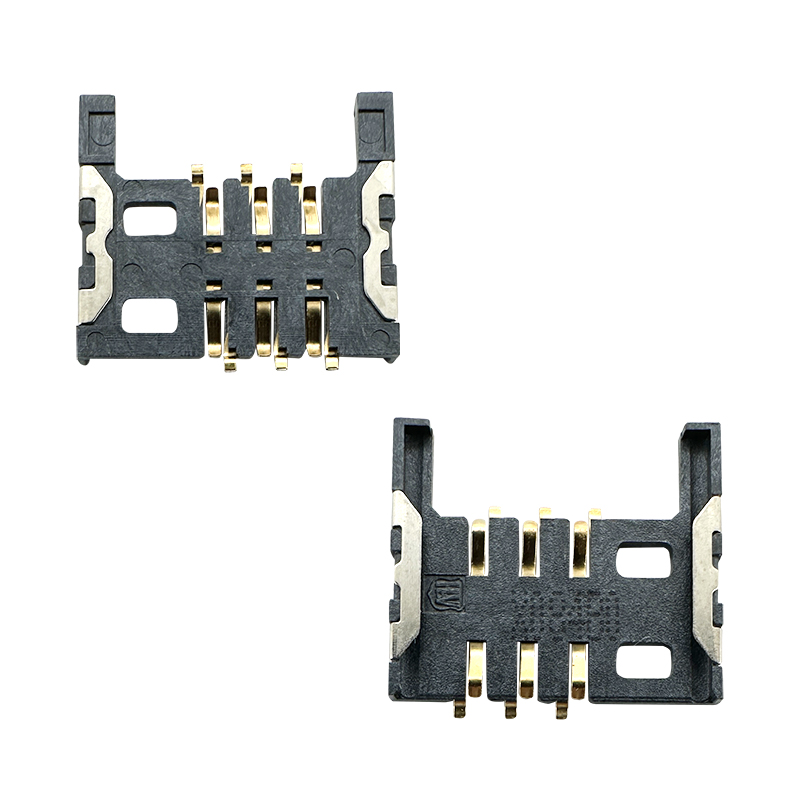

6P SIM Card Connector Push-Pull Mechanism,H2.7mm:RHTAYIM-015

Series Part No:RHTAYIM-015

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-6-Pin Configuration: Designed to support 6-pin SIM cards, providing versatile connectivity options for mobile and embedded devices.

-Low-Profile Design: At only 2.7mm in height, this connector offers a compact solution for devices with limited internal space.

-Push-Pull Mechanism: Features a user-friendly push-pull action that allows for easy SIM card insertion and removal while ensuring secure retention.

-Reliable Contact Performance: Constructed with durable contacts that ensure stable, long-lasting electrical performance and signal integrity.

-Durability: Built for high durability, designed to withstand frequent insertions and removals without degradation of performance.

Applications

1.Smartphones and Mobile Devices

2.Smart Meters and Remote Sensors

3.Wearable Devices

4.Automotive Electronics

5.Point-of-Sale (POS) Terminals

Specifications

6P SIM Card Connector,PUSH PULL,H2.7mm

Material:

Housing:Hi-Temp.Plastic,UL94V-0.Black.

Terminal:Copper Alloy,(T=0.15mm),Gold Plated Over Nickel.

Fork:Copper Alloy,(T=0.20mm),Tin Plated Over Nickel.

Electrical:

Current Rating:1.0 A max.

Contact Resistance:30mΩ Max.

Dielectric Withstanding Voltage:500V AC RMS For One Minute.

Insulation Resistance:1000MΩ Min.At 500V DC

Operating Temperature:-40%%DC TO +85%%DC.

Operating Temperature: -45ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

6P SIM Card Connector,PUSH PULL,H1.7mm: RHTAYIM-015B

Series Part No:RHTAYIM-015B

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-6-Pin Configuration: The connector has six contact pins, which are typically used for connecting SIM cards in electronic devices.
-Push-Pull Mechanism: This feature allows the SIM card to be inserted and ejected easily. The push-pull mechanism ensures secure insertion while also allowing for convenient removal when needed.
-Compact Height (H1.7mm): The connector is designed with a low profile of 1.7mm height, making it suitable for devices with limited space while maintaining a stable connection.
-Durability: It is designed for high durability, typically able to withstand a large number of insertions and extractions without degradation of the connection.

Applications

1.Mobile Phones
2.Smart Devices
3.Wearables
4.IoT Devices

Specifications

6P SIM Card Connector,PUSH PULL,H1.7mm
Material:
Housing:Hi-Temp.Plastic,UL94V-0.Black.
Terminal:Copper Alloy,(T=0.15mm),Gold Plated Over Nickel.
Fork:Copper Alloy,(T=0.20mm),Tin Plated Over Nickel.
Electrical:
Current Rating:1.0 A max.
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:500V AC RMS For One Minute.
Insulation Resistance:1000MΩ Min.At 500V DC
Operating Temperature:-40%%DC TO +85%%DC.
Operating Temperature: -45ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

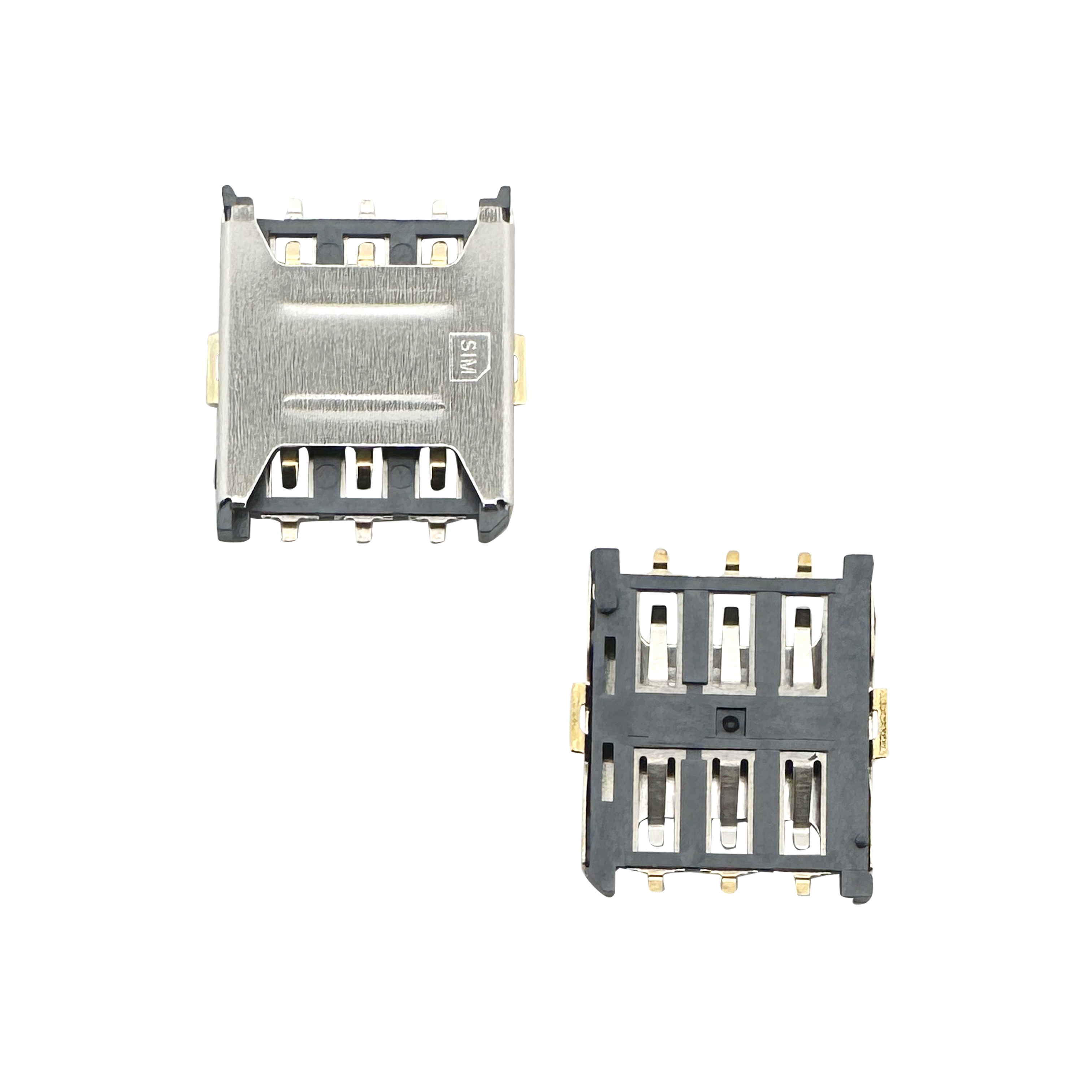

SIM Connector Push-Pull H2.2mm :RHTAYIM-044A

Series Part No:RHTAYIM-044A

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Push-Pull Mechanism: Features a user-friendly push-pull design that allows for easy card insertion and removal while ensuring secure retention.

-Space-Efficient: Ideal for space-constrained applications, offering a slim profile that fits into small PCBs and tight designs.

-EMI Protection: Provides electromagnetic interference shielding, maintaining signal stability and minimizing disruptions.

-Easy Assembly: Designed for quick and simple integration into electronic devices, making it easier for manufacturers to assemble.

Applications

1.Mobile Phones.

2.Modems and Routers

3.Internet of Things (IoT) Devices

4.GPS Trackers

Specifications

6P SIM Card Connector,PUSH PULL,H2.2mm

Material:

Housing:High Thermoplastic,UL94V-0.Black.

Terminal:Copper Alloy.

Shell:Copper Alloy.

Finish:

Contact:Gold Over Nickel.

Shell:Nickel Over All Over.

Electrical:

Operating Voltage:30V

Current Rating:0.5 A

Operating Temperature: -45ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X

Previous page 1 2 3 4 5 6 7 8 next page
