Features
-Pitch: The pitch of 2.0mm refers to the distance between the centerlines of adjacent contacts (pins). This standard pitch ensures compatibility with other connectors and components designed for 2.0mm pitch spacing.
-Connector Type: IDC socket connectors consist of rows of sockets or receptacles designed to accept male ribbon cable connectors with insulation displacement contacts. They establish electrical connections between ribbon cables and PCBs (Printed Circuit Boards) or between PCBs and external components.
-Insulation Displacement Contact (IDC) Technology: IDC connectors feature contacts that pierce through the insulation of flat ribbon cables when inserted, establishing a gas-tight connection. This eliminates the need for stripping insulation from individual wires, simplifying assembly and reducing potential points of failure.
-Material and Construction:
Contacts: Made from phosphor bronze or beryllium copper for good electrical conductivity and durability. They are designed to pierce through the insulation of ribbon cables without damaging the conductors.
Housing: Made from high-temperature thermoplastics or thermoset plastics that provide mechanical strength, durability, and resistance to heat and chemicals.
Applications
1.Telecommunications Equipment
2.Computing Devices
3.Consumer Electronics
4.Automotive Electronics
Specifications

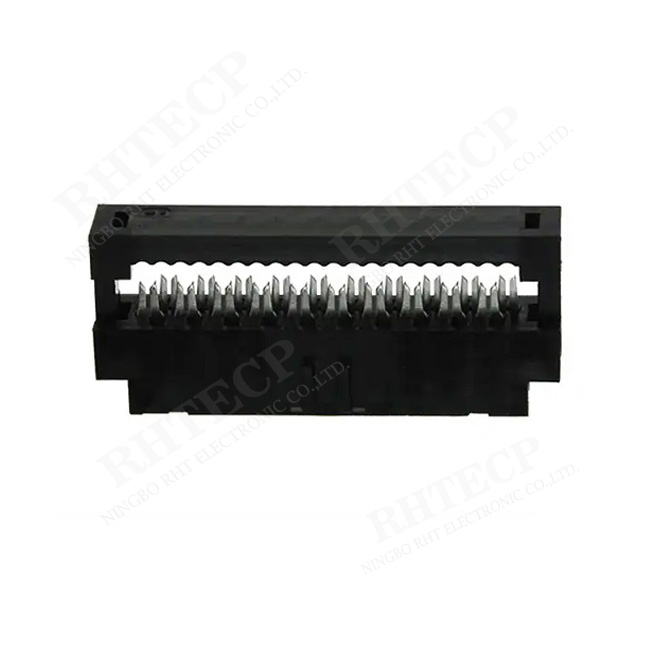

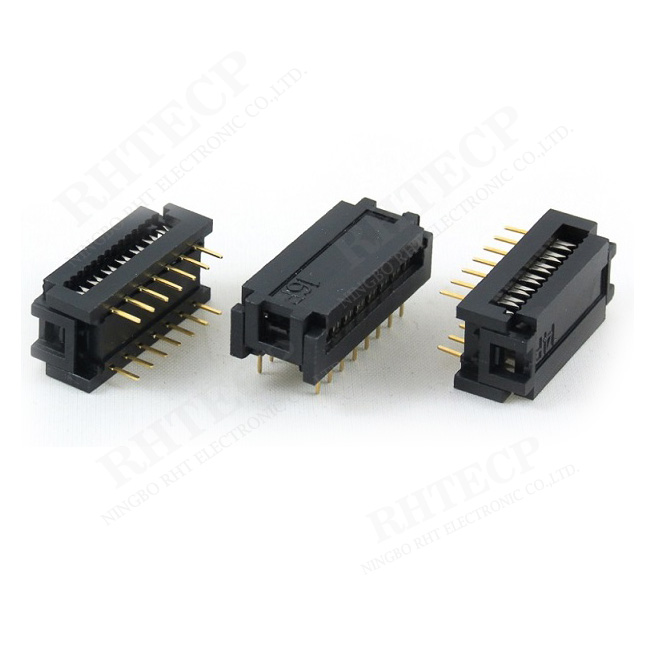

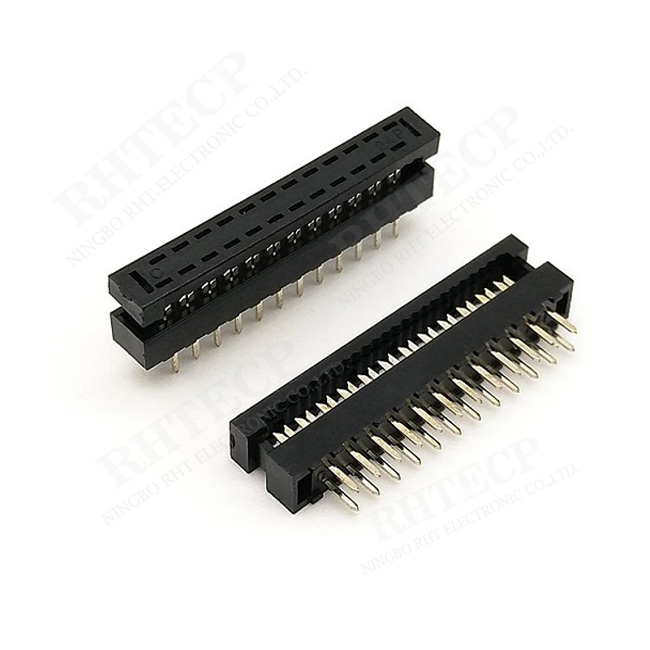

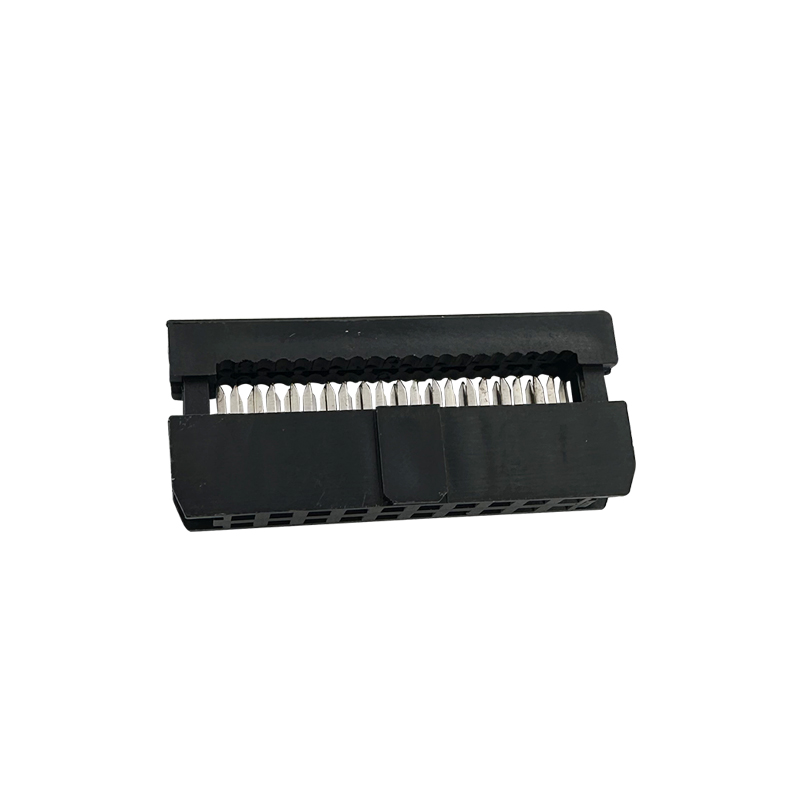

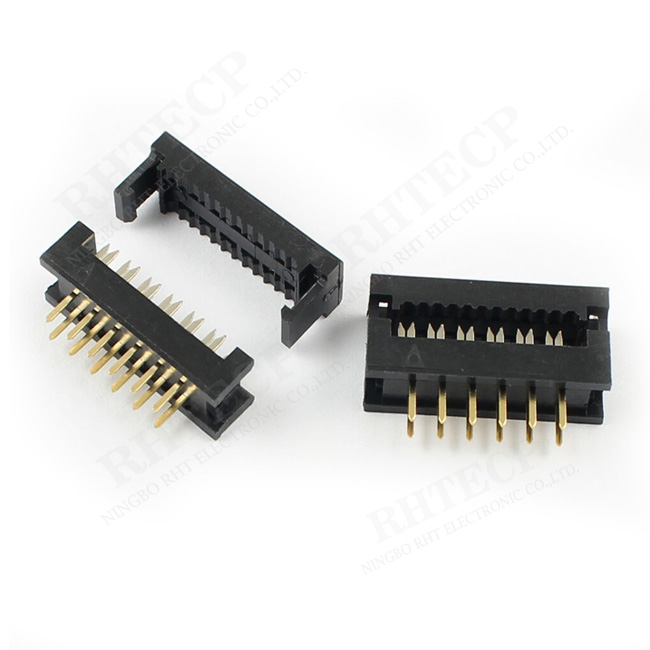

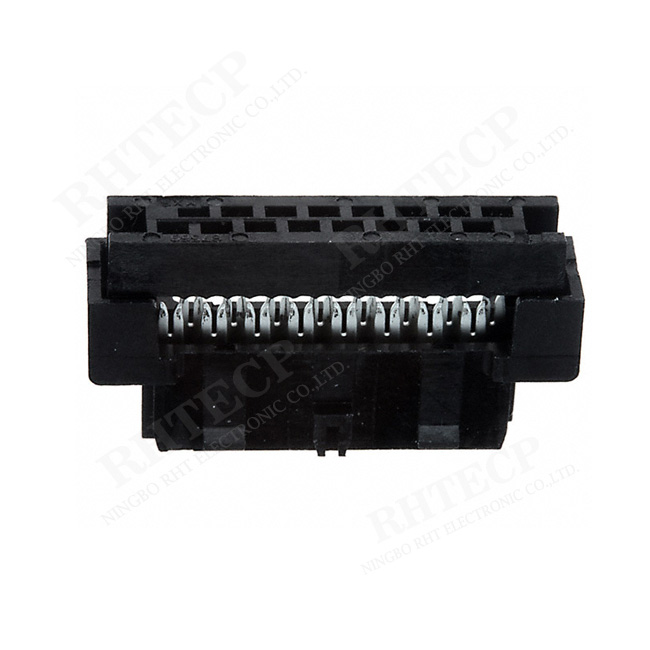

2.0mm Pitch IDC Socket Connector
Order Information:
RHTAY04B-XX-B
XX-No.of 06~80pin
Color: B=Black G=Gray L=Blue
Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Brass
Plating:Au or Sn over 50u" nickel
Electrical Characteristics:
Current Rating: 1.0 AMP
Insulator Resistance: 1000M Ohm min.
Withstand Voltage: 500V AC / Minute
Contact Resistance: 20m Ohm max.
Operating Temperature: -40ºC~+105ºC
Technical Documents
Please contact us for more information.
