Features
-Ejector Mechanism: The ejector latch or lever provides additional mechanical stability, making these connectors suitable for applications where vibration or movement is a concern.
Mating Force: Designed to provide a secure and stable connection with appropriate mating force, ensuring reliable performance in demanding environments.
-Through-Hole Mounting: Typically designed for through-hole mounting on PCBs, providing a strong and reliable mechanical connection. This mounting style is suitable for applications where robust PCB attachment is required.Surface Mount Technology (SMT): Some ejector headers are available with surface mount terminations, enabling automated assembly processes and compatibility with SMT PCB designs.
-Thermoplastic Housing: Made from materials like PBT (Polybutylene Terephthalate) or Nylon, providing mechanical strength, heat resistance, and resistance to environmental factors.
-Polarization Features: Some ejector connectors may include polarization features or keying options to ensure proper alignment during mating, preventing incorrect connections that could damage components or affect performance.
Applications
1.Networking and Communication Devices
2.Consumer Electronics
3.Automotive Electronics
4.Medical Devices and Instrumentation
Specifications

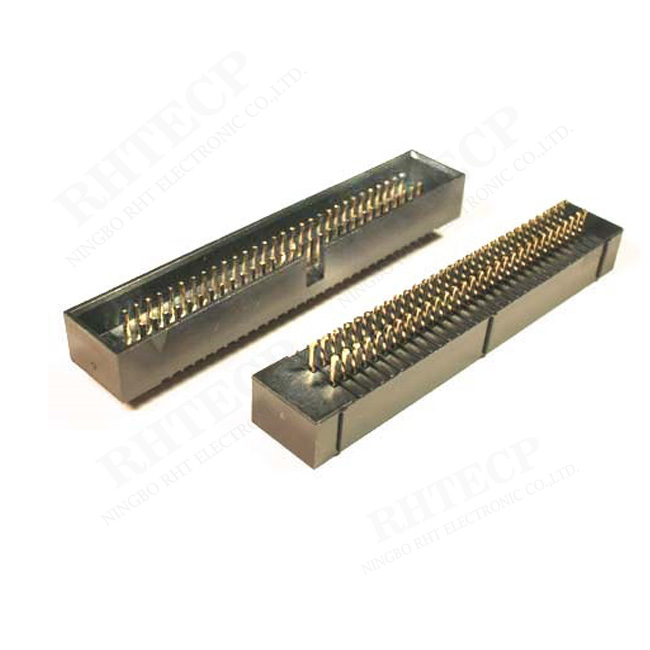

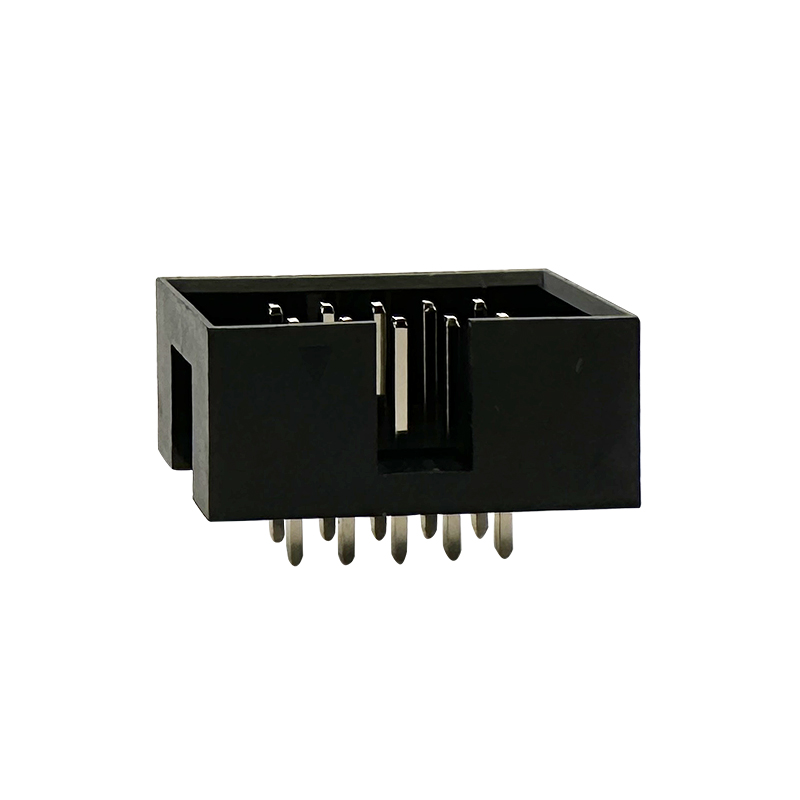

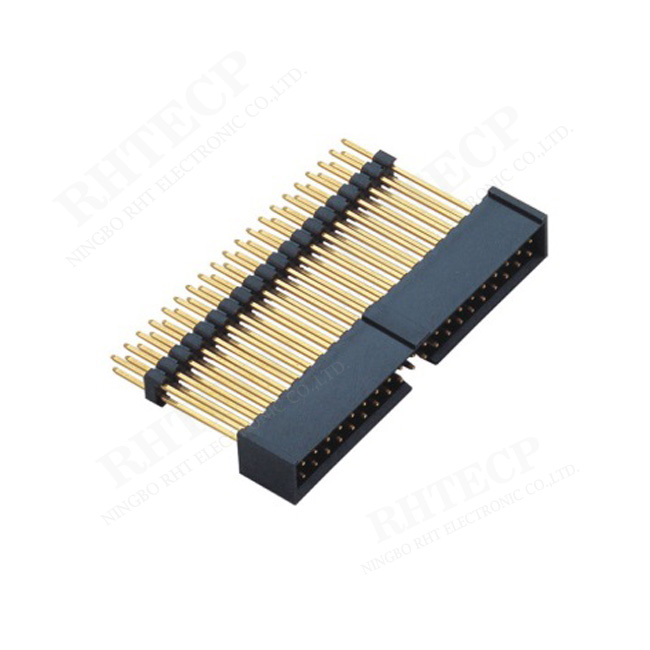

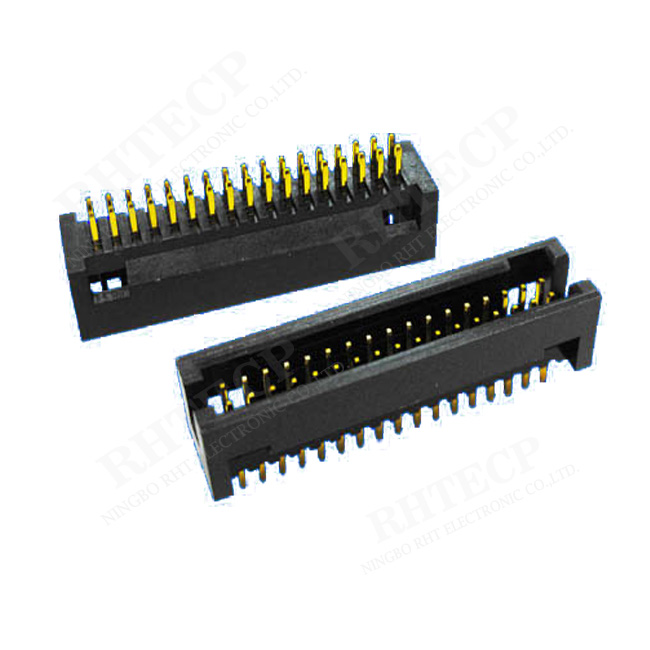

2.54mm Pitch Box Header Connector With Latch
Order Information:
RHTAY01X-XX-S-B-口-口
XX-No.of 06~64 pin

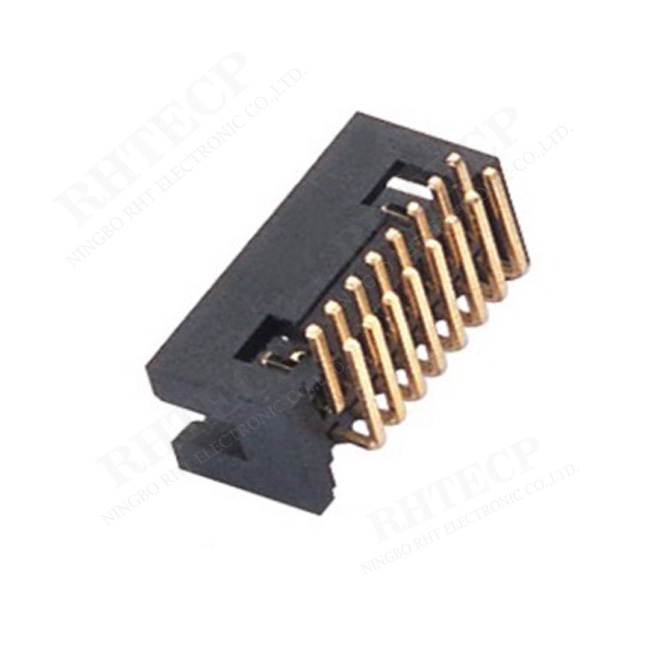

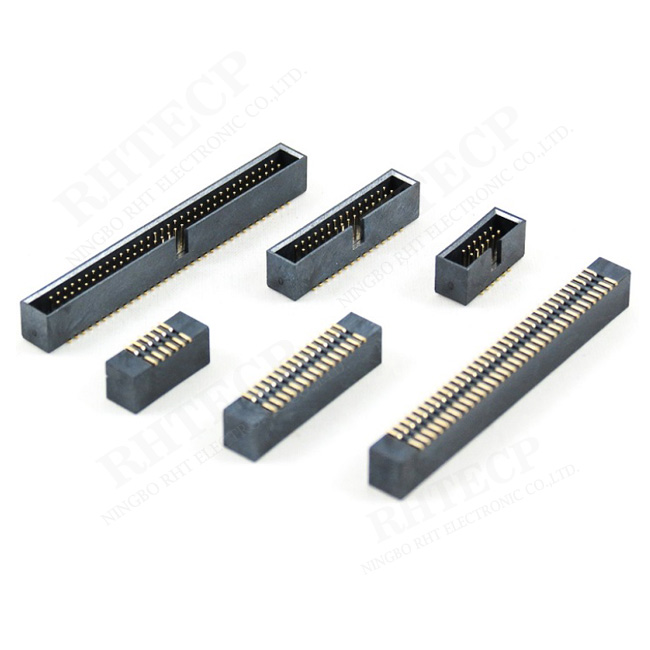

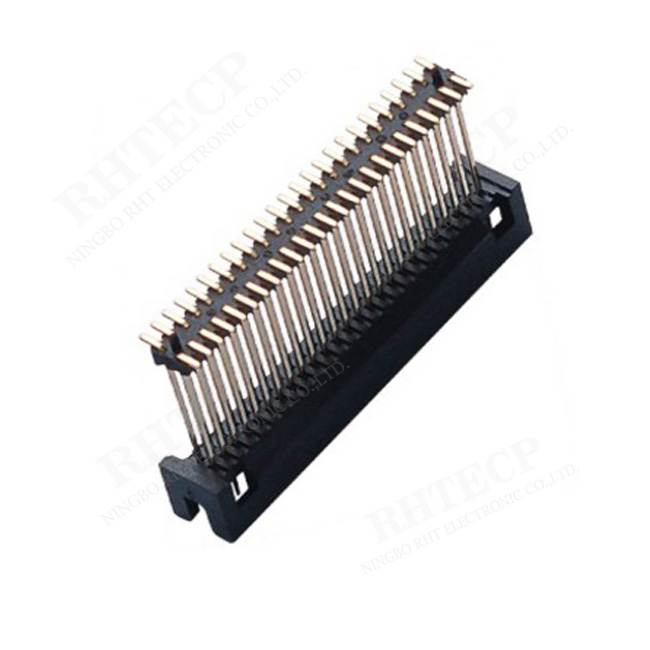

S-Straight pin R-Right Angle Pin T-SMT Pin
Color: B=Black G=Gray
None=Long latch S=Short latch
Material:NONE=PBT B=PA6T
Material:
Housing: PBT UL94V-0, Black
Contacts: Brass
Plating:Gold 1u" over 50u" nickel
Electrical Characteristics:
Current Rating: 3.0 AMP
Insulator Resistance: 1000M Ohm min.
Withstand Voltage: 1000V AC/DC
Contact Resistance: 20m Ohm max.
Operating Temperature: -45ºC~+105ºC
Technical Documents
Please contact us for more information.
