Wire to board connectors & Wire to wire connectors

Wire to Board Connectors and Wire to Wire Connectors are engineered for efficient electrical connections between wires, PCBs and cable assemblies. Their design considers terminal geometry, contact force, locking mechanisms, wire retention and housing strength. Optimized structures help improve assembly accuracy, vibration resistance and connection stability, supporting reliable power and signal transmission in control systems, automotive electronics and industrial equipment.

Enlarge

Quick View

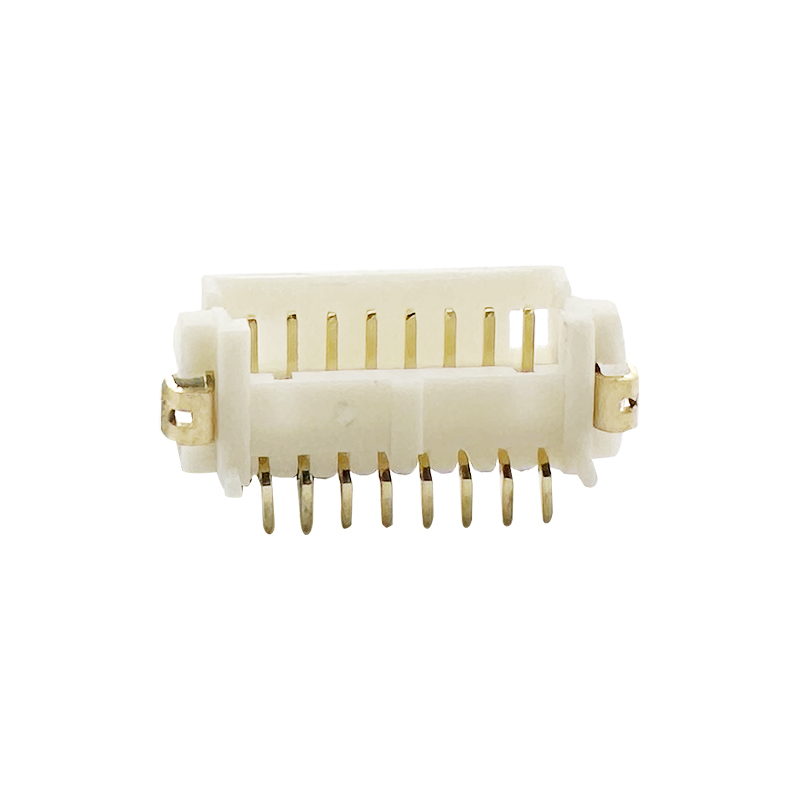

Hirose DF13-xxP-1.25DSA Double row 1.25mm HRS DF13 type wire to board connector:RHTAYL4-1.25-2

Series Part No:RHTAYL4-1.25-2

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Hirose DF13-xxP-1.25DSA

Features

-Termination Type: Typically features crimp-style contacts for wire-to-board connections, allowing wires to be securely attached to the connector using crimping tools.

-Housing and Locking Mechanism: The connector usually includes a plastic housing that holds the contacts in place and provides stability. It may also feature a locking mechanism to ensure a secure mating between the connector and the receptacle.

-Current Rating and Voltage: Depending on the specific model, the connector has a rated current and voltage, ensuring it meets electrical safety standards and can handle the required power transmission.

-Durability and Reliability: Designed to withstand mechanical stress, vibrations, and environmental conditions typical in various applications.

Applications

1.Telecommunications

2.LED Lighting

3.Industrial Equipment

4.Medical Devices

Specifications

Double row 1.25mm HRS DF13 type wire to board connector

Order information:

RHTAYL4-1.25-2X02-H

Pitch:1.25mm

Pins:1=Single layer 2=Double layer

Pin numbur:2~40 pins

H=Hosing

Specifications

◆Material: Nylon UL 94V0 (Lead Free)

◆Contact : Phosphor Bronze

◆Finish : Plated Tin or Gold Flash Lead over Nickel

◆Current rating:1A AC,DC

◆Voltage rating:150V AC,DC

◆Temperature range:-35℃~+85℃

◆Insulationresistance:100MΩ/Min.

◆Withstanding voltage:500V AC/minute

◆Contact resistance:30mΩ/Max.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

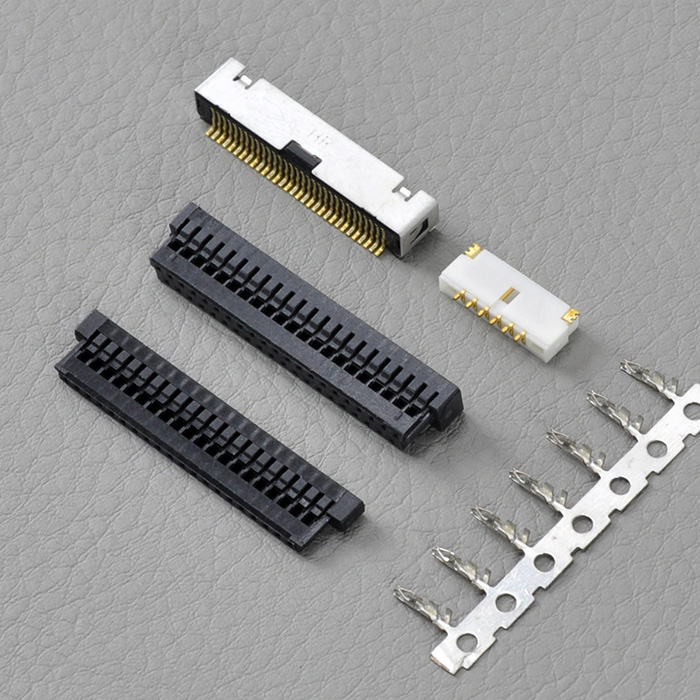

1.25mm HRS DF14 type wire to board connector : RHTAYL5-1.25

Series Part No:RHTAYL5-1.25

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-1.25mm Pitch: Ideal for medium-density PCB designs requiring precise wire-to-board connections.
-HRS DF14 Compatibility: Fully compatible with Hirose DF14 series connectors for seamless integration.
-Secure Locking Mechanism: Ensures stable and reliable connections, preventing accidental disconnection.
-Compact and Low Profile: Space-saving design suitable for compact electronic devices.

Applications

1.Networking Equipment
2.Measurement Instruments
3.IoT Devices
4.Wearable Technology

Specifications

1.25mm HRS DF14 type wire to board connector
Order information:
RHTAYL5-1.25-02-H
Pitch:1.25mm
pins:2~30 pins
H=Hosing / T=Terminal / M=SMT Male pin
Specifications
◆Material: Nylon UL 94V0 (Lead Free)
◆Contact : Phosphor Bronze
◆Finish : Plated Tin or Gold Flash Lead over Nickel
◆Current rating:1A AC,DC
◆Voltage rating:150V AC,DC
◆Temperature range:-35℃~+85℃
◆Insulationresistance:100MΩ/Min.
◆Withstanding voltage:500V AC/minute
◆Contact resistance:30mΩ/Max.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

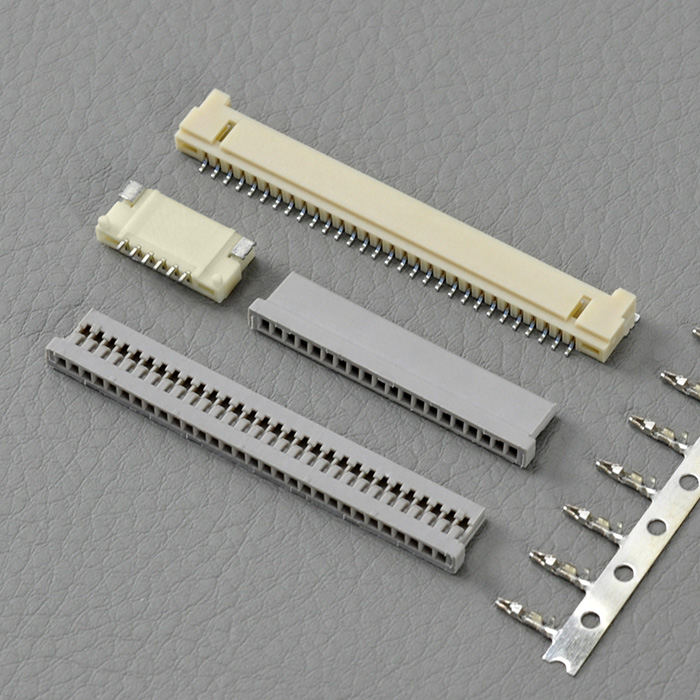

1.25mm JAE FI-S type wire to board connector : RHTAYL6-1.25

Series Part No:RHTAYL6-1.25

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-1.25mm Pitch: Suitable for medium-density PCB layouts with precise wire-to-board connections.
-JAE FI-S Compatibility: Fully compatible with JAE FI-S series connectors for seamless system integration.
-Secure Locking Mechanism: Ensures stable mating and prevents accidental disconnection during use.
-Compact and Low Profile: Designed to save space in compact electronic devices and systems.

Applications

1.Consumer Electronics
2.Communication Devices
3.Medical Equipment
4.Industrial Automation

Specifications

1.25mm JAE FI-S type wire to board connector
Order information:
RHTAYL6-1.25-02-H
Pitch:1.25mm
pins:2~30 pins
H=Hosing / T=Terminal / M=SMT Male pin
Specifications
◆Material: Nylon UL 94V0 (Lead Free)
◆Contact : Phosphor Bronze
◆Finish : Plated Tin or Gold Flash Lead over Nickel
◆Current rating:1A AC,DC
◆Voltage rating:200V AC,DC
◆Temperature range:-35℃~+85℃
◆Insulationresistance:100MΩ/Min.
◆Withstanding voltage:500V AC/minute
◆Contact resistance:40mΩ/Max.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

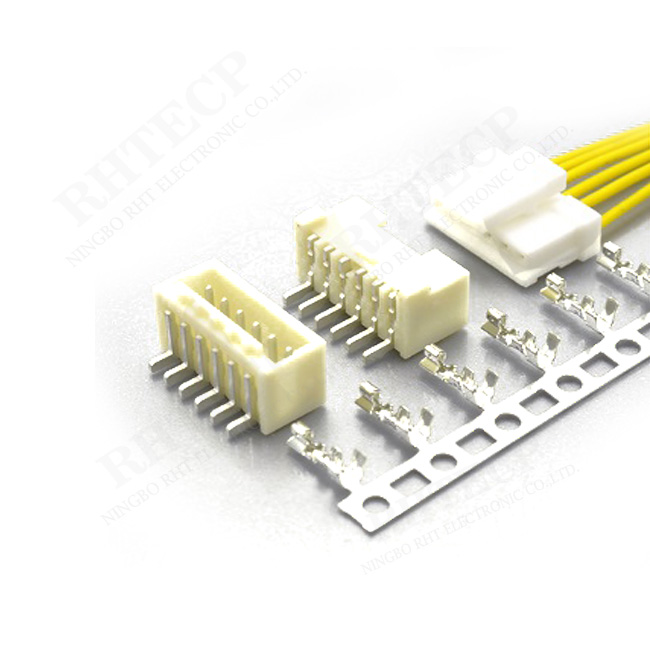

1.25mm wire to board connector :RHTAYL7-1.25

Series Part No:RHTAYL7-1.25

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Reliable Electrical Contacts: Provides consistent conductivity and signal integrity.
-Durable Construction: Made from high-quality materials for long service life and multiple mating cycles.
-Easy Assembly: Supports automated manufacturing and manual installation.
-RoHS Compliant: Environmentally friendly and meets international standards.

Applications

1.Industrial Automation
2.Automotive Electronics
3.Portable Devices

4.Networking Equipment

Specifications

1.25mm wire to board connector
Order information:
RHTAYL7-1.25-02-H
Pitch:1.25mm
pins:2~30 pins
H=Hosing / T=Terminal / M1=SMT Right Angle Male pin / M2=SMT Straight Male pin
Specifications
◆Material: Nylon UL 94V0 (Lead Free)
◆Contact : Phosphor Bronze
◆Finish : Plated Tin or Gold Flash Lead over Nickel
◆Current rating:1A AC,DC
◆Voltage rating:150V AC,DC
◆Temperature range:-35℃~+85℃
◆Insulationresistance:500MΩ/Min.
◆Withstanding voltage:500V AC/minute
◆Contact resistance:30mΩ/Max.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

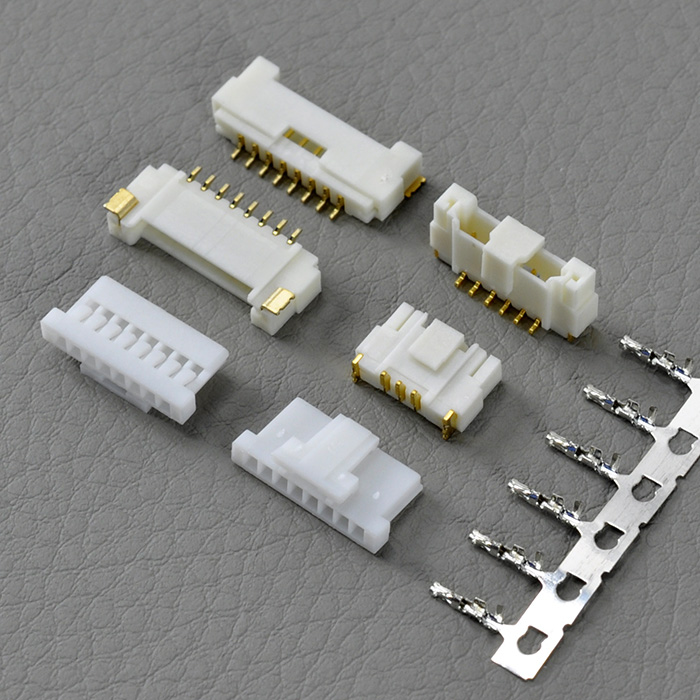

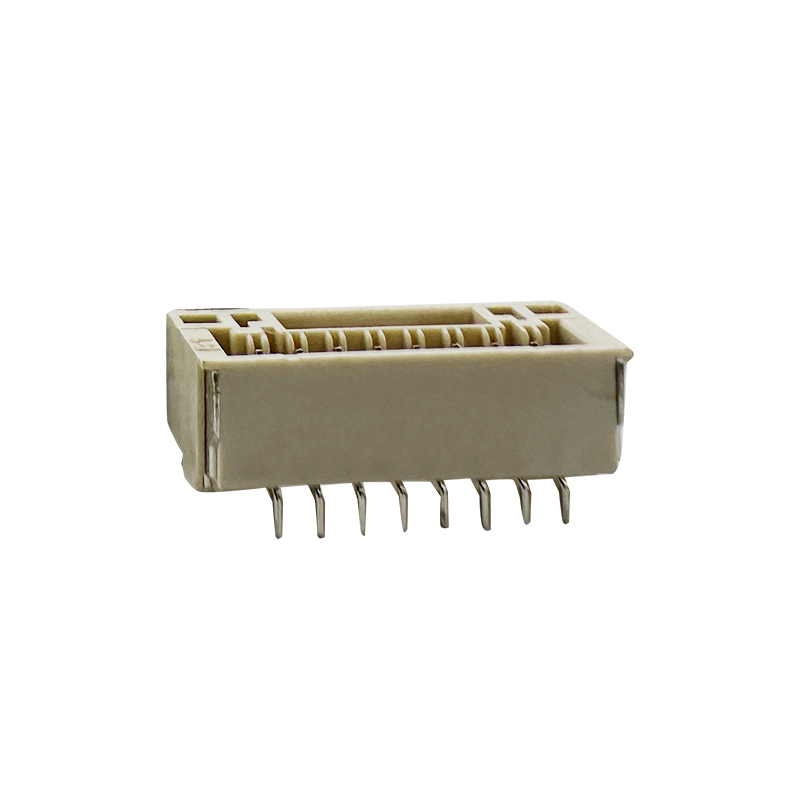

JST SMxxB-GHS-TB 1.25mm JST GHR SSHL wire to board connector :RHTAYL8-1.25

Series Part No:RHTAYL8-1.25

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

JST SMxxB-GHS-TB

Features

-Durability: Constructed with materials that provide durability and reliability in various environmental conditions, ensuring long-term performance.

-Mounting Style: Can be surface mount (SMT) or through-hole mount (THM), depending on the specific application requirements and design considerations.

-Locking Mechanism: Some models may feature locking mechanisms to ensure secure mating and prevent accidental disconnection, enhancing reliability in dynamic applications.

-Housing Material: Typically made from materials such as thermoplastics or thermosets, chosen for their mechanical strength, electrical insulation properties, and resistance to heat and chemicals.

Applications

1.Medical Devices

2.Computer and Peripherals

3.Industrial Equipment

4.Telecommunications

Specifications

1.25mm wire to board connector

Order information:

RHTAYL8-1.25-02-H

Pitch:1.25mm

pins:2~30 pins

H=Hosing / T=Terminal / M1=SMT Male pin

Specifications

◆Material: Nylon UL 94V0 (Lead Free)

◆Contact : Phosphor Bronze

◆Finish : Plated Tin or Gold Flash Lead over Nickel

◆Current rating:1A AC,DC

◆Voltage rating:50V AC,DC

◆Temperature range:-35℃~+85℃

◆Insulationresistance:100MΩ/Min.

◆Withstanding voltage:500V AC/minute

◆Contact resistance:30mΩ/Max.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

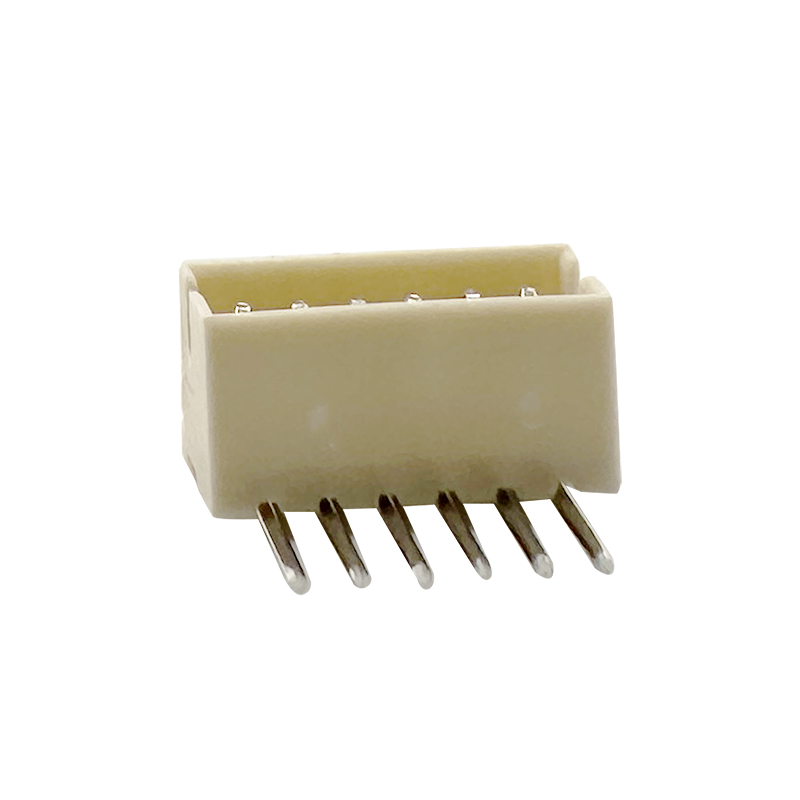

JST SxxB-ZR-SM4-TF 1.50mm JST ZH Type Wire To Board Connector:RHTAYL1-1.50

Series Part No:RHTAYL1-1.50

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

JST SxxB-ZR-SM4-TF

Features

-Pitch:Pitch of 1.50mm (0.059 inches), which refers to the distance between the centers of adjacent contacts. This pitch size is suitable for applications requiring moderate density interconnections on PCBs (Printed Circuit Boards).

-Connector Types:Available in various configurations including headers (male) and receptacles (female), supporting different mating and termination options.

-Number of Contacts:Configurations typically range from single-row connectors with a few contacts to multiple rows, providing flexibility in the number of connections required for the application.

-Contact Material:Contacts are usually made from phosphor bronze or copper alloy, ensuring good electrical conductivity and mechanical strength.

Applications

1.Medical Devices

2.LED Lighting Systems

3.Test and Measurement Instruments

4.Security Systems

Specifications

Electrical Specification:

Rated Voltage: 50/125V AC.DC

Rated Current: 0.7A 1A

Contact Resistance: 0.02 Ohm max

Insulation Resistance: 1000M Ohm min

Withstand voltage: 800V AC/MIN

Temperature range for usage : -25ºC~+85ºC

P.C board thickness : 0.8~1.6mm

Material:

Housing: PA66 (PA66) UL94V-2

Contacts: Brass or Phosphor Bronze

Plating: Tin 50u" over 100u" nickel

Wire range : AWG#32~#22

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

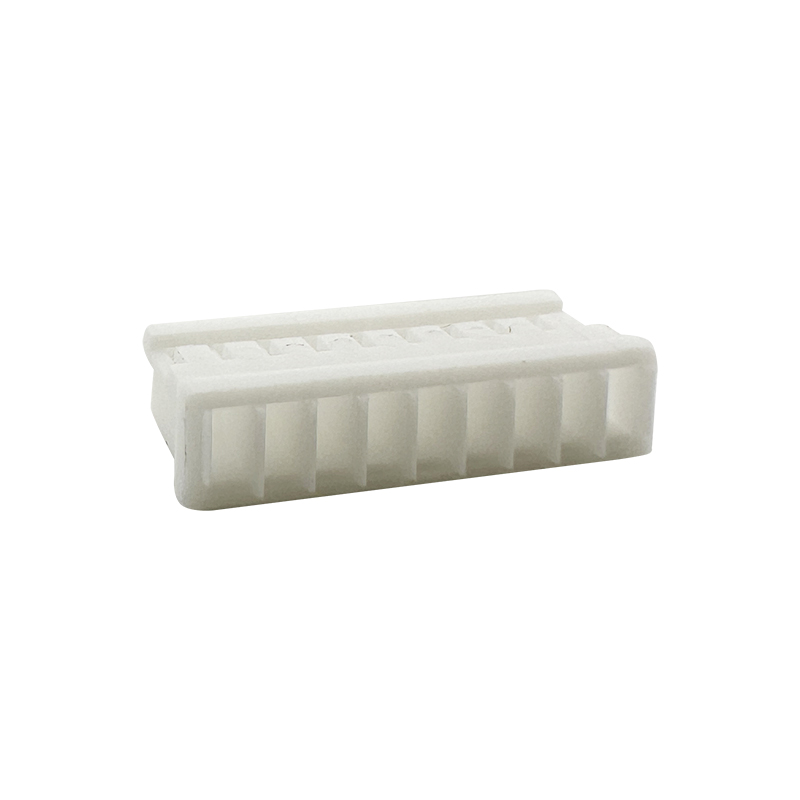

MOLEX 87437-xx73 1.50mm Molex 87439 Type Wire To Board Connector :RHTAYL2-1.50

Series Part No:RHTAYL2-1.50

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

MOLEX 87437-xx73

Features

-Pitch:Pitch of 1.50mm (0.059 inches), which refers to the distance between the centers of adjacent contacts. This pitch size is suitable for applications requiring moderate density interconnections on PCBs (Printed Circuit Boards).

-Connector Types:Available in various configurations including headers (male) and receptacles (female), supporting different mating and termination options.

-Number of Contacts:Configurations typically range from single-row connectors with a few contacts to multiple rows, providing flexibility in the number of connections required for the application.

-Contact Material:Contacts are usually made from phosphor bronze or copper alloy, ensuring good electrical conductivity and mechanical strength.

Applications

1.Automotive Electronics

2.Industrial Automation

3.Telecommunications Equipment

4.Medical Devices

Specifications

1.50mm Molex 87439 Type Wire To Board Connector

Order information:

RHTAYL2-1.50-02-H

Pitch:1.50mm

pins:2~16

H=Hosing / T=Terminal M1=SMT Right Angle Male pin / M2=SMT Straight Male pin

Specifications

Material: Nylon UL 94V0 (Lead Free)

Contact : Phosphor Bronze

Finish : Plated Tin or Gold Flash Lead over Nickel

Current rating:3A AC,DC

Voltage rating:250V AC,DC

Temperature range:-35℃~+85℃

Insulationresistance:1000MΩ/Min.

Withstanding voltage:500V AC/minute

Contact resistance:20mΩ/Max.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

Pitch 1.50mm Wire To Board Connector : RHTAYL4-1.50

Series Part No:RHTAYL4-1.50

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Compact and Space-Saving Design: The 1.50mm pitch provides a small footprint, ideal for applications where PCB space is limited and miniaturization is critical.
-Reliable Electrical Performance: Engineered to ensure consistent and stable electrical contact, minimizing signal loss and maintaining high transmission quality.
-Versatile Current and Voltage Ratings: Suitable for low to moderate current and voltage applications, making it adaptable for a wide range of electronic devices.
-Secure and Easy Mating: Features a robust locking mechanism that prevents accidental disconnection while allowing for easy mating and unmating during assembly and maintenance.

Applications

1. Industrial Equipment
2.Automotive Electronics
3.Wearable Devices
4.Networking Equipment

Specifications

Specifications
◆Material: Nylon UL 94V0 (Lead Free)
◆Contact : Phosphor Bronze
◆Finish : Plated Tin or Gold Flash Lead over Nickel
◆Current rating:2.5A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-35℃~+85℃
◆Insulationresistance:1000MΩ/Min.
◆Withstanding voltage:500V AC/minute
◆Contact resistance:20mΩ/Max.

Technical Documents

Please contact us for more information.

X

X

Previous page 1 2 3 4 5 6 7 8 next page
